White rectangular wall switch with magnetic key slot and three insert cards

Ruth's sister

Ruth's sister Type 86 Magnetic Key Power Switch with 3 Insert Cards internal power cable

SKU CH-T691-58S3J

Magnetic key card switch controls up to 6600 W hotel or residential power with three insert cards included

  • Energy-saving magnetic key cuts power when removed
  • 220 V 50-60 Hz operation for hotel mains supply
  • 6600 W 30 A load capacity handles heavy circuits

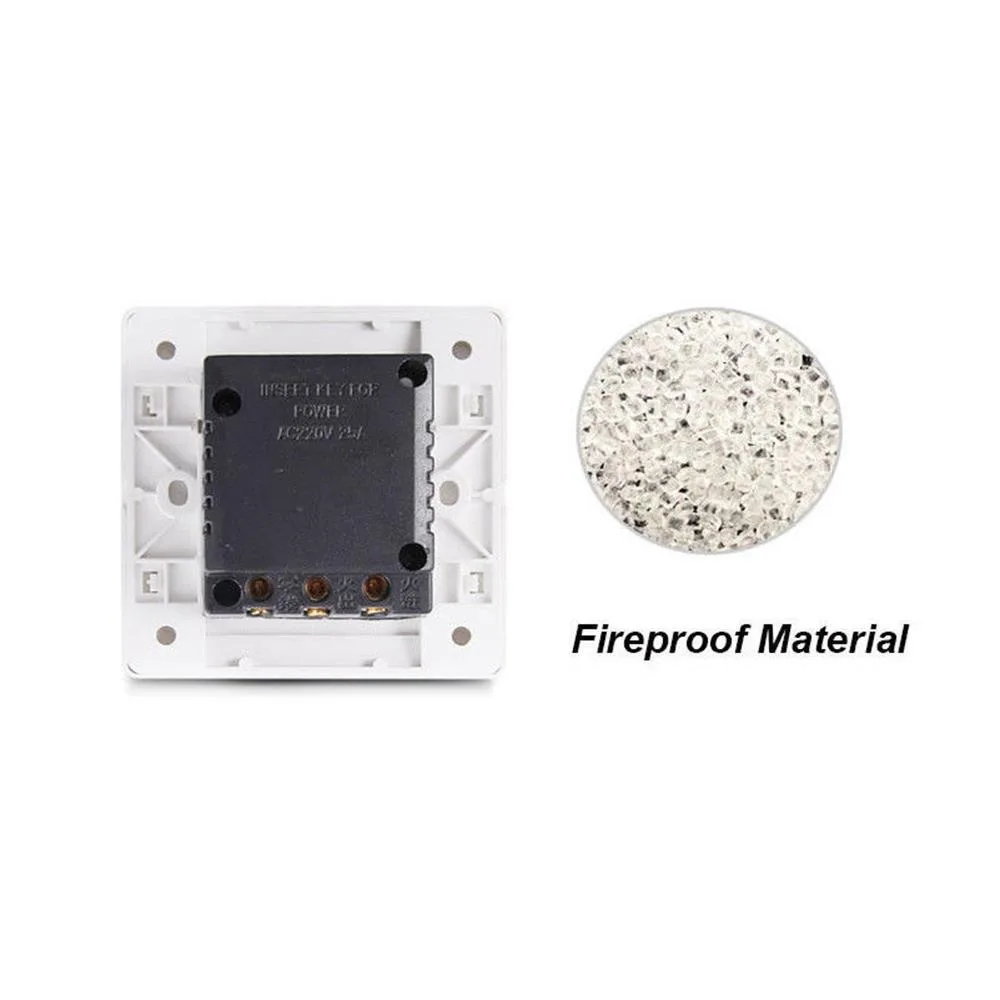

  • Fireproof PC housing rated for -20 to 50 °C environments
  • Standard 86×86 mm Type 86 wall-plate footprint

Hotel magnetic key power switch

This Type 86 magnetic key switch controls mains power in hotel rooms and similar indoor spaces. Inserting one of the three supplied cards activates the circuit, removing it cuts power to save energy. The unit mounts in a standard 86 mm by 86 mm wall box and operates at 220 V 50 Hz to 60 Hz. It is intended for new construction or retrofit projects where card-activated master power control is required.

Simple wall-box installation

The switch fits a standard Type 86 back box and connects directly to the mains supply; no separate plug or transformer is needed. Wiring must handle up to 30 A and 6 600 W load, so use conductors and breakers rated for that current. The mechanism is an on-off type with no built-in delay, so power cuts the moment the card is removed. Ensure the mounting depth of 37 mm is available behind the front plate and that the ambient temperature stays between minus 20 and 50 degrees Celsius.

Verify mains voltage and load before ordering

Confirm the site runs on 220 V AC at 50 Hz or 60 Hz; other voltages are not supported. Check that the total connected load will not exceed 6 600 W or 30 A. The fire-rated PC housing meets basic safety requirements but carries no named certification, so local regulations may require additional approval. Buyers who need a delayed power-off function, a different form factor, or a certified product for regulated markets should look elsewhere.

Highlights

  • Energy-saving magnetic key cuts power when removed
  • 220 V 50-60 Hz operation for hotel mains supply
  • 6600 W 30 A load capacity handles heavy circuits
  • Fireproof PC housing rated for -20 to 50 °C environments
  • Standard 86×86 mm Type 86 wall-plate footprint

Specifications

No published specifications for this item yet.

Questions about this item

How do I confirm the magnetic key switch is operating correctly after installation?

Verify the connected load powers on and off cleanly when the magnetic card is inserted and removed, with no delay between the two actions.

What components are included and what must be purchased separately?

The package contains one card power switch unit and three magnetic insert cards; mounting hardware and supply wiring are not included.

Which version suits a standard hotel room circuit?

The single 220 V 50-60 Hz model rated for 6600 W (30 A) covers typical hotel room power control needs.
