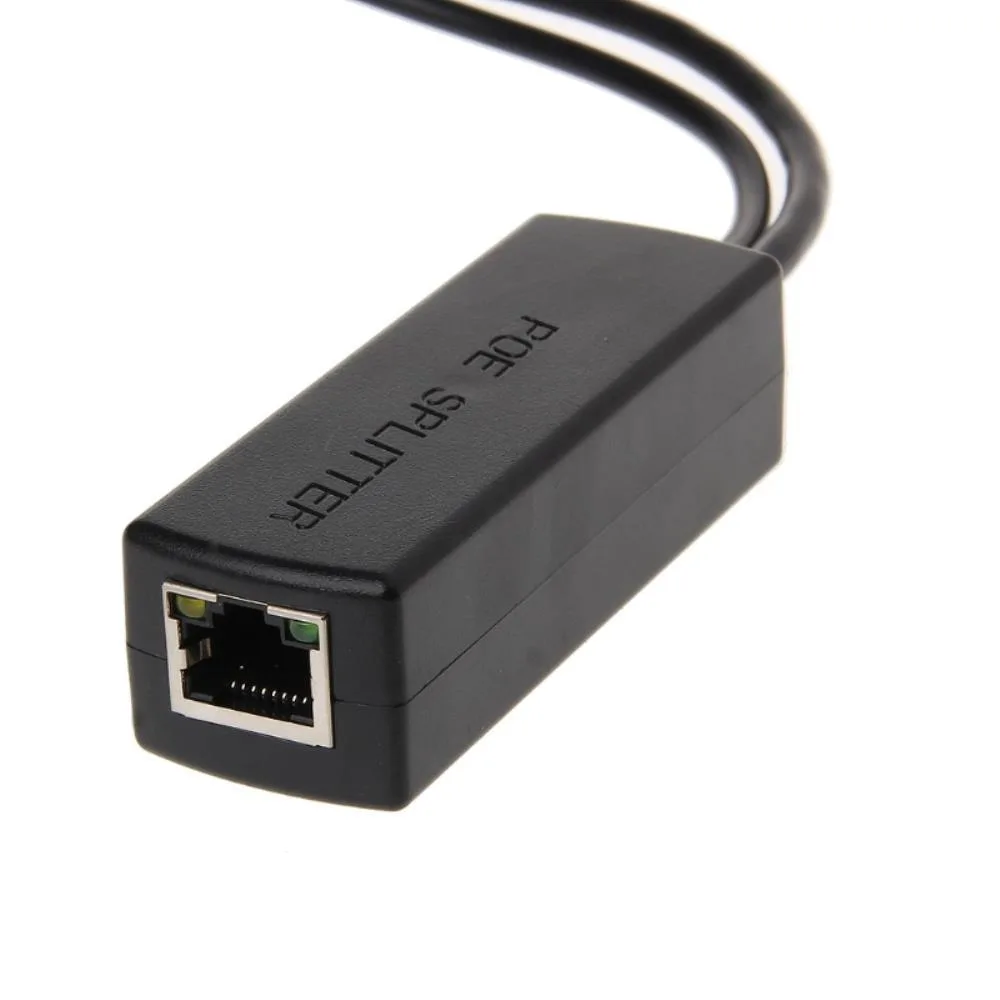

Small black rectangular PoE splitter with RJ45 port and DC output cable

Ruth's sister

Ruth's sister PoE Splitter Adapter 10/100M IEEE802.3at/af internal power cable

SKU CH-D2VP-57HPD

Splits PoE into 12 V DC for IP cameras with 10/100 M data pass-through and insulated circuit protection

  • Powers IP cameras from PoE switches via IEEE802.3at/af standard
  • Delivers 12V DC output to run small network devices without local mains
  • Compact 80×27×22 mm body fits tight enclosures and cable trays
  • Insulated circuit design protects powered equipment from electrical faults
  • Includes 190 mm DC and RJ45 cables for flexible internal routing

PoE Splitter for IP Cameras

This IEEE802.3at/af PoE splitter separates power and data from a single Ethernet cable. It accepts a 48 V PoE input and delivers a regulated 12 V DC output through a 190 mm cable. The compact ABS housing measures 80 × 27 × 22 mm and includes an RJ45 female input with a 19 mm modular plug lead. A yellow LED indicates power presence on the DC port.

Suited for 10/100M camera installs

Installers powering IP cameras or other low‑power network devices from a PoE switch or injector will find this adapter convenient. It is not for gigabit‑only networks, devices requiring voltages other than 12 V, or applications needing PoE pass‑through to a second powered device.

Check your PoE source and device

Verify that the upstream switch or injector complies with IEEE802.3af or 802.3at and supplies 48 V. Confirm the camera or load operates on 12 V DC and draws within the splitter’s supported power budget. Ensure the RJ45 cable run does not exceed 100 m for reliable 10/100M data transmission.

Highlights

  • Powers IP cameras from PoE switches via IEEE802.3at/af standard
  • Delivers 12V DC output to run small network devices without local mains
  • Compact 80×27×22 mm body fits tight enclosures and cable trays
  • Insulated circuit design protects powered equipment from electrical faults
  • Includes 190 mm DC and RJ45 cables for flexible internal routing

Specifications

No published specifications for this item yet.

Questions about this item

What network speed and PoE standard does the splitter's RJ45 input support?

The RJ45 input accepts 10/100M data and IEEE802.3at/af PoE up to 48V from a switch or adapter.

Will the yellow power LED light when the 190 mm DC cable is connected to a 12 V device?

Yes, the yellow LED illuminates once the DC plug is attached to a powered device.

How can I confirm the 100 M data link is active if the green LED never lights?

The green LED is not wired for link status; check the IP camera's own network indicator or the switch port lights instead.
