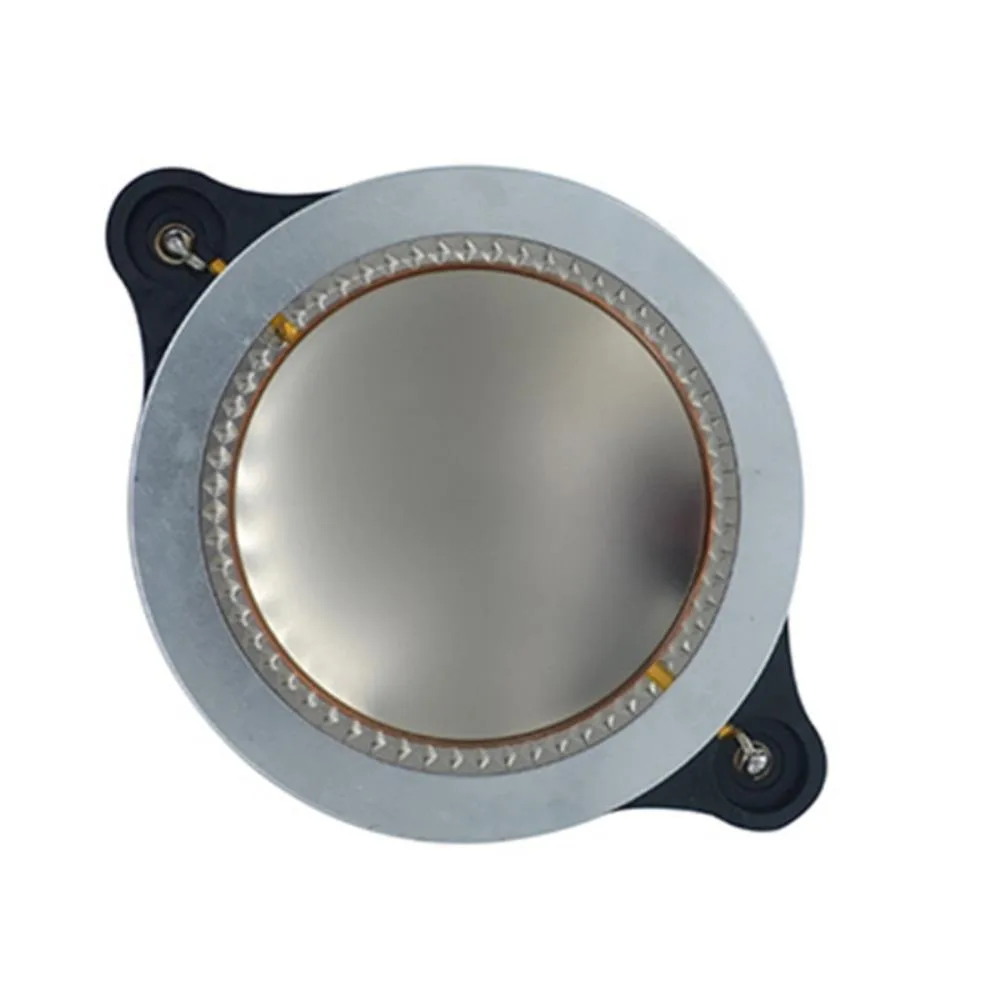

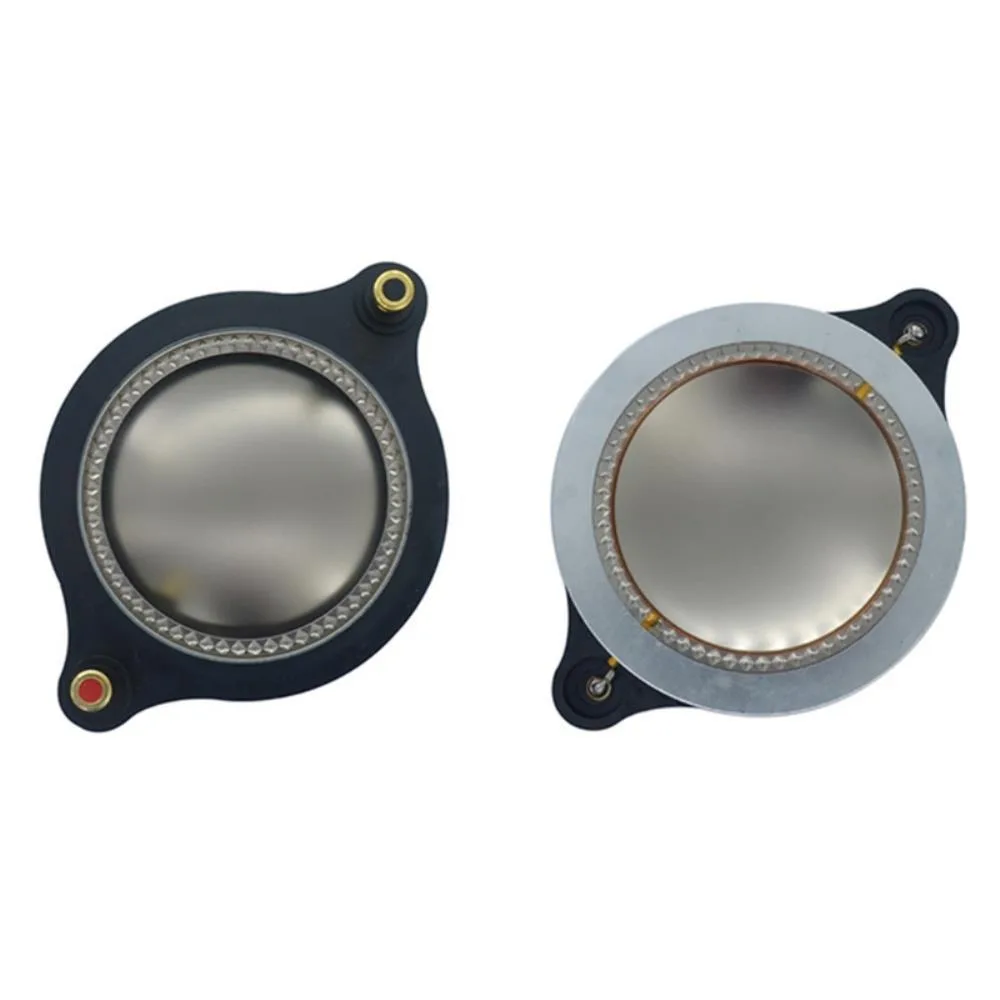

Titanium diaphragm voice coil reel, 72.2 mm core, 103 mm overall diameter

Ruth's sister

Ruth's sister 72.2mm Titanium Treble Voice Coil Reel

SKU CH-PQ4N-726A4

A 72.2 mm titanium diaphragm voice coil reel for professional tweeter drivers with a 6 ohm impedance and 103 mm total diameter

  • Titanium diaphragm delivers clear treble with 91 mm diameter
  • CCAW voice coil on 72.2 mm KSV bobbin for low distortion
  • 6 ohm nominal impedance matches professional tweeter designs
  • Ultra-thin .05 mm film handles high sound pressure
  • Light 103 mm total diameter reel simplifies storage and handling

72.2 mm Treble Voice Coil Reel

This 72.2 mm titanium treble voice coil reel is built for compression-driver tweeters in home-theatre and professional audio systems. Its KSV bobbin and CCAW winding deliver clear, noise-free output with low power consumption. The imported film construction yields higher sound pressure than resin alternatives. It suits technicians and DIY builders who need a lightweight, ready-to-install diaphragm assembly.

91 mm Titanium Diaphragm Headroom

The 91 mm titanium diaphragm, 13.5 mm high and 0.05 mm thick, handles treble frequencies with high sound-pressure capability and minimal distortion. The 6 ohm nominal impedance matches standard crossover networks for smooth integration. It runs out of headroom when pushed beyond its thermal and mechanical limits in high-SPL professional reinforcement, where larger-format diaphragms are required.

103 mm Total Diameter Fit Constraint

At 103 mm total diameter the reel fits compression drivers designed for this frame size; it will not mount in drivers with smaller throat openings or different bolt patterns. The 72.2 mm (2.02 in) coil diameter fixes the magnetic-gap geometry, so the part cannot be adapted to voice-coil bores that deviate from this specification. Installers must verify driver compatibility before purchase.

Highlights

  • Titanium diaphragm delivers clear treble with 91 mm diameter
  • CCAW voice coil on 72.2 mm KSV bobbin for low distortion
  • 6 ohm nominal impedance matches professional tweeter designs
  • Ultra-thin .05 mm film handles high sound pressure
  • Light 103 mm total diameter reel simplifies storage and handling

Specifications

No published specifications for this item yet.

Questions about this item

Will the 72.2 mm coil fit the compression driver I already use?

The coil diameter is 72.2 mm and the total diameter is 103 mm; compare those dimensions with your driver's voice-coil opening and mounting pattern before installing.

How can I verify the 6 ohm nominal impedance after installation?

Measure DC resistance across the CCAW winding with a multimeter; a reading near 6 ohm confirms the coil is intact and correctly seated.

Does the package include adhesive or a replacement diaphragm for the 91 mm titanium unit?

The box contains only the treble voice coil reel; adhesive, ferrules and any additional diaphragm must be sourced separately.
