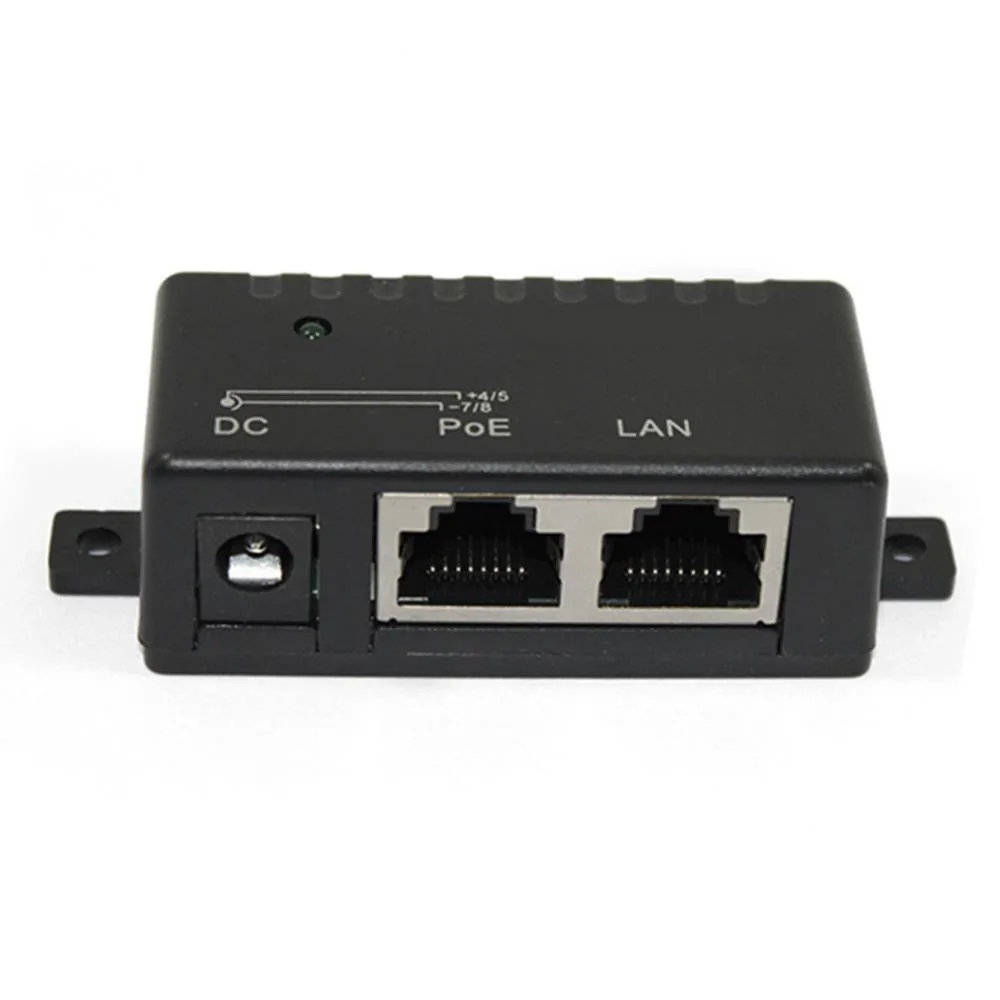

Small black ABS PoE injector module 75 by 28 by 22 mm

Ruth's sister

Ruth's sister 1000Mbps 5-48V 1A PoE Injector Power Splitter internal power cable

SKU CH-BWVA-WA511

Combines power and data for 1000Mbps networks, supports 5-48V PoE devices up to 1A

  • Gigabit data and power on one cable
  • Flexible 5 to 48 volt output range
  • IEEE 802.3af compliant for wide device support
  • Compact 75 by 28 by 22 millimetre ABS housing
  • Mode B always-on power for simple deployment

PoE Injector for IP Devices

This passive injector combines power and data on a single Ethernet cable for IEEE 802.3af compliant powered devices. It delivers up to 1000Mbps throughput across 10/100/1000 networks. The unit operates in mode B with power always present on the line. A compact ABS housing measures 75x28x22mm and weighs .02kg.

Installers Adding PoE to Non-PoE Switches

Suited for technicians who need to power IP cameras, VoIP phones or wireless access points from a standard network switch. The wide 5-48V input and output range covers 5V, 12V, 24V and 48V equipment at up to 1A. Not for buyers who require active negotiation, 802.3at or 802.3bt power levels, or a unit that only energises the line after device detection.

Check Voltage and Polarity Before Connecting

Verify that the powered device accepts the chosen output voltage within the 5-48V range and draws no more than 1A. Confirm the injector's mode B pin assignment matches the device's PoE polarity requirements. Ensure the upstream switch port and cabling support 1000Mbps operation for full throughput. An external power supply matching the target voltage must be sourced separately.

Highlights

  • Gigabit data and power on one cable
  • Flexible 5 to 48 volt output range
  • IEEE 802.3af compliant for wide device support
  • Compact 75 by 28 by 22 millimetre ABS housing
  • Mode B always-on power for simple deployment

Specifications

No published specifications for this item yet.

Questions about this item

What power supply voltage and current rating do I need to connect to this injector for my IP camera?

Connect a power supply that delivers 5 to 48 V at up to 1 A; the injector passes that voltage to the camera over the Ethernet cable.

Will this injector work with my existing IEEE 802.3af access point that expects Mode A power?

The injector operates in Mode B, so it supplies power on the spare pairs; devices that require Mode A will not receive power from this unit.

How can I confirm the injector is delivering both data and power after I plug everything in?

The camera or access point should power up and show a 1000 Mbps link light on its Ethernet port, indicating data and power are present.
