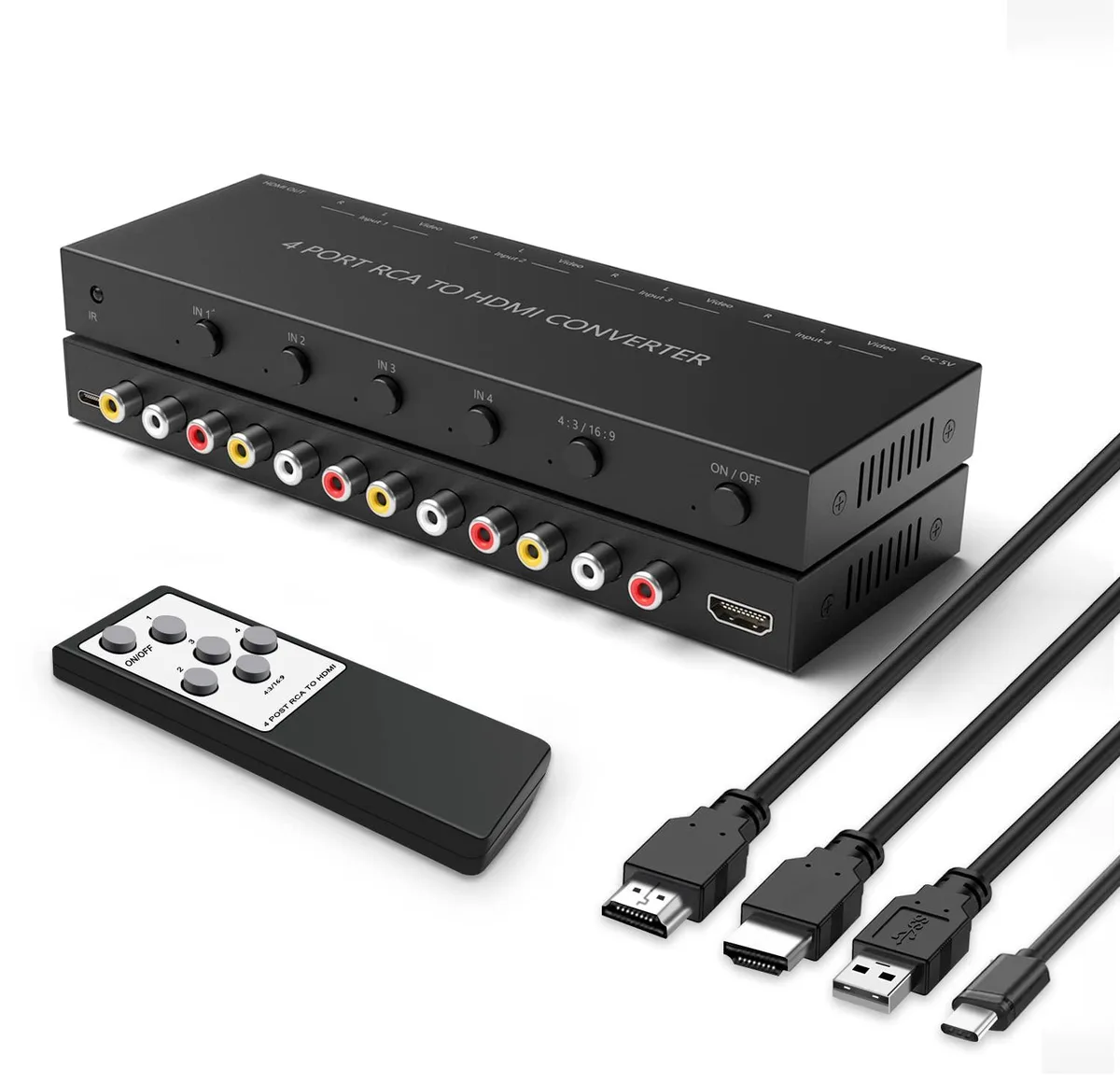

Small black metal box with four RCA ports and one HDMI port, includes remote control

RuiPuo 4 Port AV to HDMI Switch Converter

SKU CH-Q0Q1-FR8AQ

Connects four composite RCA sources to one HDMI display at 720p or 1080p 60Hz with push-button or IR remote switching and includes a 5V power adapter

  • Ports4
  • Cable Length0
  • Input Connector4
  • Dimensions4.1 in x 2.4 in x 0.7 in
  • Weight0.581 kilograms
  • Connect four legacy devices simultaneously with four RCA inputs
  • Switch sources instantly using front button or included IR remote
  • Outputs 720p or 1080p at 60 Hz for modern displays
  • Supports 16:9 and 4:3 aspect ratios plus PAL/NTSC/SECAM formats
  • Metal enclosure measuring 4.1 in x 2.4 in x 0.7 in weighs .581 kg

What this product is

The RuiPuo 4 Port AV to HDMI Switch Converter connects up to four composite RCA sources to a single HDMI display. It is designed for owners of legacy consoles such as the Wii, N64, PS1, PS2, PS3 and Xbox, plus VHS, VCR and DVD players who want them all available on a modern TV or projector without constant cable swapping.

The specification that decides fit

The unit converts analog composite video to HDMI at 720P or 1080p 60Hz and does not support 4K output. A front-mounted toggle selects 16:9 or 4:3 aspect ratio to match the source material. Power comes from an included 5V 1A DC adapter and switching is handled by push buttons or the supplied IR remote.

Capacity and headroom

Four inputs can be active simultaneously, covering a typical retro-gaming stack and a couple of playback devices. The converter handles PAL, NTSC 3.58, NTSC 4.43, SECAM, PAL/M and PAL/N standards. It tops out at 1080p 60Hz, so 4K displays will receive an upscaled 1080p signal and higher-resolution sources are not supported.

Highlights

  • Connect four legacy devices simultaneously with four RCA inputs
  • Switch sources instantly using front button or included IR remote
  • Outputs 720p or 1080p at 60 Hz for modern displays
  • Supports 16:9 and 4:3 aspect ratios plus PAL/NTSC/SECAM formats
  • Metal enclosure measuring 4.1 in x 2.4 in x 0.7 in weighs .581 kg

Specifications

BrandRuiPuo
Model4 port av to hdmi
Part Number4 port av to hdmi
Ports4
Cable Length0
Input Connector4
Dimensions4.1 in x 2.4 in x 0.7 in
Weight0.581 kilograms

Questions about this item

What resolution and refresh rate will the converter output to my TV?

The converter outputs HDMI at 720p or 1080p resolution at 60Hz, upscaling the analog composite signal from your connected devices.

Does the switch support 4K or HDR passthrough?

No, 4K is not supported; the maximum output is 1080p at 60Hz with selectable 16:9 or 4:3 aspect ratios.

What are the physical dimensions and what does it need to operate?

It measures 4.1 x 2.4 x .7 inches and requires the included 5V 1A DC power adapter to function.
