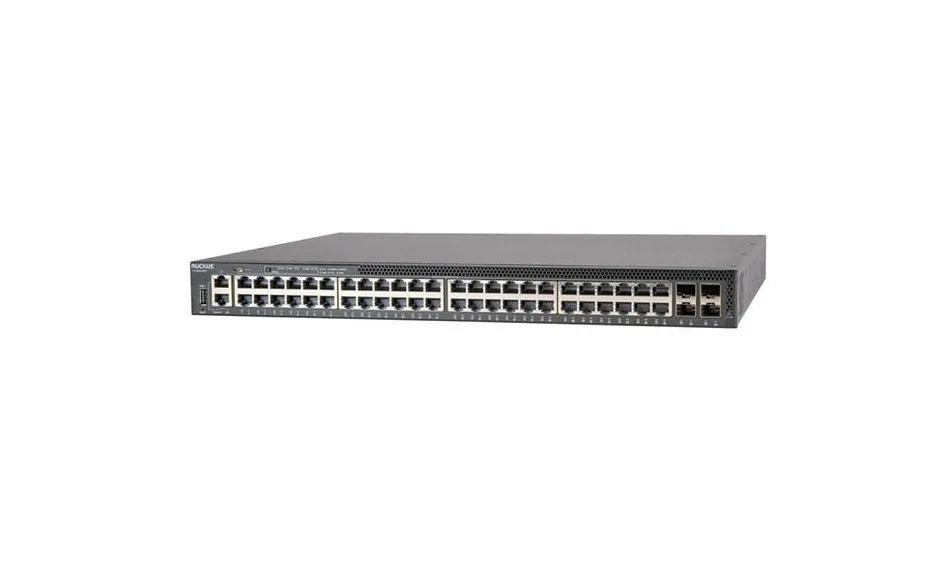

Rack-mountable network switch with forty-eight RJ-45 ports and four SFP28 uplinks

RUCKUS WIRELESS

RUCKUS WIRELESS ICX8200-48PF2-E2 network switch 48× 1G PoE+ 4× 25G SFP28 740W PoE 2 PSU

SKU CH-ACFY-BY0FM MPN ICX8200-48PF2-E2

A managed rack-mount switch with 48 PoE+ ports, 4× 25 GbE SFP28 uplinks, 740 W PoE budget and dual power supplies

  • Primary PortsInterfaces: 48× 10/100/1000 Mbps RJ-45 PoE+ ports; 4× 1/10/2
  • PoE Power BudgetPower Over Ethernet (PoE) Support: Yes PoE Power Consumption
  • PowerPower / Device Type: Power Supply Power / Installed Qty: 2 M
  • TemperatureMin Operating Temperature: 0 Celsius Max Operating Temperatu

Class 1440W PoE Budget, 2x PSU

  • 48 PoE+ ports power Wi-Fi 6 access points and IoT devices
  • 740 W PoE budget supports high-density endpoint deployments
  • Four 25 GbE SFP28 uplinks provide high-speed stacking and aggregation
  • Dual power supplies deliver 920 W total capacity for continuous operation
  • Managed L2/L3 feature set enables secure, scalable campus network design

Switch for Wi-Fi 6 and IoT campus networks

The RUCKUS ICX 8200 series is designed for wireless-first and IoT campus deployments. This model provides 48× 1G PoE+ RJ-45 ports and 4× 25G SFP28 uplink or stacking ports. It suits organisations deploying Wi-Fi 6 access points and PoE devices at the network edge.

Redundant power and management flexibility

Two installed power supplies share a 740 W PoE budget and support 100 to 240 VAC input. The switch offers advanced L2/L3 features, VXLAN, and stacking of up to 12 units. Management options include USB Type-C, RJ45 serial, and a dedicated RJ45 Ethernet port.

Rack space and thermal limits before ordering

Verify available rack height for a 1U managed switch with dual fans. Operating temperature range is 0 to 45 °C; storage range is -40 to 70 °C. Ensure your SFP28 modules match the 25G uplink requirement and that total PoE draw stays within the 740 W budget.

Highlights

  • 48 PoE+ ports power Wi-Fi 6 access points and IoT devices
  • 740 W PoE budget supports high-density endpoint deployments
  • Four 25 GbE SFP28 uplinks provide high-speed stacking and aggregation
  • Dual power supplies deliver 920 W total capacity for continuous operation
  • Managed L2/L3 feature set enables secure, scalable campus network design

Specifications

BrandRuckus
Primary PortsInterfaces: 48× 10/100/1000 Mbps RJ-45 PoE+ ports; 4× 1/10/25 GbE uplink/stacking SFP28 ports; USB Type-C; RJ45 serial port; RJ45 Ethernet port
10/100/1000BASE-T Ports: 48
PoE Power BudgetPower Over Ethernet (PoE) Support: Yes
PoE Power Consumption: 740w
PowerPower / Device Type: Power Supply
Power / Installed Qty: 2
Max Power Consumption: 920 Watt
Power / Voltage Required: 100 to 240 VAC 50 to 60 Hz
TemperatureMin Operating Temperature: 0 Celsius
Max Operating Temperature: 45 Celsius
Min Storage Temperature: -40 Celsius
Max Storage Temperature: 70 Celsius
Shipping weight6.39 kg
Package size440 × 370 × 44 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How often will the dual hot-swap power supplies need replacement in the ICX8200-48PF2-E2?

The switch ships with two installed power supplies for redundancy; each unit is field-replaceable without tools, so a failed module can be swapped while the system stays online.

What caps the sustained throughput of the 48 PoE+ ports on this model?

Each RJ-45 port negotiates up to 1 Gbps, so the 48 access ports together can push 48 Gbps of PoE+ traffic before the 25 GbE uplinks become the bottleneck.

How loud and hot does the ICX8200-48PF2-E2 run with both fans and both PSUs active all day?

Two internal fans cool the chassis; the switch is rated for continuous operation from 0 °C to 45 °C while drawing up to 920 W total with a 740 W PoE budget.
