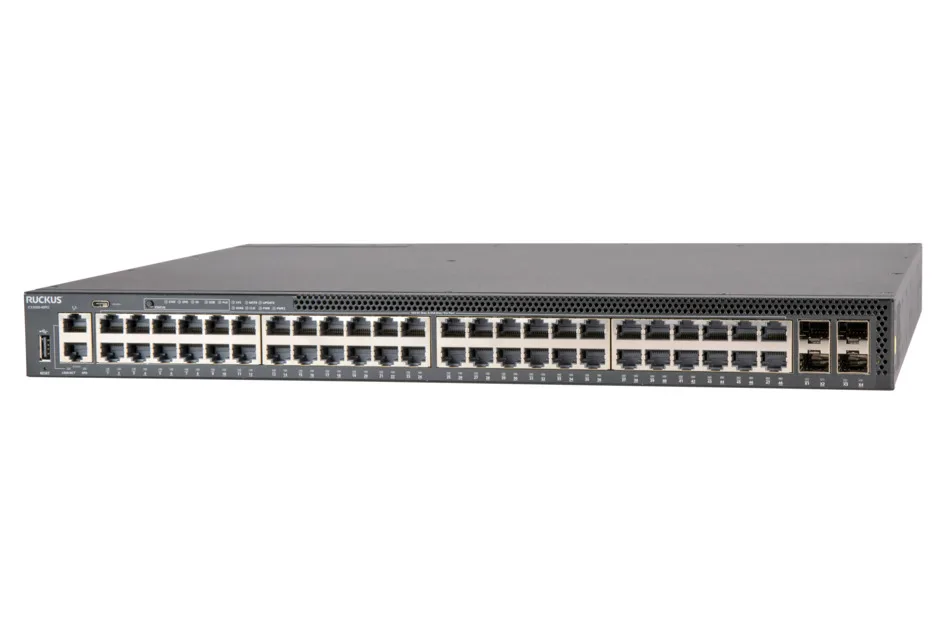

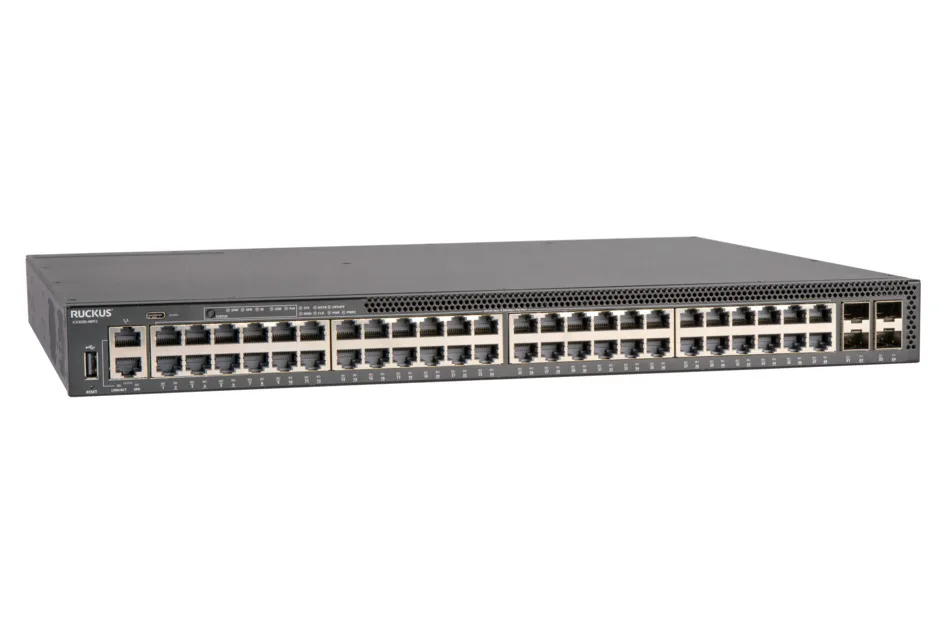

Silver rack-mountable network switch with 48 front RJ-45 ports and four SFP28 uplinks

RUCKUS WIRELESS

RUCKUS WIRELESS ICX8200-48PF2-E 48-port 1G PoE network switch

SKU CH-Q2WT-56554 MPN ICX8200-48PF2-E

48-port managed Gigabit PoE+ switch with 740 W budget, four 25 GbE SFP28 uplinks, and Layer 3 routing for Wi-Fi 6 and IoT campus networks

  • Primary PortsInterfaces: 48× 10/100/1000 Mbps RJ-45 PoE+ ports; 4× 1/10/2
  • PoE Power BudgetPower Over Ethernet (PoE) Support: Yes PoE Power Consumption
  • PowerPower / Device Type: Power Supply Max Power Consumption: 920
  • TemperatureMin Operating Temperature: 0 Celsius Max Operating Temperatu

Class 740W PoE Budget, 1x PSU

  • Managed 48-port Gigabit PoE+ switch simplifies campus deployments
  • 740 W PoE budget powers Wi-Fi 6 access points and IoT devices
  • Four 25 GbE SFP28 uplinks provide high-speed stacking flexibility
  • Advanced Layer 3 routing enables scalable network designs
  • Single fan and 920 W supply operate reliably from 0 to 45 °C

Entry-Level+ Access 48-Port 1G PoE Switch

The Ruckus ICX8200-48PF2-E is a managed, rack-mountable switch built for campus networks. It delivers enterprise-class functionality with 48 RJ-45 ports supporting 10/100/1000 Mbps speeds and PoE+. Four SFP28 uplinks provide 1/10/25 GbE connectivity for stacking or uplink aggregation.

Suited for Wi-Fi 6 AP deployments

This model fits networks needing high-density PoE+ for access points, cameras or IoT devices with 25 GbE uplinks for core links. Buyers who need more than 48 copper ports, higher PoE budgets than 740 W, or non-PoE port density should evaluate other configurations.

740 W PoE+ budget across 48 ports

The switch supplies up to 740 W for connected PoE+ devices while drawing a maximum of 920 W from a 100-240 VAC supply. Operating temperature ranges from 0 to 45 °C. Confirm the total PoE load of your endpoints stays within the 740 W budget before deployment.

Highlights

  • Managed 48-port Gigabit PoE+ switch simplifies campus deployments
  • 740 W PoE budget powers Wi-Fi 6 access points and IoT devices
  • Four 25 GbE SFP28 uplinks provide high-speed stacking flexibility
  • Advanced Layer 3 routing enables scalable network designs
  • Single fan and 920 W supply operate reliably from 0 to 45 °C

Specifications

BrandRuckus
Part NumberICX8200-48PF2-E
Primary PortsInterfaces: 48× 10/100/1000 Mbps RJ-45 PoE+ ports; 4× 1/10/25 GbE uplink/stacking SFP28 ports; USB Type-C; RJ45 serial port; RJ45 Ethernet port
10/100/1000BASE-T Ports: 48
PoE Power BudgetPower Over Ethernet (PoE) Support: Yes
PoE Power Consumption: 740w
PowerPower / Device Type: Power Supply
Max Power Consumption: 920 Watt
Power / Voltage Required: 100 to 240 VAC 50 to 60 Hz
TemperatureMin Operating Temperature: 0 Celsius
Max Operating Temperature: 45 Celsius
Min Storage Temperature: -40 Celsius
Max Storage Temperature: 70 Celsius
Shipping weight6.39 kg
Package size440 × 370 × 44 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the box with the ICX8200-48PF2-E and what must be purchased separately?

The switch ships with one fan and one power supply installed. SFP28 transceivers for the 25 GbE uplinks are not included and must be bought separately.

How do I decide between the 48-port PoE+ model and other ICX 8200 variants?

This model provides 48 RJ-45 ports at 1 GbE with a 740 W PoE budget and four 25 GbE SFP28 uplinks; choose it when you need maximum port density and high-power PoE for Wi-Fi 6 access points.

What does the 740 W PoE budget mean for real-world AP deployments?

It delivers up to 740 W total across all 48 PoE+ ports, allowing multiple Wi-Fi 6 access points to run at full power simultaneously within the switch's thermal limits of 0 to 45 °C.
