Silver rack-mount network switch with 48 RJ45 ports and two QSFP+ uplinks

RUCKUS WIRELESS

RUCKUS WIRELESS ICX7550-48P-E2 48-port PoE+ network switch

SKU CH-F3TM-M37TD MPN ICX7550-48P-E2

A managed 48-port Gigabit PoE+ switch with 30 W per port, 1900 W total budget, dual 40 Gbps QSFP+ uplinks, a modular expansion slot and Layer 3 routing

  • FormatStackable
  • Standards802.1AB LLDP 802.1D MAC Bridging 802.1p Mapping to Priority
  • Network Management TypeManaged
  • Primary Ports48 x RJ45 + 2 x SFP+
  • Management FeatureDHCP Auto Configuration Configuration Logging Digital Optica
  • Jumbo Frames12,288 bytes

Version Support Not Included

  • 48 PoE+ ports deliver up to 30 W each for powering access points and cameras
  • 1900 W total PoE budget supports dense deployments without external injectors
  • 2 × 40 Gbps QSFP+ uplinks provide high-speed stacking and aggregation
  • 309 Mpps forwarding capacity handles heavy campus traffic at line rate
  • 2 × 1200 W AC supplies and 3 fans ensure redundant front-to-back cooling

48-port PoE+ stackable switch

The RUCKUS ICX7550-48P-E2 is a managed Layer 3 switch built for networks that need high-density power and uplink flexibility. It suits IT teams deploying wireless access points, IP cameras or VoIP handsets across a campus or building. The stackable design lets multiple units operate as a single logical device.

Dual 40 Gbps QSFP+ uplinks and modular slot

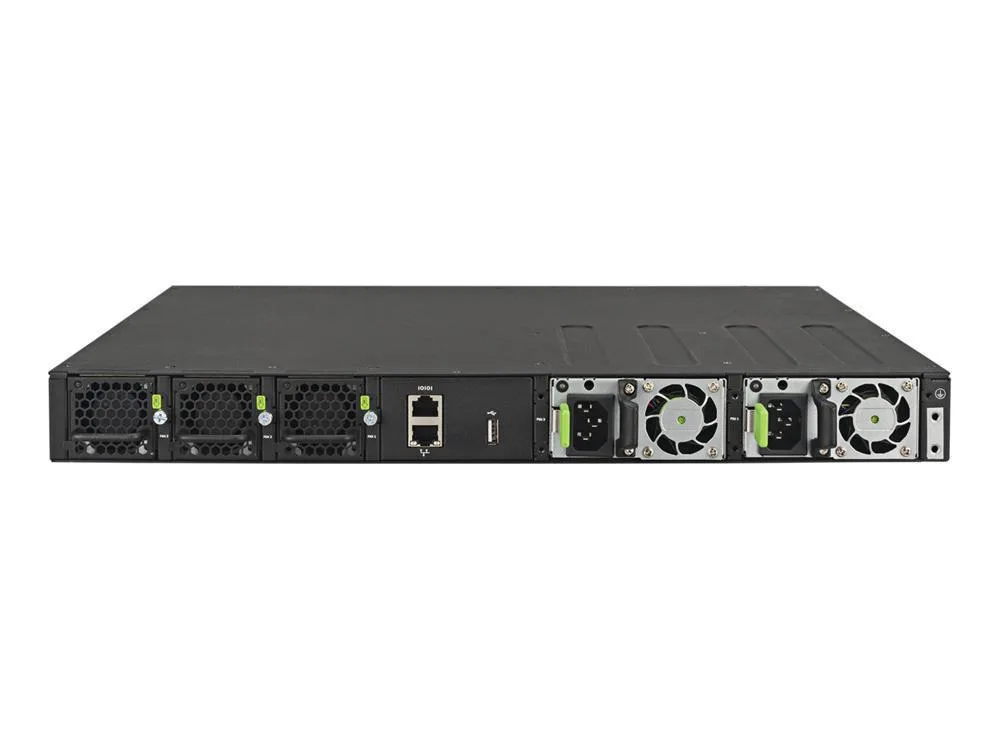

Two 40 Gbps QSFP+ ports handle uplink or stacking duties, while an open module slot accepts additional port modules sold separately. Front-to-back airflow matches standard rack layouts. The bundle ships with three fans and two AC power supplies using C14 inlets, ready for 100–240 VAC sources.

1900 W PoE budget and power inlet options

All 48 RJ45 ports deliver up to 30 W each under 802.3at, with a total PoE budget of 1900 W when both 1200 W supplies run at 180–240 VAC. At 100–180 VAC the supplies drop to 1030 W each, reducing available PoE power. A DC inlet supports 40–60 VDC if your site uses DC distribution. Verify your rack power circuits and module requirements before ordering.

Highlights

  • 48 PoE+ ports deliver up to 30 W each for powering access points and cameras
  • 1900 W total PoE budget supports dense deployments without external injectors
  • 2 × 40 Gbps QSFP+ uplinks provide high-speed stacking and aggregation
  • 309 Mpps forwarding capacity handles heavy campus traffic at line rate
  • 2 × 1200 W AC supplies and 3 fans ensure redundant front-to-back cooling

Specifications

BrandRuckus
ModelICX7550
Part NumberICX7550-48P-E2
FormatStackable
Standards802.1AB LLDP
802.1D MAC Bridging
802.1p Mapping to Priority Queue
802.1s Multiple Spanning Tree (MST)
802.1w Rapid Reconfiguration of Spanning Tree
802.1x Port-based Network Access Control (PNAC)
802.3 Carrier Sense Multiple Access/Collision Detection (CSMA/CD)
802.3ab 1000BASE-T
802.1 AX-2008 Link Aggregation
802.3ae 10 Gigabit Ethernet
802.3af Power over Ethernet
802.3at Power over Ethernet Plus
802.3bt 4-Pair Power over Ethernet
802.3u 100Base-TX
802.3x Full duplex and Flow Control
802.3z 1000Base-SX/LX
802.3bz Multi-gigabit Ethernet
802.3 MAU MIB (RFC 2239)
802.3ba 40 and 100 Gbp
Network Management TypeManaged
Primary Ports48 x RJ45 + 2 x SFP+
Management FeatureDHCP Auto Configuration
Configuration Logging
Digital Optical Monitoring
Display Log Messages on Multiple Terminals
Embedded Web Management (HTTP/HTTPS)
Embedded DHCP Server
Industry-standard Command Line Interface (CLI)
RUCKUS SmartZone, RUCKUS One, RUCKUS
Unleashed
Easy activation of optional software features
USB file management and storage
Boot from USB storage
Macro for batch execution
Out-of-band Ethernet Management
ERSPAN support for remote traffic monitoring
RSPAN
TFTP
TELNET Client and Server
Bootp
SNMPv1/v2c
DHCP Server and DHCP Relay
SNMPv3 Intro to Framework
SNMP Message
Jumbo Frames12,288 bytes
Packet Forwarding RateForwarding capacity (data rate, full duplex): 309 Mpps
Buffer MemoryPacket Buffer Size: 8 MB
SecurityMACsec*
802.1X authentication
MAC authentication
Flexible authentication
Web authentication
DHCP snooping
Dynamic ARP inspection
Neighbor Discovery (ND) Inspection
Tri-level Access Mode (EXEC, Privileged EXEC and
Global Configuration)
EAP pass-through support
EEE 802.1X username export in sFlow
Protection against Denial of Service (DoS) attacks
Authentication, Authorization, and Accounting (AAA)
MAC Address Locking MAC Port Security
Advanced Encryption Standard (AES) with SSHv2
RADIUS/TACACS/TACACS+
Secure Copy (SCP)
Secure Shell (SSHv2)
Local Username/Password
Change of Authorizatio
PoEYes
StackableYes
QoSACL Mapping and Marking of ToS/DSCP (CoS)
ACL Mapping and Marking of 802.1p
ACL Mapping to Priority Queue
Classifying and Limiting Flows Based on TCP Flags
DiffServ Support
Honoring DSCP and 802.1p (CoS)
MAC Address Mapping to Priority Queue
Priority Queue Management using Weighted Round Robin
(WRR), Strict Priority (SP), and a combination of WRR and SP
Layer3
Layer 2 Features802.1s Multiple Spanning Tree
802.1x Authentication
Auto MDI/MDIX
BPDU Guard, Root Guard
Dual-Mode VLANs
MAC-based VLANs, Dynamic MAC-based VLAN activation
Dynamic Voice VLAN Assignment
Dynamic VLAN Assignment
Fast Port Span
MVRP: Multiple VLAN Registration Protocol
IGMP Snooping (v1/v2/v3)
IGMP Proxy for Static Groups
IGMP v2/v3 Fast Leave
Inter-Packet Gap (IPG) adjustment
Link Fault Signaling (LFS)
MAC Address Filtering
MAC Learning Disable
MLD Snooping (v1/v2)
Multi-device Authentication
Per-VLAN Spanning Tree (PVST/PVST+/PVRST)
Mirroring - Port-based, ACL-based, MAC Filter-based
Layer 3 FeaturesBASE LAYER 3 IP ROUTING
IPv4 and IPv6 static routes
RIP v1/v2, RIPng
ECMP
Port-based Access Control Lists
Layer 3/Layer 4 ACLs
Host routes
Virtual Interfaces
Routed Interfaces
Route-only Support
Routing Between Directly Connected Subnets
BGP EVPN VXLAN
PoE Ports48 x PoE
PowerPower inlet: C14 (AC), Dinkle 2EHDP-03P (DC)
Input voltage/frequency: AC: 100 to 240 VAC @ 50 to 60 Hz | DC: 40 to 60 VDC
Power supply rated maximum output (AC): 2 x 1030W (100-180V), 2 x 1200W (180-240V)
PoE power budget (AC) (two AC power supplies): 1624 W (100-180V), 1900 W (180-240V)
Switch power consumption (25 degrees Celsius): 83.1 W (10% traffic (no PoE load)), 1131.6 W (100% traffic (full PoE
load)).
Shipping weight11.70 kg
Package size440 × 406 × 44 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What uplink speed do the two QSFP+ ports provide and how does that limit stacking bandwidth?

Each QSFP+ port runs at 40 Gbps, so the two ports together deliver up to 80 Gbps of stacking or uplink throughput.

What rack depth and airflow clearance does the chassis require for front-to-back cooling?

The unit uses front-to-back airflow with three included fans; allow at least 45 cm of clear space at the front and rear for proper cooling.

How do I enable the full 30 W per port PoE+ budget across all 48 ports during initial configuration?

Install both 1200 W AC power supplies, then activate the PoE license in the management interface to unlock the 1900 W total PoE budget.
