Gray rectangular USB 3.1 Type-A adapter board with M.2 slot for NVMe and SATA SSDs

RIITOP

RIITOP M.2 NVMe SATA USB 3.1 Type-A Adapter Gray

SKU CH-M2QF-GRMNP

Connects M.2 NVMe or SATA SSDs to a USB 3.1 Type-A port at up to 10Gbps

  • ColorGray
  • SizeM.2 NVMe / NGFF SSD
  • TypeAdapter PCB Board
  • AC AdapterNo
  • MaterialNo
  • Internal InterfaceM.2 SSD Slot (Compatible with B Key and M Key).
  • Reads NVMe and SATA M.2 drives via USB 3.1 Type-A
  • Up to 10 Gbps on USB 3.1 Gen 2 ports
  • Fits 22 mm wide drives in 42, 60, 80 mm lengths
  • Realtek 9210B controller handles PCIe and SATA protocols
  • 10 g board with silicone pad and screwdriver included

USB 3.1 M.2 Adapter for NVMe and SATA SSDs

This compact adapter connects a single M.2 SSD to a USB 3.1 Type-A port. It accepts both B-key and M-key modules using the Realtek 9210B chip. The board measures 115 by 25 by 6 millimetres and weighs ten grams. No external power supply is required.

Suits users adding one M.2 drive via USB.

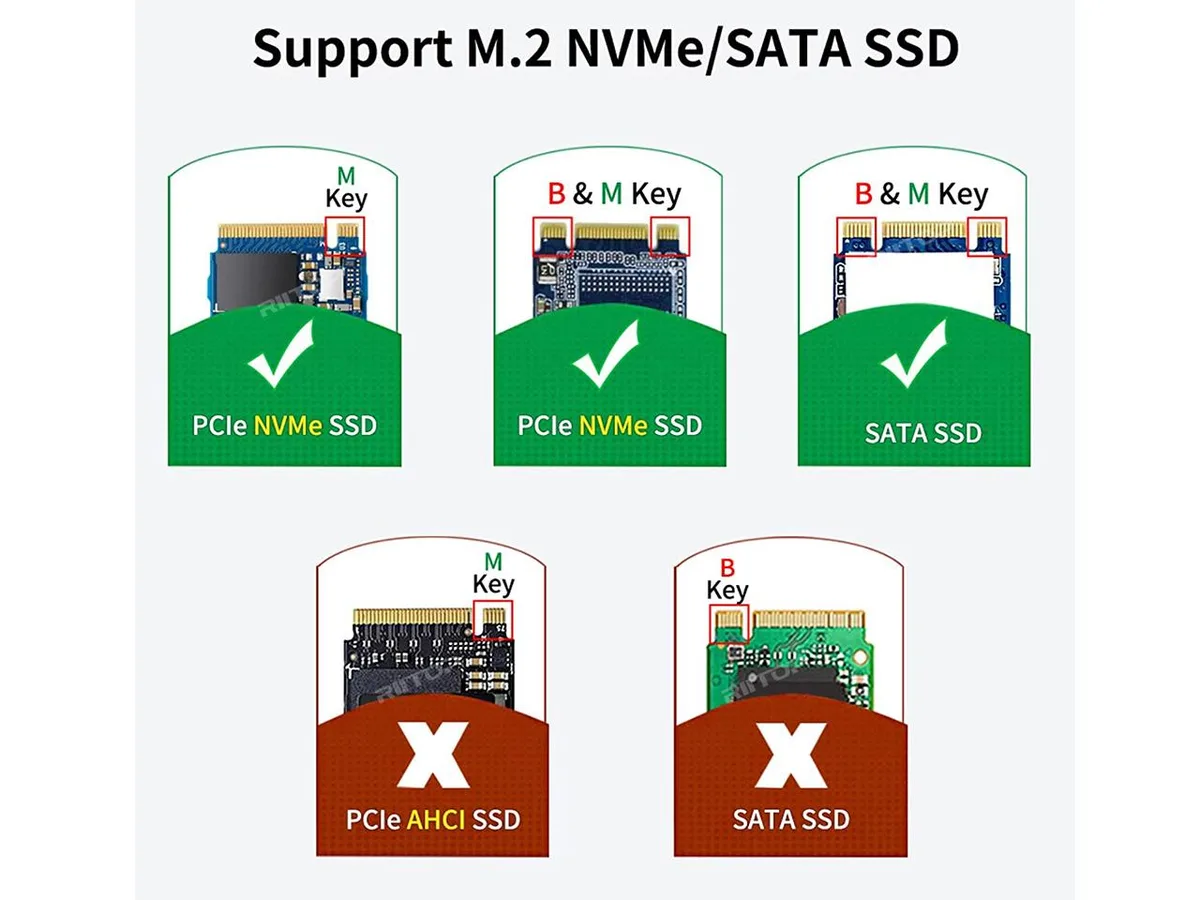

The device supports 22mm-wide M.2 SSDs in 42mm, 60mm and 80mm lengths. It handles NVMe PCIe and B+M key SATA protocols at up to 10 gigabits per second on USB 3.1. Builders who need simultaneous access to several drives or a different host interface should consider other options. PCIe AHCI SSDs are not supported.

USB 3.1 Gen 2 10 Gbps host port required for full

The adapter delivers 10Gbps only when plugged into a USB 3.1 Gen 2 Type-A port. On a USB 3.0 port the link drops to 5Gbps. This single specification determines whether the drive will reach its maximum transfer rate.

Highlights

  • Reads NVMe and SATA M.2 drives via USB 3.1 Type-A
  • Up to 10 Gbps on USB 3.1 Gen 2 ports
  • Fits 22 mm wide drives in 42, 60, 80 mm lengths
  • Realtek 9210B controller handles PCIe and SATA protocols
  • 10 g board with silicone pad and screwdriver included

Specifications

BrandRIITOP
Model1 Bay
ColorGray
SizeM.2 NVMe / NGFF SSD
TypeAdapter PCB Board
AC AdapterNo
MaterialNo
Internal InterfaceM.2 SSD Slot (Compatible with B Key and M Key).
External Interface1:1
HDD Count SupportedSingle SSD
Number of Bay1 Bay
FanNo
SpecificationsItem: M. 2 SSD to USB 3.1 Type A Adapter Board. Material: PCB Board. Protocol: B-Key and M-Key. Input: M.2 SSD Slot, both B-Key and M-Key M.2 SSD (NVMe, SATA Based). Output: USB 3.1 Type A. Dimension: 115*25*6 mm. Transfer Speed: 10Gbps/ 5Gbps (NOTE: If connect with usb 3.0 type a port, speed will be 5Gbps).
FeaturesRIITOP M.2 to USB 3.1 Type A Adapter. Both B-Key and M-Key M.2 SSD (NVMe, SATA Protocol) Support. Date Transfer Rate up to 10Gbps for USB 3.1, 5Gbps for USB 3.0 Type A. Plug & Play and Hot-Swapping. Supports Windows XP/Visata/7/8/10. Compatible with 2242, 2260, 2280 mm Four Different Specifications M. 2 SSDs.
Dimensions108x22x5 mm / 4.25x0.87x0.2 in.
Weight10g / 0.02 lb.
Package Contents1x RIITOP M.2 (B-Key and M-Key) SSD to USB 3.1 Type A Adapter.

Questions about this item

Does the box include a screwdriver and thermal pad, or must I buy them separately?

The package includes one adapter board, one silicone pad and one screwdriver, so no extra tools are needed.

My SSD is 80x22 mm and uses the M key — will this adapter fit it?

Yes, the slot accepts M-key and B+M-key drives in 80x22 mm, 60x22 mm and 42x22 mm sizes.

I see 10 Gbps quoted — what speed will I actually get on a USB 3.0 port?

On a USB 3.0 Type-A port the link drops to 5 Gbps; the 10 Gbps rate requires a USB 3.1 Gen 2 port.
