RIITOP
RIITOP Dual M.2 NVMe & SATA Adapter Card with Low-Profile Bracket
Adds one M.2 NVMe and one M.2 SATA SSD to a PCIe x4 slot with low-profile bracket
- TypePCI Express Controller Card
- External USB PortsNo
- CompatibilityM Key PCIe M.2 NMVe, B Key SATA M.2 NGFF SSD (2230/2242/2260
- Specifications1.Connects one B key & one M key NGFF SSD at the same time t
- Features1. One NGFF B Key and one NGFF M key sockets available. 2. 8
- Dimensions5.52x4.73x0.79 inch.
- Add one NVMe and one SATA M.2 SSD simultaneously
- Fits 2230 to 22110 mm drives via 10 screw holes
- PCIe 3.0 x4 for NVMe and SATA 3.0 for SATA
- LED shows power and data activity for both drives
- Low-profile bracket included for slim chassis builds

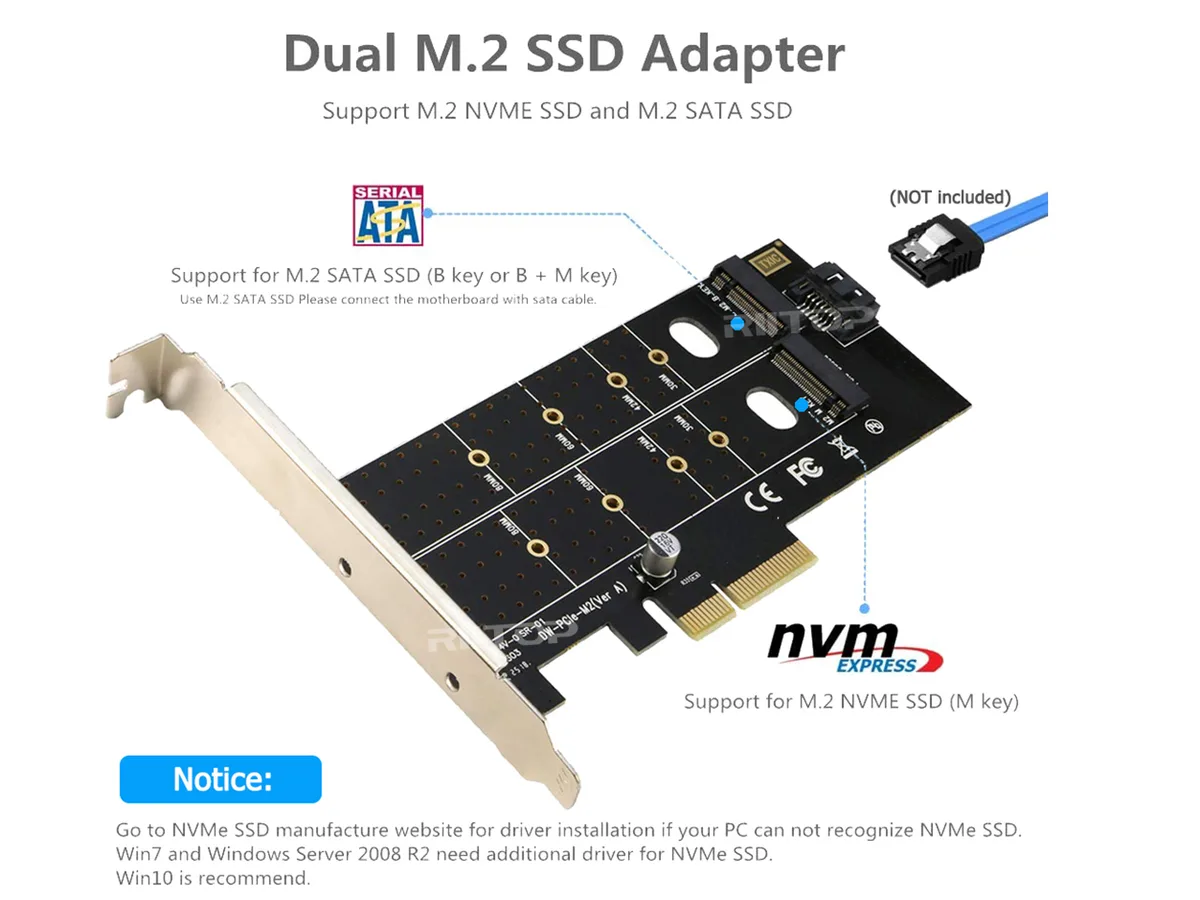

Dual M.2 NVMe and SATA adapter

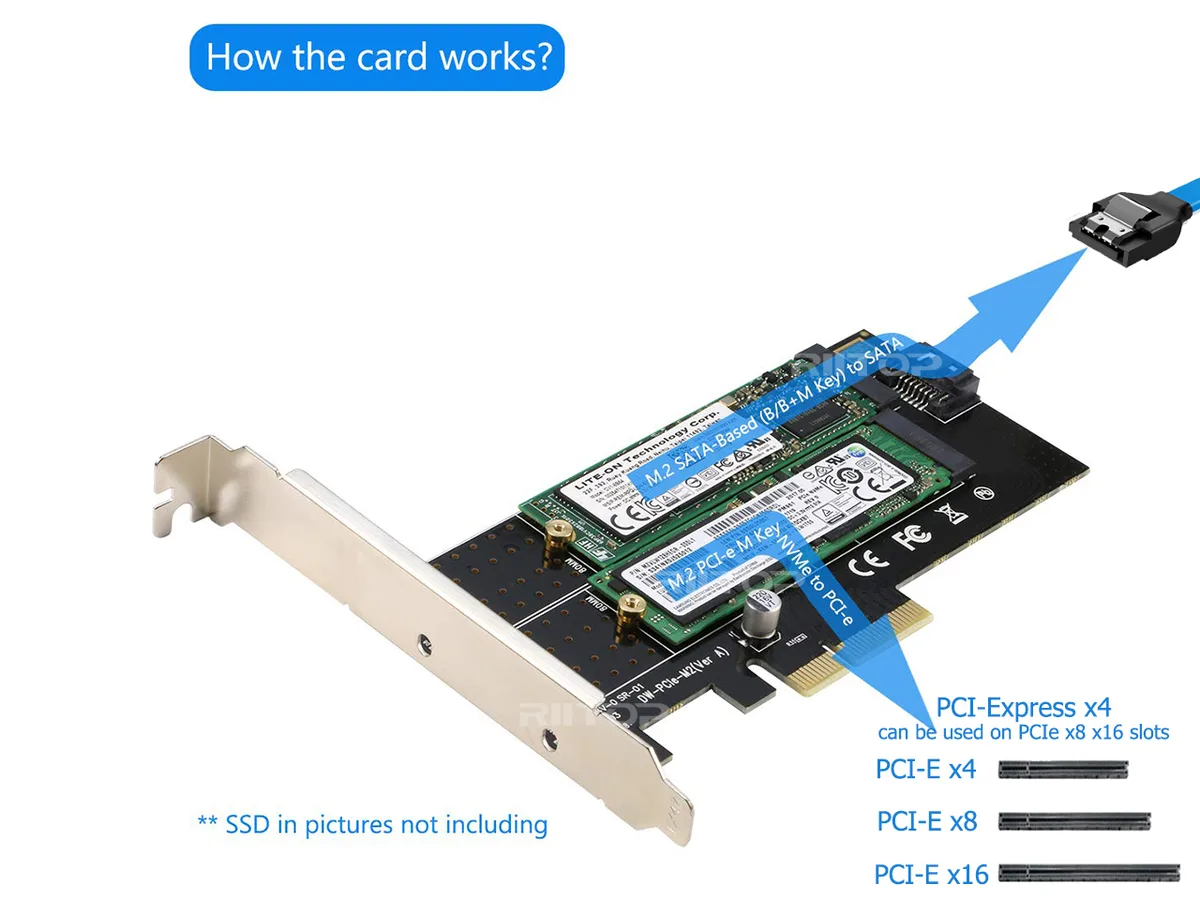

This RIITOP controller card adds one M.2 NVMe slot and one M.2 SATA slot to a desktop via a PCIe 4x connection. It targets builders whose motherboards lack native M.2 connectors or need an extra drive without occupying a 2.5 inch bay. The card fits PCIe x4, x8 or x16 slots and does not work in x1 slots.
One NVMe plus one SATA drive
The M key socket runs at PCIe 3.0 4x speeds while the B key socket uses the SATA 3.0 interface capped at 6.0 Gb/s. Ten screw holes accept 2230, 2242, 2260, 2280 and 22110 form factors. A SATA cable to the motherboard is mandatory for the SATA drive; the NVMe drive needs no extra cable. The adapter draws all power from the PCIe slot.
Low-profile bracket and screwdriver included
The bundle supplies a low-profile bracket for slim chassis, a screwdriver and mounting screws. An on-board LED shows power and data activity. Vented gold-finish PCB helps dissipate heat from both SSDs. No driver is required for the adapter itself, though the NVMe SSD vendor may supply its own driver.
Highlights
- Add one NVMe and one SATA M.2 SSD simultaneously
- Fits 2230 to 22110 mm drives via 10 screw holes
- PCIe 3.0 x4 for NVMe and SATA 3.0 for SATA
- LED shows power and data activity for both drives
- Low-profile bracket included for slim chassis builds
Specifications
| Brand | RIITOP |
|---|---|
| Model | 2 Ports |
| Type | PCI Express Controller Card |
| External USB Ports | No |
| Compatibility | M Key PCIe M.2 NMVe, B Key SATA M.2 NGFF SSD (2230/2242/2260/2280/22110mm) |
| Specifications | 1.Connects one B key & one M key NGFF SSD at the same time to PCI-E 4X motherboard. 2.Compliant with PCI Express M.2 specification 1.0. 3.Compliant with SATA 3.0 specification for B key. 4.Compliant with PCI-E 4X 3.0 specification for M key. |
| Features | 1. One NGFF B Key and one NGFF M key sockets available. 2. 8 screw holes 2230/2242/2260/2280/22110 available to fix NGFF SSD cards. 3.Easy installation & no driver required. 4.No additional power required. |
| Dimensions | 5.52x4.73x0.79 inch. |
| Weight | 90g / 0.2 lb. |
| Package Contents | 1x Dual M.2 PCIe & SATA Adapter Card. 1x Low Profile Bracket. 1x Screwdriver. Screws. |
Questions about this item
Will the RIITOP adapter fit in my older PCIe 3.0 x16 slot?
The card is compliant with PCI-E 4X 3.0 specification and works in x4, x8 or x16 slots; it does not support x1 slots.
How do I know the NVMe and SATA SSDs are active after install?
An on-board LED indicator shows power and data-transfer status for both the M-key NVMe and B-key SATA sockets.
Does the box include the SATA cable I need for the B-key drive?
The package contains the adapter card, a low-profile bracket, a screwdriver and mounting screws; a 7-pin SATA cable must be purchased separately.
