Two small green circuit boards with 40 pin IDE and 22 pin SATA connectors plus 4 pin power cables

RIITOP

RIITOP 2Pack 3.5" 40pin IDE to 22pin SATA Adapter

SKU CH-GF35-3KREN

Two adapters convert 3.5-inch 40-pin IDE drives to 22-pin SATA with JM-series chips and included 4-pin power cables

  • Changer TypeIDE to SATA
  • SpecificationsNOTE: 1. The adapter need for external power adapter to work
  • Connector A3.5" 40 pin Female IDE / PATA
  • Connector B7+15 pin (22 pin) SATA
  • FeaturesJM series chips, the best compatibility and stability. For I
  • Dimensions2.36x0.87x0.25 inch
  • Connect legacy 3.5" IDE drives to SATA ports using JM series chips
  • Two adapters and two 4-pin power cables included in one pack
  • Works with Windows XP, 7 and 8 on 32-bit and 64-bit systems
  • Compact 2.36 by 0.87 inch board fits tight drive bays
  • Requires external power and drive jumpers set before installation

3.5" IDE to SATA adapter kit

This two-pack converts 3.5 inch 40 pin IDE or PATA hard drives and optical drives to a 22 pin SATA interface. Each adapter uses JM series chips for broad compatibility with SATA 1, 2 and 3 motherboard ports. The kit includes two 4 pin power cables and supports Windows XP, 7 and 8 on both 32 and 64 bit systems.

Upgrading legacy storage to modern ports

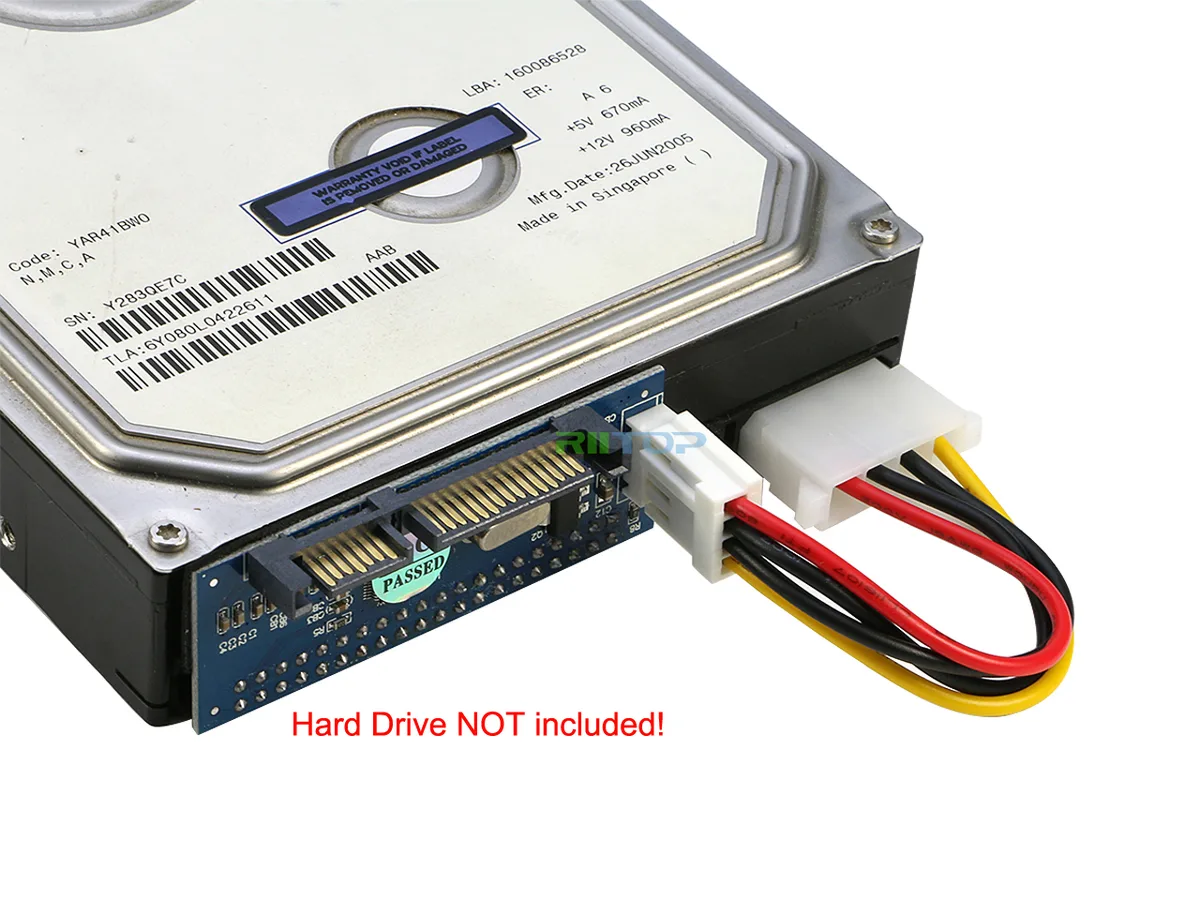

The adapters replace a direct IDE connection when a motherboard no longer provides a 40 pin header or when a newer chassis only offers SATA power and data cables. The jump is worth it when you need to read or archive data from older 3.5 inch drives without sourcing a vintage controller card. An external power adapter is required for the drive itself.

Behaviour under sustained use

The compact 2.36 by 0.87 inch board draws power from the included 4 pin cable and passes data through the JM bridge without active cooling. During long copy sessions the chipset maintains a stable link across SATA generations, provided the host system is powered off before the riser is connected and the drive jumpers are set correctly.

Highlights

  • Connect legacy 3.5" IDE drives to SATA ports using JM series chips
  • Two adapters and two 4-pin power cables included in one pack
  • Works with Windows XP, 7 and 8 on 32-bit and 64-bit systems
  • Compact 2.36 by 0.87 inch board fits tight drive bays
  • Requires external power and drive jumpers set before installation

Specifications

BrandRIITOP
Changer TypeIDE to SATA
SpecificationsNOTE: 1. The adapter need for external power adapter to work. 2. When connecting the riser need to turn off your computer. 3. IDE Hard disk / CD-ROM motherboard SATA adapter when the need to hard disk / CD-ROM set jumpers main dish.
Connector A3.5" 40 pin Female IDE / PATA
Connector B7+15 pin (22 pin) SATA
FeaturesJM series chips, the best compatibility and stability. For IDE drives, recorders, 3.5-inch ide hard disk drove, hard disk recorders. On behalf of the motherboard SATA 1, SATA 2 generations, SATA 3 generations interfaces perfectly compatible. Compatible with Windows XP, Win7, Win8 32-bit, 64-bit systems. IDE Hard disk / CD-ROM motherboard SATA adapter when the need to hard disk / CD-ROM set jumpers main dish. The adapter need for external power adapter to work. When connecting the riser need to turn off your computer. Size:(L*W)6.00*2.20cm/2.36"*0.87". Cable length:10.00cm/3.93". Quan
Dimensions2.36x0.87x0.25 inch
Weight80g / 0.18 lb.
Package Contents2x 3.5" IDE to SATA HDD Adapter. 2x 4Pin Power Supply Cable.

Questions about this item

Does the 3.5 inch 40 pin IDE connector need a specific clearance inside the drive bay?

The adapter board measures 2.36 by 0.87 by 0.25 inch, so it fits within a standard 3.5 inch drive bay without extra brackets.

What is the correct order for connecting the 22 pin SATA side and the 4 pin power cable?

Power down the system, attach the 4 pin power cable to the adapter first, then connect the 7+15 pin SATA plug to the motherboard.

Will the JM series chip on the adapter require a firmware update after a year of use?

No firmware is involved; the JM series chip is a fixed hardware bridge, so no software updates are needed over time.
