Black 12VHPWR 16-pin 180-degree angled adapter with CNC aluminum shell

RIITOP

RIITOP 12VHPWR 16Pin 180° Angled Adapter Type A 600W

SKU CH-JV36-HA3D4

180-degree 12VHPWR 16-pin adapter angles power cables for RTX 3090Ti 4070Ti 4080 4090 GPUs, protrudes 7mm, supports 600W through aluminium shell

  • ColorBlack

Style 180 Degree - Stype A

  • 180° angle routes cable cleanly and reduces connector strain
  • 7 mm low profile fits wide GPUs in narrow cases
  • Aluminium shell improves heat dissipation for stable 600 W delivery
  • ATX 3.0 PCIe 5.0 12VHPWR 16-pin compatible with RTX 3090 Ti 4070 Ti 4080 4090

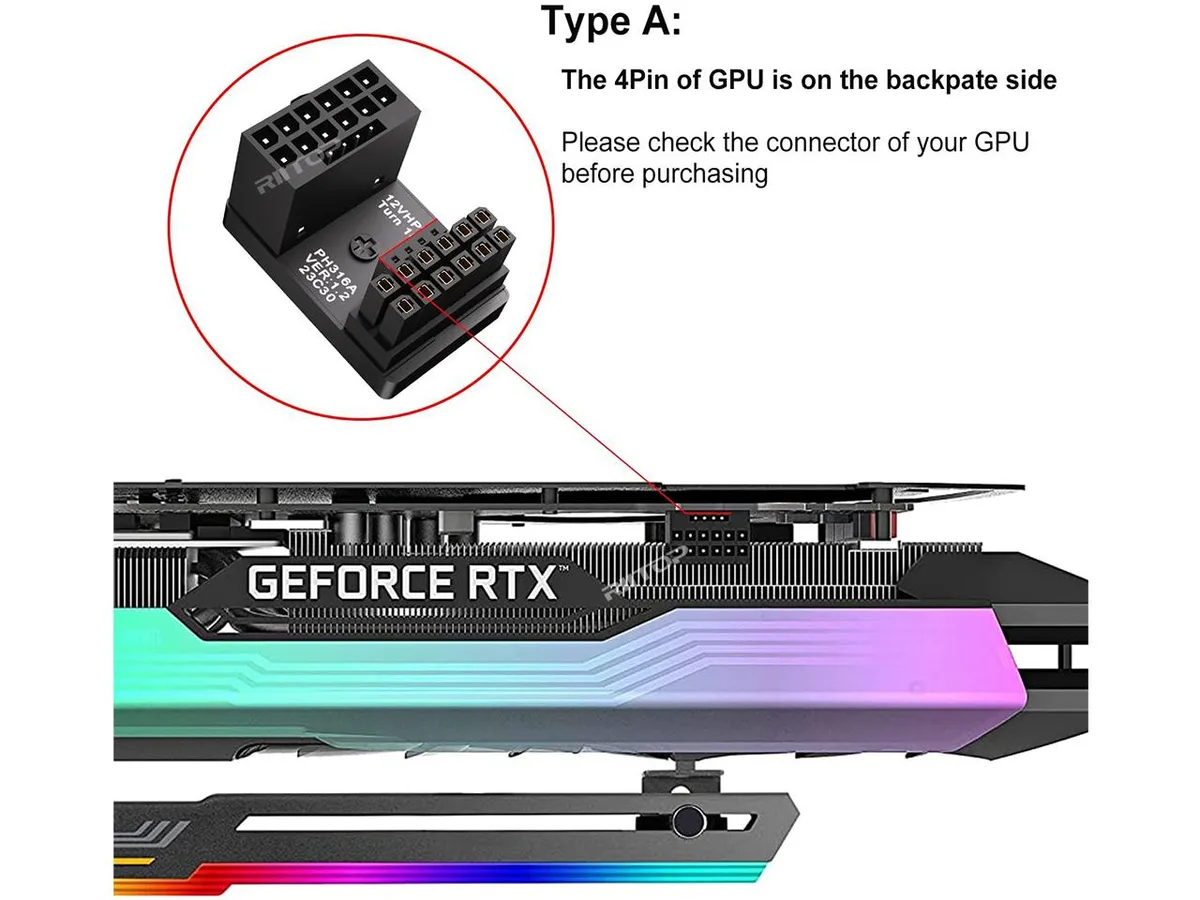

  • Type A orientation — verify GPU port layout before purchase

12VHPWR Type A angled adapter

This 180-degree 16-pin adapter connects an ATX 3.0 power cable to compatible RTX graphics cards. The Type A orientation directs the cable away from the GPU printed circuit board. An aluminium shell dissipates heat while supporting up to 600W of power delivery.

Upgrade from a straight 12VHPWR plug

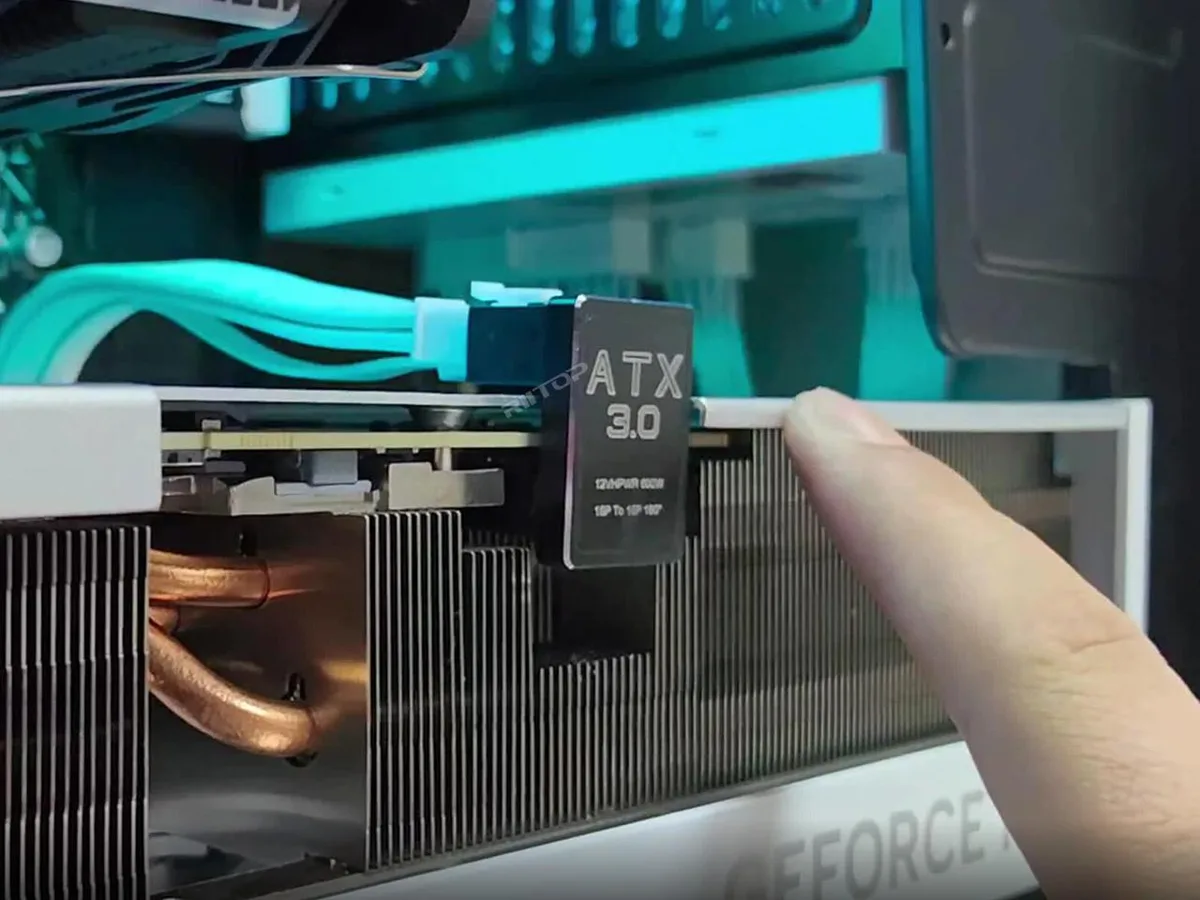

A straight connector can press against a side panel or bend sharply in tight builds. This angled version protrudes only 7mm from the card edge, reducing strain on the port and cable. The improvement is worthwhile when chassis depth or a bulky backplate leaves little clearance for a standard plug.

Check GPU backplate clearance and port orientation

Measure the distance between the 12VHPWR socket and the backplate; if the backplate extends more than 3mm beyond the port the adapter will not fit. Confirm the card requires a Type A adapter by comparing the socket orientation with the product images before ordering.

Highlights

  • 180° angle routes cable cleanly and reduces connector strain
  • 7 mm low profile fits wide GPUs in narrow cases
  • Aluminium shell improves heat dissipation for stable 600 W delivery
  • ATX 3.0 PCIe 5.0 12VHPWR 16-pin compatible with RTX 3090 Ti 4070 Ti 4080 4090
  • Type A orientation — verify GPU port layout before purchase

Specifications

ColorBlack

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much clearance does the 180-degree 12VHPWR adapter need from the GPU backplate?

The adapter requires the GPU backplate to extend no more than 3mm beyond the 16-pin port; otherwise the Type-A orientation will not fit.

What is the correct way to seat the 12+4 pin connector so the 600W rating is reliable?

Push the adapter straight onto the graphics card's native 12VHPWR socket until the latch clicks, then attach the PSU cable to the adapter's female end; reversing the order can leave the power pins partially engaged.

Does the aluminum shell of the 16-pin angled adapter need any periodic maintenance?

No scheduled maintenance is required; the CNC aluminum housing passively dissipates heat, so only inspect the connector for dust or damage during routine PC cleaning.
