Black rectangular network video recorder with front panel ports and ventilation slots

Reolink

Reolink 12CH PoE NVR 2TB HDD network camera

SKU CH-K09B-WZBXZ

12-channel PoE recorder with 2 TB storage supports up to 16 MP cameras and 16 TB total capacity

  • Bundled Camera NumberAdd-on Camera
  • ColorBlack
  • PixelsUp to 16MP
  • PowerMax. Power Per Port 25W Supported Standard IEEE 802.3 af/at
  • Humidity10%~90%
  • Temperature-10°C~+45°C (14°F~113°F)
  • Supports up to 16MP resolution for detailed footage
  • 12-channel capacity with 8 PoE plus 4 battery-powered cameras
  • 2TB HDD included, expandable to 16TB via SATA and eSATA

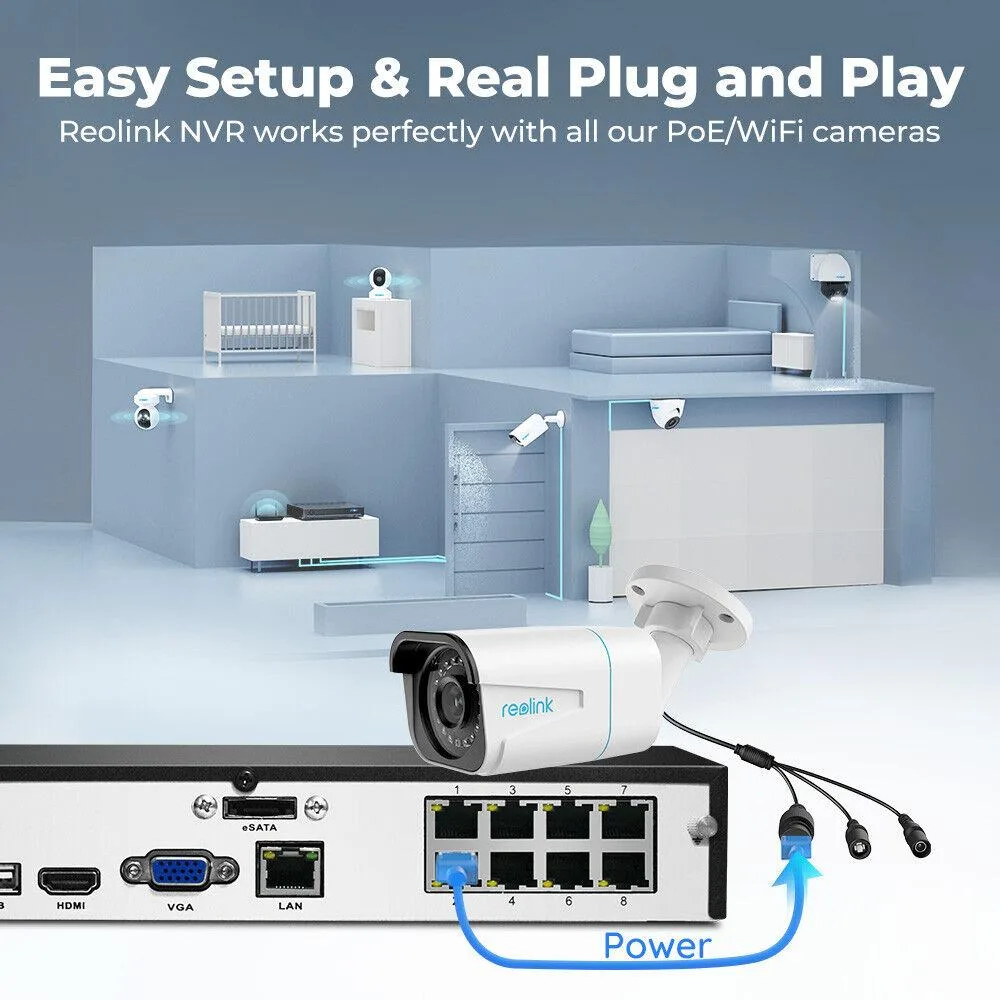

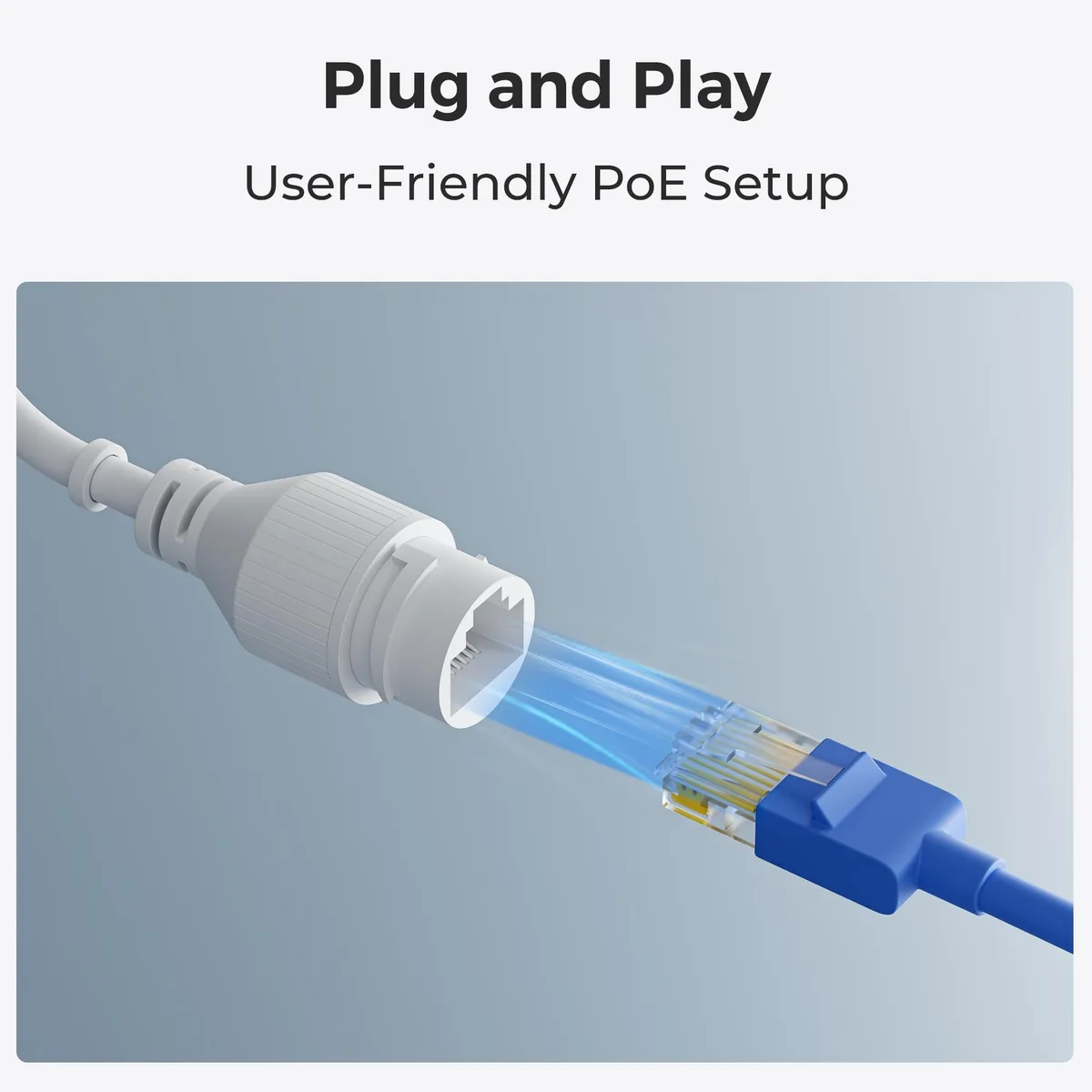

  • PoE plug-and-play up to 330ft for power and data on one cable
  • Free Reolink App and Client for local and remote access without monthly fees

System Purpose

This 12-channel PoE network video recorder is built for homes or small businesses that want a single-box recording hub for Reolink IP cameras. It ships with a 2 TB hard drive installed and can expand to 16 TB total capacity for weeks of continuous footage. The unit only works with Reolink cameras; third-party devices are not supported.

Build Integration

Eight PoE ports deliver up to 25 W each over a single Ethernet cable run to 330 ft, so cameras receive power and data without separate supplies or nearby outlets. An eSATA port allows an external hard drive to be added alongside the internal SATA bay. The recorder operates standalone for local live view and recording; internet is only required for remote access and push notifications.

Sustained Operation

The chassis is rated for ambient temperatures from -10 °C to +45 °C and humidity of 10 % to 90 %, supporting 24/7 recording loads without active cooling specs disclosed. HDMI output handles up to 3840 x 2160 resolution for detailed multi-camera playback on a monitor. Local storage and processing remain available even if the upstream network connection drops.

Highlights

  • Supports up to 16MP resolution for detailed footage
  • 12-channel capacity with 8 PoE plus 4 battery-powered cameras
  • 2TB HDD included, expandable to 16TB via SATA and eSATA
  • PoE plug-and-play up to 330ft for power and data on one cable
  • Free Reolink App and Client for local and remote access without monthly fees

Specifications

BrandReolink
SeriesNVR
Bundled Camera NumberAdd-on Camera
ColorBlack
PixelsUp to 16MP
PowerMax. Power Per Port
25W
Supported Standard
IEEE 802.3 af/at
Humidity10%~90%
Temperature-10°C~+45°C (14°F~113°F)
Dimension260 x 41 x 230mm
Weight1.4kg
SoftwareReolink Software, NVR
FeaturesSATA
1 x SATA interface (1 x 2TB HDD included)
Capacity
Up to 16TB (max. 8TB capacity for each HDD)
External HDD
1 eSATA Interface for HDD
Package ContentsNVR

Questions about this item

How many PoE cameras can I connect before I hit the 8-channel PoE port limit on this NVR?

The unit provides eight PoE ports, so you can plug in up to eight wired PoE cameras directly; the remaining four of the 12 supported channels are reserved for battery-powered Wi-Fi cameras.

What is the maximum power draw per PoE port when the recorder runs continuously?

Each PoE port delivers up to 25 W under the IEEE 802.3 af/at standard, and the NVR is rated to operate from -10 °C to +45 °C during 24/7 recording.

Which Reolink camera models must I already own for this recorder to work?

It only works with Reolink IP cameras such as the RLC-1212A, RLC-1224A, RLC-823A 16X, Trackmix PoE, Duo 2 PoE, 823A, 811A, 810A, 820A, 842A, 510A, 520A and E1 Outdoor.
