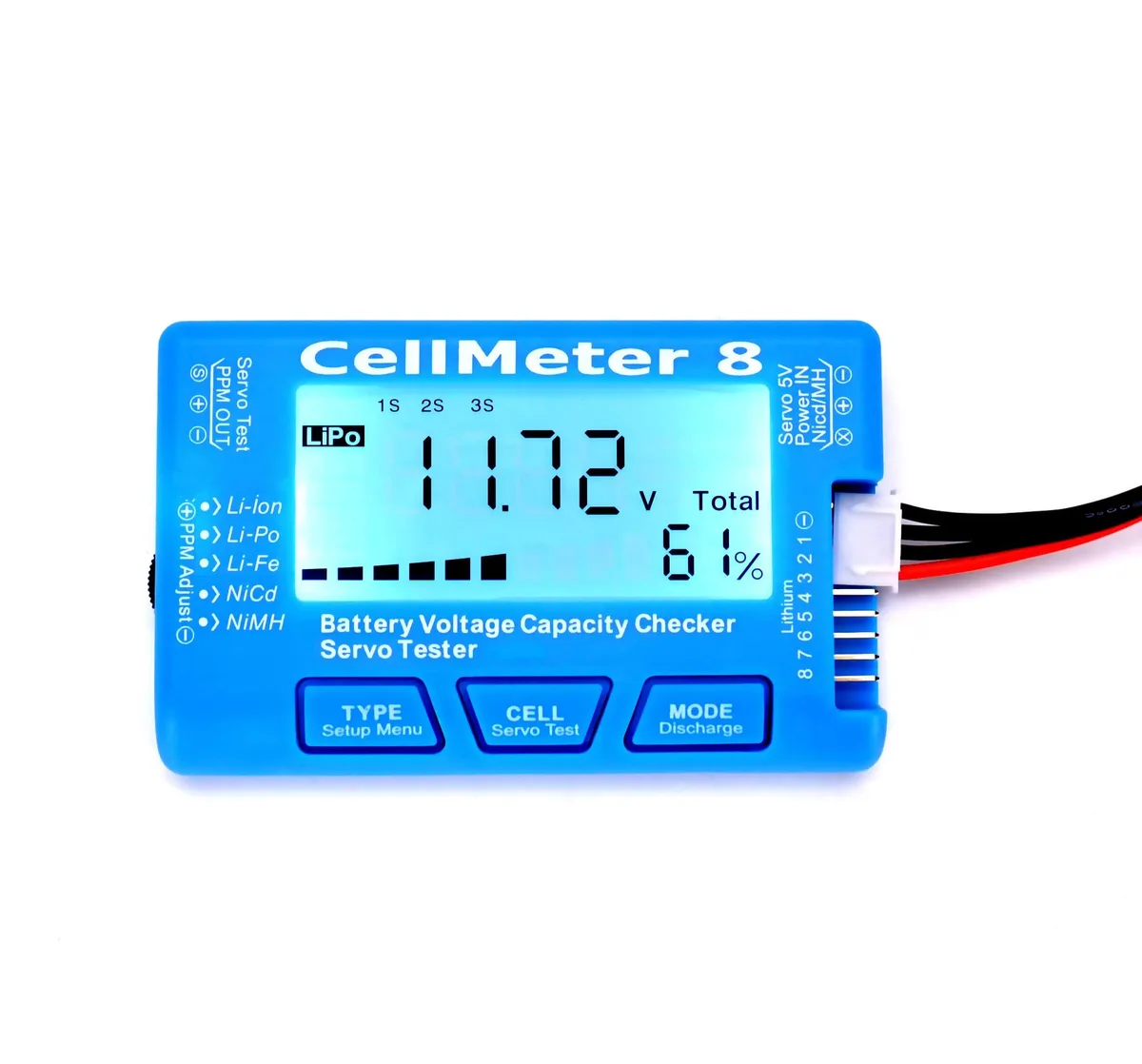

Handheld battery checker with backlit LCD and balance ports

RC CellMeter 8 Battery Capacity Checker LCD Backlight

SKU CH-DDW8-G8M6E

A digital battery capacity checker tests LiPo, LiFe, Li-ion, NiCd and NiMH packs up to eight cells with 0.001 V precision and a backlit LCD

  • FeaturesBattery Powered, false
  • Height4.5 L x 3.4 W x 1 H inches
  • Width4.5 L x 3.4 W x 1 H inches
  • Length4.5 L x 3.4 W x 1 H inches
  • Weight0.07 pounds
  • Sports Team1 Piece
  • Backlit LCD shows cell data clearly in low light
  • Tests LiPo LiFe Li-ion NiCd NiMH packs from 2S to 8S
  • Voltage precision of 0.001V reveals small cell imbalances
  • Doubles as servo tester covering 500 to 2500 µs range
  • Compact 4.5 by 3.4 by 1 inch tool weighs 0.07 lb

RC CellMeter 8 Battery Checker

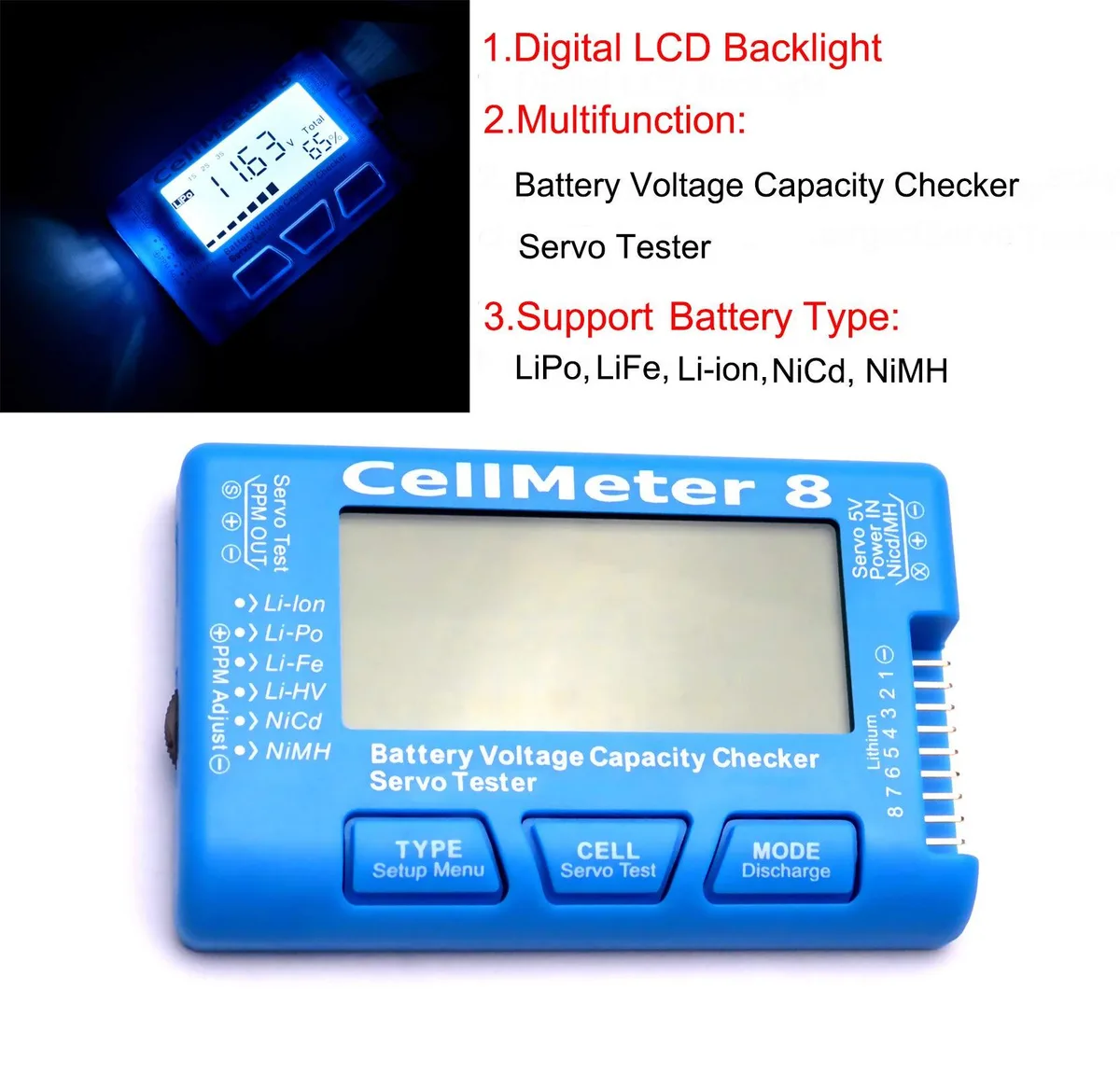

The RC CellMeter 8 is a handheld voltage tester for lithium and nickel battery packs used in drones, cars and other radio-controlled models. It reads individual cell voltages and total pack voltage for LiPo, LiFe, Li-ion, NiCd and NiMH chemistries from 2S up to 8S. The unit also functions as a servo tester with selectable pulse ranges of 1000-2000us or 500-2500us. Precision is rated at 0.001V on a backlit LCD.

Sustained Load Behaviour

During continuous discharge the checker draws a steady 1A balance current and 1A discharge current through its internal circuitry. The display updates in real time so the user can watch the voltage gap between the highest and lowest cells widen or narrow under load. No external power source is required; the device is powered directly from the balance plug of the pack under test. Backlight remains active throughout the session for low-light pits.

Upgrade From Basic Voltage Meters

This replaces single-function voltmeters that only show total pack voltage or lack a backlit screen. The jump is worth it when you need per-cell data, voltage-difference tracking and servo-test capability in one pocket-sized tool. It does not suit users who require high-amperage discharge cycling or integrated charging functions.

Highlights

  • Backlit LCD shows cell data clearly in low light
  • Tests LiPo LiFe Li-ion NiCd NiMH packs from 2S to 8S
  • Voltage precision of 0.001V reveals small cell imbalances
  • Doubles as servo tester covering 500 to 2500 µs range
  • Compact 4.5 by 3.4 by 1 inch tool weighs 0.07 lb

Specifications

BrandFPVDrone
FeaturesBattery Powered, false
Height4.5 L x 3.4 W x 1 H inches
Width4.5 L x 3.4 W x 1 H inches
Length4.5 L x 3.4 W x 1 H inches
Weight0.07 pounds
Sports Team1 Piece
TypeVoltmeter

Questions about this item

How much heat or noise does the CellMeter 8 produce when left running all day?

The unit draws power only from the battery under test and has no fan or active cooling, so it generates no audible noise and negligible heat during extended use.

What connectors or power source must I already have to operate the CellMeter 8?

You need a compatible balance plug for 2–8S LiPo/LiFe/Li-ion or a discharge plug for 4–8S NiMH/NiCd packs; the tester itself requires no separate supply.

Will the CellMeter 8 work with older 2S LiPo packs I still use?

Yes — it reads LiPo, LiFe and Li-ion from 2S up to 8S, so existing 2S packs are fully supported.
