AERMOTOR EM286 6V-48V DC Circuit Probe Tester

AERMOTOR EM286 Circuit Probe Tester

The AERMOTOR EM286 is a corded automotive circuit tester designed for 6 V to 48 V DC systems. It combines voltage detection, diode testing, continuity checks, ground detection, short-circuit tracking, polarity identification and a built-in light in a single handheld tool. The kit suits professional mechanics and vehicle owners who need to diagnose wiring faults without removing panels. Weighing .399 kg, it draws power directly from the vehicle battery via integrated clamps.

Practical Limits of DC Probe Testing

The tester operates only on direct-current circuits between 6 V and 48 V, so it cannot be used on household AC mains or high-voltage hybrid and electric-vehicle architectures. Its corded design requires physical access to the battery terminals for power, limiting reach to the length of the leads. Continuity and diode functions rely on the probe's internal circuitry and are not a substitute for a bench multimeter when precision resistance values are required. Audible and LED indicators confirm circuit status but do not display numeric measurements.

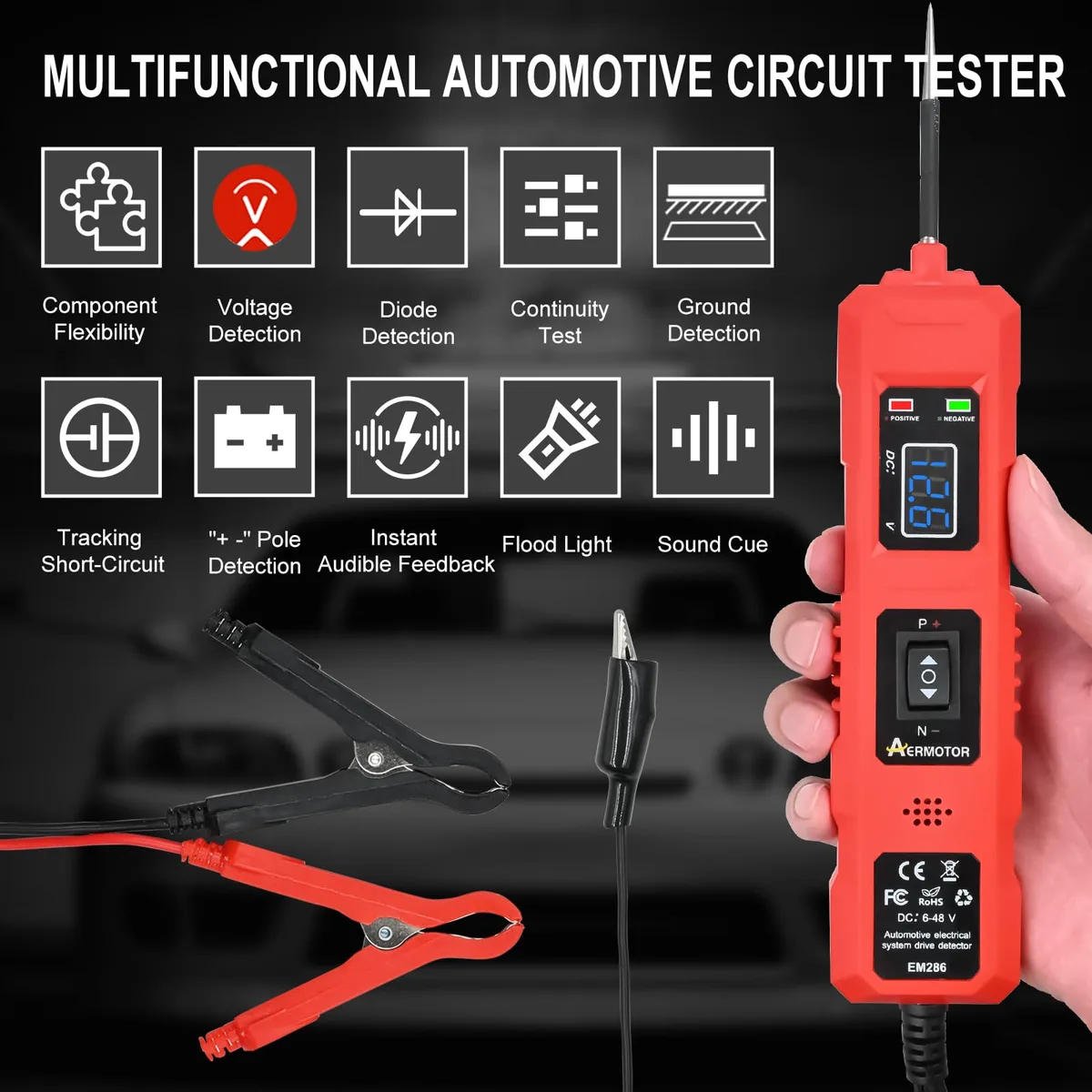

Nine-Function Diagnostic Coverage

The single specification that decides suitability is the inclusion of nine distinct test modes in one probe: voltage presence, diode health, continuity, ground verification, short-circuit tracing, polarity check, illumination, instant audible feedback and a power-on buzzer. If a workflow demands all of these functions without switching instruments, the EM286 meets that need; if only basic voltage checks are required, a simpler lamp probe may suffice.
