Raytek RAYGPCM Digital Panel Meter, Temp/Process
Digital panel meter accepts thermocouple or process signals, shows four-digit readings, and provides two relay outputs
- Analog/DigitalDigital
- TypeElectronic
- Accurate readings with ±1 % precision
- Versatile input accepts thermocouples and process signals
- Clear visibility via 4-digit red LED display
- Reliable control using two 5 A SPDT relays
- Flexible installation fits standard 1/8 DIN cutout
Industrial process meter for panel mounting

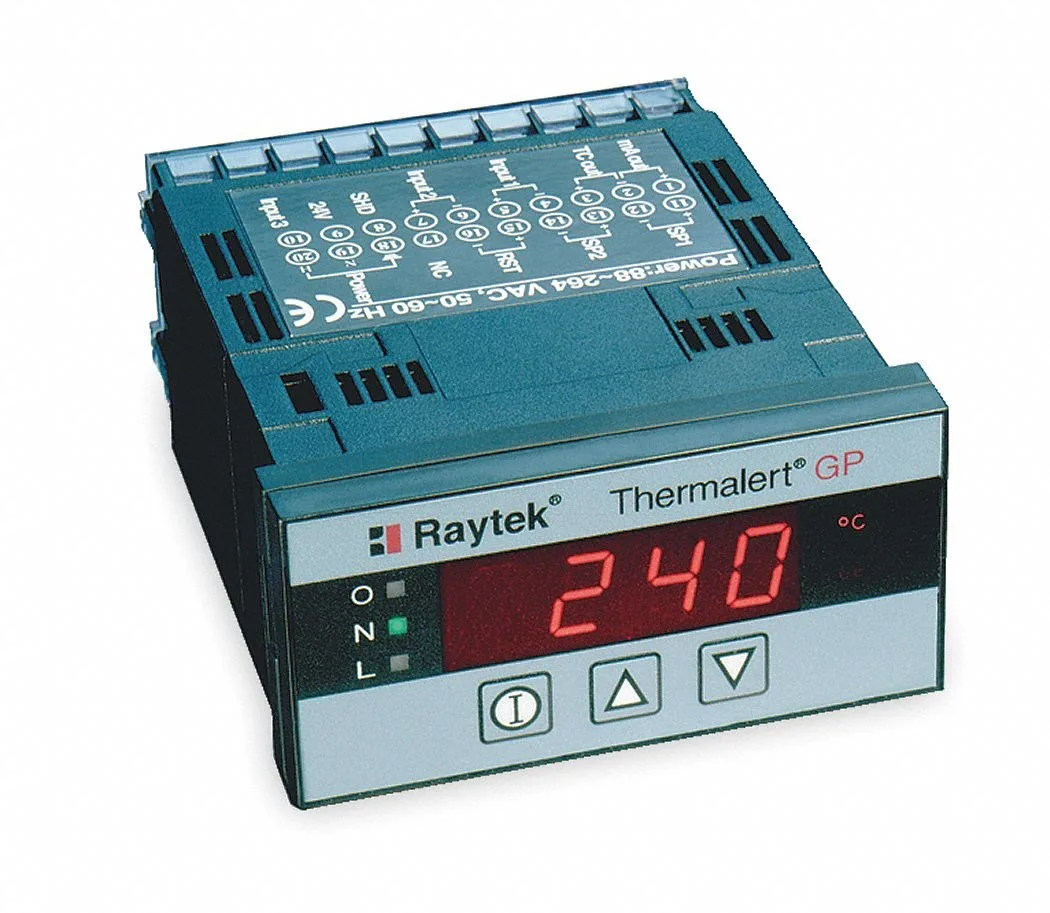

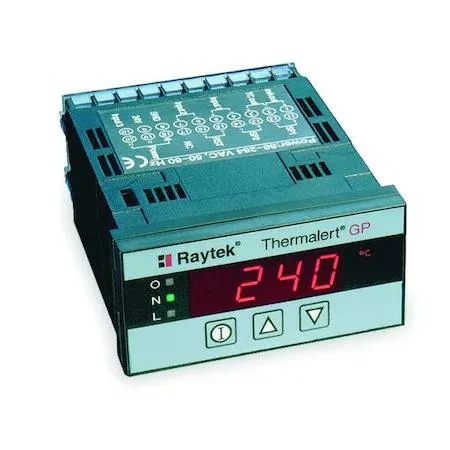

The Raytek RAYGPCM is a digital panel meter that accepts temperature or process signals in industrial control panels. It reads thermocouple types J, K, E, N, R, S and T as well as 0-5 V DC or 4-20 mA DC inputs. A four-digit red LED shows values from -9999 to 9999 with one percent accuracy. Two SPDT relays rated at 5 amps and 250 V AC provide alarm or control outputs.
Fits a standard 1/8 DIN cutout
The meter mounts in a standard 1/8 DIN panel cutout and connects through screw terminals for secure installation. It operates on 110 or 220 V AC supply and provides 24 V DC at 50 mA excitation for external sensors. The unit is designed for use with 1CVJ1 through 1CVJ4 and 1CVJ7 through 1CVJ9 infrared sensors. No separate interface module is required for basic operation.
Replaces analog panel meters
This digital meter upgrades older analog indicators that cannot display negative values or drive external alarms. The jump is worthwhile when a process needs programmable span, true RMS measurement or dual relay setpoints for automated shutdown. It is not suited for applications requiring data logging, network connectivity or multi-channel scanning.
Highlights
- Accurate readings with ±1 % precision
- Versatile input accepts thermocouples and process signals
- Clear visibility via 4-digit red LED display
- Reliable control using two 5 A SPDT relays
- Flexible installation fits standard 1/8 DIN cutout
Specifications
| Brand | RAYTEK |
|---|---|
| Model | RAYGPCM |
| Analog/Digital | Digital |
| Type | Electronic |
Questions about this item
What thermocouple types does the RAYGPCM accept for temperature measurement?
The meter accepts J, K, E, N, R, S and T thermocouple types for temperature input.
How much power do the relays draw when the panel meter runs continuously?
Each SPDT relay is rated at 5 A at 250 V AC, and the unit operates on 110/220 V AC supply.
Which Raytek IR sensors are compatible with this panel meter?
The meter is designed for use with 1CVJ1 through 1CVJ4 and 1CVJ7 through 1CVJ9 infrared sensors.
