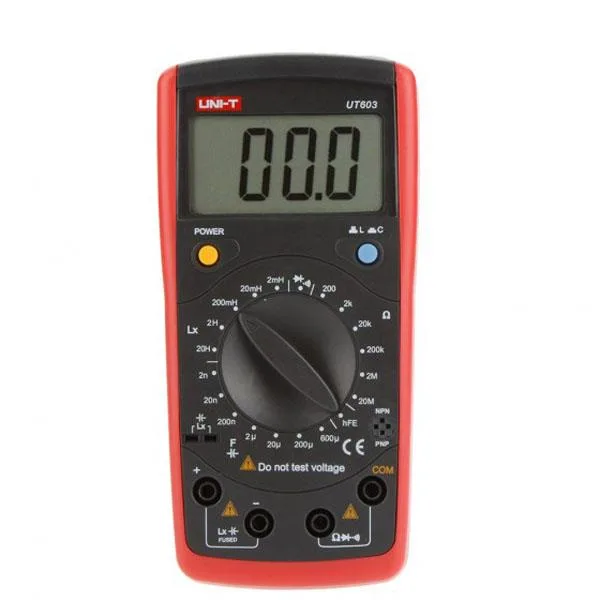

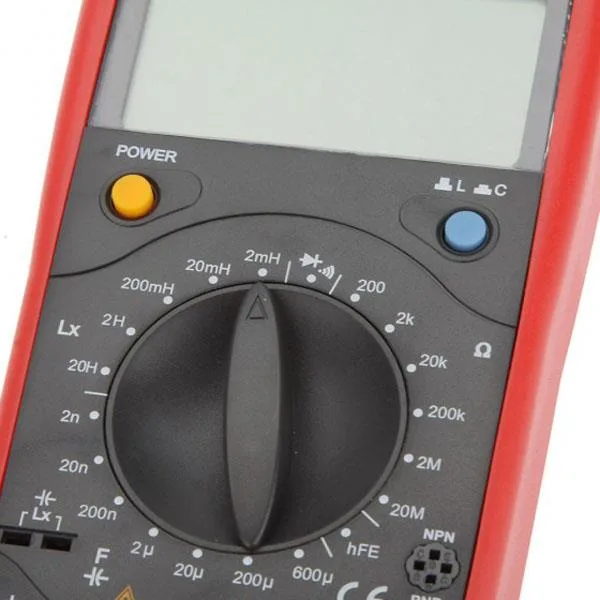

Red and grey handheld LCR meter with LCD display and alligator clips

JinTaoRui

JinTaoRui UT603Resistance LCR test meter

SKU CH-B59T-V75CK MPN UT603Resistance

Handheld LCR meter measures resistance, capacitance and inductance with 1999-count display and transistor hFE test

  • Measures resistance across six ranges up to 20 MΩ with ±0.8 % accuracy
  • Tests capacitance from 2 nF to 600 µF across seven ranges with ±1 % precision
  • Checks inductance from 2 mH to 20 H over five ranges with ±2 % tolerance
  • Includes transistor hFE and diode test plus audible continuity buzzer for quick circuit checks
  • 1999-count LCD (61 × 32 mm) in a compact 172 × 83 × 38 mm housing weighing 312 g

Purpose and audience

The JinTaoRui UT603Resistance is a handheld LCR meter designed for measuring inductance, capacitance and resistance. It suits technicians, engineers and hobbyists who need a portable instrument for component testing and circuit troubleshooting.

Upgrade path

This meter replaces basic multimeters that lack dedicated inductance and capacitance ranges. The jump is worth it when you regularly characterise capacitors up to 600 µF, inductors up to 20 H or need transistor hFE and diode checks in one tool.

Compatibility checklist

Verify that a 9 V 6F22 battery is available locally as none is supplied. Confirm the 172 mm by 83 mm footprint fits your tool bag or bench space. Ensure the 1999-count LCD resolution meets the precision your workflow demands.

Highlights

  • Measures resistance across six ranges up to 20 MΩ with ±0.8 % accuracy
  • Tests capacitance from 2 nF to 600 µF across seven ranges with ±1 % precision
  • Checks inductance from 2 mH to 20 H over five ranges with ±2 % tolerance
  • Includes transistor hFE and diode test plus audible continuity buzzer for quick circuit checks
  • 1999-count LCD (61 × 32 mm) in a compact 172 × 83 × 38 mm housing weighing 312 g

Specifications

No published specifications for this item yet.

Questions about this item

What are the physical dimensions of the UT603Resistance meter?

The meter measures 172mm by 83mm by 38mm and weighs 312g, with an LCD area of 61mm by 32mm.

How do you power the UT603Resistance for the first time?

Insert one 9V 6F22 battery into the rear compartment; the battery is not included in the package.

When should the test leads be replaced on the UT603Resistance?

Replace the supplied alligator clips if the insulation is cracked, the clips no longer grip firmly, or resistance readings become erratic.
