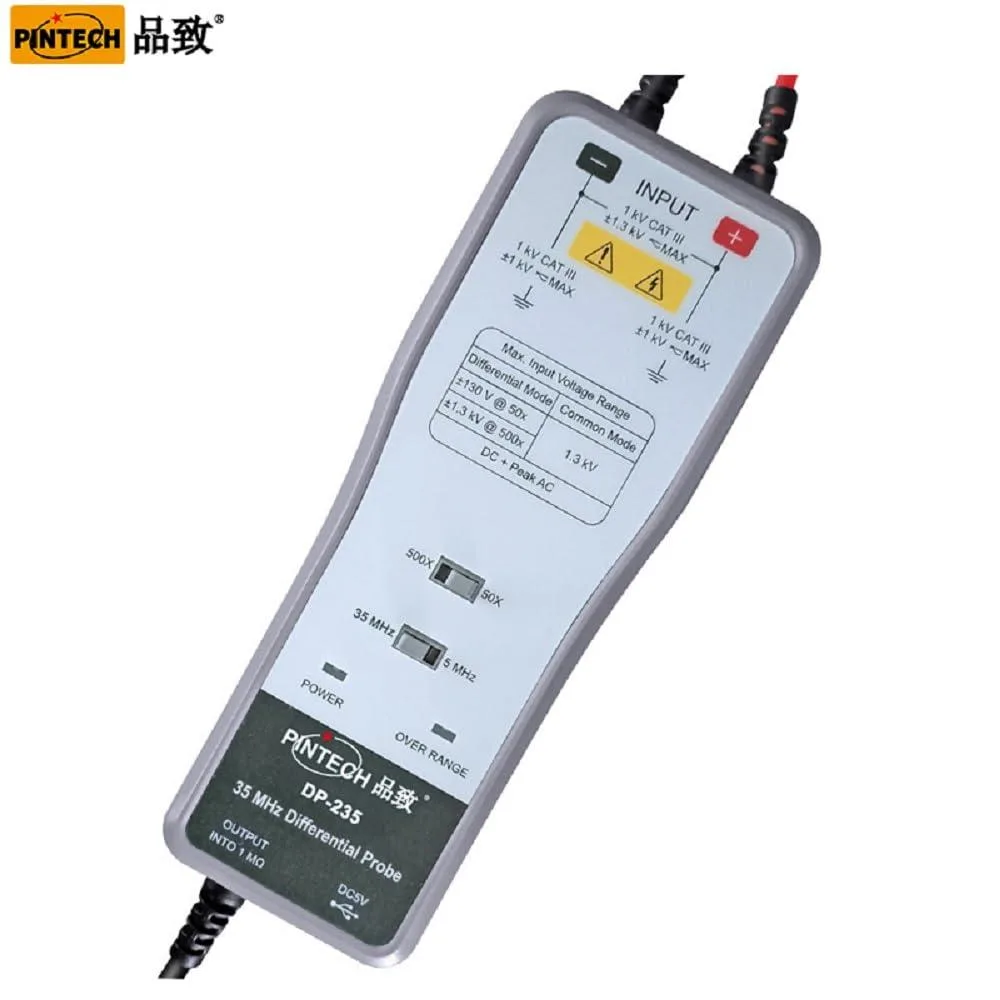

White handheld differential probe with BNC cable and accessory clips

Pintech

Pintech DP-235 High Voltage Differential Active Probe 2600V 35MHz 50X/500X

SKU CH-8QV3-X8R7Q

Active differential probe for oscilloscopes measuring up to 2600 V at 35 MHz with selectable 50X or 500X attenuation and BNC connection

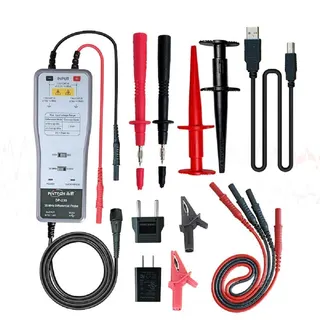

  • IncludesDifferential probe x 1, Probe Hook x 2, Alligator Clip x 2
  • Safe floating measurements up to 2600 V with 35 MHz bandwidth
  • Selectable 50X or 500X attenuation for wide dynamic range
  • Built-in 5 MHz limit filter simplifies noisy signal viewing
  • BNC output connects directly to any standard oscilloscope
  • Complete kit ships with hooks, clips, adapter and cables

High-Voltage Differential Probe 2600V

The Pintech DP-235 is a high-voltage differential active probe built for engineers and technicians who need safe, accurate measurements on circuits up to 2600V. It suits motor-drive testing, power-electronics development and any two-point signal capture where ground-referenced probing is unsafe.

35MHz Bandwidth BNC Interface

The probe body houses a DC-to-35MHz bandwidth section with selectable 50X or 500X attenuation and a typical ±2% accuracy. A built-in 5MHz bandwidth limit simplifies noisy environments. The standard BNC output connects directly to any oscilloscope, meter or data-acquisition unit equipped with a BNC connector. Supplied hooks, alligator clips and cables support day-to-day bench work.

Attenuation and Voltage Limits

The 50X and 500X ratios set the maximum measurable differential voltage; signals exceeding the 2600V rating cannot be captured safely. The 35MHz bandwidth ceiling means faster transients or higher-frequency switching edges will be attenuated. Users needing wider bandwidth or higher voltage headroom must select a different probe class.

Highlights

  • Safe floating measurements up to 2600 V with 35 MHz bandwidth
  • Selectable 50X or 500X attenuation for wide dynamic range
  • Built-in 5 MHz limit filter simplifies noisy signal viewing
  • BNC output connects directly to any standard oscilloscope
  • Complete kit ships with hooks, clips, adapter and cables

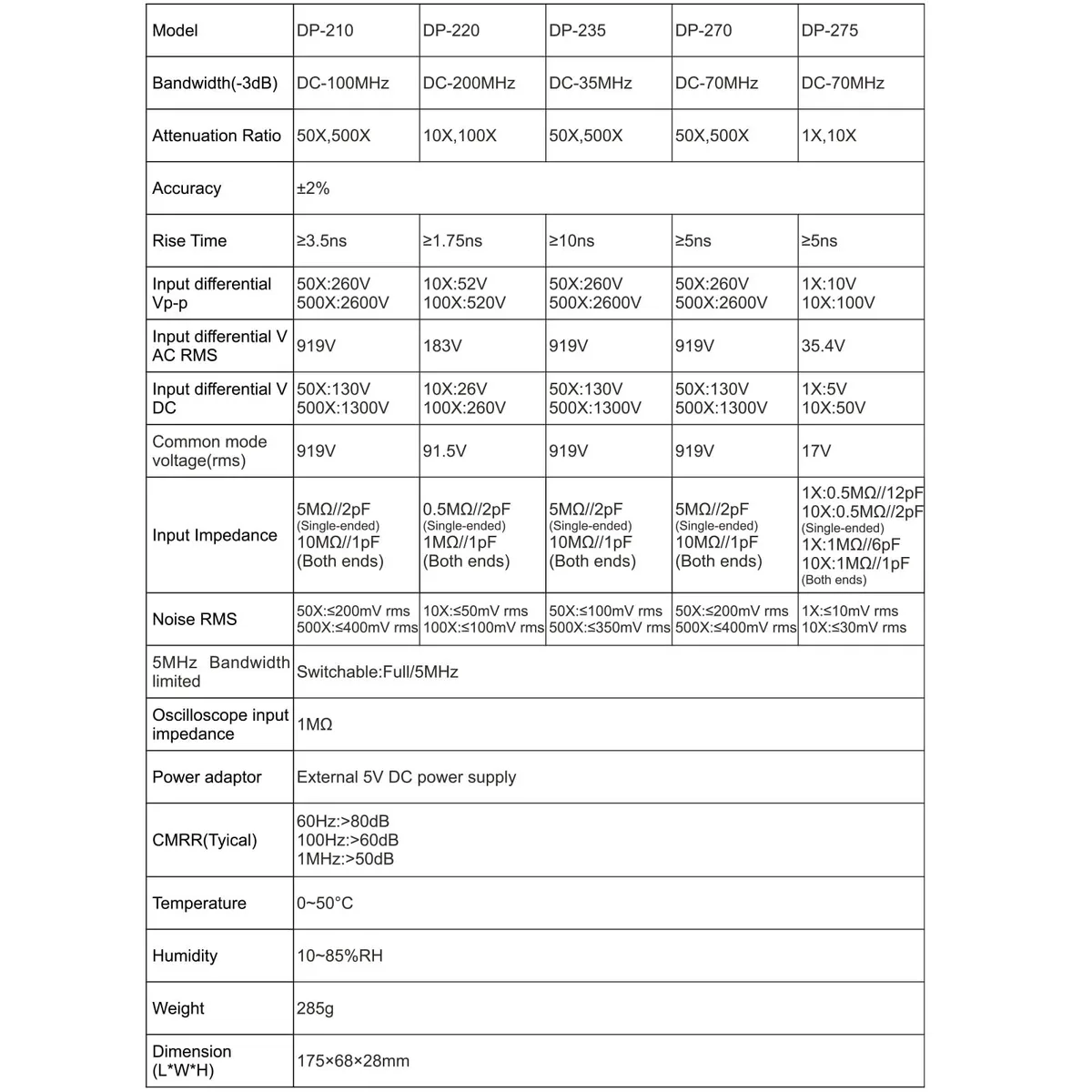

Specifications

IncludesDifferential probe x 1, Probe Hook x 2, Alligator Clip x 2

Questions about this item

What bandwidth does the BNC interface support on this probe?

The BNC interface passes signals up to 35 MHz, matching the probe's rated bandwidth.

What mounting or connection hardware is included for the DP-235?

The kit supplies two probe hooks, two alligator clips, two end-probes, a dedicated input cable and a BNC cable for oscilloscope connection.

How do you install the probe and which step is often missed?

Connect the BNC cable to the oscilloscope, attach the input cable to the probe body, select 50X or 500X attenuation, then enable the 5 MHz bandwidth limit if required.
