Black rectangular junction box with 7-way trailer plug and coiled cable

RAYBESTOS UNBRANDED

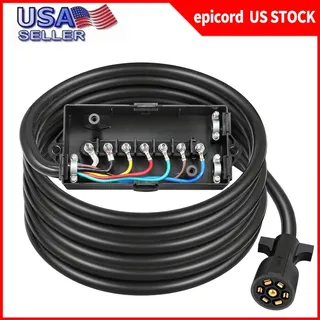

RAYBESTOS UNBRANDED 7 Way Trailer Plug 8FT Junction Box exterior accessory

SKU CH-A554-9YAKY

Weatherproof 7-way trailer plug with 8 ft cord and junction box, waterproof grommets and copper blades for RVs, trailers and campers

  • TypeTrailer Accessories
  • FeaturesWidely Use
  • MaterialABS
  • Simplified wiring with three sizes of 7-way copper blades moulded into a heavy-duty plug
  • Protection against incorrect voltage, short circuit and internal overheating with pure copper conductors
  • Waterproof, dustproof and corrosion-resistant junction box sealed by eight rubber grommets and two screws

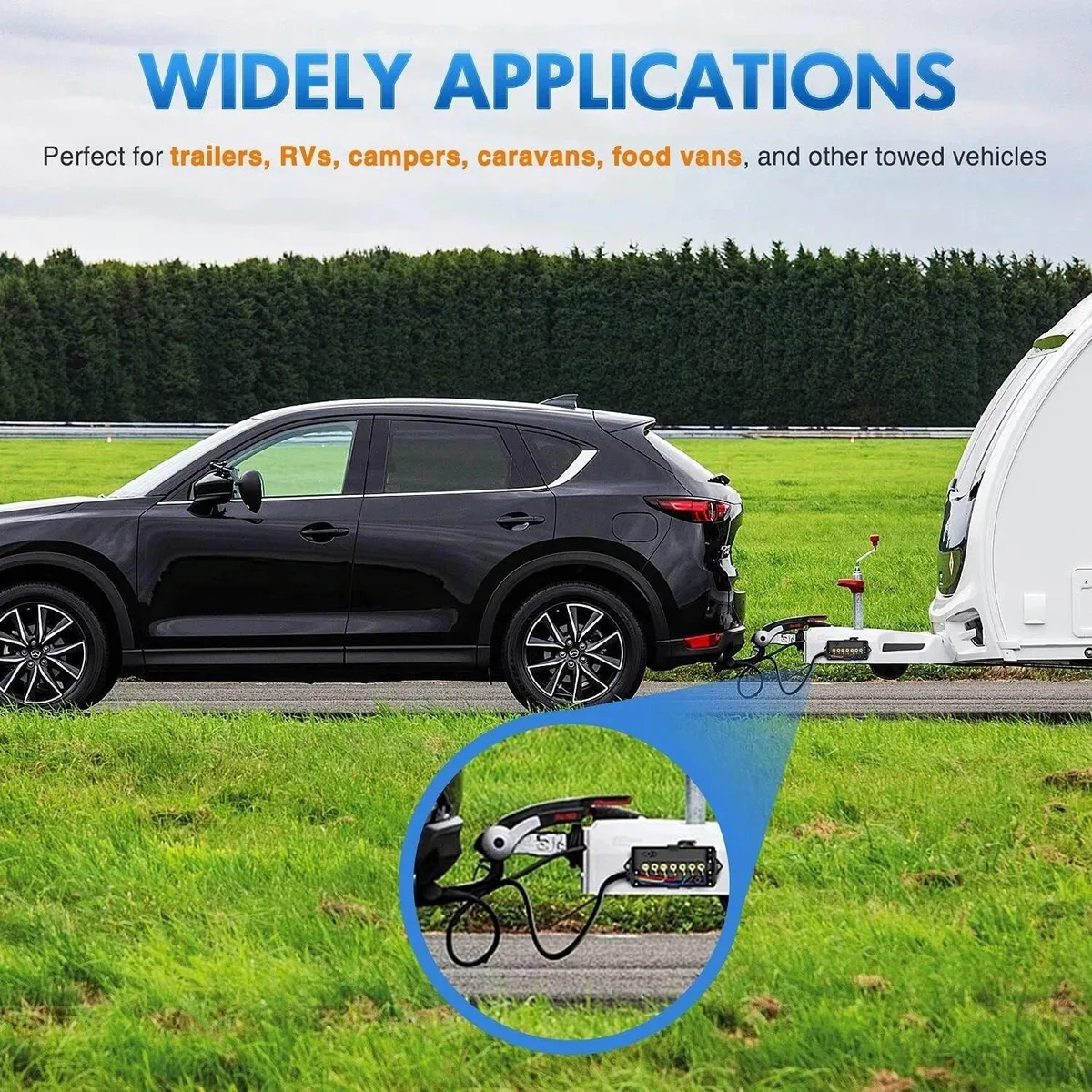

  • Weatherproof 8-foot cord built for RVs, trailers, caravans, food vans and campers
  • Operates up to 105 °C dry and 60 °C wet for reliable performance in harsh conditions

7-Way Trailer Plug for Towed Vehicles

This 7-way trailer plug with an integrated junction box is built for RVs, trailers, caravans, food vans and campers. It supplies a standard connector for lighting and brake circuits on towed vehicles. The heavy-duty moulded plug simplifies wiring installation. It is not suited for vehicles requiring a different pin configuration or higher current capacity than the 7-way standard provides.

8-Foot Cord and Junction Box Capacity

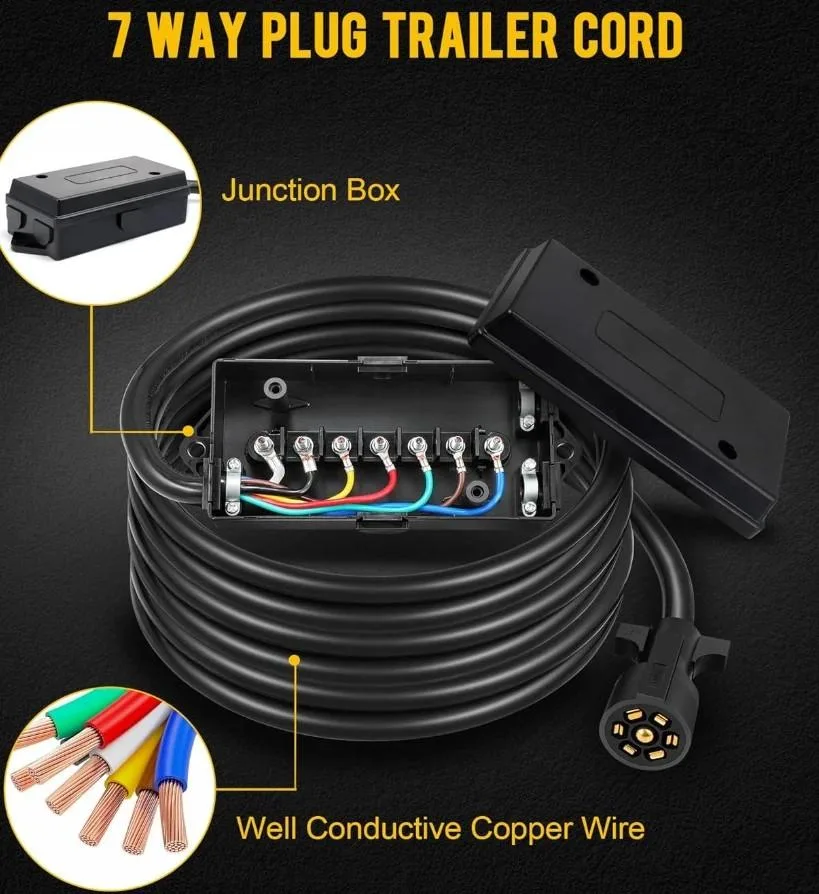

The kit includes an 8-foot trailer cord connected to a junction box measuring 6.5" x 3.1" x 2.2". Four open and four close rubber grommets with two screws seal the enclosure against water, dust and corrosion. The box organises multiple wire runs for a single trailer connection. Installations needing longer cable runs or additional independent circuits will exceed the supplied length and port count.

Copper Conductors and Temperature Limits

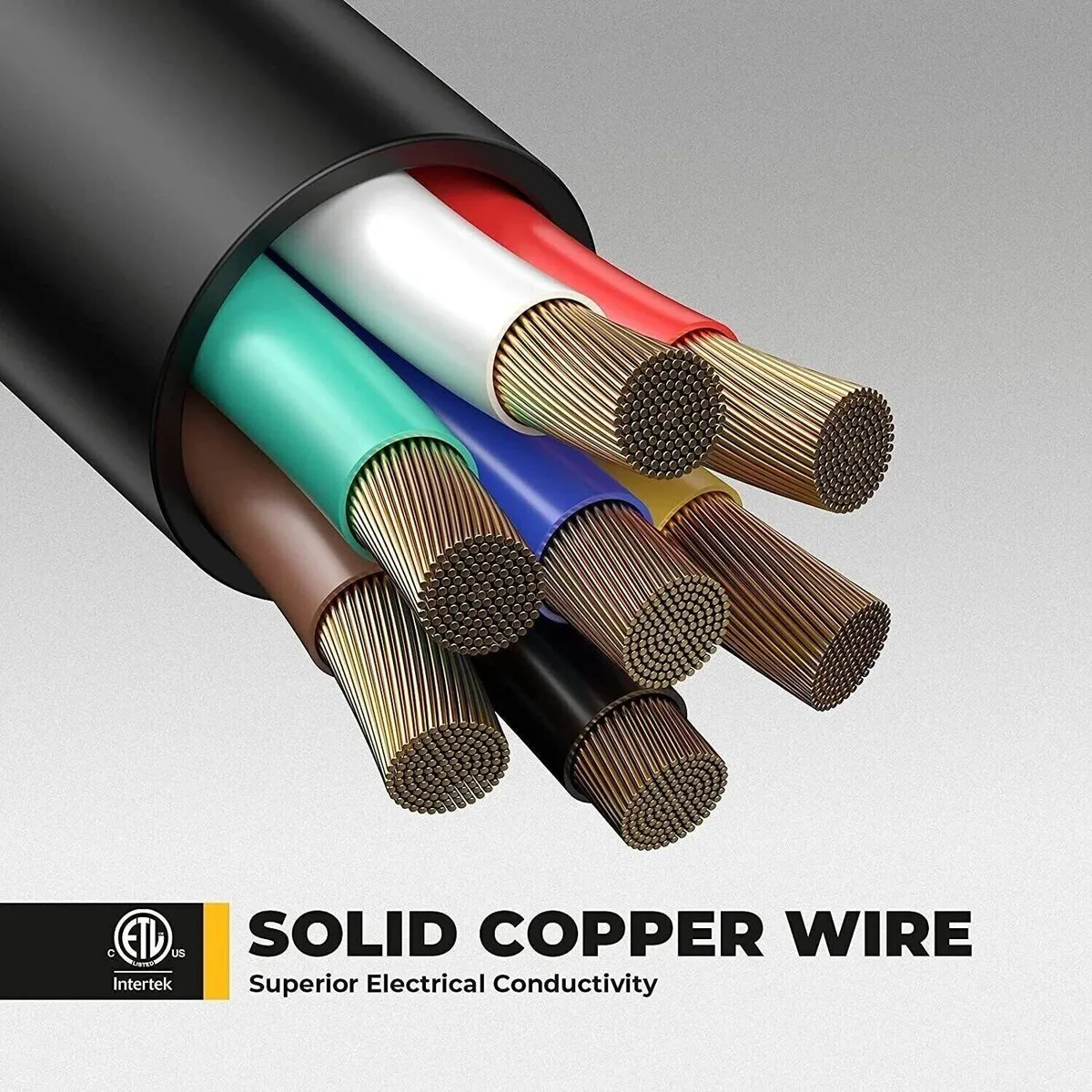

Conductors use pure copper with PVC insulation and ABS housing. The assembly is rated for 105°C dry and 60°C wet environments. Built-in safeguards protect against incorrect voltage, short circuit and internal overheating. The 7-way blade interface limits total current to the connector specification; systems demanding higher amperage or a different connector standard cannot use this harness.

Highlights

  • Simplified wiring with three sizes of 7-way copper blades moulded into a heavy-duty plug
  • Protection against incorrect voltage, short circuit and internal overheating with pure copper conductors
  • Waterproof, dustproof and corrosion-resistant junction box sealed by eight rubber grommets and two screws
  • Weatherproof 8-foot cord built for RVs, trailers, caravans, food vans and campers
  • Operates up to 105 °C dry and 60 °C wet for reliable performance in harsh conditions

Specifications

TypeTrailer Accessories
FeaturesWidely Use
MaterialABS

Questions about this item

Will the 8-foot cord and 6.5" x 3.1" x 2.2" junction box reach and fit alongside my existing trailer wiring?

The 8-foot trailer cord provides length for routing to your existing harness, and the junction box measures 6.5 by 3.1 by 2.2 inches so you can check clearance before mounting.

How can I verify the 7-way plug is functioning correctly after installation?

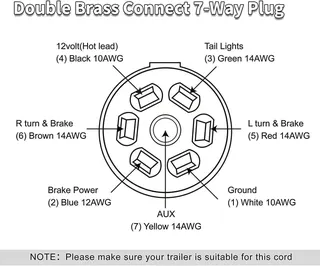

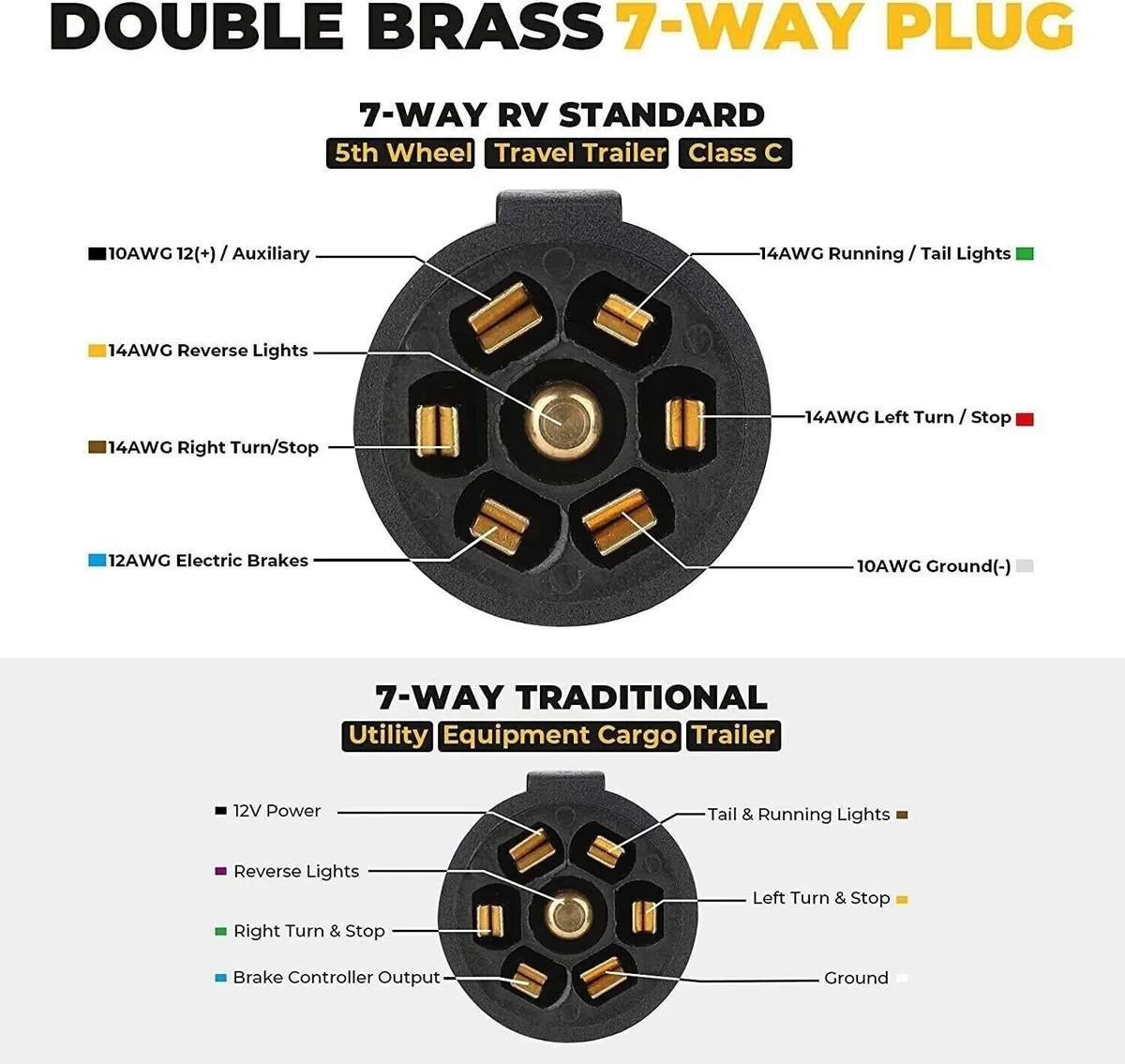

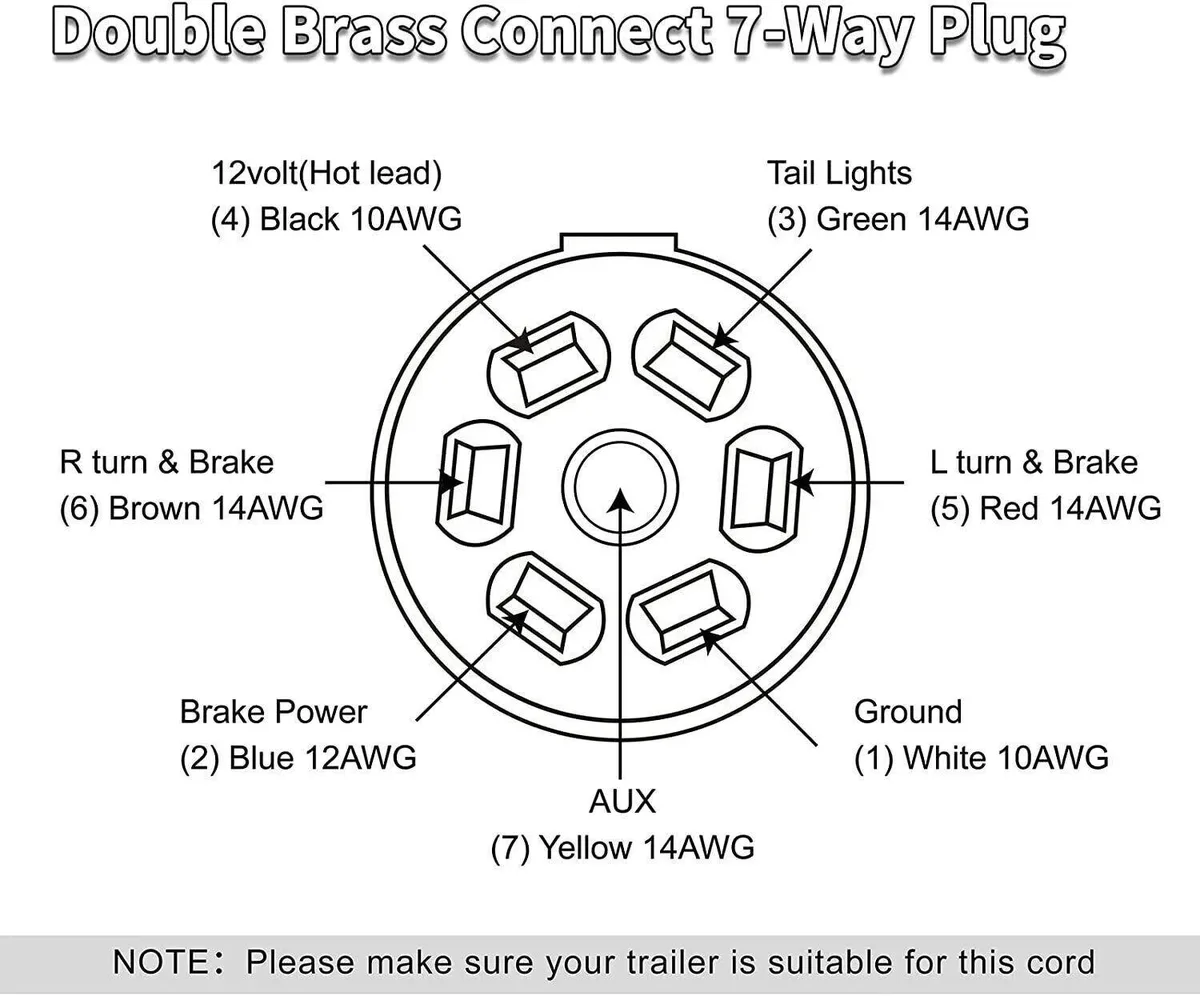

Test each circuit — tail lights, brake lights, turn signals, auxiliary power, electric brakes, reverse lights and ground — with a trailer tester or multimeter to confirm all seven pins carry the correct signals.

What hardware comes in the package and what must I supply?

The box includes the 7-way 8-foot plug with junction box, four open grommets, four closed grommets and two mounting screws; you will need to provide your own wire connectors and mounting tools.
