Two black steel 1U vented cantilever trays for 10-inch racks

QiaoYoubang 1U 10" Vented Cantilever Rack Tray 2 PCS

SKU CH-2G18-HFA90

A pair of 1U vented cantilever trays for 10-inch racks, each 8.3 in wide by 7.8 in deep, cold-rolled steel, 10 lb capacity

  • Rack Units1U
  • ColorBlack
  • MaterialSteel
  • Cooling (Optional)1U 10 x 8 inches -2 Pcs
  • Weight Capacity10 pounds
  • Specification1U 10 x 8 inches -2 Pcs, Cold Rolled Steel, Rack Mount, 8 L
  • Fits 10 inch racks with a 10 inch wide tray
  • Vented steel surface moves air across 8.3 by 7.8 inch usable area
  • Cold rolled steel construction supports 10 pounds per shelf
  • Two trays included ready to mount with no assembly needed
  • 1U height adds only 1.73 inches to rack space

1U 10" Vented Cantilever Tray Pair

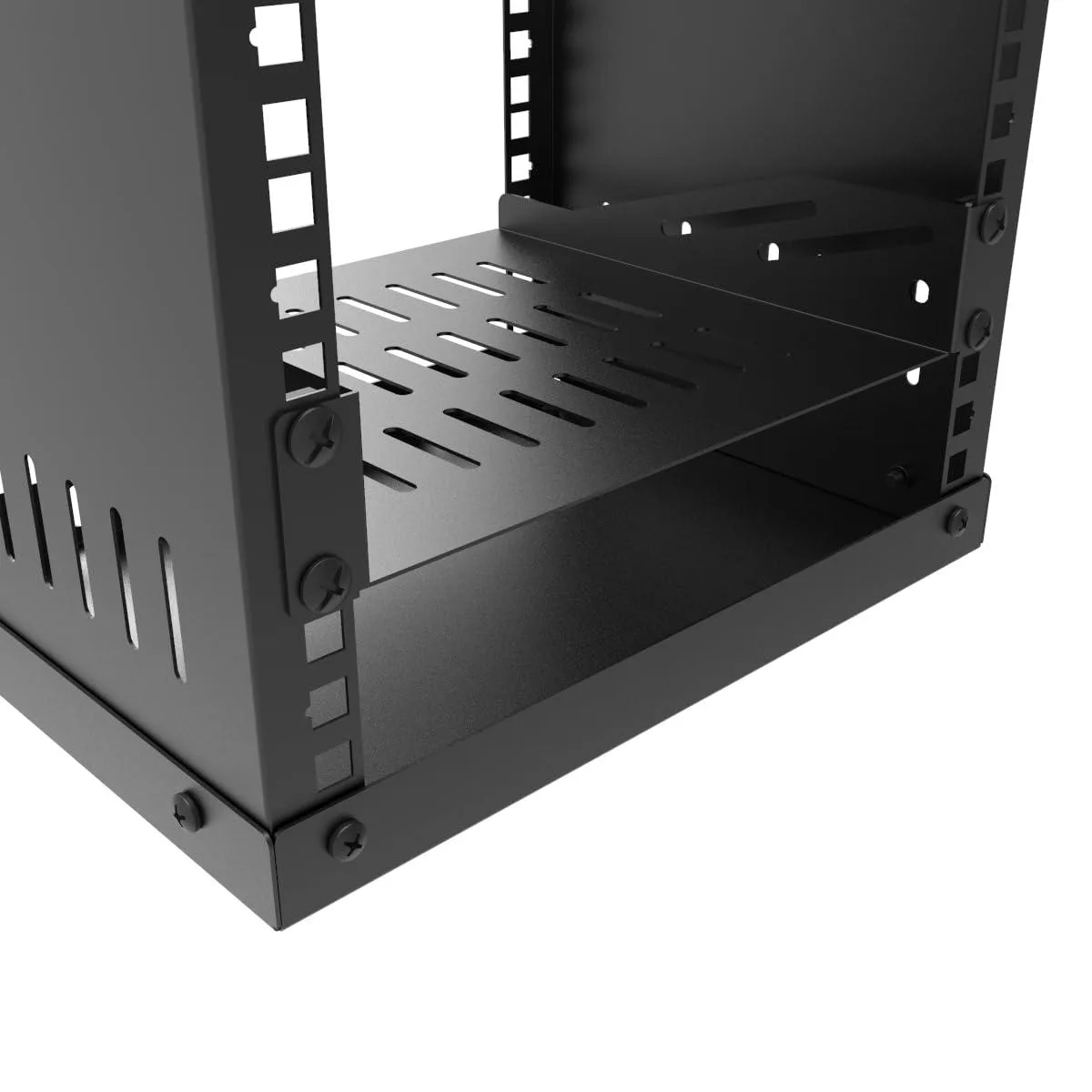

This pair of 1U vented cantilever trays fits 10-inch server racks and cabinets. Each tray is made from cold-rolled steel with a black powder-coated finish. They arrive fully assembled and ready to mount. The ventilation pattern promotes airflow around installed equipment.

Upgrade from makeshift shelving

These trays replace improvised shelves or non-vented blank panels that restrict cooling. The jump is worth it when you need a secure, rack-standard platform for small IT gear such as network switches. The 10 lb weight capacity per tray limits use to lightweight devices only.

10-inch rack standard limits

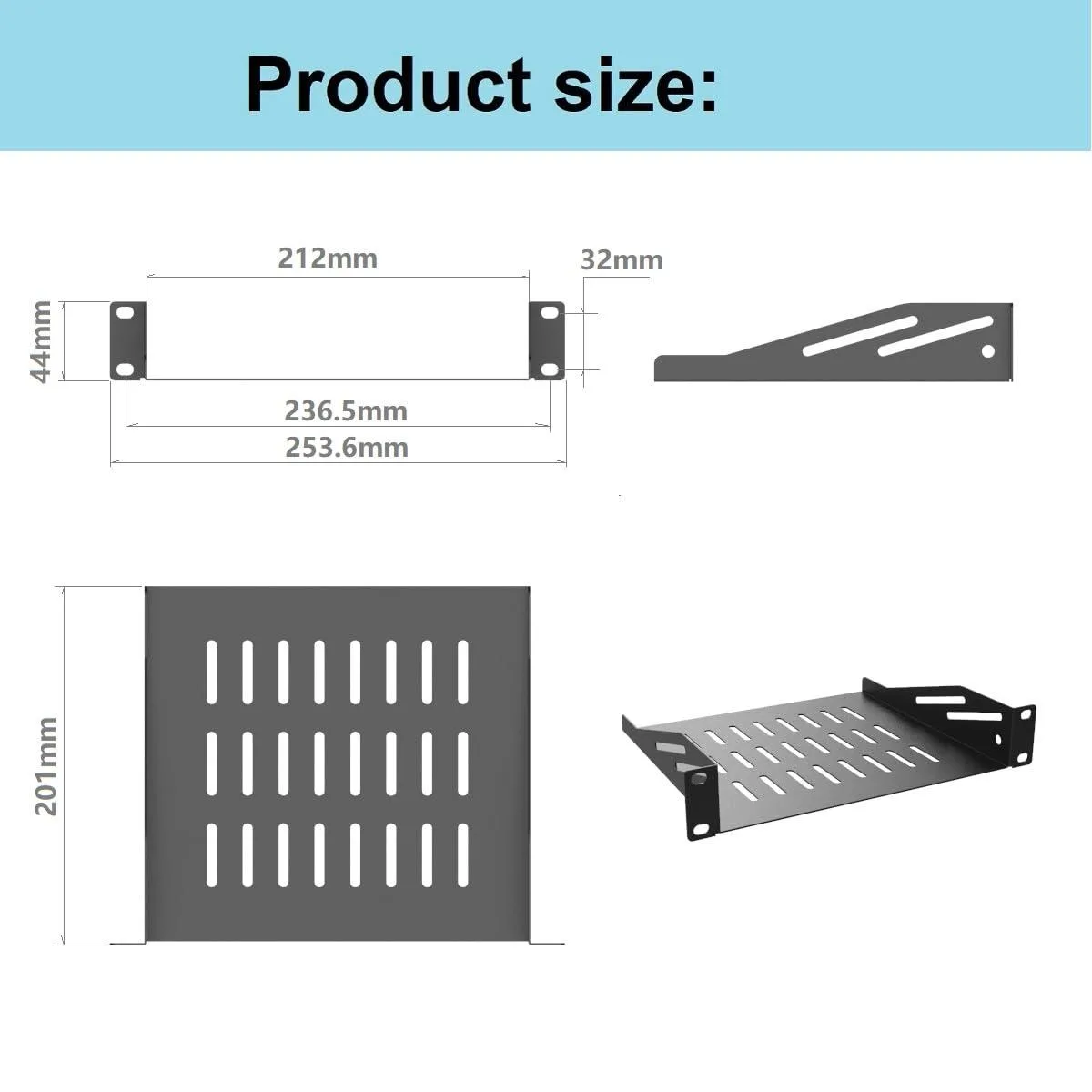

The 10-inch rack format restricts usable width to 8.3 inches and depth to 7.8 inches. Equipment wider or deeper than these dimensions will not fit. The 1U height occupies a single rack unit, leaving no vertical space for taller appliances. Heavier loads exceed the rated capacity.

Highlights

  • Fits 10 inch racks with a 10 inch wide tray
  • Vented steel surface moves air across 8.3 by 7.8 inch usable area
  • Cold rolled steel construction supports 10 pounds per shelf
  • Two trays included ready to mount with no assembly needed
  • 1U height adds only 1.73 inches to rack space

Specifications

BrandQiaoYoubang
Rack Units1U
ColorBlack
MaterialSteel
Cooling (Optional)1U 10 x 8 inches -2 Pcs
Weight Capacity10 pounds
Specification1U 10 x 8 inches -2 Pcs, Cold Rolled Steel, Rack Mount, 8 L x 10 W x 1.73 H inches
FeaturesRack Mount / Cold Rolled Steel / for 10 inches network cabinet or rack / 10" server racks or cabinets / false / Not application / 1U 10 x 8 inches -2 Pcs / Black
Industry Standard1U 10 x 8 inches -2 Pcs
Included Accessoryfalse
Optional Accessory10" server racks or cabinets
Unit Dimension8 in x 10 in x 1.73 in
Shipping Dimension5.4102 cm x 21.3106 cm x 32.5882 cm
Shipping Weight1.021 kilograms

Questions about this item

What rack width and depth does the 1U cantilever tray fit?

The tray mounts in a 10 inch rack and uses 7.87 inches of depth, leaving 8.3 inches of usable width and 7.8 inches of usable depth for equipment

How do I attach the tray to the rack posts?

Align the mounting ears with the front posts, insert cage nuts if needed, and secure each ear with two screws — the tray ships fully assembled so no brackets or rails must be built first

Will the powder-coated steel finish need any upkeep?

The cold-rolled steel with powder coating resists corrosion under normal indoor use; just keep vent holes clear of dust and avoid exceeding the 10 pound load limit to prevent bending
