Brass 90-degree elbow fitting with male and female G 1/4in threads

PrimoChill

PrimoChill G 1/4in 90 Degree SX Elbow Fitting diy cooling

SKU CH-C8C6-0XS5H

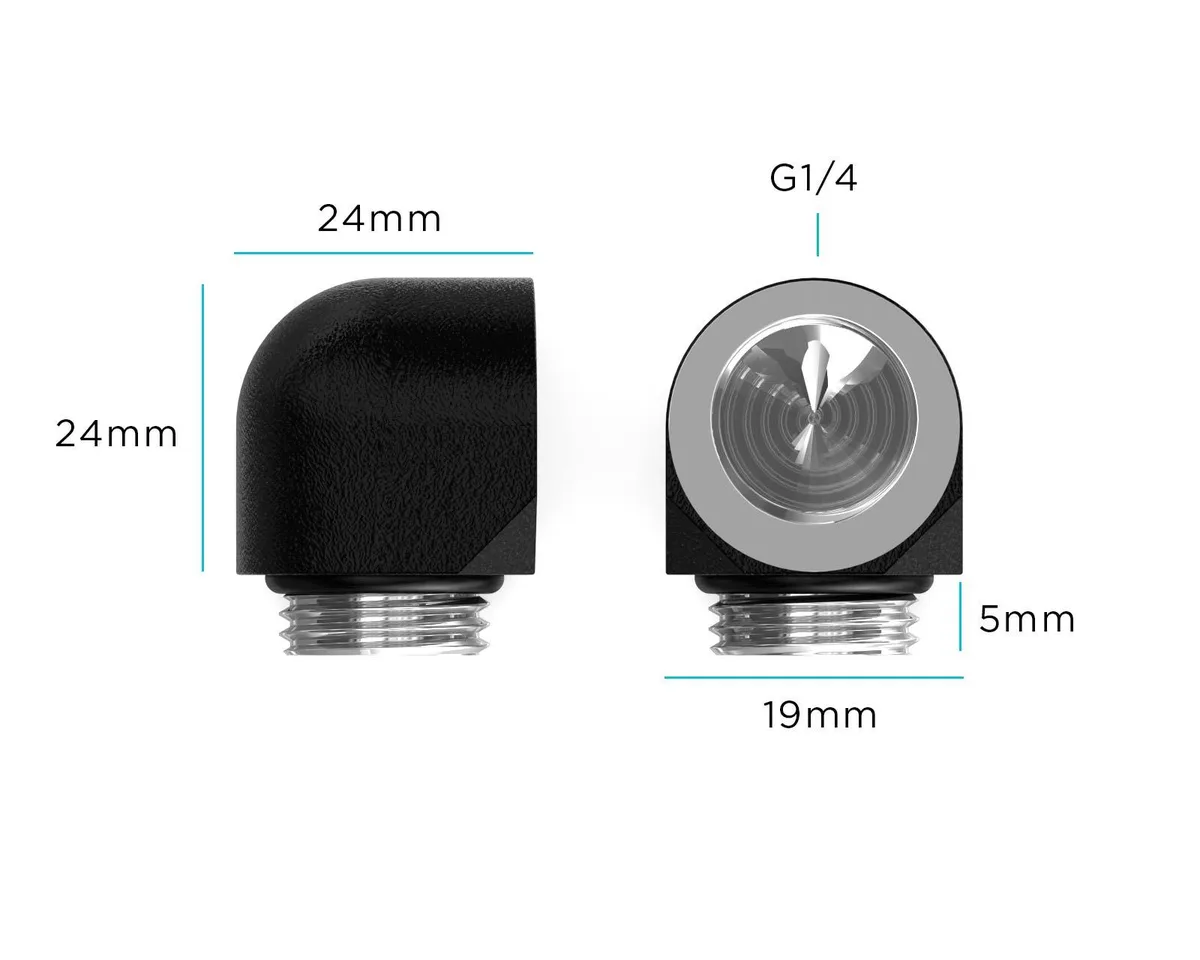

G 1/4in 90-degree coated-brass elbow fitting redirects a custom loop with one male and one female thread

  • TypeCPU Block

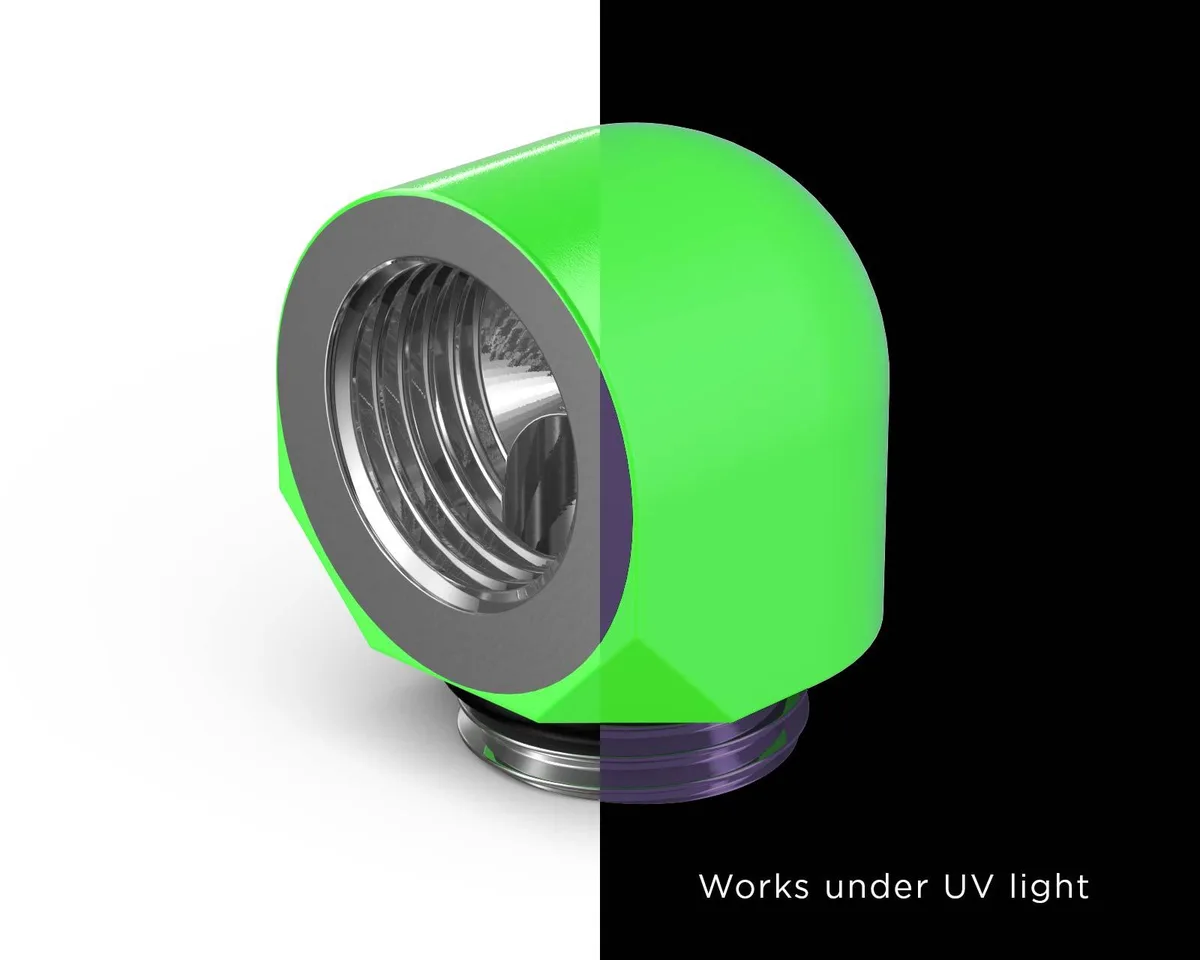

Option UV Green

  • UV Green
  • Candy Copper
  • Candy Purple
  • Gold
  • Magenta
  • Razor Red
  • Satin Black
  • Sky Blue
  • Sky White
  • Toxic Candy
  • True Blue
  • TX Matte Black
Show 6 more configurations
  • TX Matte Gun Metal
  • TX Matte Silver
  • UV Orange
  • UV Pink
  • UV Red
  • Yellow

Struck-through versions exist but are not stocked here.

  • Quick 90-degree loop turns with male-to-female G 1/4in threads
  • Fixed outlet angle ensures stable routing once installed
  • Coated brass body resists corrosion for long-term coolant contact
  • Works best with movable components such as fillports or rotary adapters
  • Trusted US brand with 20 years of water-cooling experience

Loop-direction fitting for custom water cooling

The PrimoChill G 1/4in 90 Degree SX Elbow Fitting changes tubing direction by 90 degrees in a custom liquid-cooling loop. It connects a male G 1/4in thread to a female G 1/4in thread using coated brass construction. The fixed orientation means the outlet angle is set once the fitting is tightened onto the component. Builders who need adjustable rotation after installation should choose a rotary adaptor instead.

Fixed-angle limitation on G 1/4in threads

Because the elbow has no rotary function the outlet direction cannot be altered after the fitting is seated. The final angle depends entirely on how the host component is positioned when the thread bottoms out. This makes the adaptor suitable for parts that can be repositioned such as fill ports or other rotary fittings. Loops that require precise tube routing without component movement may find the fixed angle restrictive.

Verify thread compatibility

Confirm that the mating port uses a standard G 1/4in thread so the male and female ends engage correctly. Check that surrounding components leave enough space for the 90 degree bend and the coated brass body. The package contains a single elbow fitting with no additional seals or tools included.

Highlights

  • Quick 90-degree loop turns with male-to-female G 1/4in threads
  • Fixed outlet angle ensures stable routing once installed
  • Coated brass body resists corrosion for long-term coolant contact
  • Works best with movable components such as fillports or rotary adapters
  • Trusted US brand with 20 years of water-cooling experience

Specifications

TypeCPU Block

Questions about this item

Which thread size should I select for this elbow fitting?

The fitting uses a single G 1/4in male thread and a single G 1/4in female thread, so choose the matching G 1/4in size for both ends.

What does the 90 degree angle mean once the fitting is installed in a loop?

It creates a fixed right-angle turn between the male and female ports; because the fitting has no rotary function, the outlet direction is set by the component you screw it into and cannot be rotated afterward.

What does the G 1/4in thread standard cap in practice?

The G 1/4in BSPP threads seal with an O-ring and are the common standard for custom water-cooling components, limiting compatibility to other G 1/4in ports and fittings.
