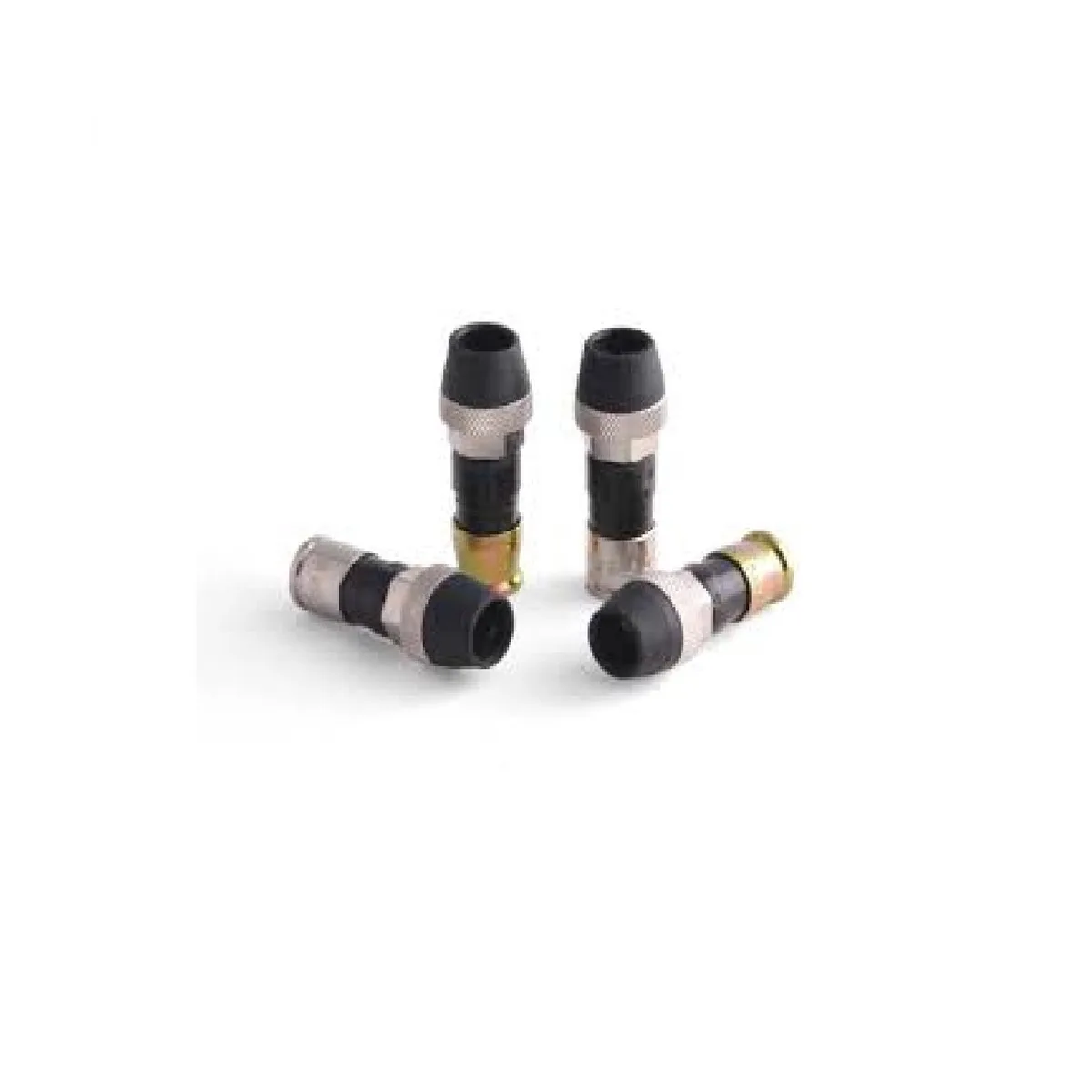

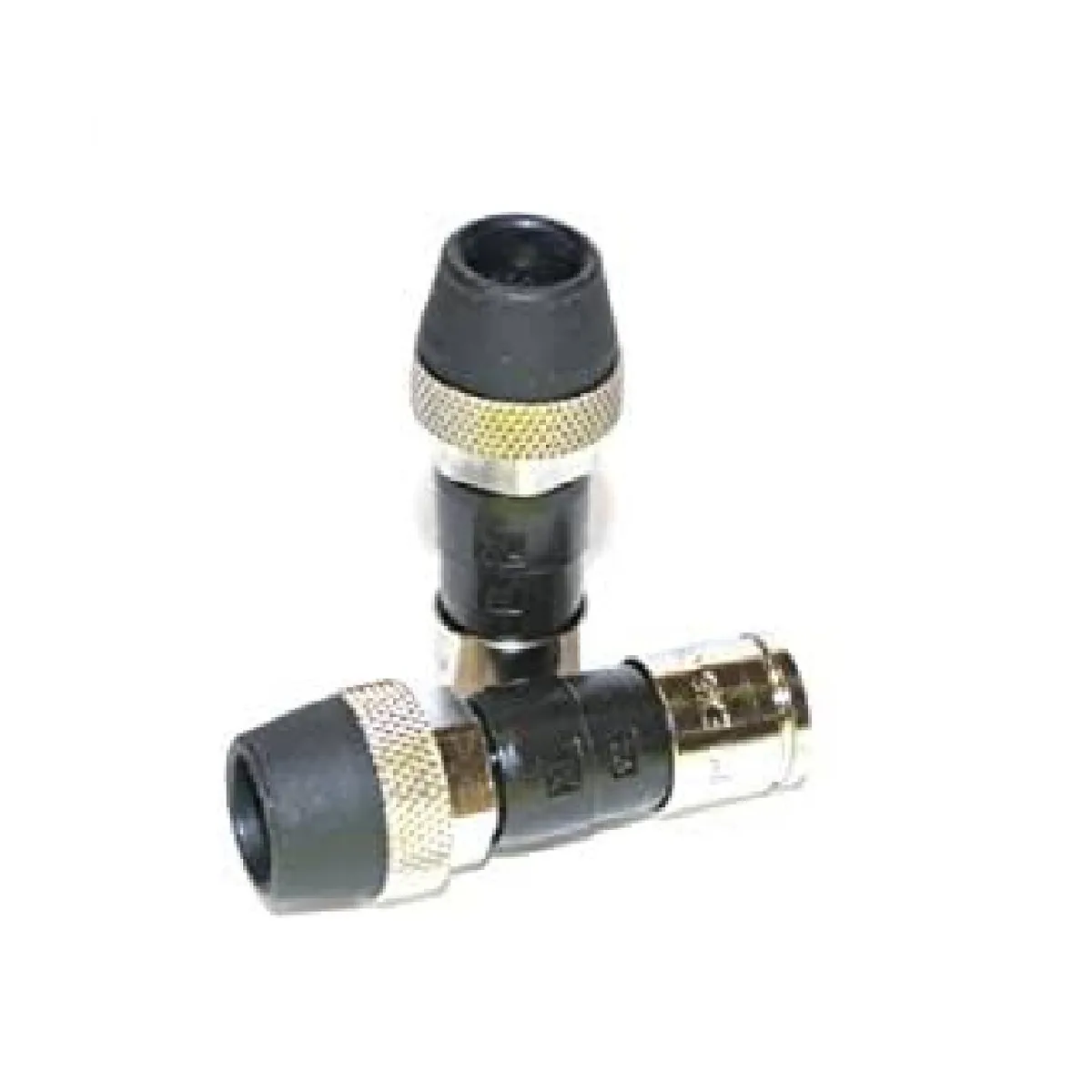

PPC EX59XLWS Plus RG59 weather sealed coaxial wire cap connector with weather boot

PPC

PPC EX59XLWS Plus RG59 Weather Sealed Coaxial Wire Cap Connector

SKU CH-BDZM-1HT95

Weather-sealed RG59 coaxial connector with 75-ohm impedance and integrated moisture boot

  • TypeCable Connectors
  • FeaturesUniversal
  • Weather-sealed boot keeps out moisture
  • 75 Ohm impedance maintains signal integrity to 3 GHz
  • Return loss minimum -30 dB ensures clean transmission
  • Cable retention rated 45 lbs minimum
  • Operating range -40 °C to +60 °C for harsh environments

RG59 Weather-Sealed Connector

The PPC EX59XLWS Plus is a compression connector built for series 59 coaxial cable. It provides a 75 Ohms impedance path from 0 MHz to 3 GHz with a minimum return loss of -30 dB and insertion loss below .10 dB across the same range. Installers working on outdoor broadband or CCTV runs use it to maintain signal integrity in exposed locations.

Integrated Port Seal and Extended Body

The connector ships with a factory-fitted weather boot that seals the port against moisture ingress. An extended body design adds mechanical support for the cable jacket while the universal compression mechanism delivers at least 45 lbs of cable retention. Shielding effectiveness is enhanced by 25 dB in dynamic conditions and the assembly meets all SCTE specifications for drop-cable hardware.

Compression Install with Temperature Limits

Termination requires a standard compression tool sized for series 59 cable; no soldering or crimping is needed. The connector is rated for continuous operation from -40 °F to 140 °F (-40 °C to 60 °C) and handles up to 90 V AC at 60 Hz. Over-compression can damage the internal dielectric, so the tool must be stopped at the manufacturer's specified stroke. Buyers needing connectors for larger-series cable or higher voltage ratings will need a different product.

Highlights

  • Weather-sealed boot keeps out moisture
  • 75 Ohm impedance maintains signal integrity to 3 GHz
  • Return loss minimum -30 dB ensures clean transmission
  • Cable retention rated 45 lbs minimum
  • Operating range -40 °C to +60 °C for harsh environments

Specifications

BrandPPC
TypeCable Connectors
FeaturesUniversal

Questions about this item

Will the weather boot need replacement after long exposure?

The integrated port seal and weather boot are built into the connector body, so there is no separate boot to replace.

What is the maximum continuous voltage this connector can handle?

It is rated for 90 V at 60 Hz continuous AC, which is the operating voltage limit.

How much heat can the connector withstand during all-day operation?

The operating temperature range is -40°C to +60°C, so it tolerates sustained heat up to 60°C.
