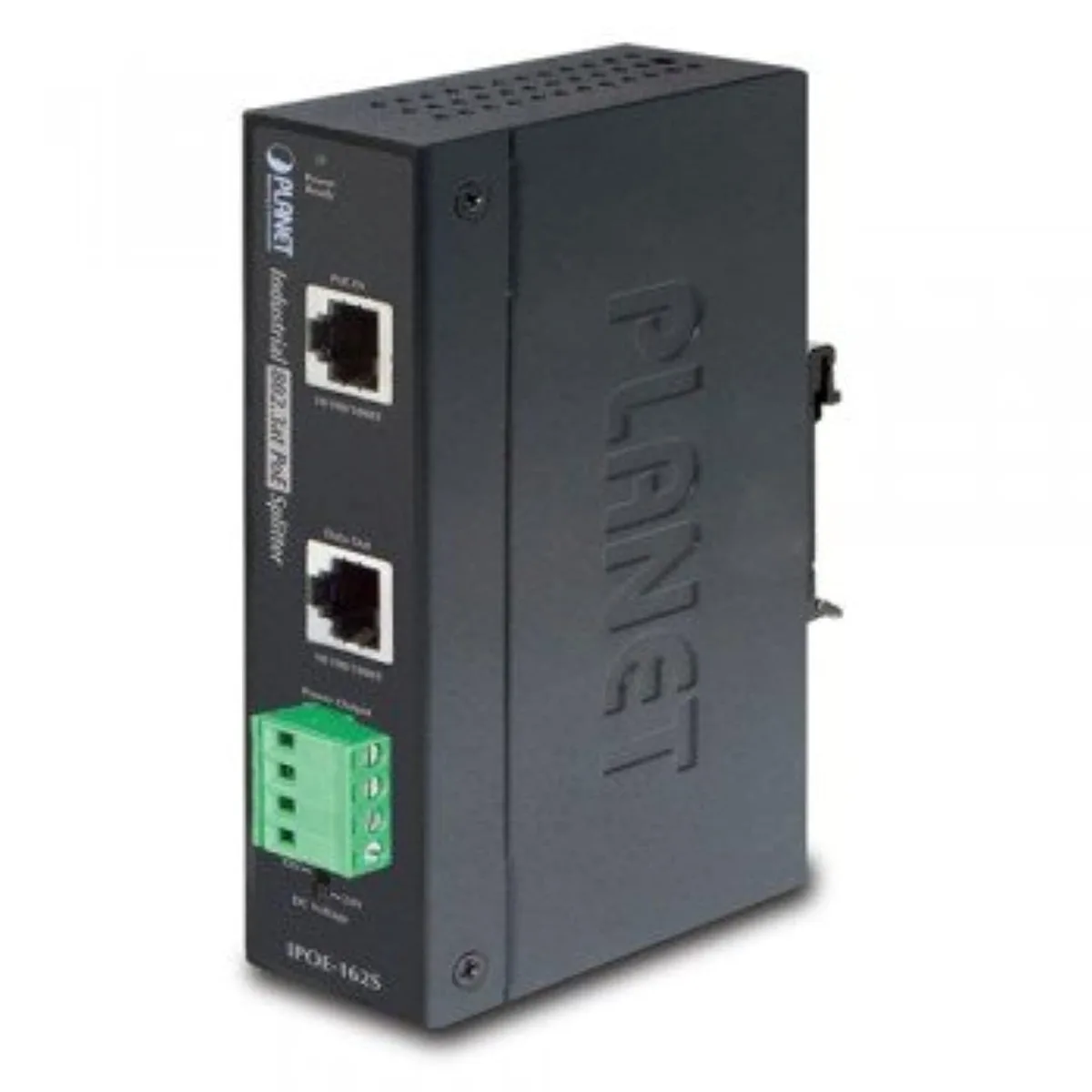

Black metal PoE splitter with two RJ45 ports and terminal block

PLANET

PLANET IPOE-162S IEEE 802.3at Gigabit PoE Splitter 12V 24V 25W IP30 -40 75C

SKU CH-Y2M0-X0C2B MPN IPOE-162S

Splits 48–56V PoE into selectable 12V or 24V DC up to 25W for non-PoE devices over 100m, with IP30 metal housing rated −40°C to 75°C

  • TypePoE Splitter
  • ColorBlack
  • SpecificationsInterface: "PoE (Power + Data)" Input Port : 1 x RJ-45 10/10
  • Features2-port RJ-45 interfaces Complies with IEEE 802.3at High Powe
  • Powers non-PoE devices via existing Ethernet cable
  • Selectable 12V or 24V DC output up to 25W
  • Gigabit data pass-through up to 100 metres
  • IP30 metal housing rated for -40 to 75 °C
  • Complies with IEEE 802.3at PoE+ standard

Industrial PoE Splitter for Non-PoE Devices

The PLANET IPOE-162S is an industrial-grade IEEE 802.3at Gigabit PoE splitter designed to power non-PoE equipment over existing Ethernet cabling. It accepts 48 to 56V DC input through a single RJ-45 port and delivers selectable 12V or 24V DC output via a removable 4-pin terminal block. The unit operates reliably from -40 to 75 °C inside an IP30-rated metal enclosure suitable for DIN rail or wall mounting.

25W Maximum Output Power Determines Compatibility

The splitter complies with IEEE 802.3at and supplies up to 25 watts to the connected device, which is the single specification that decides whether a given appliance can be powered. If the target device requires more than 25W, this unit cannot meet its needs and a higher-power PoE solution would be necessary. The Gigabit data path passes through unchanged at 10/100/1000 Mbps over distances up to 100 meters.

Terminal Block and Rugged Housing Enable

The removable 4-pin terminal block allows secure, tool-free DC wiring without proprietary connectors, while the IP30 metal case and wide temperature rating let the splitter survive harsh environments where standard plastic units would fail. DIN rail and wall-mount brackets are integrated, so no extra mounting hardware is required. Automatic IEEE 802.3at detection protects non-compliant devices from damage during connection.

Highlights

  • Powers non-PoE devices via existing Ethernet cable
  • Selectable 12V or 24V DC output up to 25W
  • Gigabit data pass-through up to 100 metres
  • IP30 metal housing rated for -40 to 75 °C
  • Complies with IEEE 802.3at PoE+ standard

Specifications

BrandPLANET
ModelIPOE-162S
TypePoE Splitter
ColorBlack
SpecificationsInterface:
"PoE (Power + Data)" Input Port : 1 x RJ-45 10/100/1000Base-T
"Data" Out Port: 1 x RJ-45 10/100/1000Base-T
DC Out Plug Connector: 1 removable 4-Pin terminal block
LED Indicator:
System: Power Ready x 1 (Green)
Network Cable:
10/100/1000Base-T: 4-Pair UTP Cat. 5, 5e, 6
Distance up to 100m (328 ft.)
EIA/TIA- 568 100-ohm STP (100m)
Data Rate: 10/100/1000 Mbps (vary on Ethernet device attached)
DIP Switch: 12V DC / 24V DC output voltage
Power Input: 802.3at PoE 48~56V DC
Power Output: 12V / 24V DC, max 2A (adjustable)
Enclosure: IP30 metal case
Installation: DIN rail kit and w
Features2-port RJ-45 interfaces
Complies with IEEE 802.3at High Power over Ethernet, PD
Splits the 48~56V DC power over RJ-45 Ethernet cable into DC 12V / 24V output
Distance up to 100 meters
Shipping weight0.91 kg
Package size152 × 152 × 51 mm

Questions about this item

How much usable power does the 25 W output deliver to a 12 V or 24 V device?

The splitter converts 48–56 V PoE into a selectable 12 V or 24 V DC supply, providing up to 25 W to the connected non-PoE equipment.

What Ethernet speed does the IEEE 802.3at PoE input and data output actually support?

Both RJ-45 ports run at 10/100/1000 Mbps, so the PoE link and the data pass-through each handle full Gigabit throughput.

What mounting options and clearance does the IP30 metal case need?

The unit includes DIN-rail and wall-mount brackets; its rugged IP30 enclosure operates from -40 to 75 °C without forced airflow.
