Silver 1U rack panel with 16 shielded RJ-45 ports

TRENDnet

TRENDnet TC-P16C6AS (V1.0R) 16-port Cat6A shielded 1U patch panel wireless accessory

SKU CH-Y3JP-9SVC4 MPN TC-P16C6AS (V1.0R)

16-port shielded Cat6A patch panel fits 1U racks and terminates 50-micron gold RJ-45 ports with Krone 110 blocks for 10G copper links

  • TypeOther
  • SpecificationsStandards ANSI/TIA/EIA-568-B.2-1 ANSI/TIA/EIA-310-D EN50173-
  • Features10G-ready rackmount 16-port 1U patch panel Cat6A patch panel
  • 16 ports in 1U fit dense rack deployments
  • Shielded construction blocks EMI and crosstalk
  • Gold-plated 50-micron contacts resist corrosion
  • T568A and T568B wiring cards simplify termination
  • Meets TIA/EIA-568-B.2-1 and ISO/IEC 11801 standards

16-port Cat6A shielded patch panel

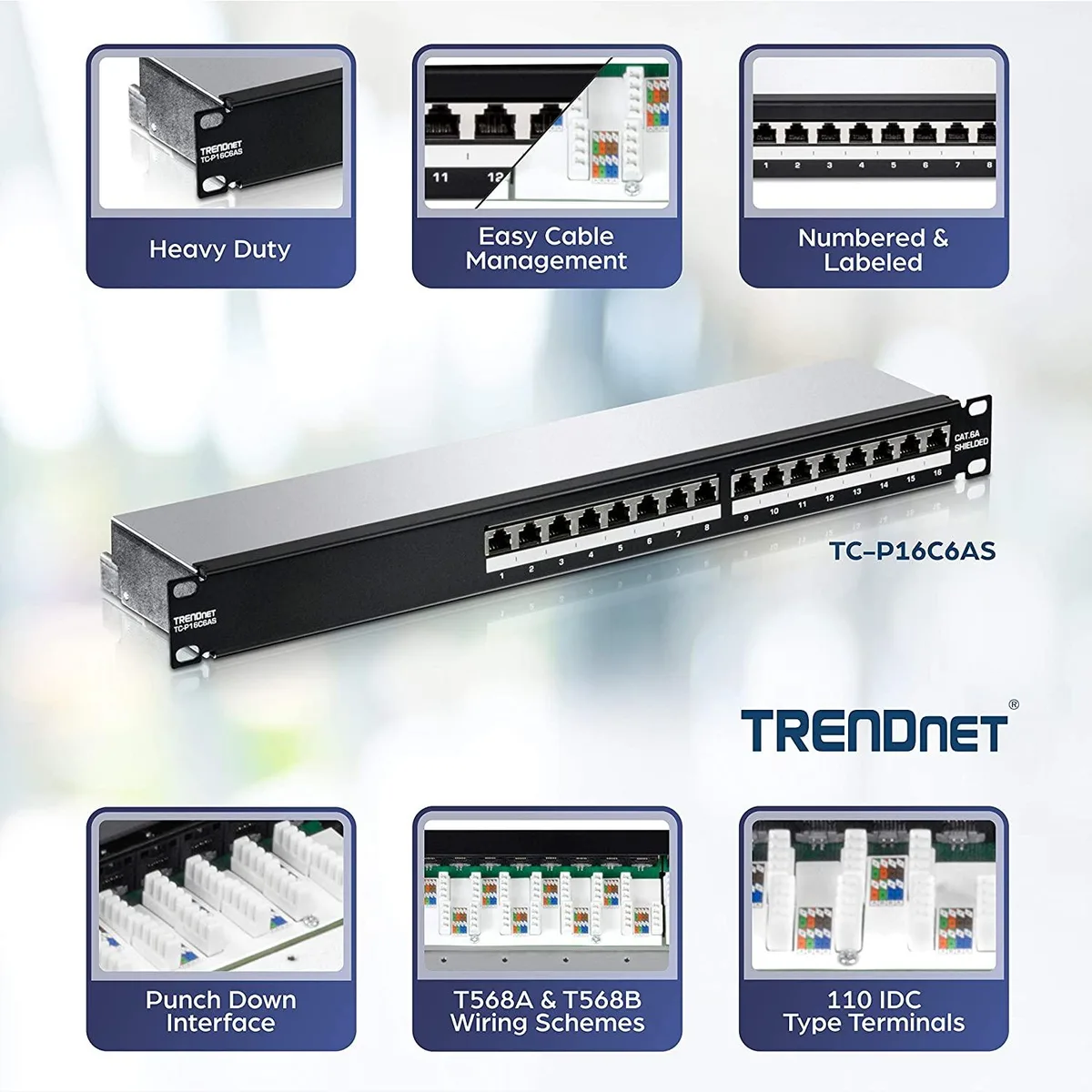

The TRENDnet TC-P16C6AS provides 16 RJ-45 ports with 50 micron gold-plated contacts in a 1U rackmount form factor. It is designed for gigabit and 10G copper Ethernet networks using shielded Cat6A cabling. The panel accepts T568A or T568B wiring schemes via Krone 110 termination blocks. It suits installers building structured wiring in server rooms or data cabinets.

Sustained 10G signal integrity

Shielded construction suppresses EMI and alien crosstalk across all 16 ports during continuous high-throughput traffic. Compliance with ANSI/TIA/EIA-568-B.2-1, ANSI/TIA/EIA-310-D, EN50173-1:2002 and ISO/IEC 11801 2nd edition:2002 ensures consistent electrical performance. The panel remains compatible with Cat5e and Cat6 cables while maintaining Cat6A headroom. Gold-plated contacts resist oxidation over long service periods.

Krone 110 termination and rack fit

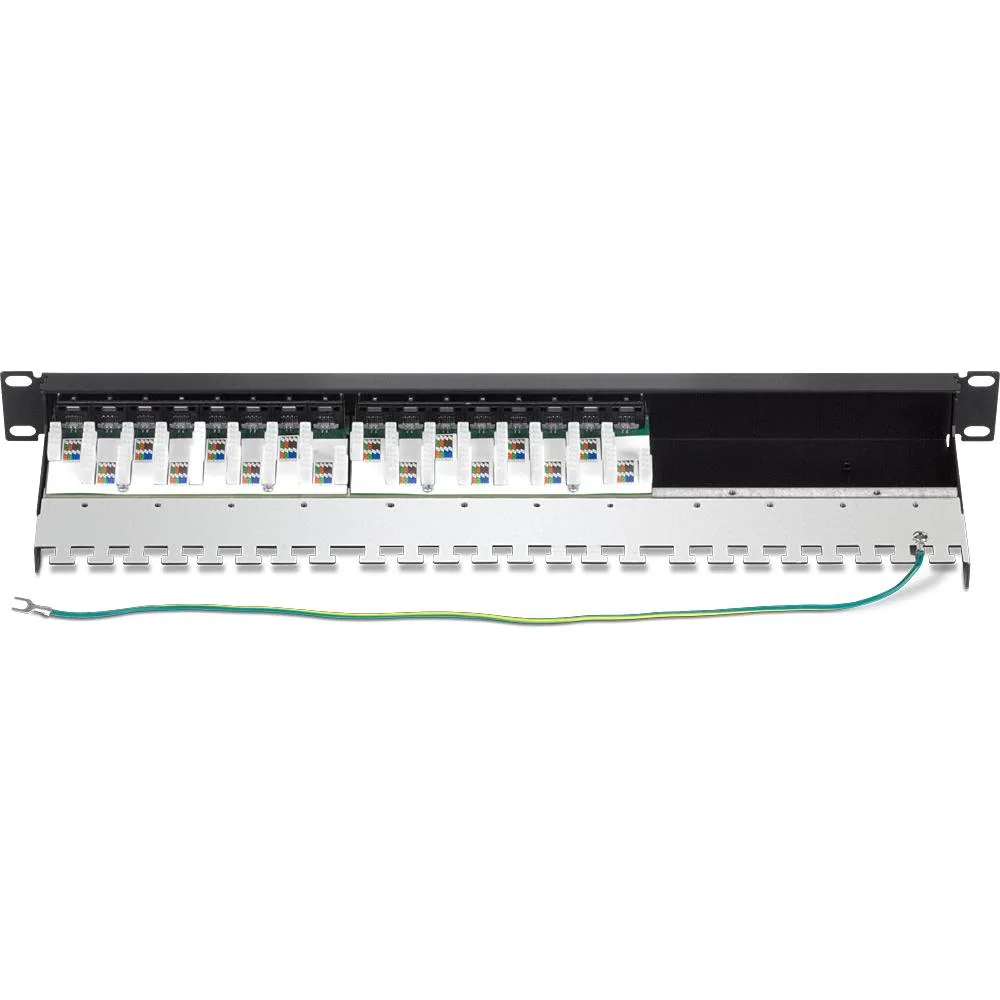

Installation uses a 110 punch-down tool on colour-coded wiring cards for each port. The 1U height matches standard EIA-310-D rack spacing without extra brackets. Common issues include untwisted pairs exceeding the termination point and loose shield grounding on the rear cable-management bar. Verifying each termination with a Cat6A certifier prevents rework.

Highlights

  • 16 ports in 1U fit dense rack deployments
  • Shielded construction blocks EMI and crosstalk
  • Gold-plated 50-micron contacts resist corrosion
  • T568A and T568B wiring cards simplify termination
  • Meets TIA/EIA-568-B.2-1 and ISO/IEC 11801 standards

Specifications

BrandTRENDnet
ModelTC-P16C6AS (V1.0R)
TypeOther
SpecificationsStandards
ANSI/TIA/EIA-568-B.2-1
ANSI/TIA/EIA-310-D
EN50173-1: 2002
ISO/IEC 11801 2nd edition: 2002
Interface
16 x RJ-45 ports with 50 micron gold-plated 8P/8C contacts
T568A/T568B wiring cards for Krone 110 termination with color-coded wiring diagram
90 degree IDC terminals
Compatible with 22 – 26 AWG solid or stranded wire
Integrated cable management
SGCC steel construction

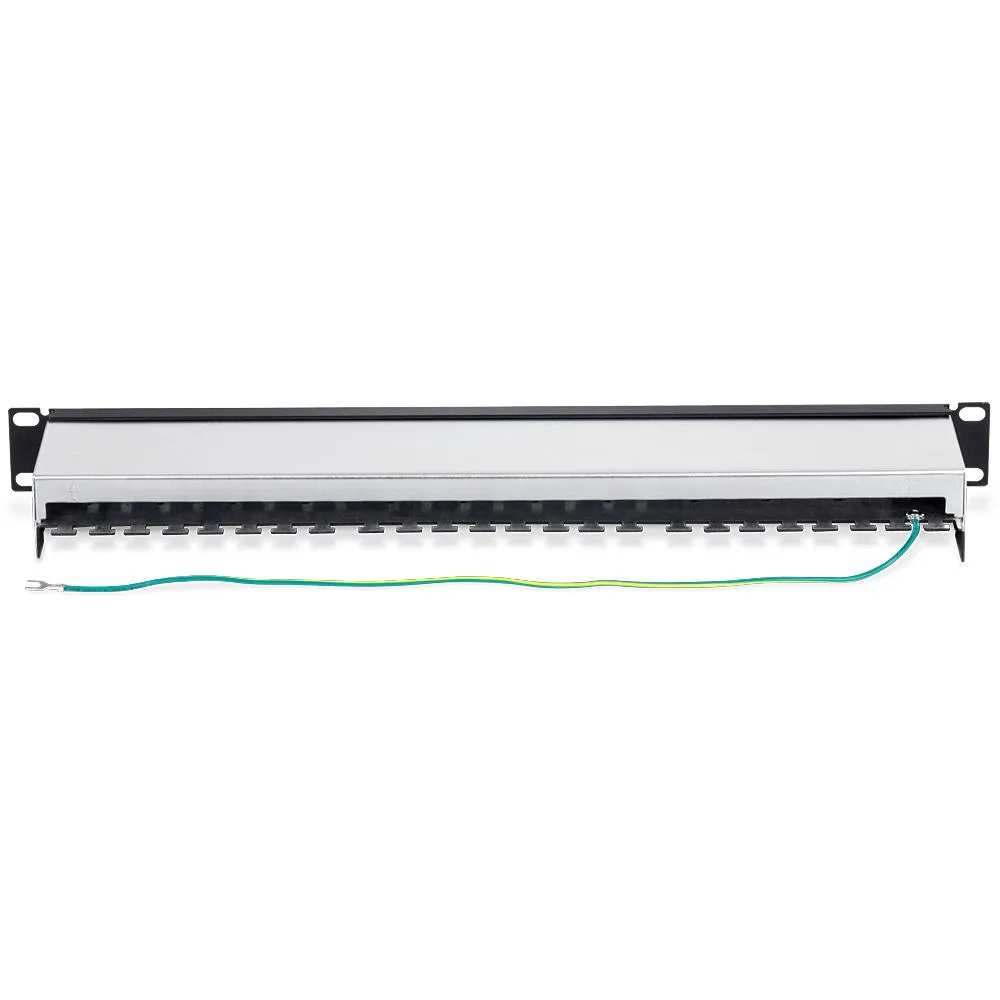

18 AWG grounding wire with screw terminal
Electrical Specification
Insulation resistance: >= 500M Ohms
Dielectric Withstand Voltage: 1000V DC
Contact resistance: <= 20M Ohms
Current rating: 1.5A at 20 degree C (
Features10G-ready rackmount 16-port 1U patch panel
Cat6A patch panels deliver a steady connection to copper gigabit & 10G switches
Shielded design to eliminate EMI and crosstalk
Compatible with Cat5e, Cat6 and Cat6A cabling
Color-coded labeling for T568A and T568B wiring schemes
110 IDC type terminal blocks (use 110 or Krone type tool)
Use with TRENDnet TC-PDT Punch Down Tool (sold separately)
Supports ANSI/EIA/TIA 568-B.2-1 and ISO/IEC 11801
Supports ANSI/EIA/TIA 310-D, and EN50173-1
90 degree angle type
Shipping weight2.72 kg
Package size508 × 178 × 102 mm

Questions about this item

How much heat or noise does the 1U rackmount panel add when it runs all day?

The TC-P16C6AS is a passive 1U patch panel with no fans or power supply, so it generates no heat and makes no noise during continuous operation.

What tools or parts must I already have to terminate the 16 RJ-45 ports?

You need a Krone 110 punch-down tool and Cat5e, Cat6 or Cat6A shielded cable; the panel includes T568A and T568B wiring cards for the 110 terminations.

Will the shielded 16-port panel work with my existing Cat5e and Cat6 runs?

Yes, the panel is compatible with Cat5e, Cat6 and Cat6A cabling, so older copper runs can be terminated on the same 16 RJ-45 ports.
