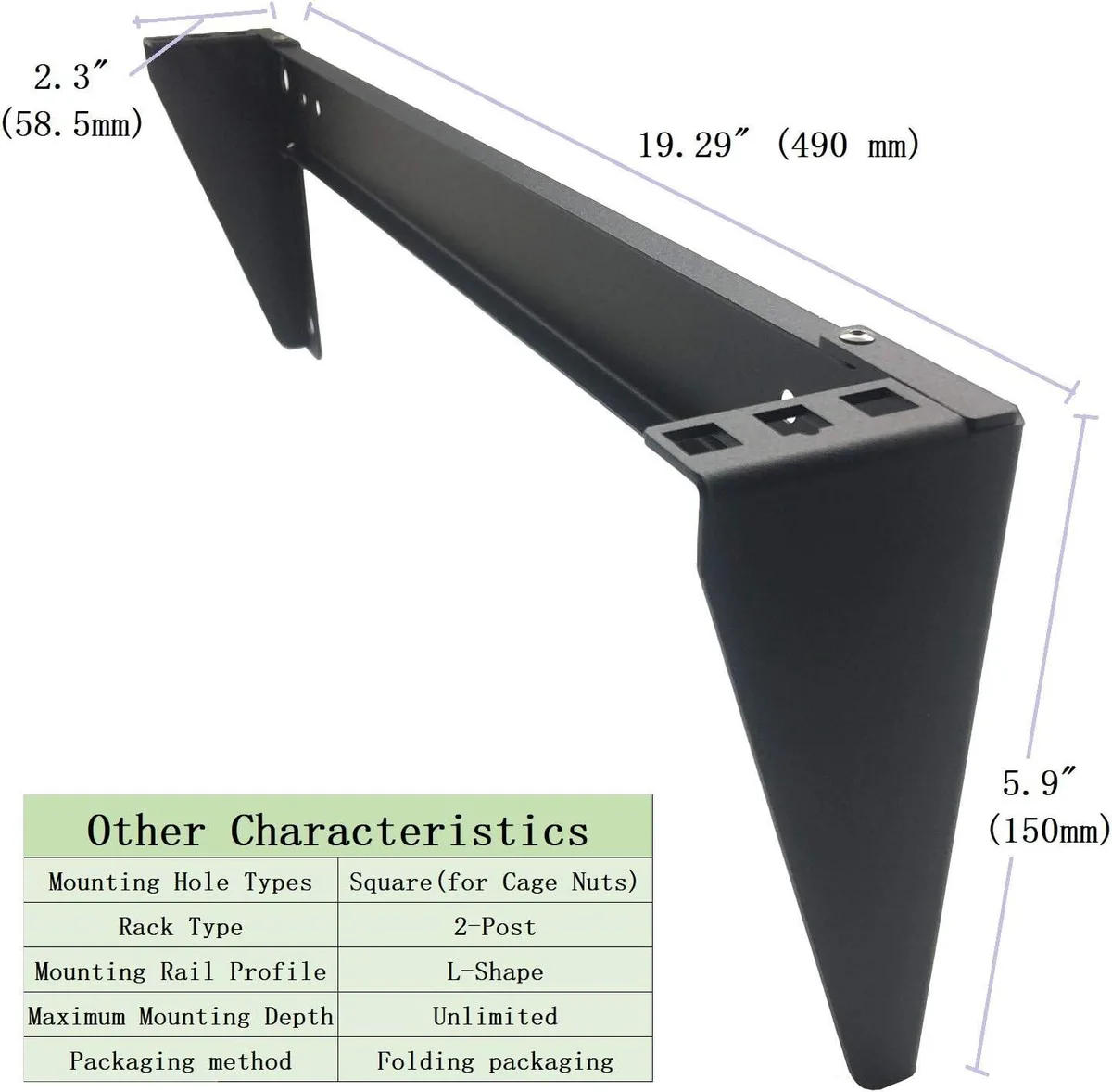

Black 19-inch 1U wall-mount server rack, folded steel frame, powder-coated finish, cage nuts included

PISKEKAT

PISKEKAT 19 Inch 1U Wall Mount Server Rack 125 lb MFT-HVWRF1U

SKU CH-55H3-NRWE0

A 19-inch 1U wall-mount rack holds up to 125 lb of equipment, ships fully assembled, and meets EIA-310 standards with 18.11-inch hole spacing

  • TypeMounting Racks
  • Ready to use straight from the box, no assembly needed
  • Built to EIA-310 19in standard with 2mm cold rolled steel
  • Holds up to 125 lb of servers and networking gear
  • Mounting holes spaced 18.11 in centre-to-centre for solid wall fixing
  • Mount vertically on a wall or horizontally under a desk

19-Inch 1U Wall Mount Server Rack

The PISKEKAT MFT-HVWRF1U is a fully assembled 1U mounting rack built to EIA-310 19-inch standards. It is made from 2 mm cold-rolled steel with a black electro-static powder coat and ships with cage screws and nuts. The foldable frame reduces packaging volume for easier transport.

125 lb Weight Capacity and 18.11-Inch Hole Spacing

The single specification that determines fit is the 125-pound maximum load rating combined with mounting holes spaced 18.11 inches (46 cm) centre-to-centre. Installers must verify that the wall structure and fasteners can support the intended equipment weight at that exact hole pattern.

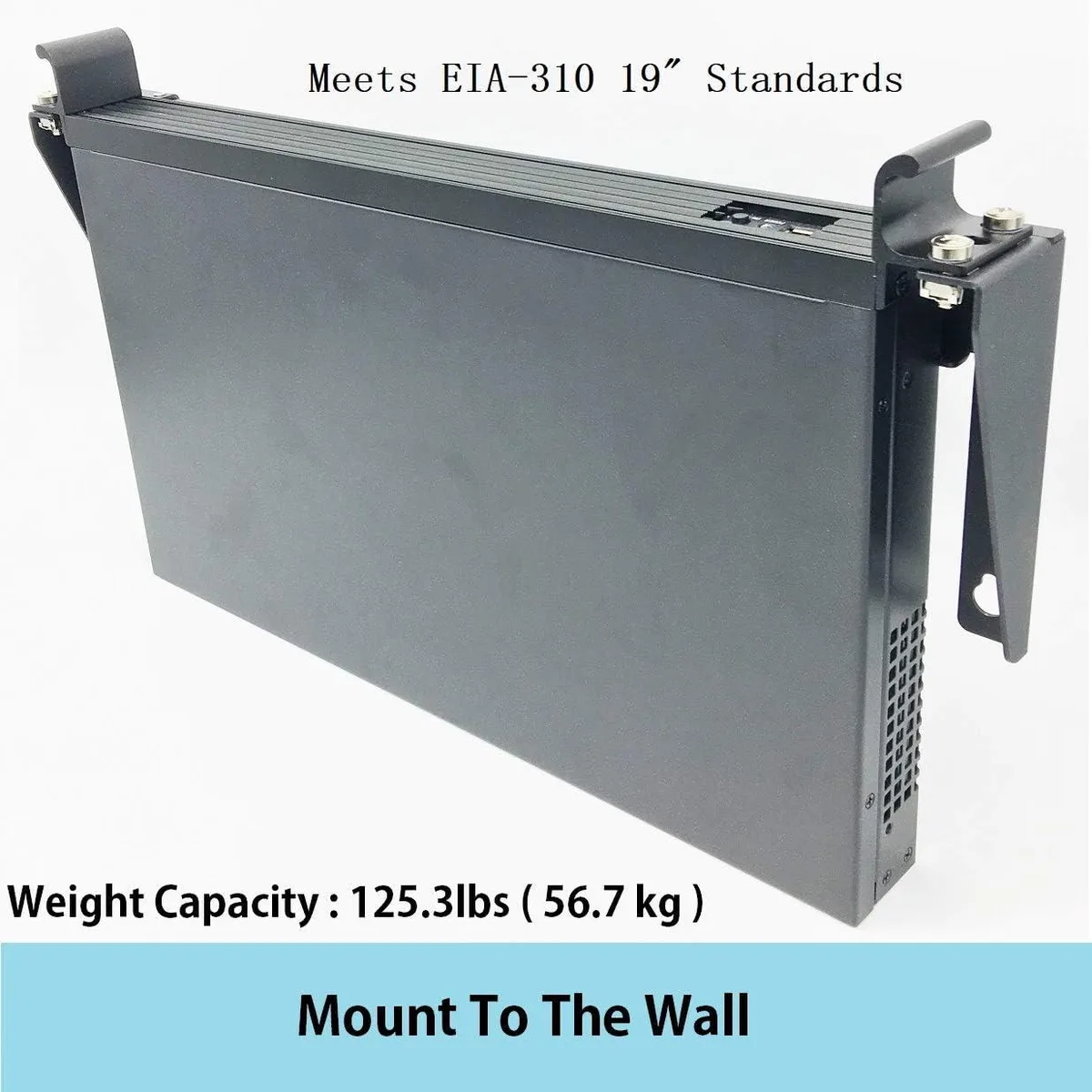

Suits Vertical Wall or Horizontal Desk Mounting

This rack suits network administrators mounting patch panels, switches or shallow servers vertically on a wall or horizontally under a desk where a full cabinet is impractical. It is not for installers needing deeper enclosures, adjustable rails, lockable doors or a higher load rating than 125 pounds.

Highlights

  • Ready to use straight from the box, no assembly needed
  • Built to EIA-310 19in standard with 2mm cold rolled steel
  • Holds up to 125 lb of servers and networking gear
  • Mounting holes spaced 18.11 in centre-to-centre for solid wall fixing
  • Mount vertically on a wall or horizontally under a desk

Specifications

TypeMounting Racks

Questions about this item

What does the 125 lb capacity mean when the rack is mounted on a wall?

It means the rack can hold up to 125 pounds of servers or networking gear when securely fastened to a suitable wall structure using the provided mounting points.

How does the EIA-310 standard affect what equipment fits in this 1U rack?

EIA-310 defines the 19-inch width and hole spacing, so any standard 19-inch rackmount device designed for 1U of vertical space will align and mount correctly.

What wall spacing do the 18.11-inch mounting holes require for installation?

You need two secure anchor points spaced 18.11 inches (46 cm) centre-to-centre horizontally to bolt the rack to the wall.
