Open-frame 12U wall-mount rack, black powder-coated steel, 18-inch depth, 180-degree swing gate

PISKEKAT

PISKEKAT 12U Wall Mount Server Rack 18in Depth 16in Mounting Holes Swing Gate

SKU CH-XSBZ-MC03Q

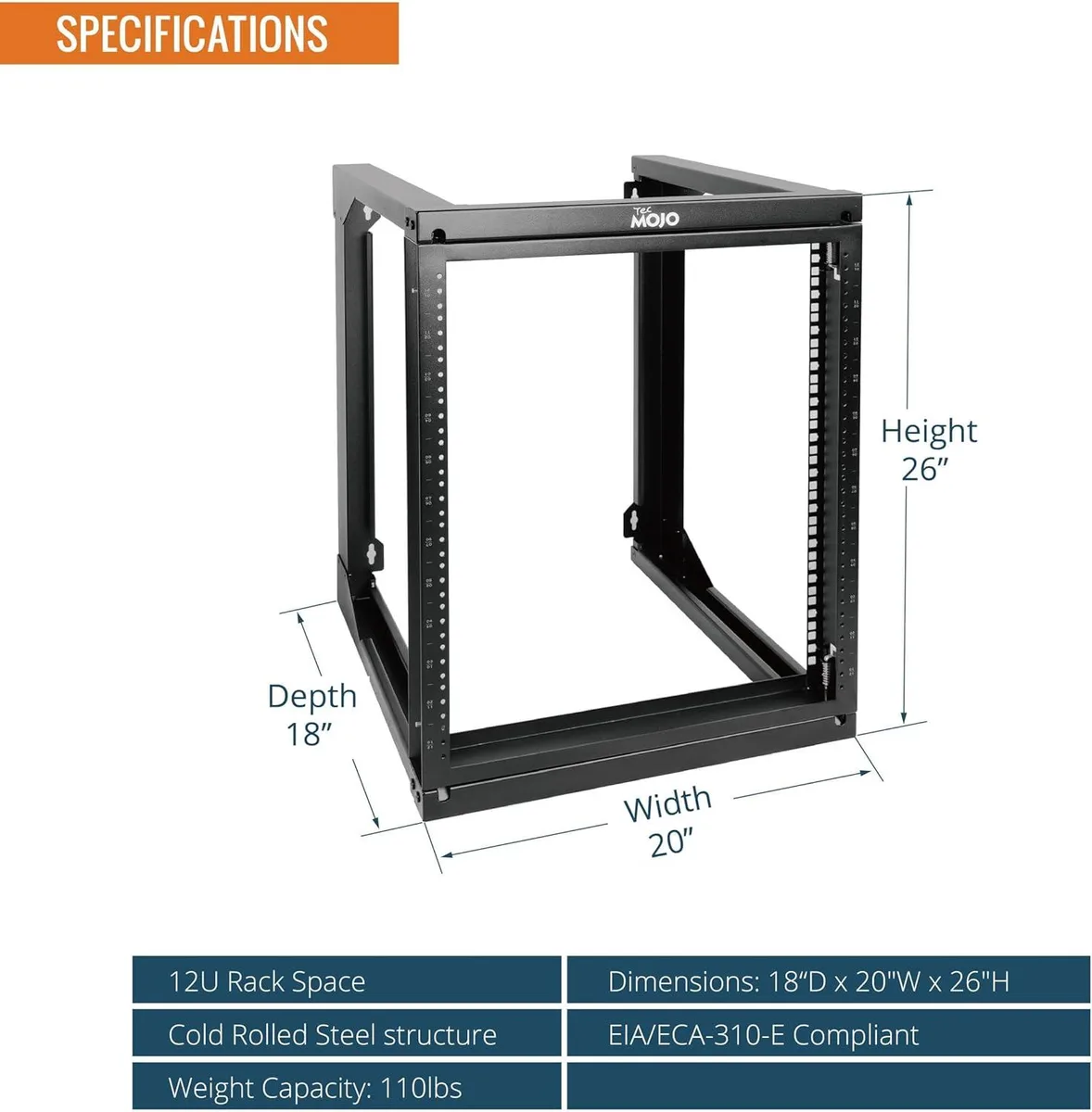

Wall-mountable 12U open frame holds 19-inch gear, swings 180 degrees for rear access, and supports 110 lb static load

  • TypeMounting Racks
  • Holds 12U of 19-inch gear in 18-inch depth
  • 16-inch mounting-hole spacing matches standard stud walls

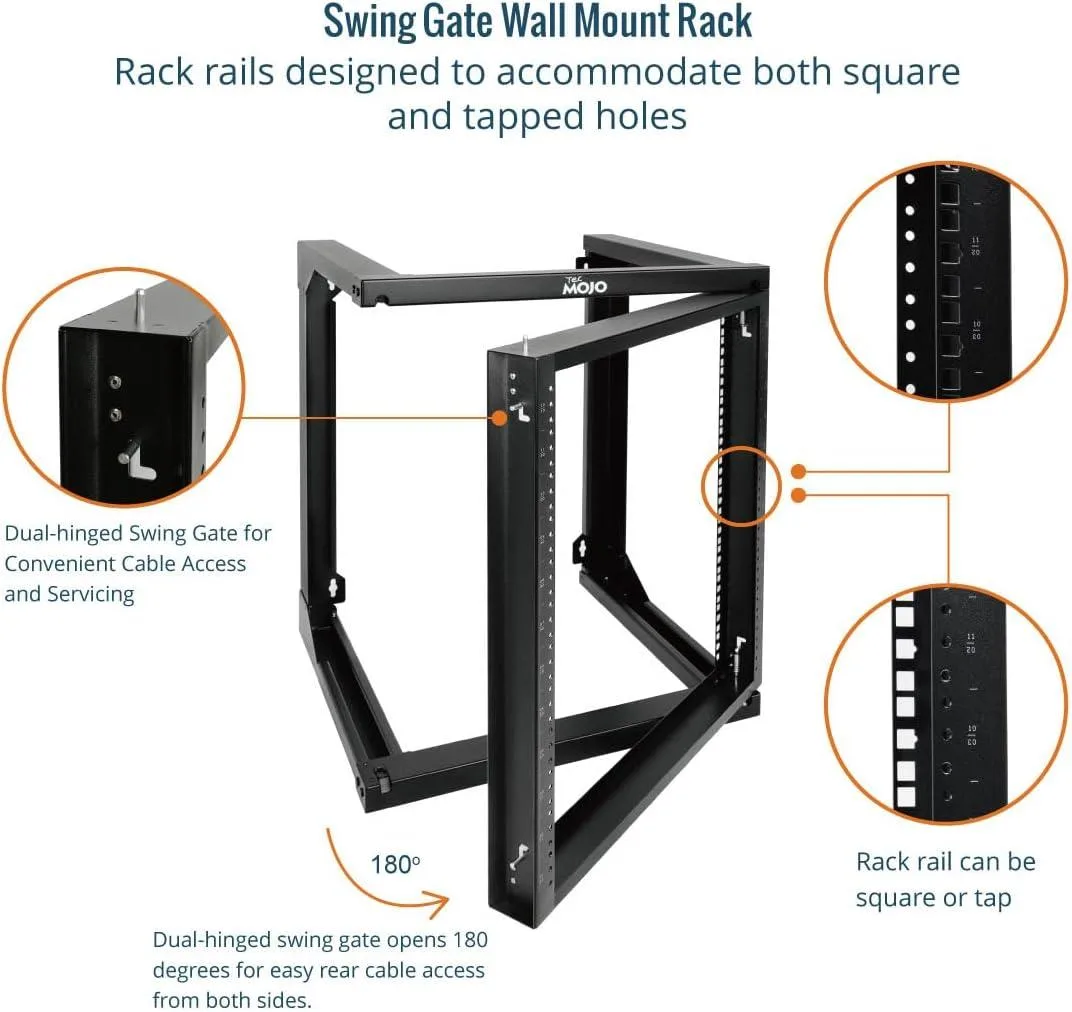

  • 180-degree swing gate gives rear access from both sides
  • Cold-rolled steel with powder coat resists rust and corrosion
  • Static load 110 lbs and sliding load 55 lbs for secure mounting

12U Wall-Mount Rack for 19-Inch Gear

This 12U open-frame rack mounts on a wall and accepts standard 19-inch server, network, AV or media equipment. The frame is built from cold-rolled steel with an electrostatic powder coat that resists rust and corrosion. It supports a static load of 110 lbs and a sliding load of 55 lbs. A 180-degree swing gate gives rear cable access from either side.

Upgrade from Smaller Wall Racks

The 12U height adds usable space over 6U or 9U models when you need more rack units in the same wall footprint. The 18-inch depth accommodates deeper devices that would not fit in shallower cabinets. The jump is worth it when your equipment count or chassis depth exceeds what a lower-U or shorter-depth rack can hold.

Limits of the 19-Inch EIA-310 Standard

The rack follows the EIA/ECA-310-E standard for 19-inch equipment mounting. Square and tapped holes are interchangeable, but the 16-inch on-centre wall mounting holes fix the wall anchor pattern. Depth is limited to 18 inches, so gear requiring 24-inch depth will not fit. The swing gate needs clearance to open fully for rear access.

Highlights

  • Holds 12U of 19-inch gear in 18-inch depth
  • 16-inch mounting-hole spacing matches standard stud walls
  • 180-degree swing gate gives rear access from both sides
  • Cold-rolled steel with powder coat resists rust and corrosion
  • Static load 110 lbs and sliding load 55 lbs for secure mounting

Specifications

TypeMounting Racks

Questions about this item

What wall spacing and depth does this 12U rack require for mounting?

The rack needs 16 inch centre-to-centre mounting holes and 18 inch depth clearance from the wall surface.

Which step do installers most often miss when fitting the swing gate?

They forget to use the supplied drilling template to align the 16 inch hole pattern before securing the frame.

When should the square or tapped rails be swapped on this rack?

Swap them when changing between cage-nut and direct-thread 19 inch equipment; both rail types are included and interchangeable.
