Black high-voltage differential probe with BNC connector and hook accessories

Pintech

Pintech High Voltage Differential Probe 100MHz 3000V

SKU CH-FWTV-FKMW2

High-voltage differential probe measures up to 3000 V with 100 MHz bandwidth and ±1 % accuracy

  • Includesdifferential probe x 1, Adapter x 1, Probe Hook x 2
  • Measures up to 3000Vp-p for high-voltage applications
  • ±1% typical accuracy ensures reliable readings
  • 100MHz bandwidth captures fast signal transitions
  • 1000X/100X attenuation ratios suit varied test needs
  • BNC interface works with any oscilloscope

What it is and who it serves

The Pintech high-voltage differential probe offers 100 MHz bandwidth and 3000 V peak-to-peak measurement range with selectable 1000X or 100X attenuation. Typical accuracy is ±1 % and rise time is 3.5 ns. It converts floating two-point signals to ground-referenced outputs for oscilloscopes, meters or data-acquisition gear, making it suited for engineers working on motor drives, power electronics or other high-voltage circuits.

What to verify before ordering

Confirm your oscilloscope or digitiser accepts a standard BNC input and can handle the probe’s attenuated output swing. Ensure the device under test stays within the 3000 Vp-p differential limit and that the measurement bandwidth you need does not exceed 100 MHz. The kit includes the N1030B probe, an adapter, two probe hooks and a manual, so no extra accessories are required for basic connection.

Behaviour under sustained load

Built-in auto-zero and overload protection guard the probe during long captures at high common-mode voltage. The active differential architecture maintains the stated ±1 % typical accuracy and 3.5 ns rise time across the full DC-to-100 MHz range without drift caused by thermal buildup, so extended tests on inverter or motor waveforms remain consistent from first trigger to last.

Highlights

  • Measures up to 3000Vp-p for high-voltage applications
  • ±1% typical accuracy ensures reliable readings
  • 100MHz bandwidth captures fast signal transitions
  • 1000X/100X attenuation ratios suit varied test needs
  • BNC interface works with any oscilloscope

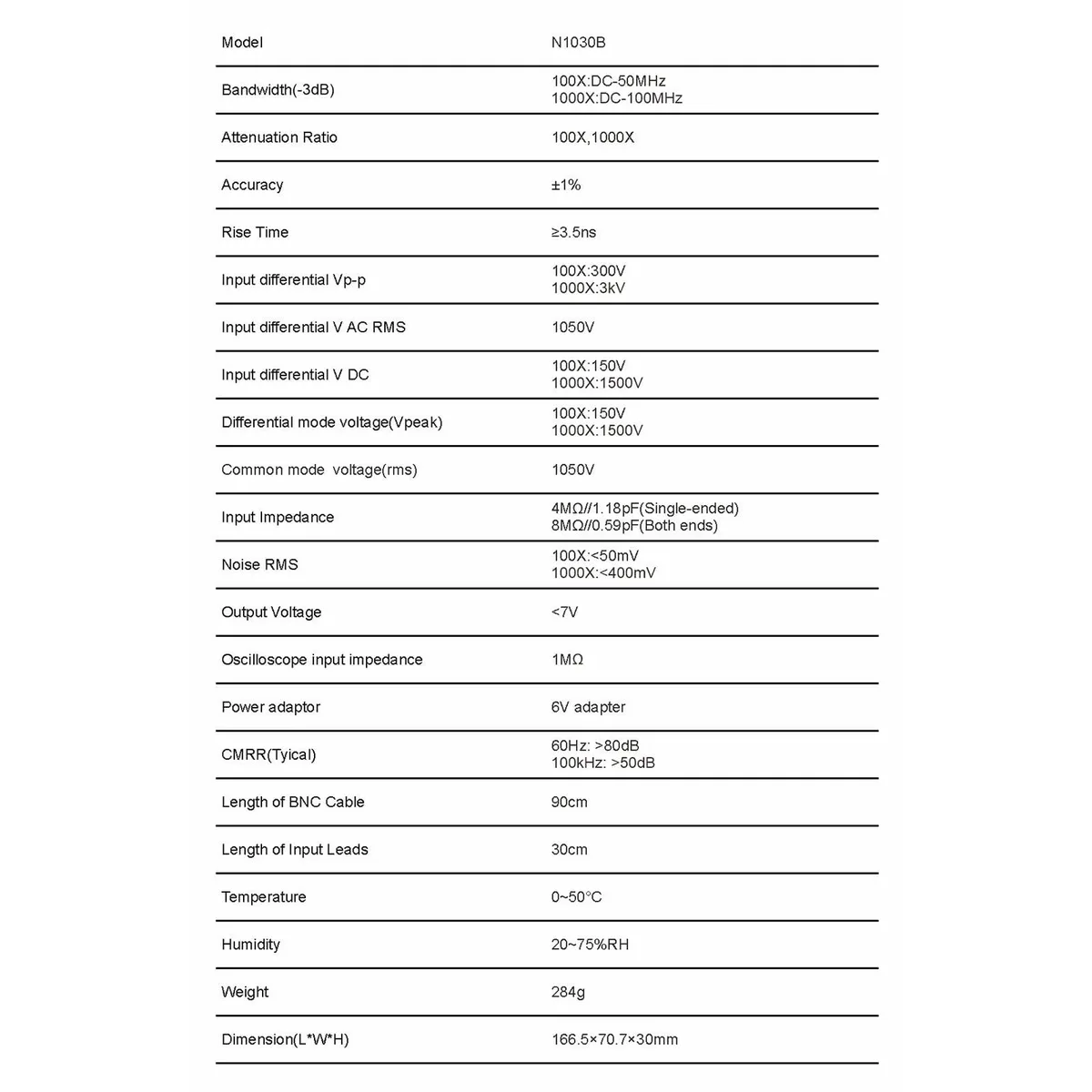

Specifications

Includesdifferential probe x 1, Adapter x 1, Probe Hook x 2

Questions about this item

What comes in the box with the N1030B probe and do I need to buy anything else?

The package includes the N1030B differential probe, one adapter, two probe hooks and a manual. It has a standard BNC interface so it connects directly to any oscilloscope without extra cables.

Should I use the 1000X or 100X attenuation setting on this probe?

Choose 1000X for signals up to 3000 V peak-to-peak and 100X for lower voltages where you need higher sensitivity. Both settings share the 100 MHz bandwidth and ±1 % typical accuracy.

What does the 100 MHz bandwidth mean when I am measuring a fast switching motor drive?

The 100 MHz (-3 dB) bandwidth and 3.5 ns rise time let you capture switching edges and transients on motor circuits up to 3000 V without significant amplitude loss.
