White 420mm copper radiator with integrated fittings, 30mm thick, steel frame

Phanteks

Phanteks PH-GEF-RAD423_WT 420mm 30mm thick copper radiator white diy cooling

SKU CH-V3JG-SJ0SN MPN PH-GEF-RAD423_WT

A 420 mm copper radiator with integrated 16 mm EZ-Fit fittings and 19 FPI fin density for custom water-cooling loops

  • TypeRadiator
  • Radiator Size470x140x30 mm
  • Radiator MaterialFins: T2 Copper Water Chamber: H62 Brass Thread Insert: H59
  • ColorWhite
  • Tube MaterialH90 Brass
  • Integrated 16mm EZ-Fit fittings simplify hard and soft tubing installation

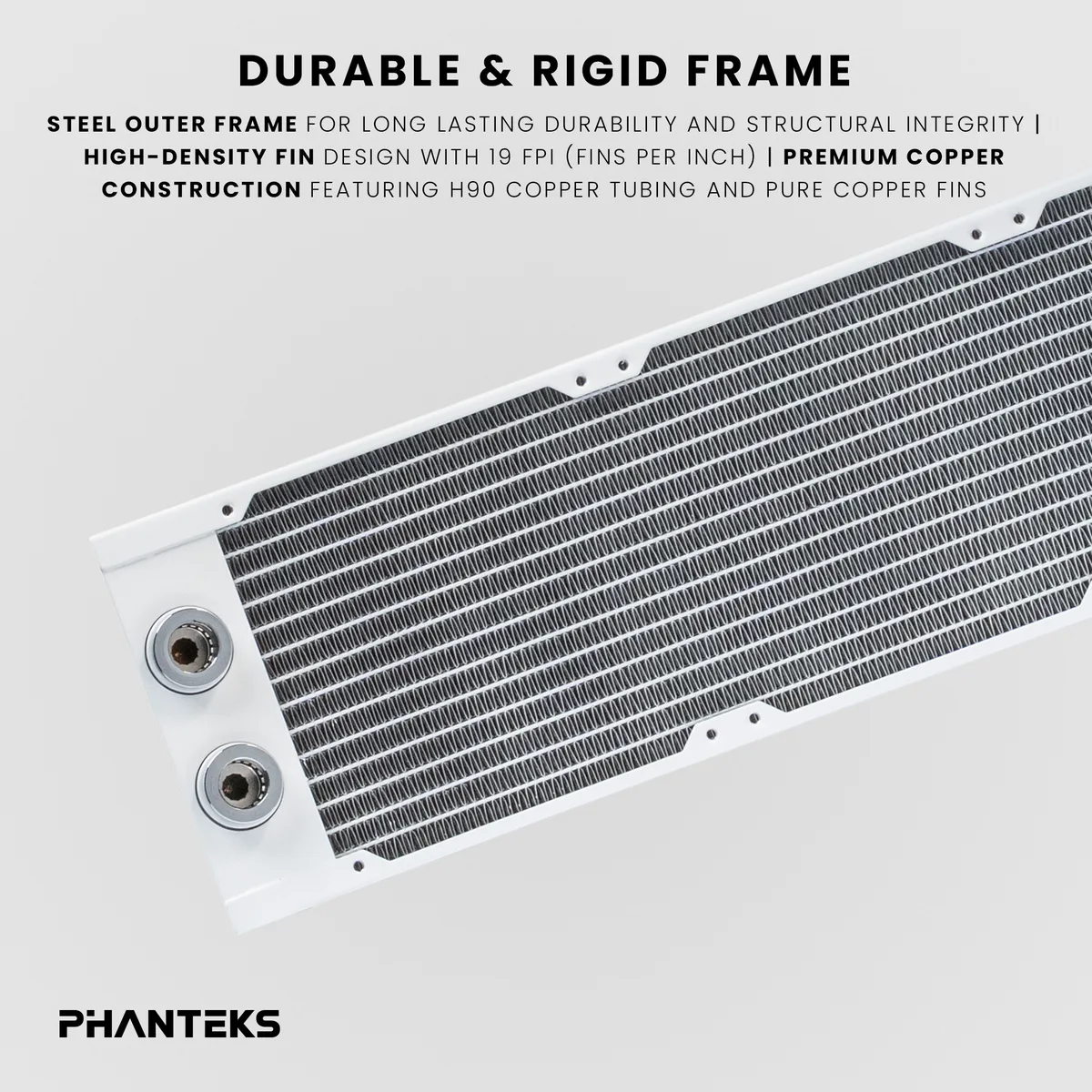

  • Premium all-copper core with H90 brass tubes and T2 copper fins maximises heat dissipation
  • High-density 19 FPI fin design increases surface area for superior cooling under load
  • Durable steel outer frame with 430 stainless side panels ensures long-lasting structural rigidity
  • Standard M4 threads support 25mm and 30mm thick fans with included screws for easy mounting

Phanteks 420mm Copper Radiator White

This Phanteks radiator uses an all-copper core with T2 copper fins and H90 brass tubing for heat dissipation. The 420mm length fits three 140mm fan positions in compatible cases. Integrated 16mm EZ-Fit fittings accept both hard and soft tubing without extra parts. The white finish matches light-themed builds.

Check Case Clearance and Fan Mounts

Verify that your chassis provides 470mm of linear space for the 420mm radiator plus fan thickness. Confirm M4 thread holes align with 25mm or 30mm fans you plan to use. Ensure the 30mm radiator depth plus fans does not interfere with motherboard components or drive cages. The integrated fittings add 16mm to the port height.

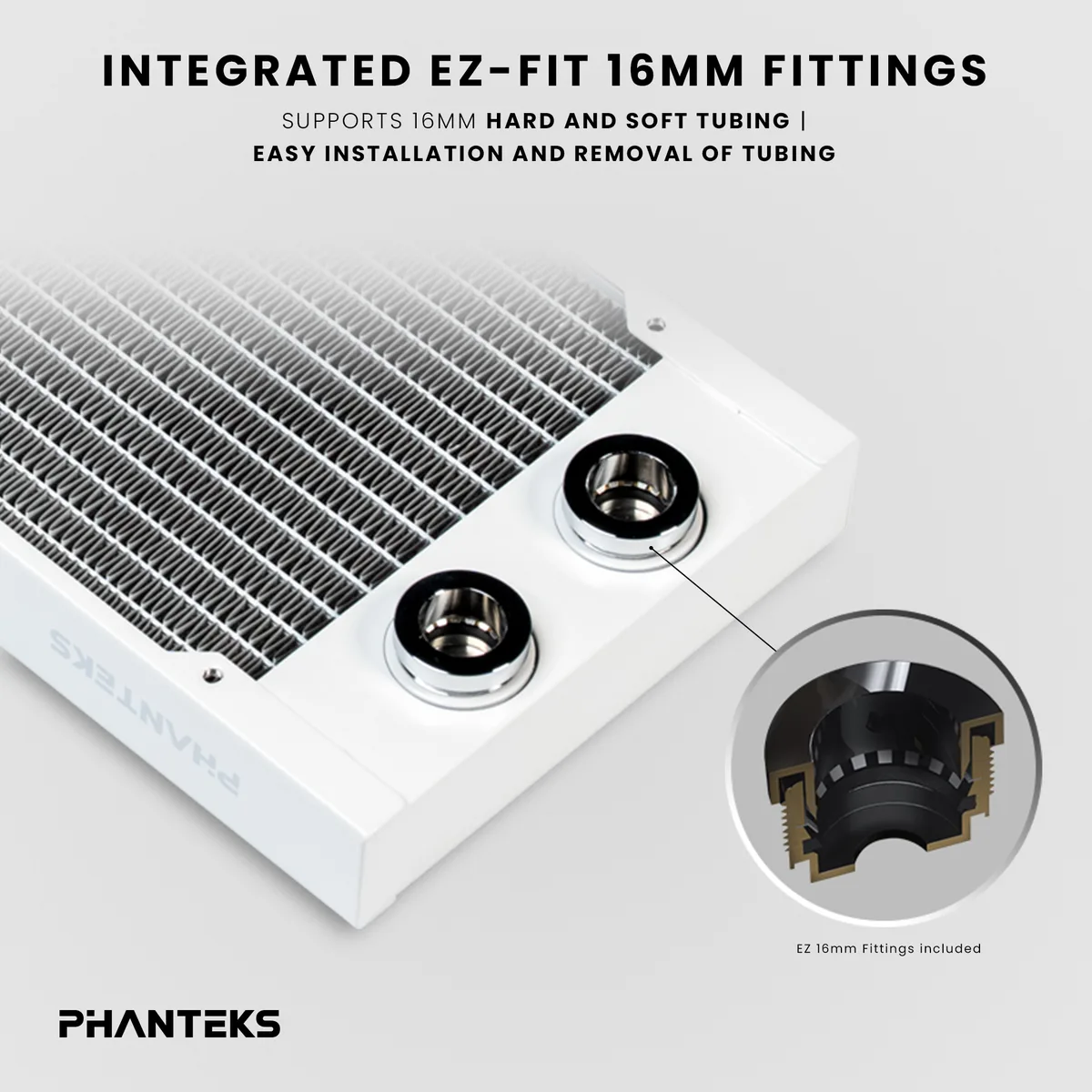

EZ-Fit Fittings Remove Extra Parts

The bundled 16mm EZ-Fit fittings thread directly into the H59 brass inserts, so separate compression fittings are not required. Included M4 screws secure 25mm or 30mm fans to the steel frame. Brass construction on chambers and threads resists corrosion in mixed-metal loops. White side panels keep the aesthetic consistent.

Highlights

  • Integrated 16mm EZ-Fit fittings simplify hard and soft tubing installation
  • Premium all-copper core with H90 brass tubes and T2 copper fins maximises heat dissipation
  • High-density 19 FPI fin design increases surface area for superior cooling under load
  • Durable steel outer frame with 430 stainless side panels ensures long-lasting structural rigidity
  • Standard M4 threads support 25mm and 30mm thick fans with included screws for easy mounting

Specifications

BrandPhanteks
ModelPH-GEF-RAD423_WT
TypeRadiator
Radiator Size470x140x30 mm
Radiator MaterialFins: T2 Copper
Water Chamber: H62 Brass
Thread Insert: H59 Brass
Side Pane: 430 Stainless
Fittings: Brass
Fitting Insert: ABS
ColorWhite
Tube MaterialH90 Brass
Shipping weight1.34 kg
Package size521 × 152 × 44 mm

Questions about this item

Does the Phanteks PH-GEF-RAD423_WT include the 16 mm EZ-Fit fittings or must I buy them separately?

The radiator ships with integrated 16 mm EZ-Fit fittings that work with both hard and soft tubing, so no extra fittings are required.

Should I choose the 420 mm 30 mm thick version over a thinner model for my build?

The 30 mm thickness and 19 FPI copper core give higher thermal capacity, making this version better suited for multi-GPU or heavily overclocked loops.

What does the 420 mm 30 mm specification mean once the radiator is installed in a real loop?

It provides a 470 x 140 x 30 mm cooling surface with M4 threads for 25 mm or 30 mm fans, and the included screws let you mount fans immediately.
