Phanteks
Phanteks PH-GEF_CPU450_DWT Glacier EZ-Fit 450CPU Copper CPU Block LGA 1700 AM5 16mm D-RGB White diy cooling
A copper CPU water block with integrated 16mm EZ-Fit fittings, a 0.15mm fin array and D-RGB lighting for LGA 1700 and AM5 sockets
- TypeCPU block
- Block CompatibilityIntel: LGA 1700 AMD: AM4 / AM5
- SpecificationLED Type: Digital-RGB LED strip hard board (+5V, data, empty
- Package ContentsGlacier 450CPU Block 1x Push-in Fitting (Pre-installed) 2x F
- Precision copper base with 0.15 mm fins maximises heat transfer
- Integrated 16 mm EZ-Fit fittings accept hard and soft tubing without extra parts
- Auto-balancing metal mount with springs delivers even CPU pressure
- POM body diffuses built-in D-RGB lighting for a clean look
- Supports Intel LGA 1700 and AMD AM4/AM5 sockets
Glacier EZ-Fit 450CPU Copper Block

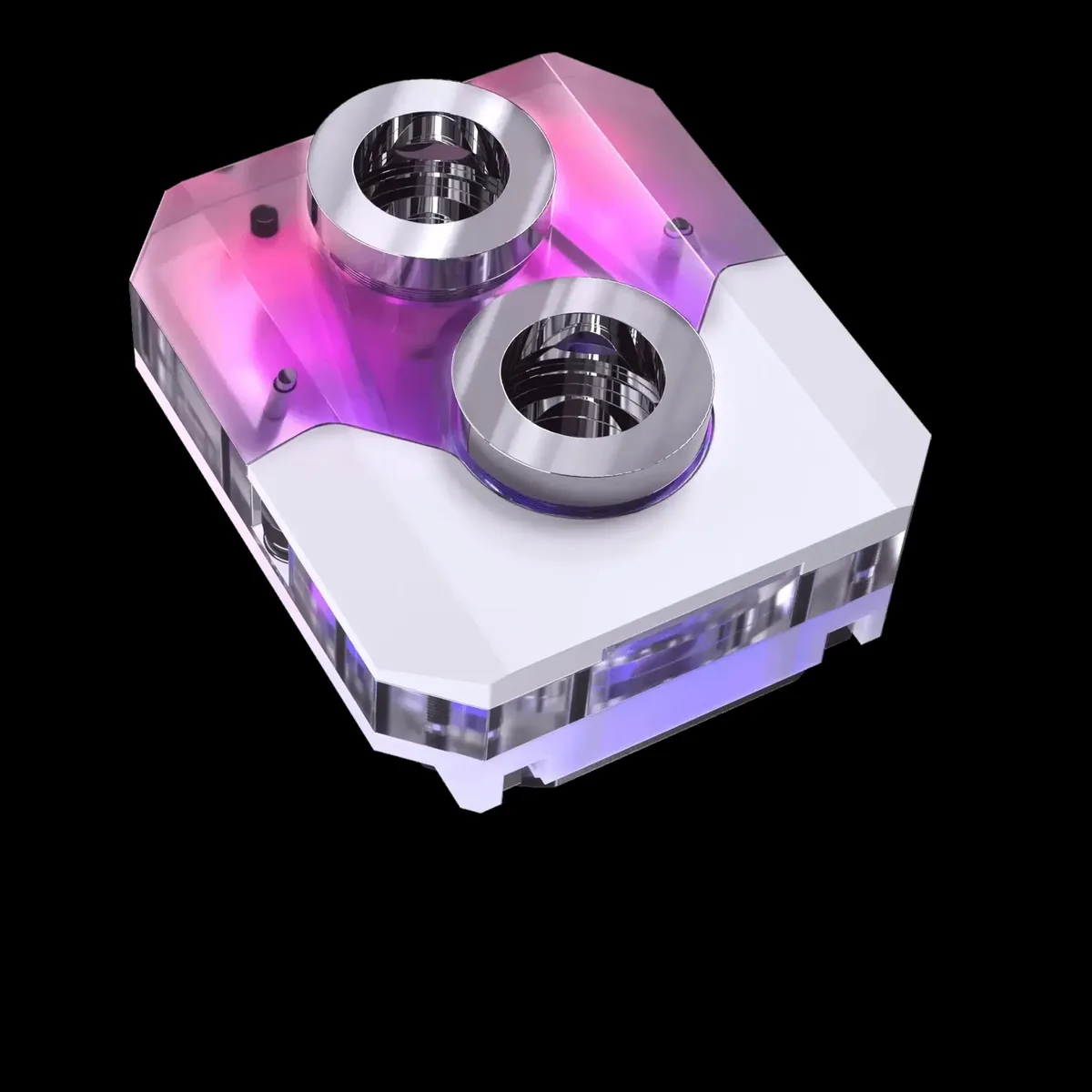

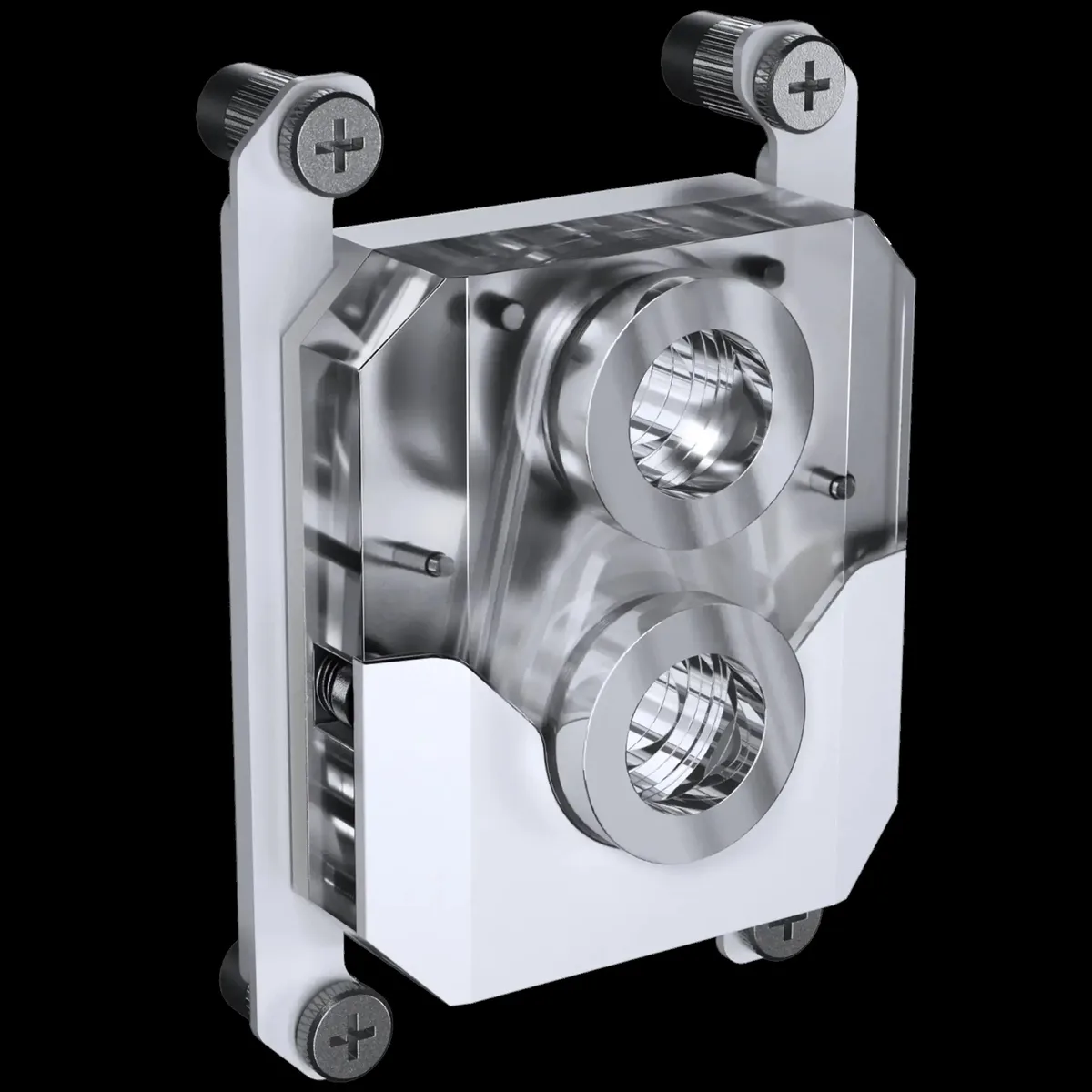

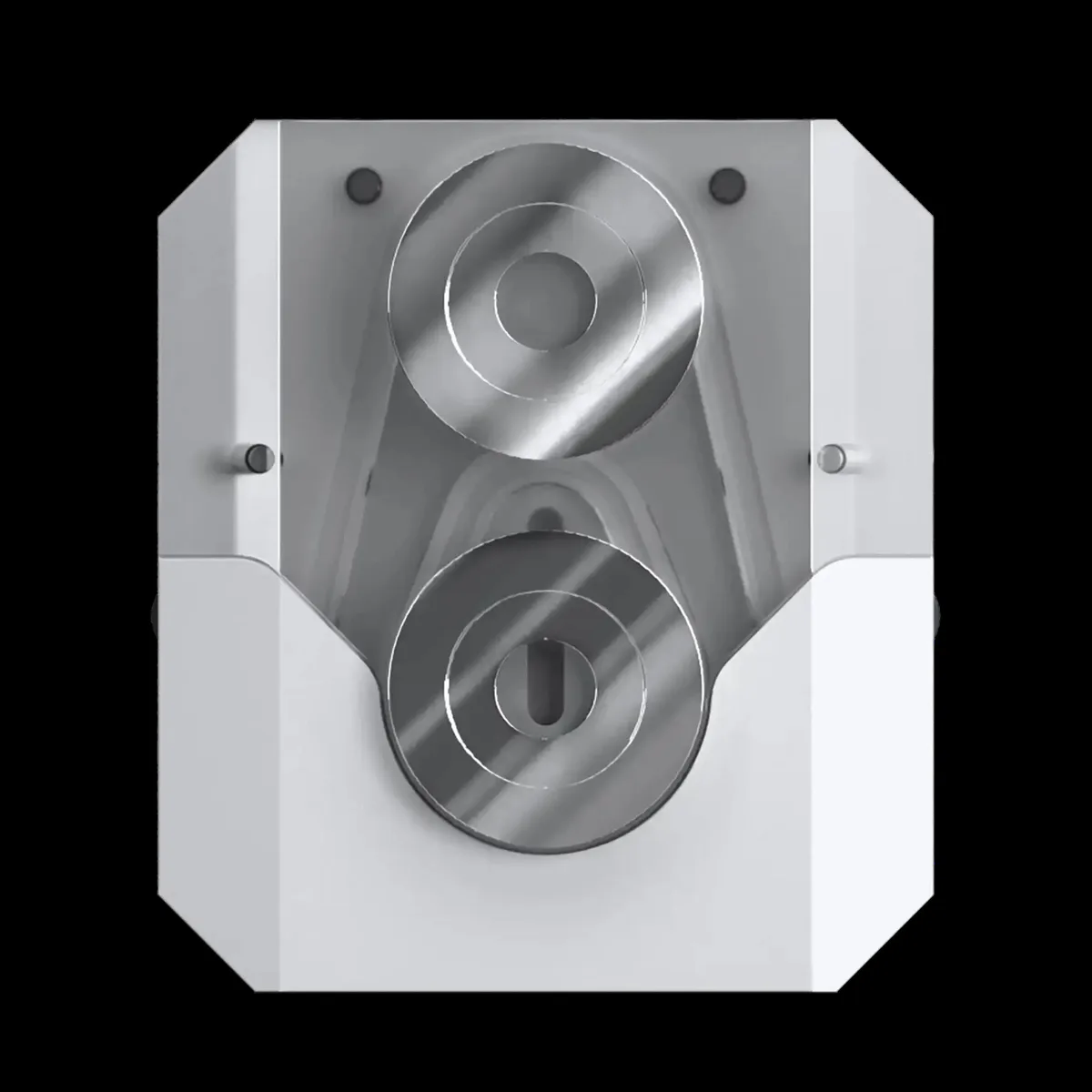

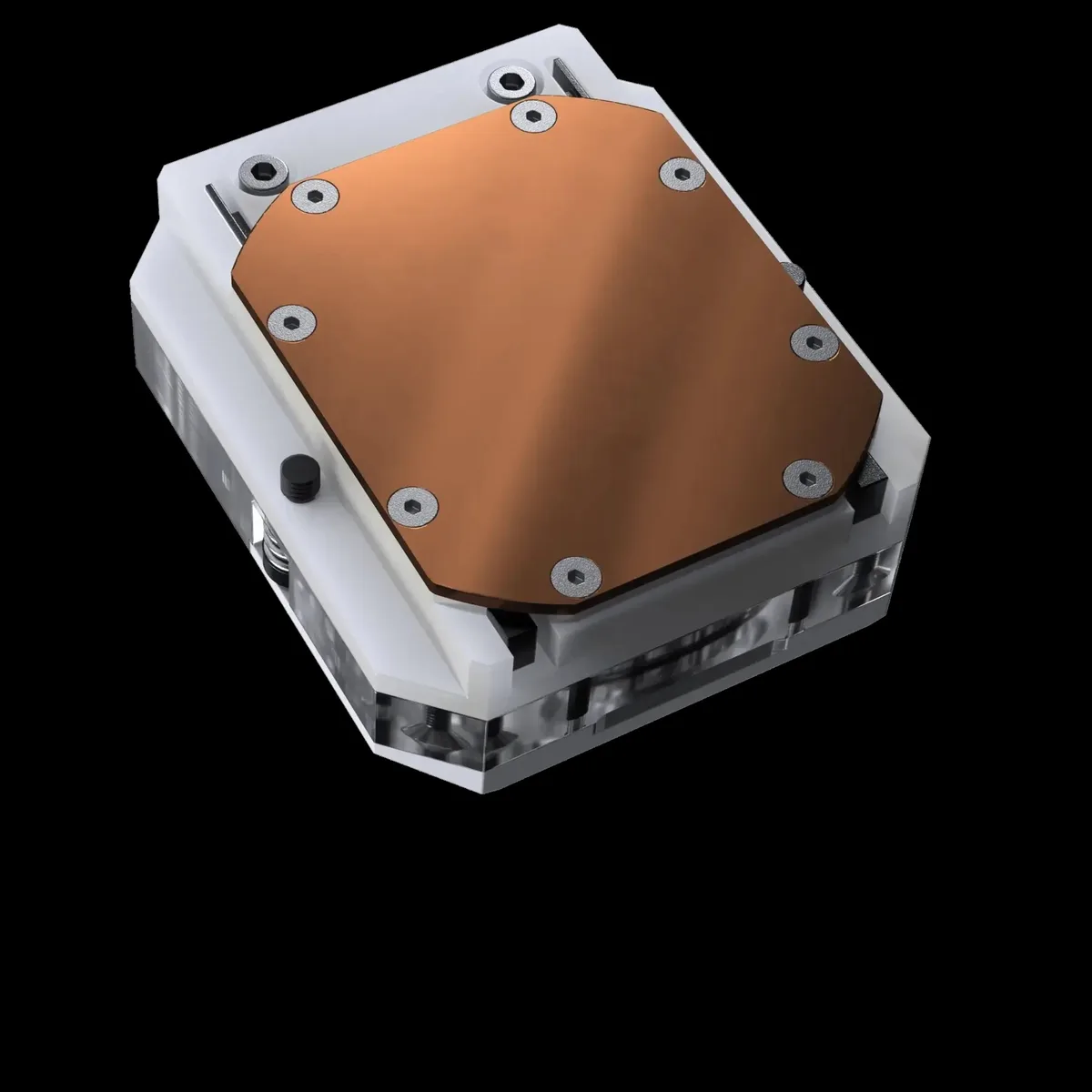

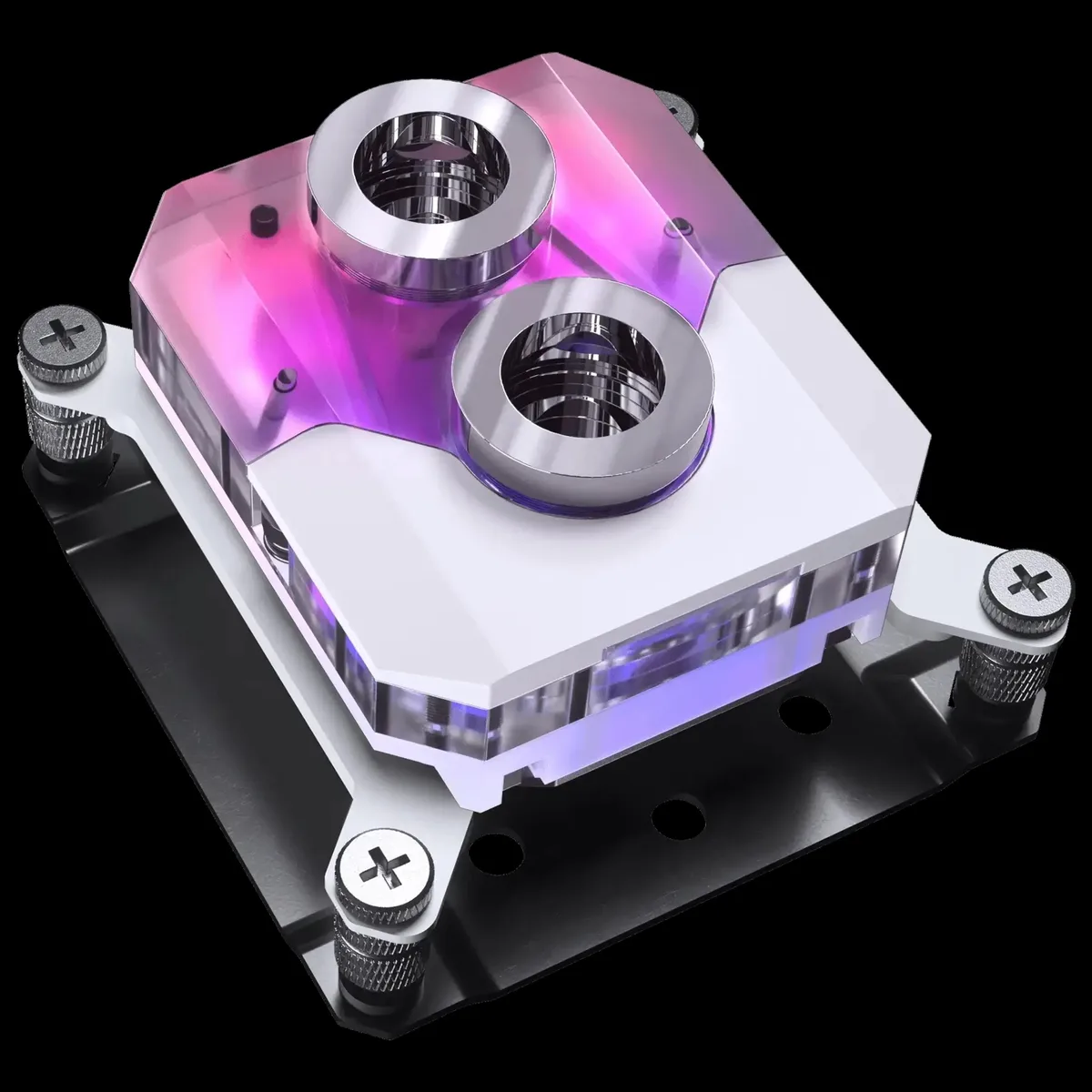

The Phanteks Glacier EZ-Fit 450CPU is a copper CPU water block designed for custom liquid-cooling loops. It features an ultra-fine 0.15 mm fin array on a 3.7 mm thick copper base measuring 60.2 x 51 mm. Pre-installed 16 mm push-in fittings support both hard and soft tubing. Integrated Digital-RGB LED strips run at 5 V with a maximum draw of 0.3 A.
Compatibility and Use-Case Fit
This block suits builders assembling a custom loop on Intel LGA 1700 or AMD AM4 and AM5 platforms who want a tool-free fitting experience. The package includes an aluminium cover, mounting hardware, an Intel backplate and thermal compound. It is not suited for systems using sockets other than those listed, nor for loops requiring tubing sizes other than 16 mm OD hard tube or 16 mm OD / 10 mm ID soft tube.
Deciding Specification: 16 mm Integrated EZ-Fit
The defining feature is the pair of pre-installed nickel-plated brass fittings that accept 16 mm OD PETG, acrylic or PVC tubing directly. No separate fittings are needed, which reduces potential leak points and build time. If your loop uses a different outer diameter, this block cannot be connected without additional adapters.
Highlights
- Precision copper base with 0.15 mm fins maximises heat transfer
- Integrated 16 mm EZ-Fit fittings accept hard and soft tubing without extra parts
- Auto-balancing metal mount with springs delivers even CPU pressure
- POM body diffuses built-in D-RGB lighting for a clean look
- Supports Intel LGA 1700 and AMD AM4/AM5 sockets
Specifications
| Brand | Phanteks |
|---|---|
| Model | PH-GEF_CPU450_DWT |
| Type | CPU block |
| Block Compatibility | Intel: LGA 1700 AMD: AM4 / AM5 |
| Specification | LED Type: Digital-RGB LED strip hard board (+5V, data, empty, Ground) LED strip length: 65.9 mm Number of LEDs: 2x 5pcs Input Voltage: +5V Current (Single strip) Max: 0.15A Current (Dual Strip) Max: 0.3A Wattage (Single strip) Max: 0.75W Wattage (Dual Strip) Max: 1.5W Copper Base Dimension (WxDxH): 60.2 x 51 x 3.7mm (2.37 x 2 x 0.15in) Copper Thickness: 3.7 mm Fin Construction: 0.08 mm fin gap / 0.08mm thickness Materials: Acrylic / POM / Copper Aluminum Cover Fitting: Nickel Plated Brass Fitting Insert: ABS Supported Tube Size Hard Tube: OD 16mm Soft Tube: OD 16mm; ID 10mm Tube Comp |
| Package Contents | Glacier 450CPU Block 1x Push-in Fitting (Pre-installed) 2x Fitting Inserts (for soft tube) 3x Aluminum Cover 1x Mounting Hardware (Screw, Spring) 2x Intel Backplate 1x PH-NDC Thermal Compound 1x D-RGB LED Strips (5pcs led) (Pre-installed) 2x D-RGB LED Cable 1x D-RGB MB Adapter 1x Intel mounting bracket 2x AMD mounting bracket 2x Thumb screw 4x Intel Standoff (1700) 4x AMD Standoff 4x Manual 1x |
| Shipping weight | 0.77 kg |
| Package size | 152 × 152 × 64 mm |
Questions about this item
How does the 0.15 mm fin gap on the copper base affect real-world heat transfer?
The ultra-fine 0.15 mm fin array maximises surface area inside the block, allowing coolant to pull heat from the CPU efficiently without adding flow restriction.
What does the 5 V D-RGB header actually power on this block?
Two hard-board strips with five LEDs each draw up to 0.3 A and 1.5 W total, so a standard 5 V motherboard header can drive the full lighting effect.
Will the pre-installed 16 mm fittings accept both hard and soft tubing without extra parts?
Yes — the nickel-plated brass push-in fittings are built for 16 mm OD hard tube and, with the three included ABS inserts, 16 mm OD / 10 mm ID soft tube.
