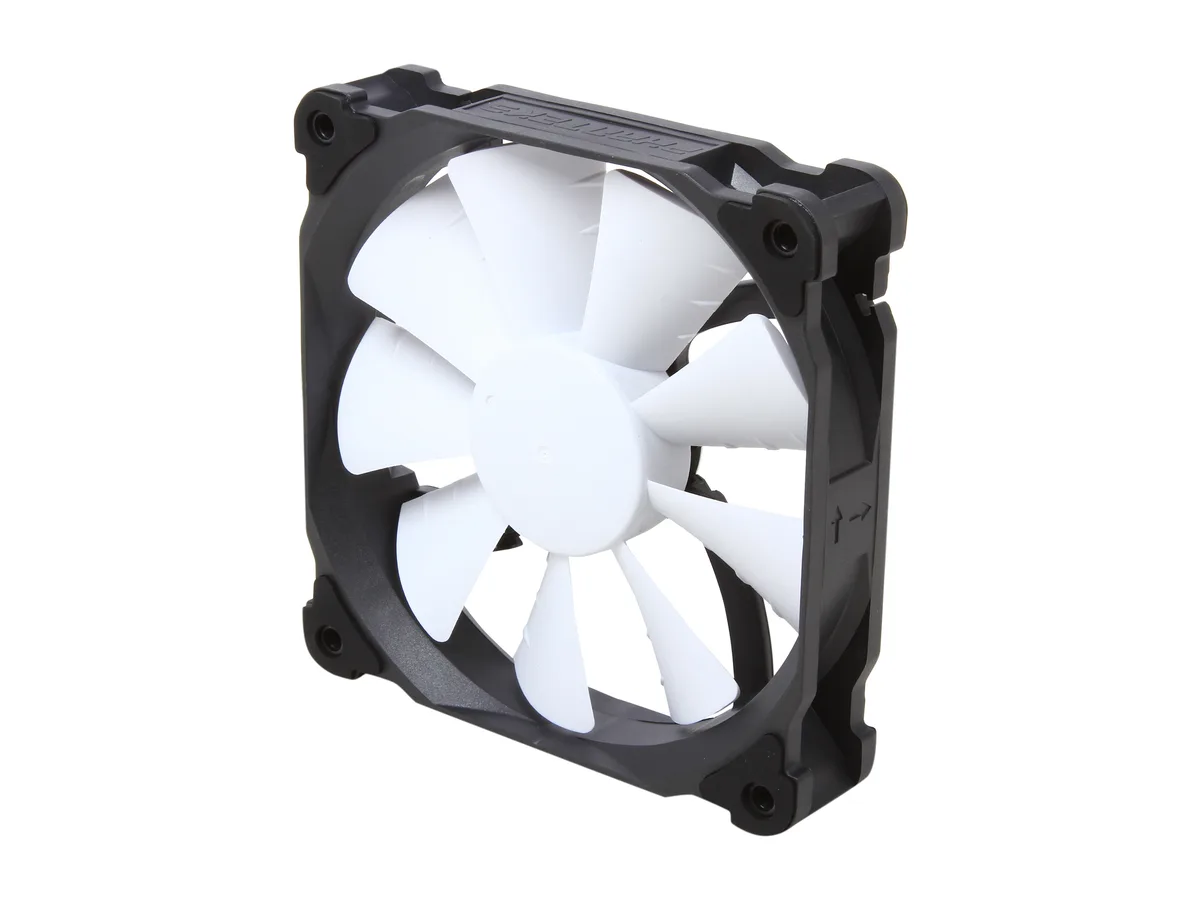

Black frame 120mm case fan with white blades, 25mm thick, PWM connector

Phanteks

Phanteks PH-F120XP_BK 120mm PWM Case Fan

SKU CH-JJPV-F1MW9 MPN PH-F120XP_BK

A 120 mm PWM case fan with UFB bearing, 500–1500 rpm, 23.0–61.6 CFM airflow and 21–27 dB(A) noise

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Thickness25mm
  • Bearing TypeUFB (Updraft Floating Balance)
  • Precise speed control via 4-pin PWM connector
  • Quiet operation at 21–27 dB(A) across the range
  • High airflow up to 61.6 CFM for effective cooling
  • UFB bearing reduces friction for long-term reliability
  • Vibration-dampening rubber pads minimise case resonance

120mm PWM Case Fan

The Phanteks PH-F120XP_BK is a single 120mm case fan with a 4-pin PWM connector for motherboard-controlled speed. It uses a UFB bearing and nine MVB blades to deliver 23.0 to 61.6 CFM airflow at 500 to 1500 rpm. The black frame and white blades suit builds that want a clean two-tone look.

Check motherboard headers and mounting points

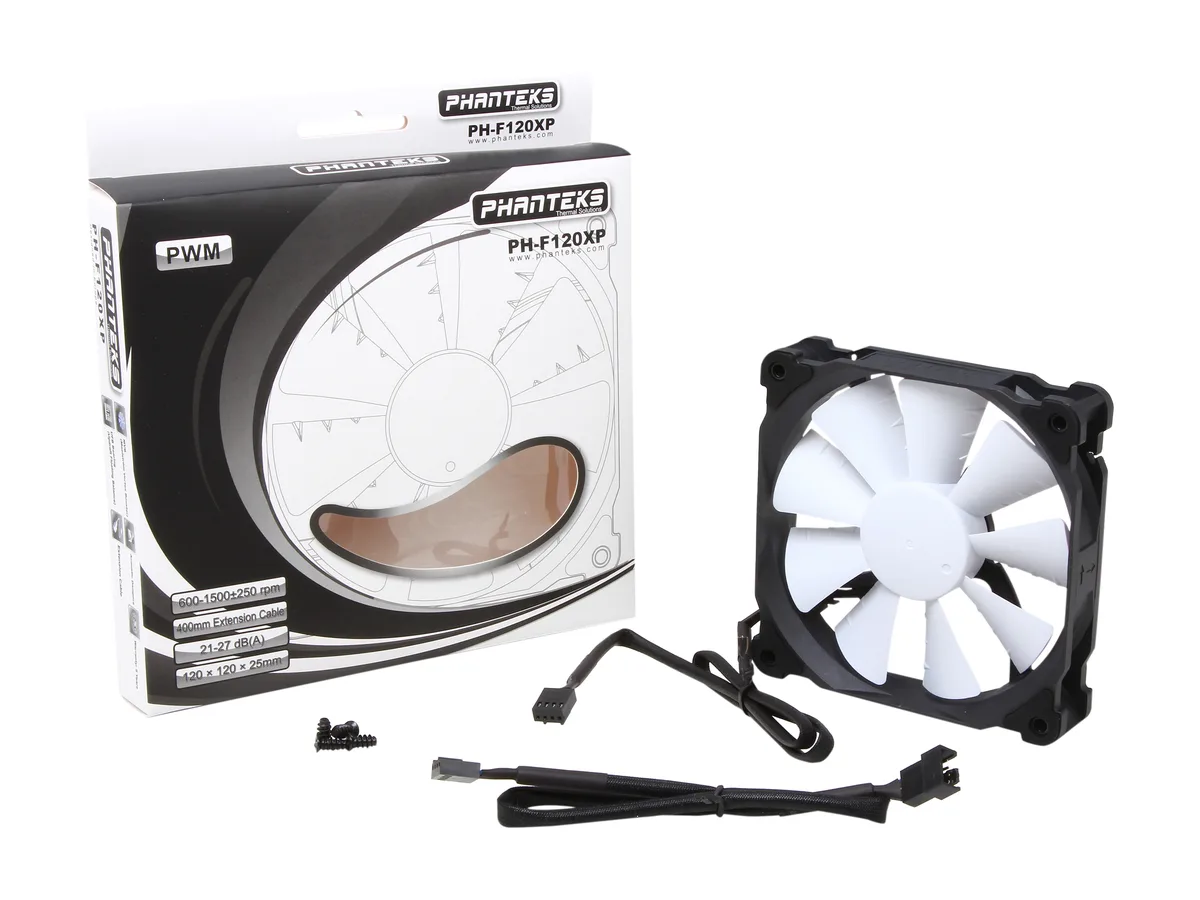

Verify your board has a spare 4-pin PWM header for automatic speed control. Ensure the case or radiator offers 120mm mounting holes with 25mm clearance for the fan thickness. The package includes eight rubber anti-vibration pads for the four corners.

Thermals noise and power draw

At minimum speed the fan runs at 500 rpm and produces 21 dB(A) while moving 23.0 CFM. At full speed it reaches 1500 rpm with 27 dB(A) and 61.6 CFM airflow. The UFB bearing and acoustic dampers keep vibration low across the whole operating range.

Highlights

  • Precise speed control via 4-pin PWM connector
  • Quiet operation at 21–27 dB(A) across the range
  • High airflow up to 61.6 CFM for effective cooling
  • UFB bearing reduces friction for long-term reliability
  • Vibration-dampening rubber pads minimise case resonance

Specifications

BrandPhanteks
ModelPH-F120XP_BK
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Thickness25mm
Bearing TypeUFB (Updraft Floating Balance)
RPM500 - 1500 +/- 250 rpm
Air Flow23.0 - 61.6 CFM
Noise Level21 - 27 dB(A)
Power Connector4 Pin
ColorBlack Frame / White Blades
Dimensions120.00 x 120.00 x 25.00mm
Shipping weight0.25 kg
Package size203 × 191 × 30 mm

Questions about this item

Does the fan ship with any mounting hardware or vibration pads, or do I need to buy them separately?

Eight larger rubber acoustic dampers come pre-installed on the frame, so no extra vibration pads are required; standard 120 mm case screws are the only items you may need to source.

Should I pick this 120 mm model or a different size for my build?

This unit is a single 120 mm x 120 mm x 25 mm fan; choose it when your case or radiator has 120 mm mounting points — other sizes are separate SKUs.

What does the 500 – 1500 rpm range with 23.0 – 61.6 CFM actually deliver inside a PC?

At minimum speed the fan moves 23.0 CFM at 21 dB(A); at full PWM duty it pushes 61.6 CFM at 27 dB(A), giving quiet idle cooling and strong airflow under load.
