120 mm square black frame white blades blue LED 25 mm thick

Phanteks

Phanteks PH-F120SP_BLED 120 mm Blue LED Case Fan

SKU CH-XAH4-MEARK MPN PH-F120SP_BLED

A 120 mm case fan with blue LED lighting, UFB bearing, 1300 rpm speed, 54.4 CFM airflow and 24.2 dB noise

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Thickness25mm
  • Bearing TypeUFB (Updraft Floating Balance)
  • Blue LED adds visible style to your build
  • 120 mm fan fits standard case and radiator mounts
  • 4 CFM airflow at 1300 rpm clears heat efficiently
  • UFB bearing reduces friction for quieter, longer operation
  • 2 dB (A) keeps system noise low under load

Premium 120 mm Blue LED Fan

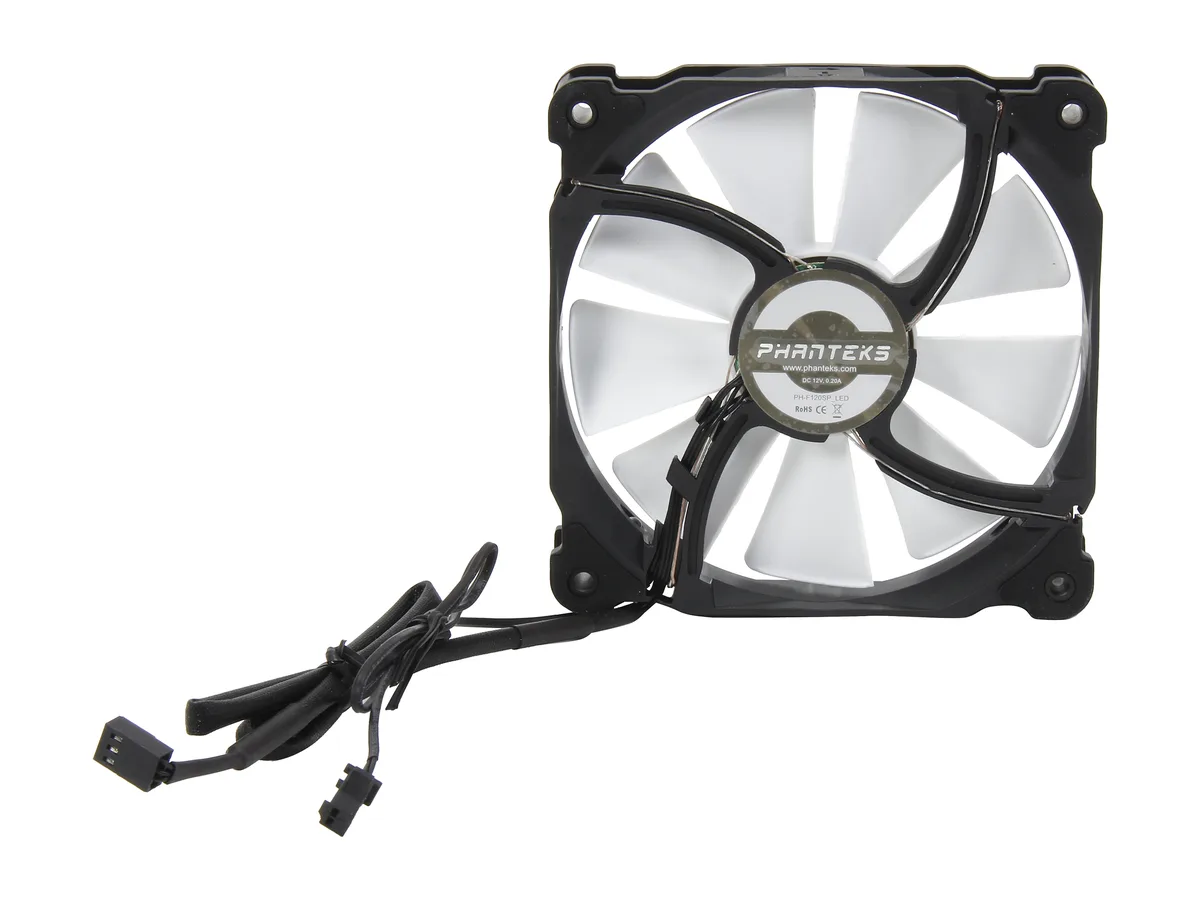

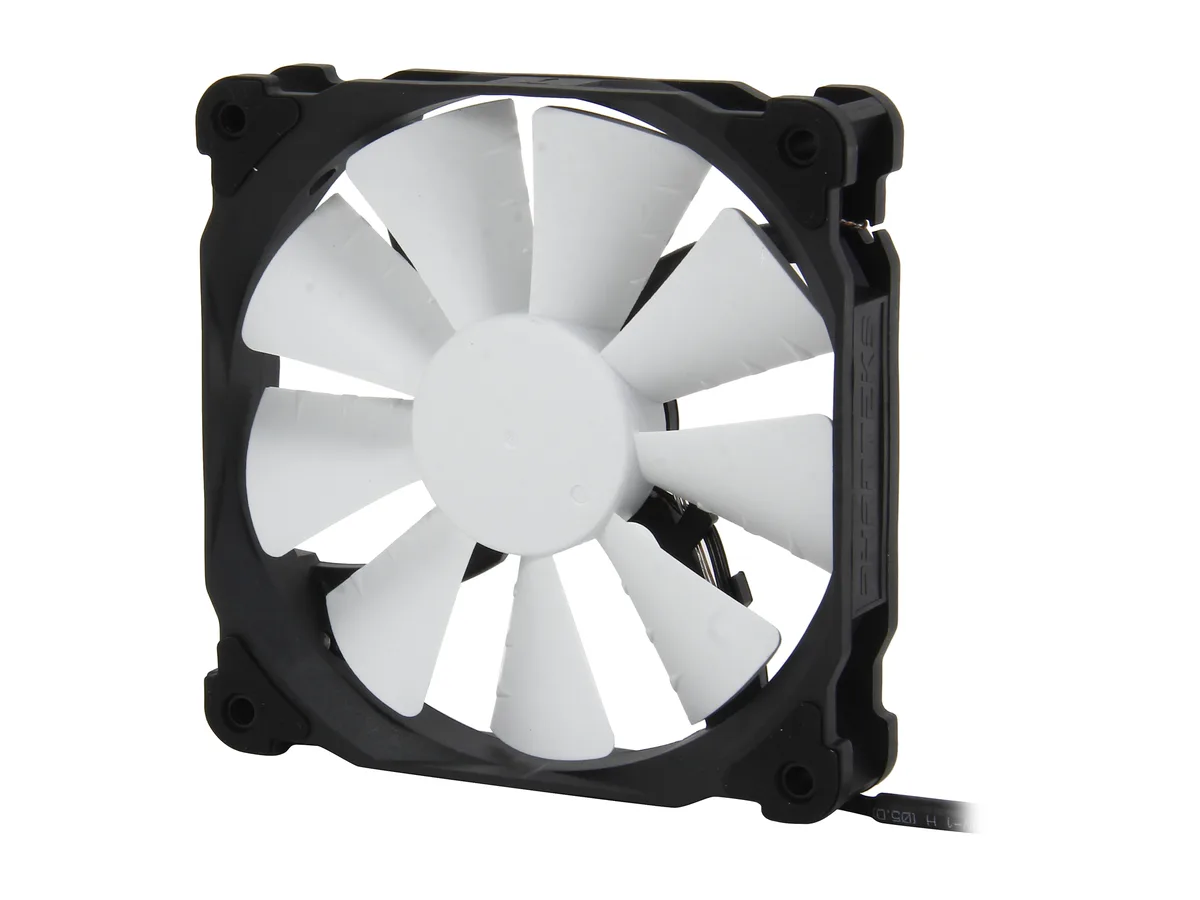

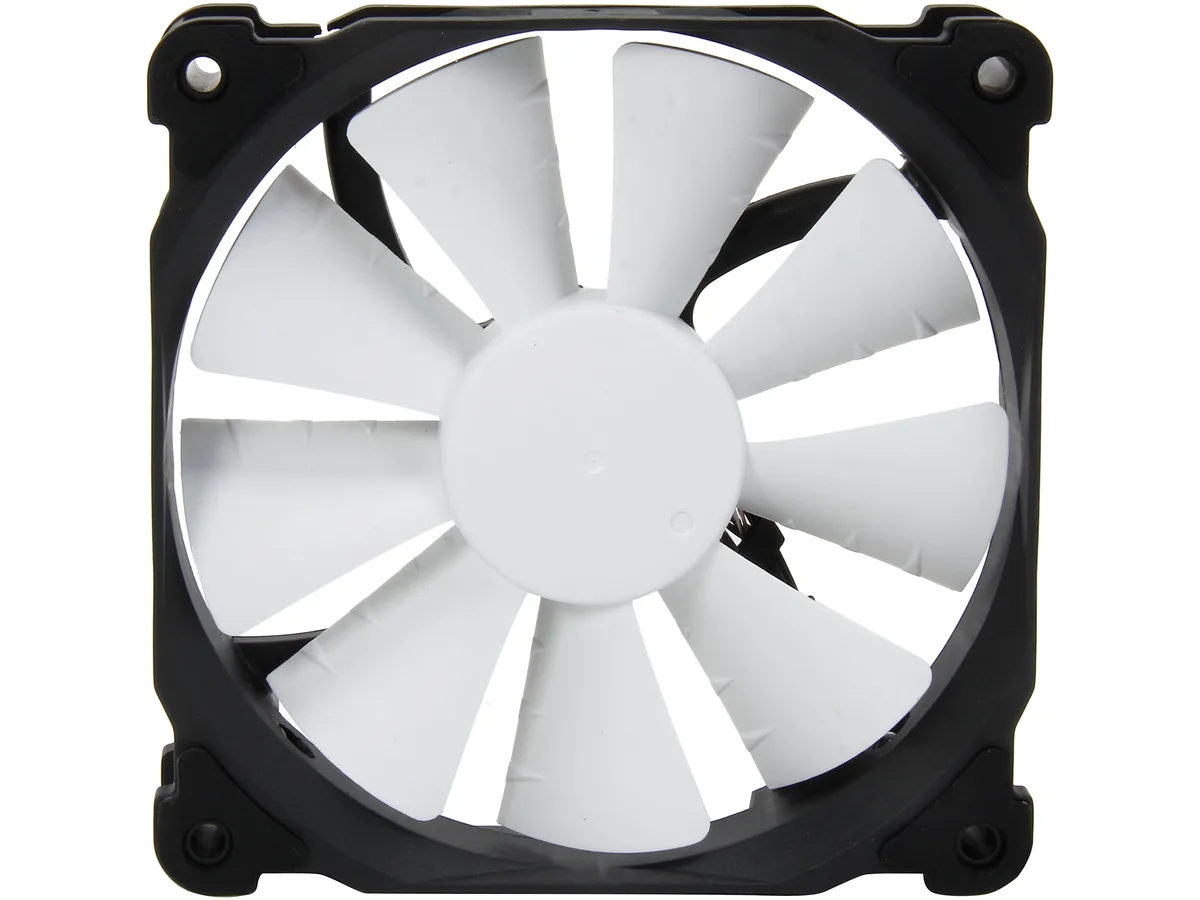

The Phanteks PH-F120SP_BLED is a single 120 mm case fan with a black frame, white blades and blue LED lighting. It uses a three-pin power connector and mounts in any standard 120 mm fan location. The Maelström vortex booster blade design and Updraft Floating Balance bearing target high static pressure and low noise for radiator or case airflow duty.

Build integration and clearance

At 25 mm thick the fan fits typical chassis and radiator stacks without special brackets. The three-pin connector plugs directly into a motherboard header or a fan hub; no separate controller is included or required. The package supplies four mounting screws so installation is straightforward in intake, exhaust or push-pull configurations.

Thermals noise and power

The motor runs at 1300 rpm ± 250 rpm and delivers 54.4 CFM while producing 24.2 dB(A). The UFB bearing combines a MOSS hub-blade balance with an SSC system to reduce vibration and extend operating life. The magnetic brushless DC motor avoids resonance effects for stable rotation under continuous load.

Highlights

  • Blue LED adds visible style to your build
  • 120 mm fan fits standard case and radiator mounts
  • 4 CFM airflow at 1300 rpm clears heat efficiently
  • UFB bearing reduces friction for quieter, longer operation
  • 2 dB (A) keeps system noise low under load

Specifications

BrandPhanteks
ModelPH-F120SP_BLED
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Thickness25mm
Bearing TypeUFB (Updraft Floating Balance)
RPM1300 +/- 250 rpm
Air Flow54.4 CFM
Noise Level24.2 dB (A)
Power Connector3 Pin
ColorBlack Frame / White Blades
LEDBlue
FeaturesThe PH-F120SP, 120 mm Premium fans from Phanteks is designed with the unique Maelström concept technology. They are specifically designed to overcome high static pressure, blade deflection,and noise challenges. Affordable and durable, the PH-F120SP is a great choice for case / radiator fan upgrades. The UFB Bearing composed by MOSS and SSC Systems creates a longer lifespan and adds stability to the fans. Silence and durability are now possible and a standard with the new PH-F120SP.
Dimensions120 x 120 x 25 mm

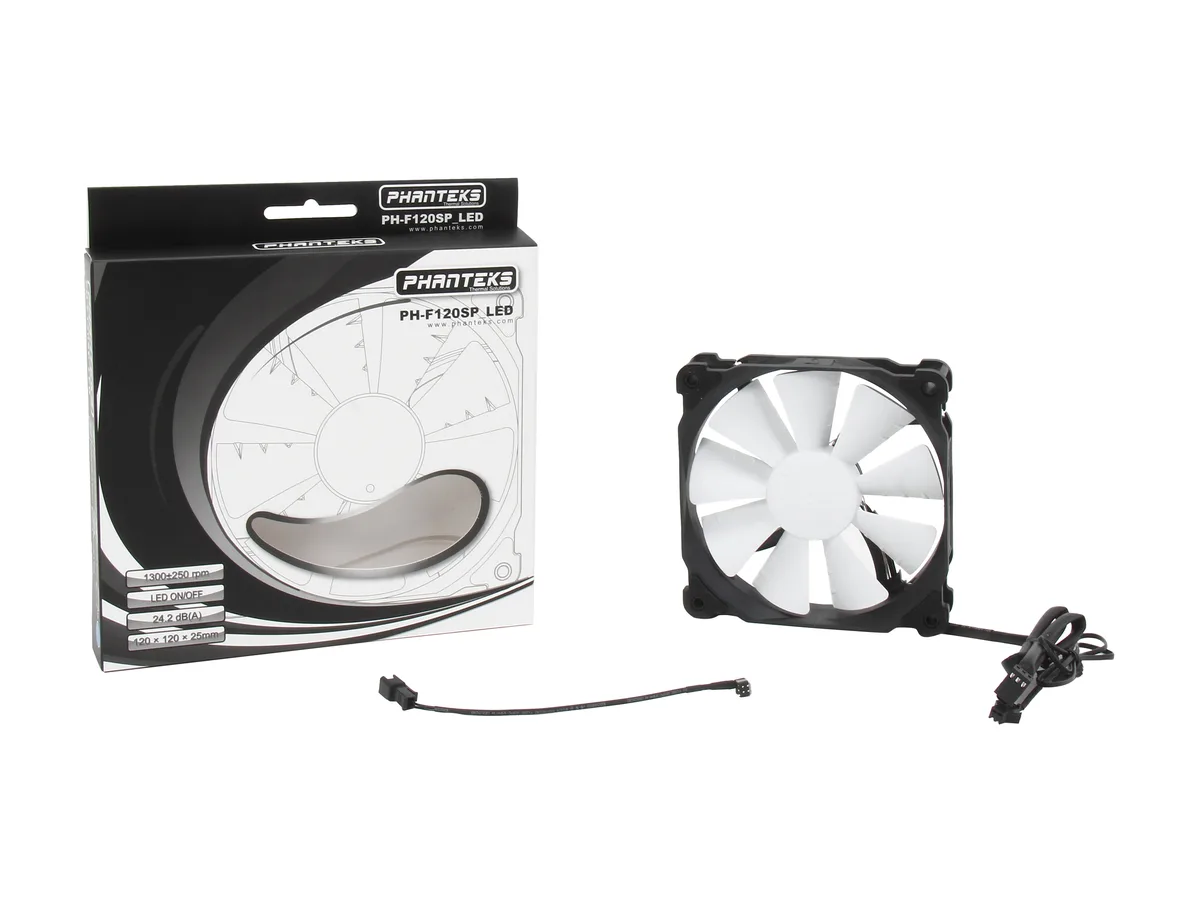

Package Contents1 x 120 mm Premium Fan
4 x Fan Screws
Shipping weight0.23 kg
Package size191 × 160 × 43 mm

Questions about this item

Will the 1300 rpm speed stay steady when the fan runs continuously?

The fan is rated at 1300 ± 250 rpm, so speed can vary within that range during sustained use.

How loud and how much power does the fan draw at full speed?

Noise is specified at 24.2 dB(A); the 3‑pin connector draws power directly from the motherboard header.

What motherboard header do I need to plug this fan in?

A standard 3‑pin fan header is required; no separate controller is included.
