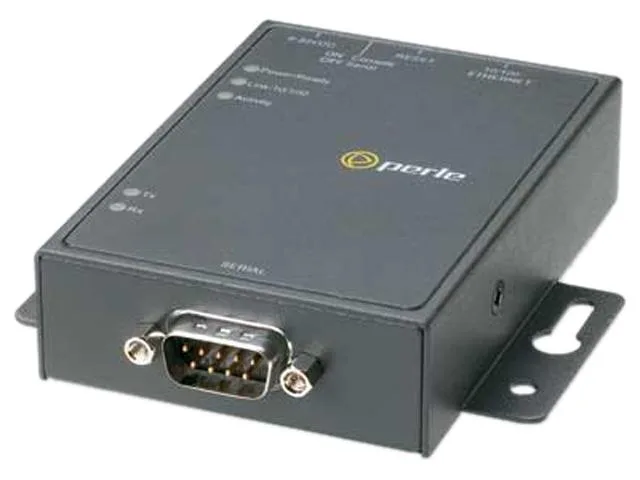

Small metal box with one DB-9 port and status LEDs

Perle

Perle 04030124 IOLAN DS1 Device Server 1 Port 16 MB 66 MHz

SKU CH-5DG0-CX5XE MPN 04030124

Connects serial equipment via RS-232, RS-422 or RS-485 to IP networks with IPv6 support, 16 MB RAM and a 66 MHz processor

  • TypeDevice Server
  • SpecificationsProcessor: MPC852T Motorola 66 MHz Standard Memory: 16 MB RA
  • Connect serial equipment via RS-232, RS-422, RS-485
  • IPv6 support protects long-term network investment
  • Motorola MPC852T processor runs at 66 MHz
  • 16 MB RAM plus 4 MB flash stores configuration
  • Compact 22.86 mm high metal enclosure fits tight spaces

Perle IOLAN DS1 Single-Port Device Server

The Perle 04030124 IOLAN DS1 is a compact device server that connects one serial device to an Ethernet network. Its MPC852T processor running at 66 MHz and 16 MB of RAM handle protocol conversion for reliable data transfer. The unit measures 22.86 mm high, 63.50 mm wide and 88.90 mm deep, weighing approximately 362.9 g.

Suits RS-232/422/485 equipment needing one network

This server fits integrators who must web-enable a single piece of legacy kit such as a PLC, meter or console port. It supports hardware flow control and IPv6 for current network compatibility. Buyers needing to connect multiple serial ports simultaneously, or requiring wireless connectivity, should consider other solutions.

One DB-9 serial interface

The sole serial connection is a single DB-9 port configurable for RS-232, RS-422 or RS-485 signalling. This physical interface dictates which cables and pin-outs the installation requires. If the target equipment uses a different connector type or demands more than one serial channel, this model will not meet the requirement.

Highlights

  • Connect serial equipment via RS-232, RS-422, RS-485
  • IPv6 support protects long-term network investment
  • Motorola MPC852T processor runs at 66 MHz
  • 16 MB RAM plus 4 MB flash stores configuration
  • Compact 22.86 mm high metal enclosure fits tight spaces

Specifications

Brandperle
Model04030124
TypeDevice Server
SpecificationsProcessor: MPC852T
Motorola 66 MHz
Standard Memory:
16 MB RAM
Maximum Memory:
4 MB Flash Memory
Interfaces/Ports:
1 x DB-9
Flow Control:
Hardware Flow Control
Functions:
The IOLAN DS1 is ideal for connecting serial-based COM port, UDP or TCP socket based applications to remote devices. Perle's TruePort re-director provides fixed TTY or COM ports to server based applications enabling communication with remote devices connected to Perle device servers. You can also tunnel serial data between devices across an IP network.
Management:
Web browser, CLI-Telnet, shared console port, SNMP MI
Shipping weight0.91 kg
Package size305 × 229 × 102 mm

Questions about this item

How does the 66 MHz processor affect real-world serial-to-network performance?

The MPC852T running at 66 MHz handles protocol conversion for a single serial port, providing enough throughput for typical RS-232, RS-422 or RS-485 equipment without becoming a bottleneck.

What does the single DB-9 interface support and what practical limits apply?

The DB-9 port carries RS-232, RS-422 or RS-485 signals with hardware flow control, allowing one serial device to be web or network enabled over IPv4 or IPv6.

What are the exact dimensions and weight for mounting the unit in a cabinet?

The device measures 0.90 in high, 2.50 in wide and 3.50 in deep (22.86 mm x 63.50 mm x 88.90 mm) and weighs approximately 362.9 g.
