Black 120mm square case fan, 30mm thick, matte finish, no LED, four-pin PWM connector visible

PCCOOLER

PCCOOLER F9 R120 BK 120mm 30mm case fan

SKU CH-F82S-4BSQF

A 30 mm thick 120 mm PWM case fan with dual ball bearings and LCP blades delivering up to 114 CFM and 8.2 mmH₂O at 3000 RPM

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size120mm
  • Fan Thickness30mm

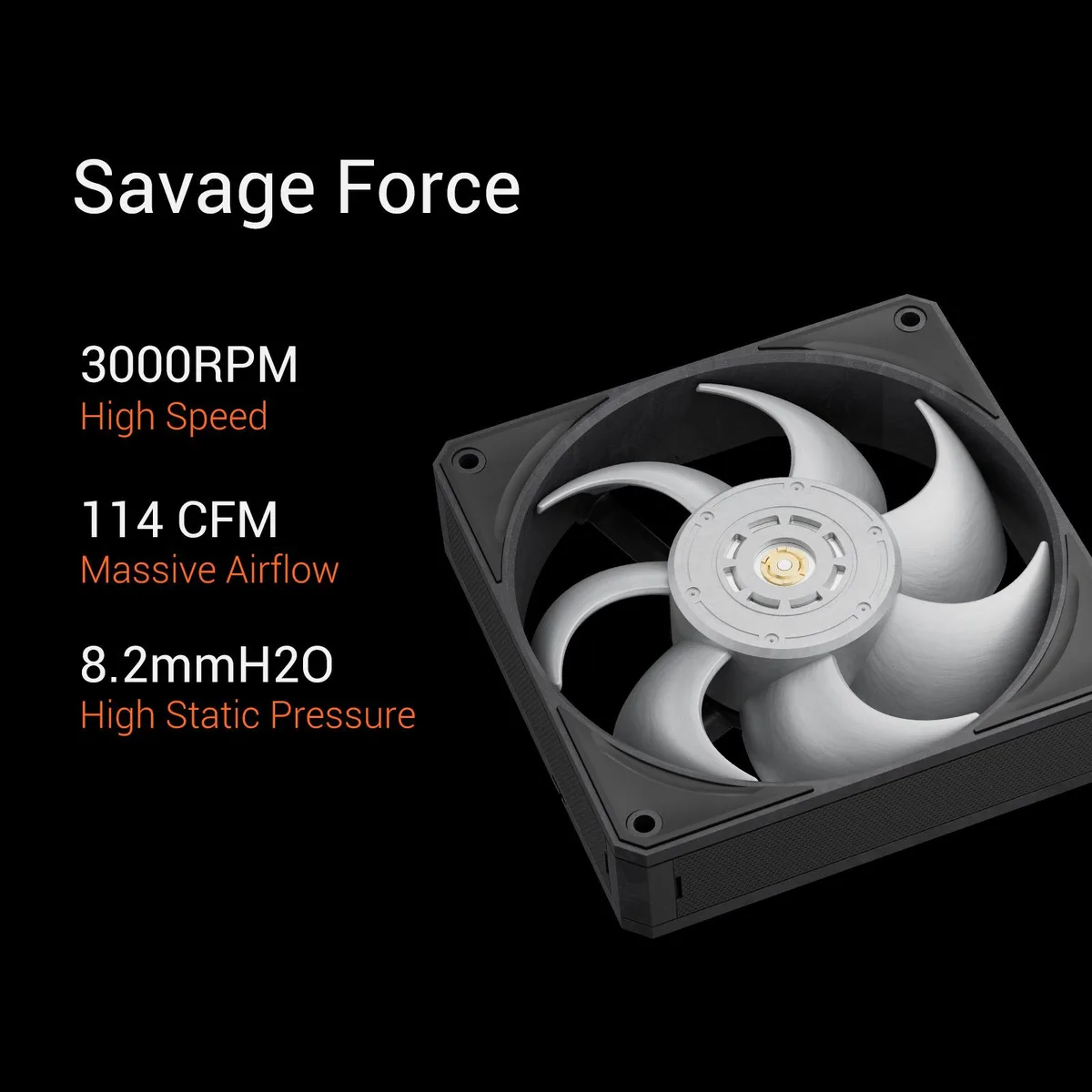

  • 30 mm thick frame boosts airflow to 114 CFM at high speed
  • 3-phase 6-slot motor delivers 8.2 mmH₂O pressure for dense radiators
  • NSK dual ball bearing rated for long life in continuous operation
  • LCP liquid crystal polymer blades keep shape at 3000 RPM
  • Three PWM profiles from 500 RPM to 3000 RPM suit any load

High-Speed 120mm Industrial Fan

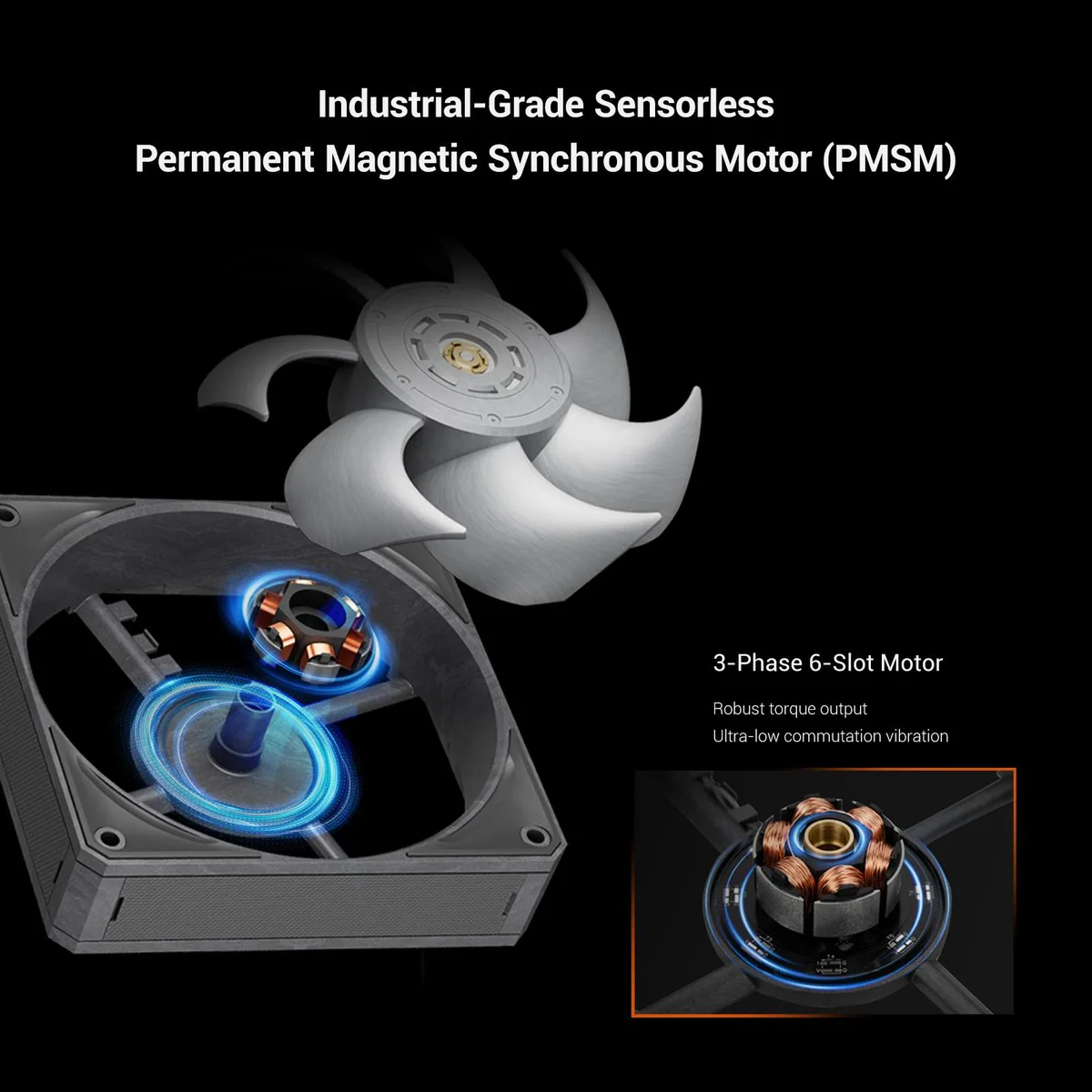

The PCCOOLER F9 R120 BK is a 120mm case fan built for heavy-duty cooling scenarios. Its 30mm thickened frame and liquid crystal polymer construction provide structural rigidity for demanding airflow requirements. A three-phase Allegro permanent magnetic synchronous motor drives the impeller. It targets builders who need concentrated airflow in restricted spaces.

Three-Stage Airflow and Pressure

Low mode delivers 63 CFM at 2.2 mmH₂O, medium reaches 82 CFM at 4.2 mmH₂O, and high pushes 114 CFM at 8.2 mmH₂O. The variable-section blade design focuses air into a tight column for radiators or dense fin stacks. At 3000 RPM the fan saturates its pressure curve, so louder operation yields diminishing returns. It suits single-fan radiator mounts but cannot replace dual-fan arrays for high-wattage loads.

Thermals, Noise and Power Draw

An NSK dual ball bearing supports the 500–3000 RPM range with a 42.7 dBA maximum noise rating at full speed. The 4-pin PWM connector allows the motherboard to scale speed automatically across the three preset bands. Anti-vibration pads decouple the 30mm frame from the chassis, reducing transmitted hum. The non-LED black finish keeps visual distraction to a minimum.

Highlights

  • 30 mm thick frame boosts airflow to 114 CFM at high speed
  • 3-phase 6-slot motor delivers 8.2 mmH₂O pressure for dense radiators
  • NSK dual ball bearing rated for long life in continuous operation
  • LCP liquid crystal polymer blades keep shape at 3000 RPM
  • Three PWM profiles from 500 RPM to 3000 RPM suit any load

Specifications

BrandPCCOOLER
SeriesF9
ModelF9 R120 BK
Part NumberF9R120-BKNC136-GL
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size120mm
Fan Thickness30mm
Bearing TypeDaul Ball Bearing
RPML: 500~1500 RPM ± 10%
M: 500~2150 RPM ± 10%
H: 500~3000 RPM ± 10%
Air FlowL: 63CFM Max
M: 82CFM Max
H: 114CFM Max
Air PressureL: 2.2 mmH₂O
M: 4.2 mmH₂O
H: 8.2 mmH₂O
Noise Level42.7 dBA Max
Power Connector4-pin PWM
ColorBlack
LEDNon-LED
Dimensions120×120×30mm

Questions about this item

Will the 30 mm thickness and 4-pin PWM connector fit my older case and motherboard?

The frame measures 120×120×30 mm and uses a standard 4-pin PWM header, so it mounts in any 120 mm location and is controlled by both modern and legacy PWM-capable boards.

How can I confirm the fan is running at the correct speed after installation?

In BIOS or monitoring software, check that RPM sits between 500 and 3000 RPM ±10 % depending on the L, M or H mode selected; the curve should scale smoothly with temperature.

Does the box include mounting screws and vibration pads, or must I buy them separately?

The package supplies one fan, four anti-vibration pads and four mounting screws — no extra hardware is required for a standard case installation.
