Gray fanless mini PC with mounting ears, aluminium finish

partaker

Partaker PA-3046 barebone mini PC 8GB 512GB

SKU CH-9SYF-9ZFR7

Fanless industrial mini PC with an 8th-gen Core i5, 8GB DDR4, 512GB SSD, four LAN and four COM ports, and 9–36V wide-voltage input

  • ColorGray
  • CPU TypeIntel Core i5 8th Gen

Group 8GB / 512GB SSD

  • Silent fanless cooling runs without moving parts
  • Quad-core Intel Core i5 handles industrial workloads
  • Four Intel I211-AT LAN ports connect separate networks
  • Wide 9–36 V DC input tolerates unstable power
  • TPM 2.0 encrypts data and secures boot

Industrial mini PC with quad-core i5

The Partaker PA-3046 is a fanless barebone system built around an Intel Core i5 8th-generation processor. It ships with 8 GB of DDR4 memory and a 512 GB SATA SSD installed. The aluminium chassis measures 280 x 143 x 40 mm and weighs 1.5 kg. Designed for continuous operation, it runs silently without moving parts.

Suits automation and edge deployments

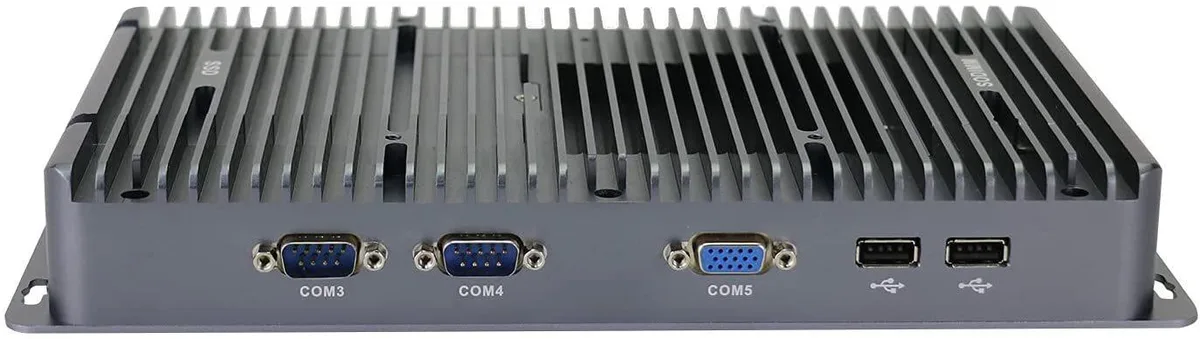

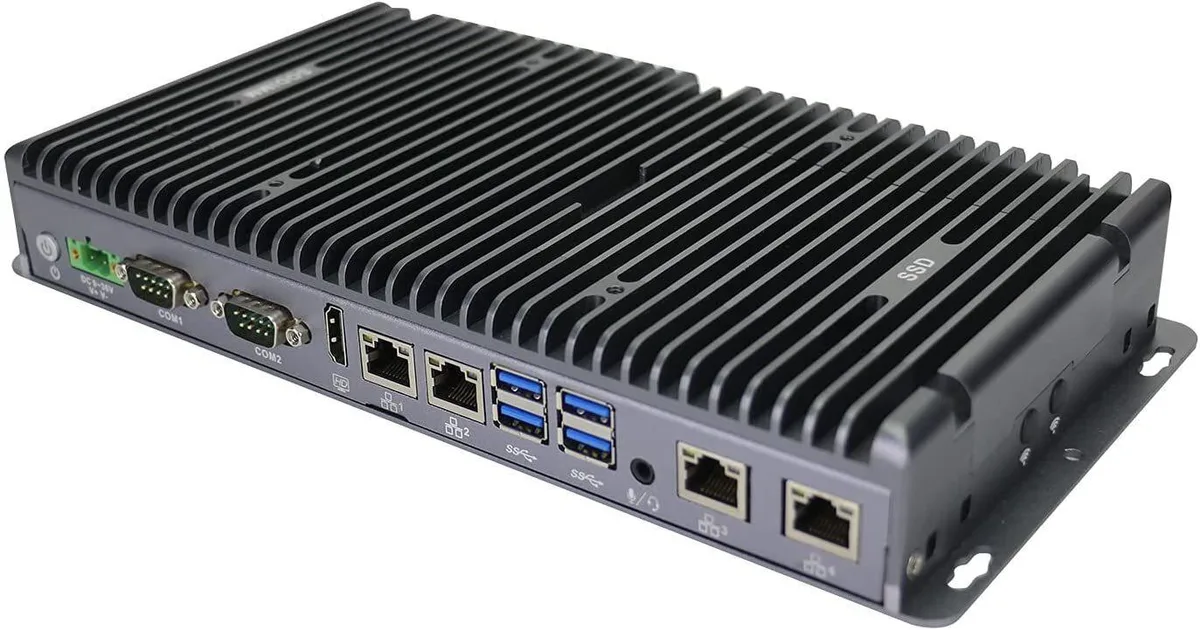

This unit fits DIN-rail, VESA, wall or desktop mounting and accepts 9 V to 36 V DC input with polarity protection. Four Intel I211-AT Gigabit LAN ports, four COM ports with RS232/422/485 options, and six USB ports provide extensive industrial connectivity. Buyers who require more than one M.2 SATA slot, a second 2.5-inch drive bay, or active cooling should evaluate alternative platforms.

Single M.2 2280 SATA storage slot

The board offers one M.2 2280 SATA interface and one 2.5-inch SATA bay that support RAID 0 or 1. Memory uses a single SO-DIMM slot limited to 32 GB of DDR4. TPM 2.0, watchdog timer, Wake-on-LAN and scheduled power-on are built in.

Highlights

  • Silent fanless cooling runs without moving parts
  • Quad-core Intel Core i5 handles industrial workloads
  • Four Intel I211-AT LAN ports connect separate networks
  • Wide 9–36 V DC input tolerates unstable power
  • TPM 2.0 encrypts data and secures boot

Specifications

ColorGray
CPU TypeIntel Core i5 8th Gen

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat does the fanless 15W TDP design produce when running continuously?

The passive aluminum chassis dissipates the 15W TDP without fans, keeping operation silent; the unit is rated for 0°C to 50°C with a commercial drive or -20°C to 60°C with an industrial SSD.

Which display cables and peripherals must I provide to start using the four LAN ports and dual video outputs?

You need an HDMI or VGA cable for the monitor, Ethernet cables for up to four Intel I211-AT gigabit ports, and a keyboard and mouse for the six USB ports; the 12V5A adapter and cord are included.

Can I keep my existing RS-232 serial devices and SATA drives when moving to this unit?

Yes, two of the four COM ports support RS232/422/485 for legacy serial gear, and the board offers one M.2 2280 SATA slot plus a 2.5-inch SATA bay with RAID 0/1 support.
