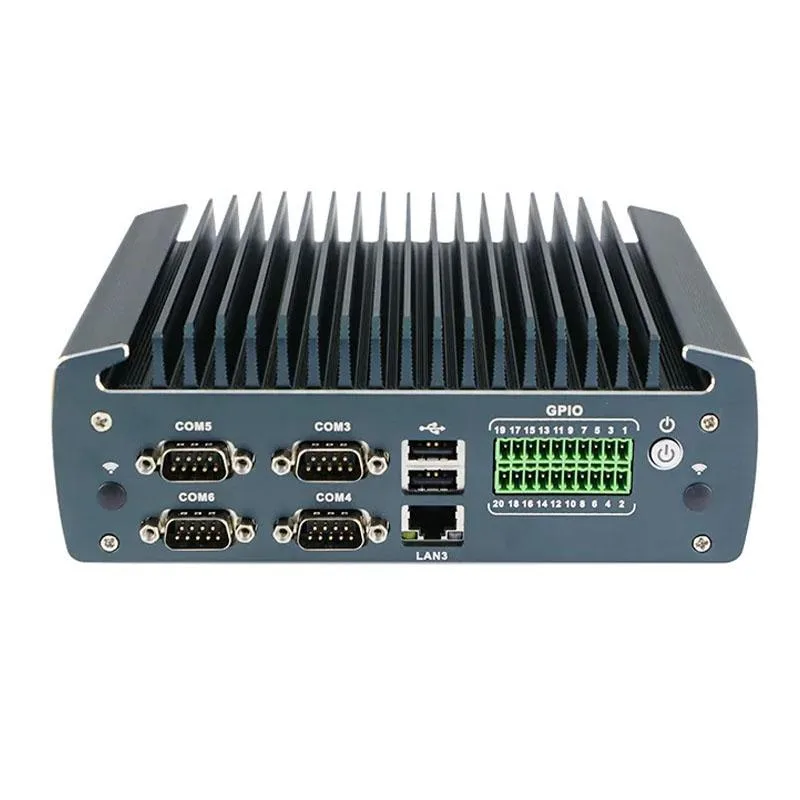

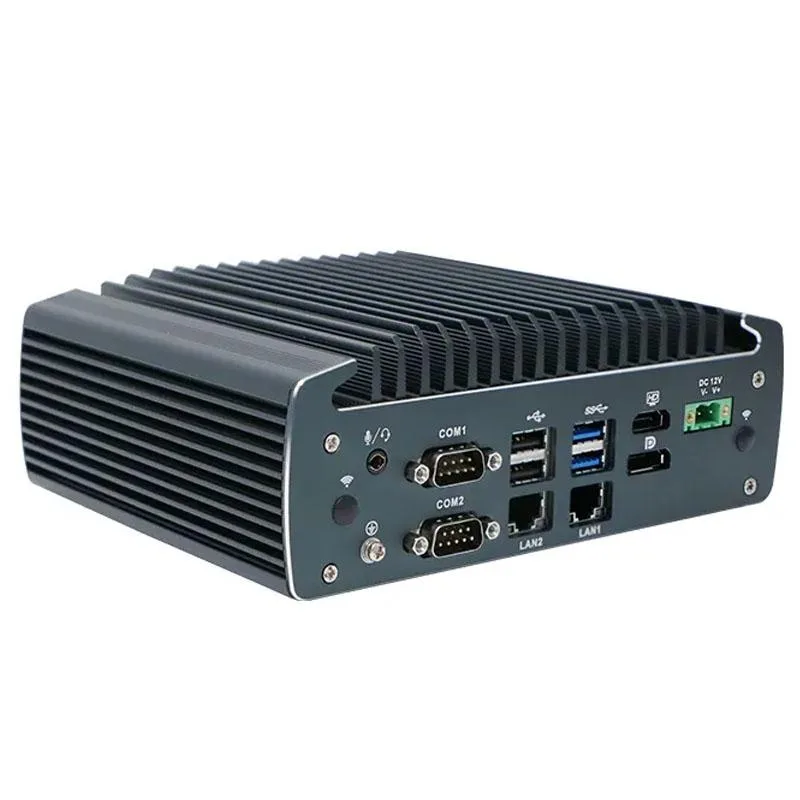

Compact dark grey aluminium mini PC barebone, fanless industrial design, 186 by 140 by 66 mm

partaker

partaker PA-1226 J6412 8GB 128GB barebone mini PC

SKU CH-VY1H-N0V54

Fanless industrial barebone with an Intel Celeron J6412, 8 GB DDR4, 128 GB SSD, three 2.5 GbE LAN ports, dual display and extensive serial, USB and GPIO connectivity

  • ColorGray
  • CPU TypeIntel Celeron

Group 8GB / 128GB SSD

  • Fanless 10 W quad-core CPU runs silently in industrial settings
  • Three Intel i226-V 2.5 GbE ports handle high-throughput networking
  • Dual DP and HDMI outputs drive two independent displays
  • Six COM ports plus GPIO phoenix terminal connect legacy and new equipment
  • Aluminium chassis with 9–36 V DC input withstands harsh environments

Compact fanless barebone

The Partaker PA-1226 is a fanless industrial barebone built around an Intel Celeron J6412 quad-core processor with a 10 W TDP. It arrives with 8 GB of DDR4 memory and a 128 GB SSD pre-installed, and supports Windows 11 or Linux Ubuntu out of the box. The aluminium chassis measures 186 x 140 x 66 mm and operates on 12 V DC input with an optional 9–36 V range.

Industrial deployments needing serial and multi-LAN

This unit suits integrators who require three Intel i226-V 2.5 GbE ports, six COM ports (four standard plus two with optional RS-232/485), and dual display via DP and HDMI. GPIO, watchdog timers, auto power-on and Wake-on-LAN enable unattended operation. Buyers who need more than 32 GB of memory, discrete graphics, or additional 2.5 GbE ports beyond the three provided should consider other platforms.

Memory ceiling and storage protocol

The single DDR4 SODIMM slot accepts up to 32 GB at 3200 MT/s, which caps total system memory regardless of workload. Storage expansion uses one M.2 2280 M-key slot and one 2.5-inch bay, both limited to the SATA protocol.

Highlights

  • Fanless 10 W quad-core CPU runs silently in industrial settings
  • Three Intel i226-V 2.5 GbE ports handle high-throughput networking
  • Dual DP and HDMI outputs drive two independent displays
  • Six COM ports plus GPIO phoenix terminal connect legacy and new equipment
  • Aluminium chassis with 9–36 V DC input withstands harsh environments

Specifications

ColorGray
CPU TypeIntel Celeron

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the 10 W TDP Celeron J6412 stay cool in the sealed aluminium case during continuous operation?

The 10 W processor is passively cooled by the anodised aluminium chassis, which acts as a heatsink; with no moving parts there is no fan noise, and the low TDP keeps surface temperatures modest even under sustained load.

Which storage drives and memory modules must I supply to complete the barebone?

You need a DDR4 3200 MT/s SODIMM up to 32 GB, plus either a SATA M.2 2280 drive or a 2.5″ SATA SSD or HDD; the M.2 slot and the 2.5″ bay both use the SATA protocol only.

Can I keep using my RS-232 or RS-485 serial devices with the six COM ports?

Yes — the unit provides six COM ports, and COM1 and COM2 can be configured for RS-232 or RS-485, so legacy serial equipment connects directly without adapters.
