Partaker H1 i5-1235U firewall appliance 16GB 256GB

SKU CH-H954-D0PBW

A 12th Gen Intel Core i5 firewall appliance with four 2.5GbE ports, dual 10GbE SFP+ ports, 16GB DDR5 and a 256GB NVMe SSD in a compact aluminium chassis

  • TypeWired
  • LAN Ports4 x RJ-45

H1 Fan I5 1235U 16GB RAM / 256GB SSD

  • 12th Gen i5-1235U with 10 cores and 12 threads up to 4.4 GHz for high throughput
  • Four 2.5GbE RJ-45 ports plus dual 10GbE SFP+ fiber ports for dense connectivity
  • Triple display via HD, DP and Type-C up to 4096×2160@60Hz for monitoring flexibility
  • Three M.2 slots for NVMe, Wi-Fi and 4G/5G plus external SIM slot for expansion
  • Aluminium chassis 170×140×58 mm with active cooling, TPM 2.0, auto power-on, watchdog for industrial reliability

12th Gen i5 firewall appliance

The Partaker H1 is a compact wired network security device built around an Intel Core i5 1235U processor with 10 cores and 12 threads reaching 4.4 GHz turbo. It ships with 16 GB of DDR5 memory and a 256 GB NVMe SSD installed. The fan cooled aluminium chassis measures 170 by 140 by 58 mm and operates on 12 V DC power.

Quad 2.5G LAN plus dual 10G SFP+

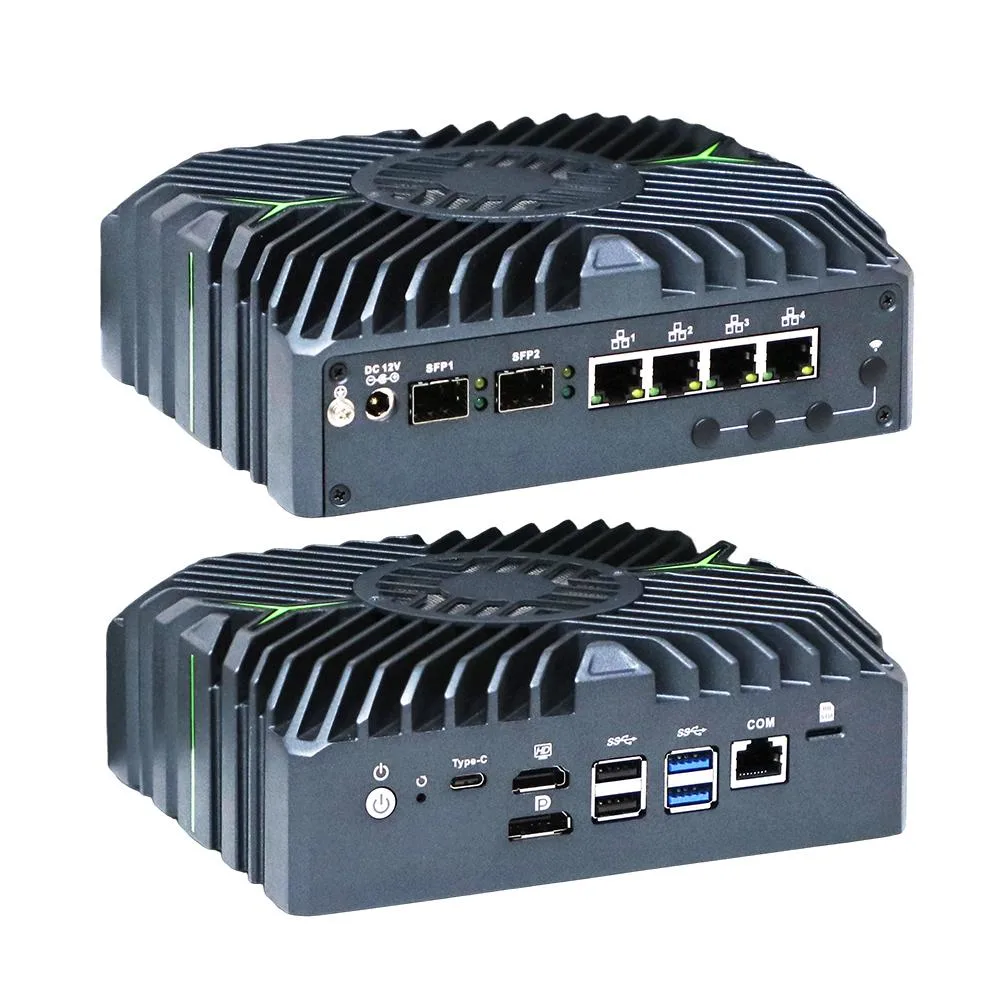

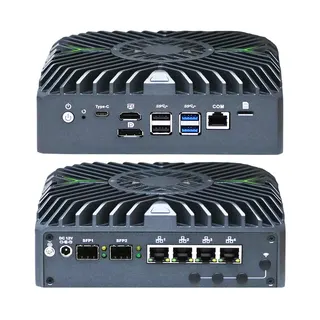

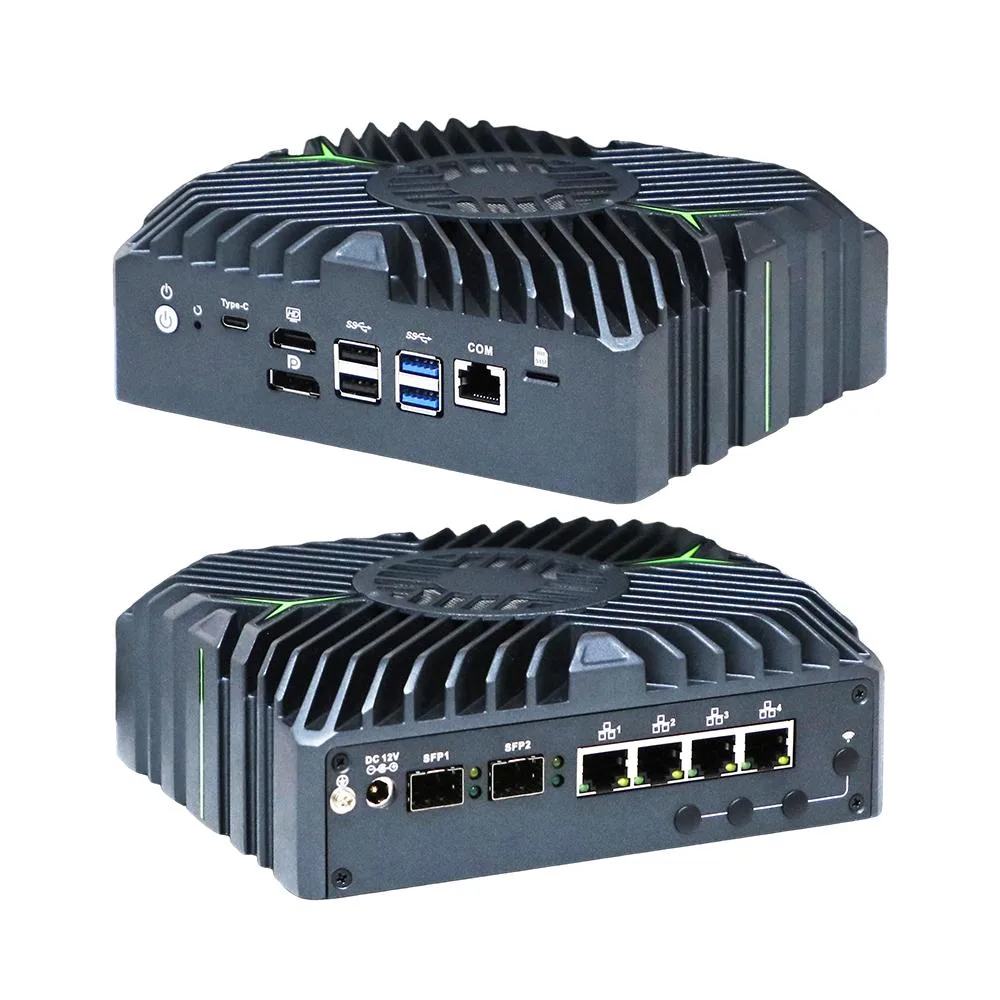

Four Intel i226 2.5 GbE RJ45 ports and two Intel 82599 10 GbE SFP+ cages provide high density fiber and copper connectivity for routing or inspection workloads. Front panel adds a USB 3.2 Type C with video and power delivery, DisplayPort, HD, two USB 3.2, two USB 2.0, an RJ45 console port and a nano SIM slot. Rear I/O carries the DC jack, the four 2.5G ports and both SFP+ cages.

Three M.2 slots for storage and radio expansion

One M.2 2280 M key slot wired for PCIe 4.0 x4 NVMe, one 2230 E key slot for Wi Fi or CNVi modules and one 2242 or 3052 B key slot with USB 3.0 for 4G or 5G modems sit inside alongside a 2.5 inch drive bay. Memory uses dual channel DDR5 SODIMMs expandable to 64 GB. Buyers who need more than three M.2 devices or a second 10G copper port will need a different platform.

Highlights

  • 12th Gen i5-1235U with 10 cores and 12 threads up to 4.4 GHz for high throughput
  • Four 2.5GbE RJ-45 ports plus dual 10GbE SFP+ fiber ports for dense connectivity
  • Triple display via HD, DP and Type-C up to 4096×2160@60Hz for monitoring flexibility
  • Three M.2 slots for NVMe, Wi-Fi and 4G/5G plus external SIM slot for expansion
  • Aluminium chassis 170×140×58 mm with active cooling, TPM 2.0, auto power-on, watchdog for industrial reliability

Specifications

TypeWired
LAN Ports4 x RJ-45

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How fast are the 2.5GbE LAN ports on the i226 controller in practice?

The four Intel i226 2.5GbE ports each cap at 2.5 Gbps; LAN1 uses the i226-LM variant with vPro support.

What are the exact chassis dimensions and mounting requirements for the H1?

The aluminum chassis measures 170×140×58 mm and uses active fan cooling; no VESA or rack brackets are mentioned.

How do I install an NVMe drive in the M.2 2280 slot and what step is often missed?

Insert the PCIe 4.0 x4 NVMe drive into the M-key 2280 slot at an angle, secure it with the screw, then enable the slot in the AMI UEFI BIOS before the OS will detect it.
