Silver 15.6 inch all-in-one industrial panel PC with resistive touchscreen

partaker

partaker A7 15.6" Industrial Panel PC J1900 4GB DDR3 64GB SSD Automation Signaling

SKU CH-ZW6V-8RCZQ

15.6-inch fanless panel PC with IP65 front protection, Intel Celeron J1900, 4 GB DDR3L, 64 GB SSD, resistive touchscreen and multiple COM, USB and LAN ports for industrial automation

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeCeleron
  • CPU Name2.00GHz
  • GPU/VGA TypeIntel HD Graphics

GPU Intel HD Graphics

Memory 4GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 64GB

  • 64GB
  • 256GB
  • 512GB

HDD None

  • None
  • 1TB

Struck-through versions exist but are not stocked here.

  • IP65 front panel resists dust and water jets in harsh environments
  • Fanless aluminium chassis runs silently from 0 to 50 °C with SSD
  • Five-wire resistive touch rated for 35 million touches
  • Intel Celeron J1900 up to 2.42 GHz with 4 GB DDR3L and 64 GB mSATA
  • VGA, LAN, three COM, USB 3.0 plus three USB 2.0 for legacy and modern I/O

Industrial panel PC with 15.6" resistive touch

The Partaker A7 is a fanless all-in-one system built around an Intel Celeron J1900 processor running up to 2.42 GHz. It ships with Windows 10 Pro on a 64 GB mSATA SSD and 4 GB of DDR3L memory. The IP65-rated front panel and 0–50 °C operating range target factory-floor HMIs, SCADA nodes and ruggedised kiosk deployments.

4 GB DDR3L and 64 GB SSD with internal expansion

The single SODIMM slot accepts DDR3L-1333 modules up to 8 GB total, giving headroom for heavier HMI runtimes. A 2.5" SATA bay and an mSATA slot allow storage upgrades without external enclosures. The J1900’s four cores handle typical visualisation and data-logging loads; compute-intensive analytics or multi-camera vision will exceed the available cycles.

Aluminium fanless chassis

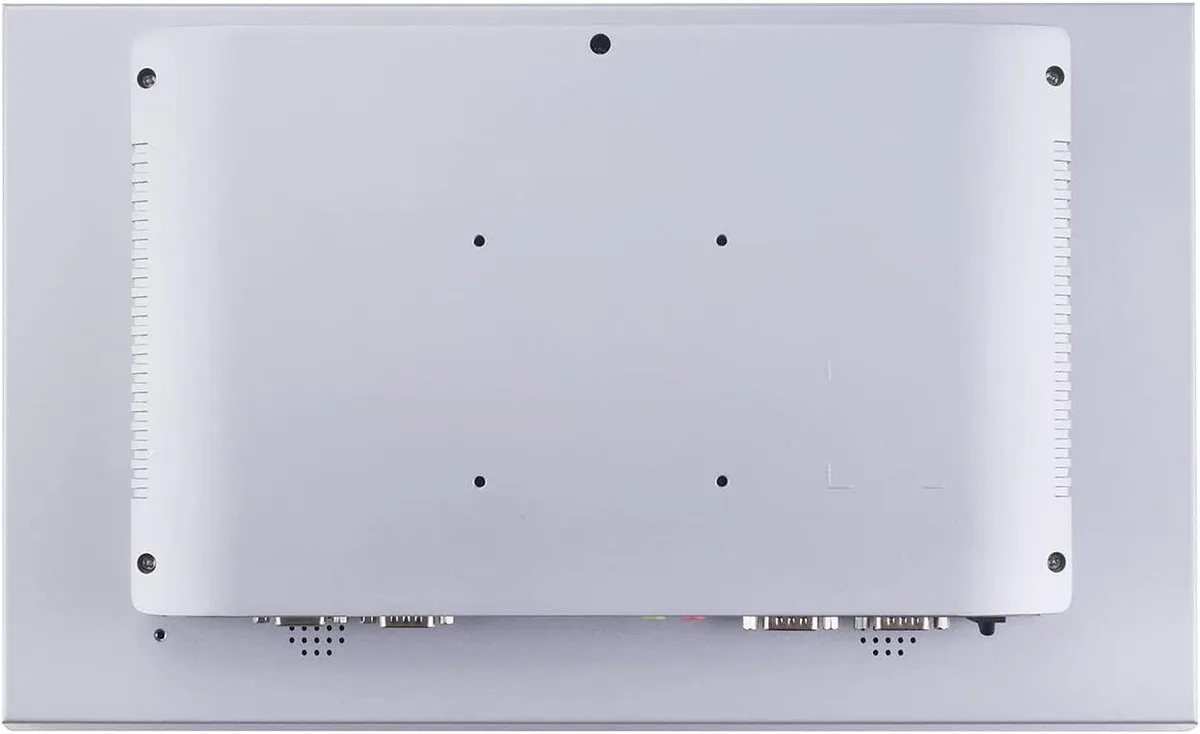

The sealed aluminium housing dissipates heat silently, suiting dusty or wash-down environments. Rear I/O covers 12 V DC, VGA, Gigabit LAN, three COM ports, three USB 2.0, one USB 3.0 and audio in/out. A full-size Mini PCIe slot with SIM holder supports 4G or Wi-Fi cards. VESA 75 mounting and the supplied embedded buckle kits enable panel, wall, desktop or cantilever installation.

Highlights

  • IP65 front panel resists dust and water jets in harsh environments
  • Fanless aluminium chassis runs silently from 0 to 50 °C with SSD
  • Five-wire resistive touch rated for 35 million touches
  • Intel Celeron J1900 up to 2.42 GHz with 4 GB DDR3L and 64 GB mSATA
  • VGA, LAN, three COM, USB 3.0 plus three USB 2.0 for legacy and modern I/O

Specifications

ModelA7-PA-156TPC-CE5A(J19)-4G64G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeCeleron
CPU Name2.00GHz
GPU/VGA TypeIntel HD Graphics
Memory Capacity4GB DDR3
SSD64GB
HDDNo
Screen Size15.6"
TouchscreenYes

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 12 V DC input on this panel PC work with the 12 V supply I already use for my older PLC cabinet?

Yes — the unit ships with a 12 V DC power supply that accepts 100-240 V AC input, so it can replace or share the same 12 V rail used by legacy PLC gear.

How can I verify the 5-wire resistive touchscreen and Intel HD Graphics are functioning correctly after installation?

Power on, confirm Windows 10 Pro loads, then open Device Manager to see the HID-compliant touch screen and Intel HD Graphics entries without error codes; a quick calibration in Control Panel proves touch response.

Which mounting hardware and cables come in the box, and what must I source separately for a VESA 75 arm?

The package includes the panel PC, 12 V power supply, AC power cord, embedded buckle kits and warranty card; VESA 75 arm brackets and any serial or USB cables for your legacy devices are not included.
