Meterk RZ020-5A-S Motion Sensor Light Switch 5.0A 120VAC
Motion sensor wall switch operates without neutral or ground wires, offering occupancy, vacancy and manual modes with adjustable time delay and light sensitivity
- No neutral or ground wire required for simple two-wire installation

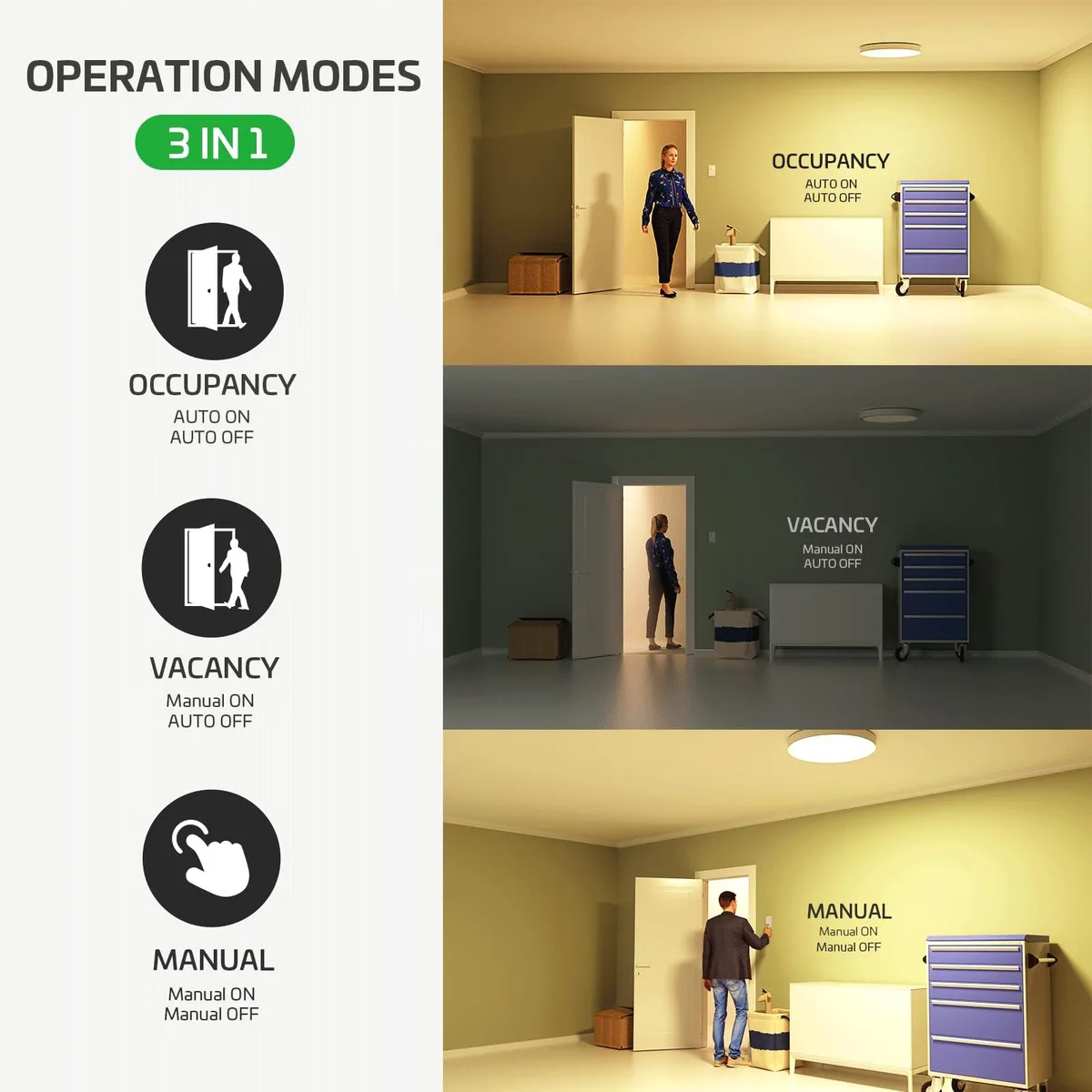

- Three operating modes: occupancy, vacancy and manual override
- Adjustable time delay from 15 seconds to 30 minutes
- Adjustable ambient light sensor with 15, 25 or 35 lux settings
- Rated 5.0 A at 120 VAC for LED, CFL and motor loads
Motion Sensor Switch — No Neutral Required
The Meterk RZ020-5A-S is a single-pole wall switch that operates without a neutral or ground wire, making it suitable for older two-wire installations. It controls resistive, ballast, tungsten and LED loads up to 5.0 A at 120 VAC and includes a wall plate. A minimum 3 W load prevents flickering on low-power LEDs.
120 VAC 5.0 A Rating — Load Limits
The switch handles standard ballast, electronic ballast, tungsten and LED lighting at 5.0 A and motors up to 1/6 HP on a 120 VAC, 50/60 Hz supply. It is FCC listed for indoor single-pole use only and is not compatible with three-way circuits. Loads below 3 W may flicker, so verify lamp wattage before installing.
Button Adjustments — No Tools Needed
Settings for time delay, ambient light threshold and sensitivity are changed by pressing buttons on the face — no screwdriver or wall-plate removal required. Modes include occupancy, vacancy and manual on/off override, with time delays from 15 seconds to 30 minutes and light thresholds of 15, 25 or 35 lux. The large button toggles the load temporarily; the small button locks manual mode.
Highlights
- No neutral or ground wire required for simple two-wire installation
- Three operating modes: occupancy, vacancy and manual override
- Adjustable time delay from 15 seconds to 30 minutes
- Adjustable ambient light sensor with 15, 25 or 35 lux settings
- Rated 5.0 A at 120 VAC for LED, CFL and motor loads
Specifications
| Brand | Meterk |
|---|---|
| Model | Hand Rivet Nut Setter Kit |
| Part Number | RZ020-5A-S |
Questions about this item
Which of the listed versions or capacities should I choose?
This is a single model rated at 5.0 A for 120 VAC circuits. It handles resistive, standard ballast, electronic ballast, tungsten and LED loads up to that current, plus a 1/6 HP motor.
What does the 5.0 A rating mean once the switch is installed?
The 5.0 A rating is the maximum continuous load the switch can control on a 120 VAC single-pole circuit. It covers LED, CFL, tungsten and ballast lighting up to that current and a 1/6 HP motor.
What interface or standard does it use, and what does that cap in practice?
It connects with standard 120 VAC single-pole wiring (hot and load only, no neutral or ground required) and is FCC listed for 50/60 Hz operation.
