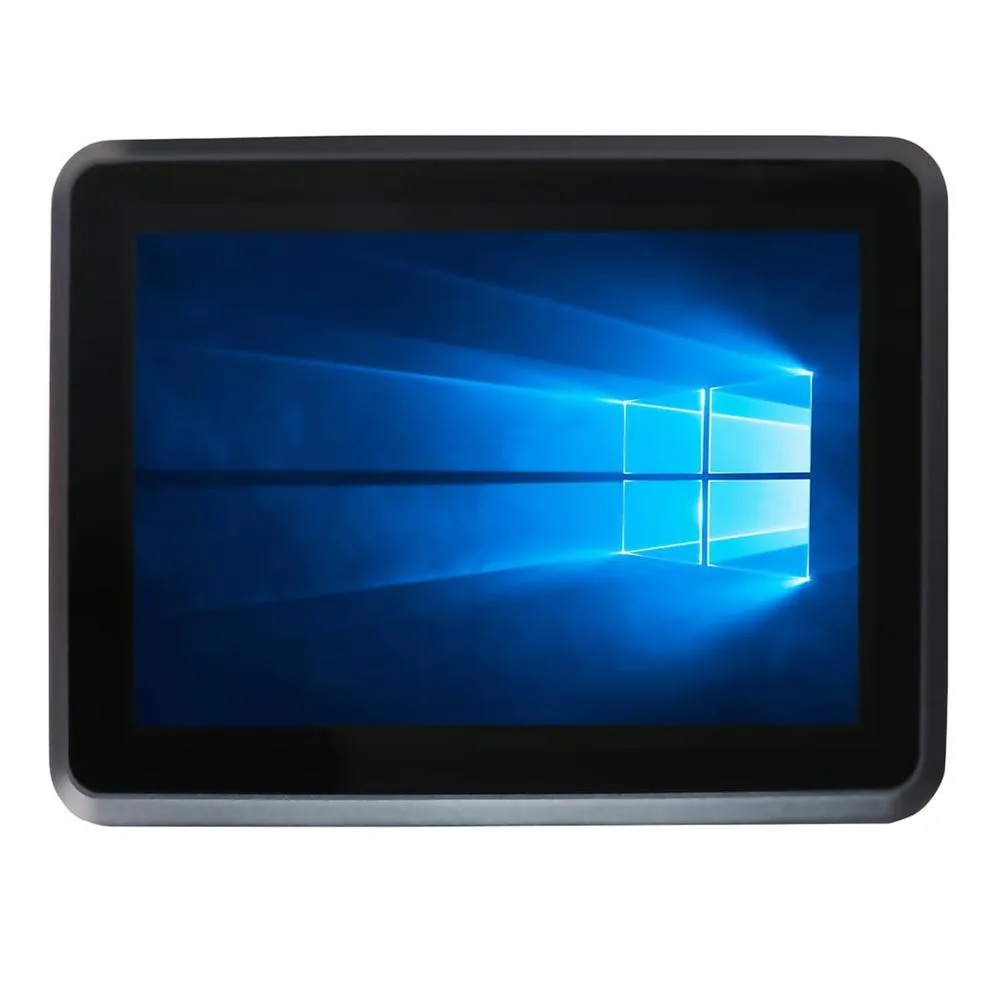

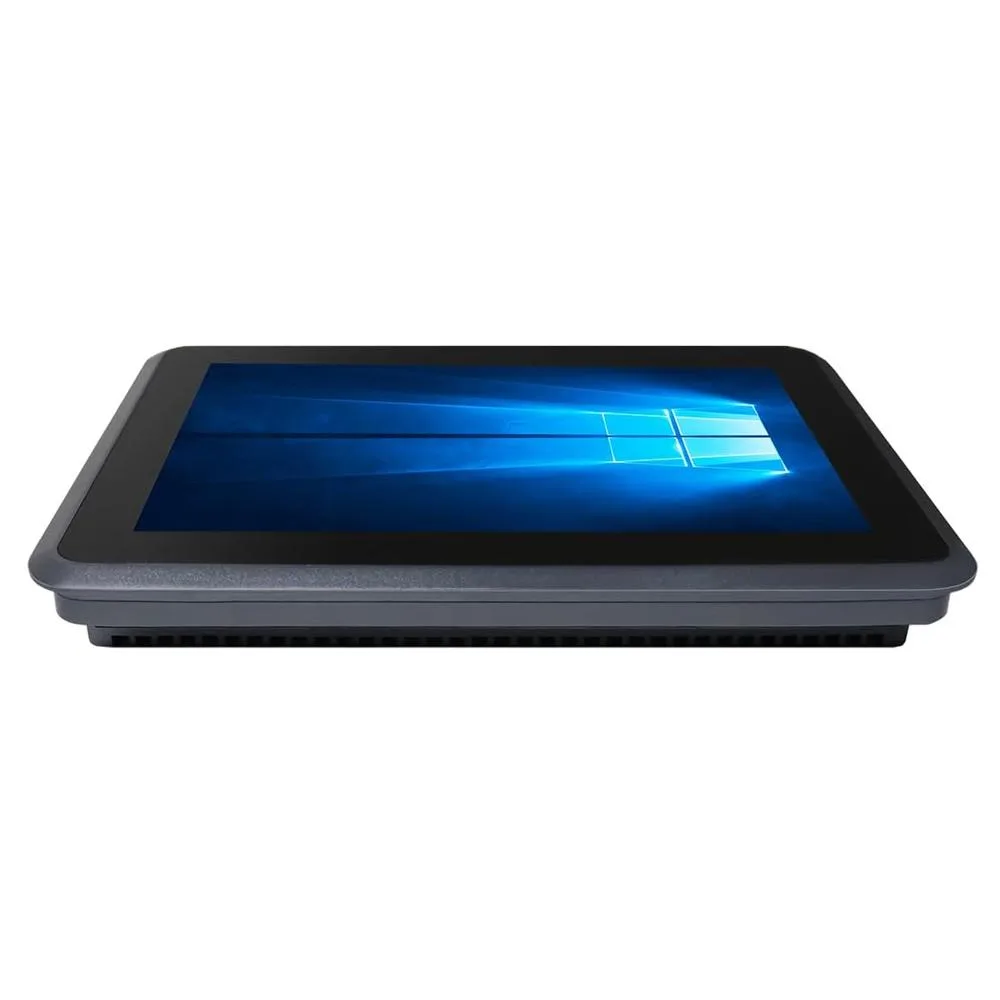

10.1 inch industrial touch panel PC with flat aluminium front and embedded mounting cut-out

partaker

Partaker A18 10.1" i5-10310U 16GB 256GB controller panel

SKU CH-VRYP-KAFF3

10.1-inch IP65 industrial panel PC with Intel Core i5-10310U, 16GB DDR4, 256GB SATA SSD, Windows 11 Pro, dual LAN and fanless cooling

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 10th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity16GB DDR4
  • Maximum Memory Supported32 GB

CPU Type Intel Core i5 10th Gen

Memory Capacity 16GB DDR4

SSD 256GB

  • IP65 front protection resists dust and water jets
  • Intel Core i5-10310U delivers up to 4.40 GHz for 24/7 workloads
  • Fanless aluminium alloy cooling runs silently without moving parts
  • 16 GB DDR4 and 256 GB SATA SSD provide responsive industrial storage
  • 9 V to 36 V wide-range Phoenix input suits unstable power environments

Industrial Panel PC for Embedded Control

The Partaker A18 is a 10.1-inch all-in-one panel PC with an IP65-rated front panel and multi-touch capacitive screen. It runs on an Intel Core i5-10310U processor with 16GB DDR4 memory and a 256GB SATA SSD. Windows 11 Pro comes pre-installed for immediate deployment in industrial environments.

Suits Machine Builders Needing Sealed Fronts

This unit fits embedded installations requiring dust and water-jet protection at the front, wide 9-36V DC input, and dual Intel LAN ports for redundant networking. The fanless aluminium chassis operates silently from 0 to 50 °C commercial or -20 to 60 °C industrial ranges. Buyers needing more than 32GB RAM, a larger display diagonal, or a different storage interface should consider other form factors.

10.1-Inch IP65 Front Panel Decides Fit

The 10.1-inch 1280x800 TFT LED panel with IP65 protection determines whether this unit fits your cut-out and sealing requirements. The embedded cut-out measures 262x180 mm and the front bezel sits flat for gasket mounting. Verify these dimensions and the protection rating against your enclosure design before ordering.

Highlights

  • IP65 front protection resists dust and water jets
  • Intel Core i5-10310U delivers up to 4.40 GHz for 24/7 workloads
  • Fanless aluminium alloy cooling runs silently without moving parts
  • 16 GB DDR4 and 256 GB SATA SSD provide responsive industrial storage
  • 9 V to 36 V wide-range Phoenix input suits unstable power environments

Specifications

ModelA18-New-I5 10310U-16G256G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 10th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity16GB DDR4
Maximum Memory Supported32 GB
SSD256GB
HDDNo
Screen Size10.1"
TouchscreenYes

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the 9-36 V Phoenix connector on the A18 require a separate power supply, or can I wire it directly to my existing DC bus?

The panel accepts 9-36 V DC through the 2-pin Phoenix connector, so you can feed it from any compatible DC bus or use the included 12 V 5 A AC adapter.

Will the two Intel 1000M LAN ports on the A18 work with my older 100 Mbps switches without configuration changes?

Yes, the dual Intel Gigabit Ethernet ports auto-negotiate down to 100 Mbps and will link to legacy switches immediately.

After mounting the A18 in an enclosure, how can I confirm the IP65 front seal is intact and the touchscreen registers correctly?

Inspect the gasket visually, run the Windows 11 calibration tool to verify multi-touch response across the 1280 x 800 screen, and check that the front stays dry during a low-pressure water test.
