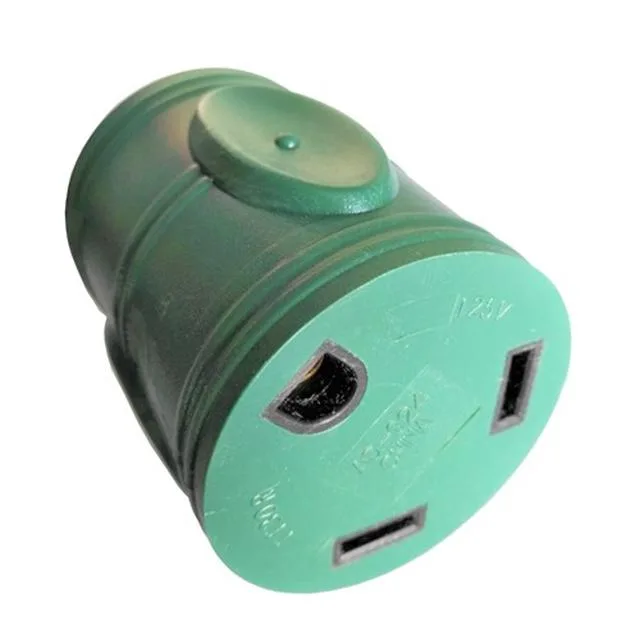

Green PVC adapter with locking L5-20P male plug and TT-30R female receptacle

Parkworld

Parkworld 691777 L5-20P to TT-30R straight blade plug

SKU CH-ZH79-EG0MA

Connects a 20 A locking generator plug to a 30 A RV receptacle at 125 V

  • Voltage (Volts)125
  • Maximum Amperage (Amps)20
  • NEMA ConfigurationL5-20P to TT-30R
  • ColorGreen
  • MaterialPVC
  • TypePlug Adapters
  • Connects 20 A generator to 30 A RV inlet
  • Handles 2500 W at 125 V for essential RV loads
  • Locking L5-20P plug prevents accidental disconnection
  • One-piece PVC moulding with 100 % copper conductors
  • Tested to UL and cUL standards for safety

Generator-to-RV power adaptor

The Parkworld 691777 adapter connects a generator’s locking L5-20P outlet to a recreational vehicle’s standard TT-30R inlet. It is built for owners who need to run 125-volt RV loads from a 20-amp twist-lock source.

Thermals, noise and power draw

The single-piece moulded PVC body encloses 100-per-cent copper conductors rated for 20 amps continuous at 125 volts, delivering up to 2500 watts. Passive construction means no fan noise and no additional power consumption beyond the connected load.

Build quality and daily use

Green PVC housing resists weather and abrasion while the locking male plug prevents accidental disconnection during operation. The straight-blade female receptacle accepts any standard 30-amp RV cord set, so the adapter simply plugs in between generator and coach without tools.

Highlights

  • Connects 20 A generator to 30 A RV inlet
  • Handles 2500 W at 125 V for essential RV loads
  • Locking L5-20P plug prevents accidental disconnection
  • One-piece PVC moulding with 100 % copper conductors
  • Tested to UL and cUL standards for safety

Specifications

BrandParkworld
ModelNEMA L5-20P to TT-30R
Voltage (Volts)125
Maximum Amperage (Amps)20
NEMA ConfigurationL5-20P to TT-30R
ColorGreen
MaterialPVC
TypePlug Adapters
Amps20
Number of Poles3

Questions about this item

How do I connect the L5-20P male plug to my generator outlet and what is the common mistake?

Align the three blades with the generator's L5-20R receptacle, push straight in, then twist clockwise until it locks; the step people miss is the twist, leaving the plug loose and prone to arcing.

What maintenance will this PVC moulded adapter need over time?

Inspect the green PVC housing and copper conductors before each use for cracks, discolouration or corrosion on the blades; replace the unit if any damage appears, as the one-piece moulded design cannot be repaired.

What limit will I hit first when running this adapter continuously at high load?

The 20 A rating of the L5-20P plug caps continuous draw at 2500 W (125 V × 20 A); the TT-30R side accepts 30 A, so the plug side is the bottleneck.
