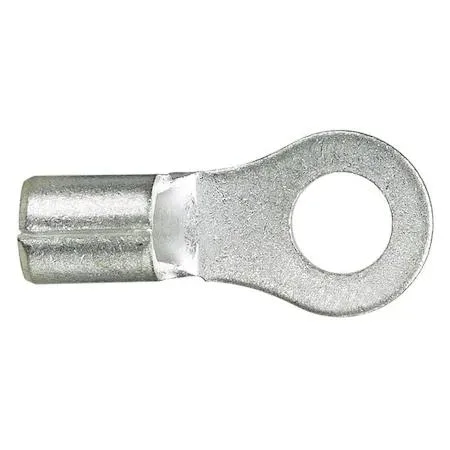

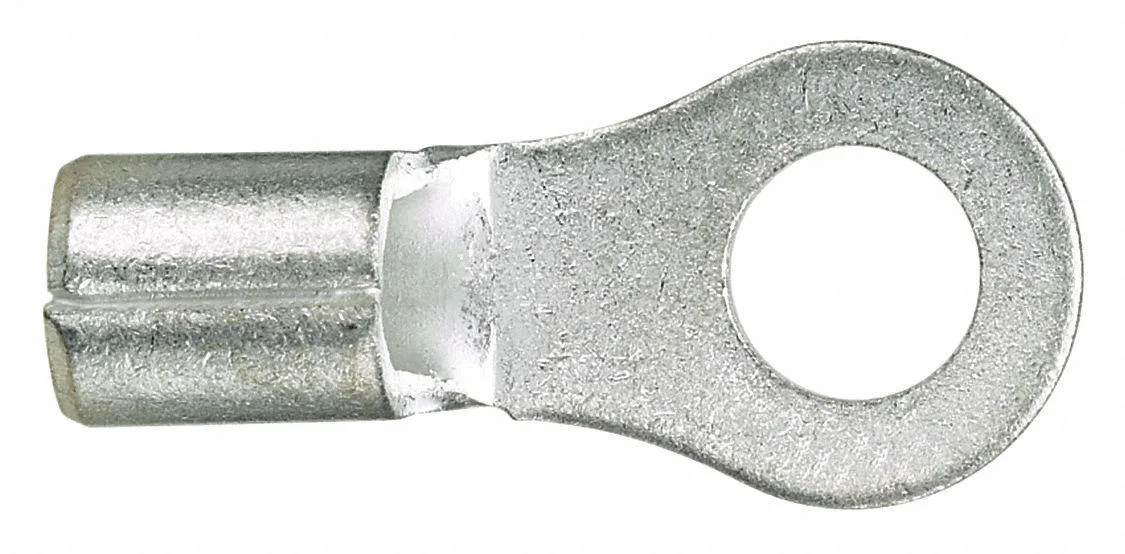

Bare copper ring terminals, #6 stud, pack of 100

Panduit

Panduit P14-6R-C 16-14 AWG Ring Terminal #6 Stud PK100

SKU CH-6JBA-04ADJ

Connects 16-14 AWG wire to a #6 stud with a brazed copper crimp terminal rated for 2,000 V and 302 °F

  • Handles 16-14 AWG wire for secure connections
  • Brazed seam prevents splitting under vibration
  • Rated 302 °F for high-temperature environments
  • CSA C 22.2 No. 65 and UL 486A-486B listed
  • Pack of 100 terminals for volume work

Ring Terminal 16-14 AWG #6 Stud

These non-insulated ring terminals accept 16 to 14 AWG wire and fit a number six stud. The pack contains one hundred pieces for volume wiring jobs. They are suited to panel builders and maintenance crews who need a bare copper crimp connection.

302 °F Rating and 2 000 V Maximum

The copper terminal with brazed seam is rated to three hundred two degrees Fahrenheit and two thousand volts. No insulation means no dielectric layer to trap heat during normal current flow. The bare metal design keeps thermal resistance low in typical panel environments.

Brazed Seam Copper and UL Listed

A brazed seam prevents the barrel from splitting under crimp pressure. The terminal meets CSA C twenty-two point two number sixty-five and UL four-eight-six standards. The tongue width and overall length are both zero point six two inches for consistent stud fit.

Highlights

  • Handles 16-14 AWG wire for secure connections
  • Brazed seam prevents splitting under vibration
  • Rated 302 °F for high-temperature environments
  • CSA C 22.2 No. 65 and UL 486A-486B listed
  • Pack of 100 terminals for volume work

Specifications

BrandPANDUIT

Questions about this item

How do I crimp the Panduit P14-6R-C ring terminal onto 16-14 AWG wire?

Strip the wire to expose the conductor, insert it fully into the barrel, and compress with a crimp tool rated for 16-14 AWG non-insulated terminals; the brazed seam prevents the barrel from splitting during compression.

Will the copper terminal need replacement due to corrosion or heat fatigue?

The bare copper terminal resists corrosion in dry environments; sustained temperatures above 302 Degrees F accelerate oxidation and may require replacement, but normal automotive or industrial use stays well below that limit.

What is the first electrical or mechanical limit reached under continuous load?

The 2,000 V maximum voltage rating is the primary electrical ceiling; exceeding it risks insulation breakdown in the surrounding wiring, while the brazed seam and copper construction handle mechanical stress within the 16-14 AWG range.
