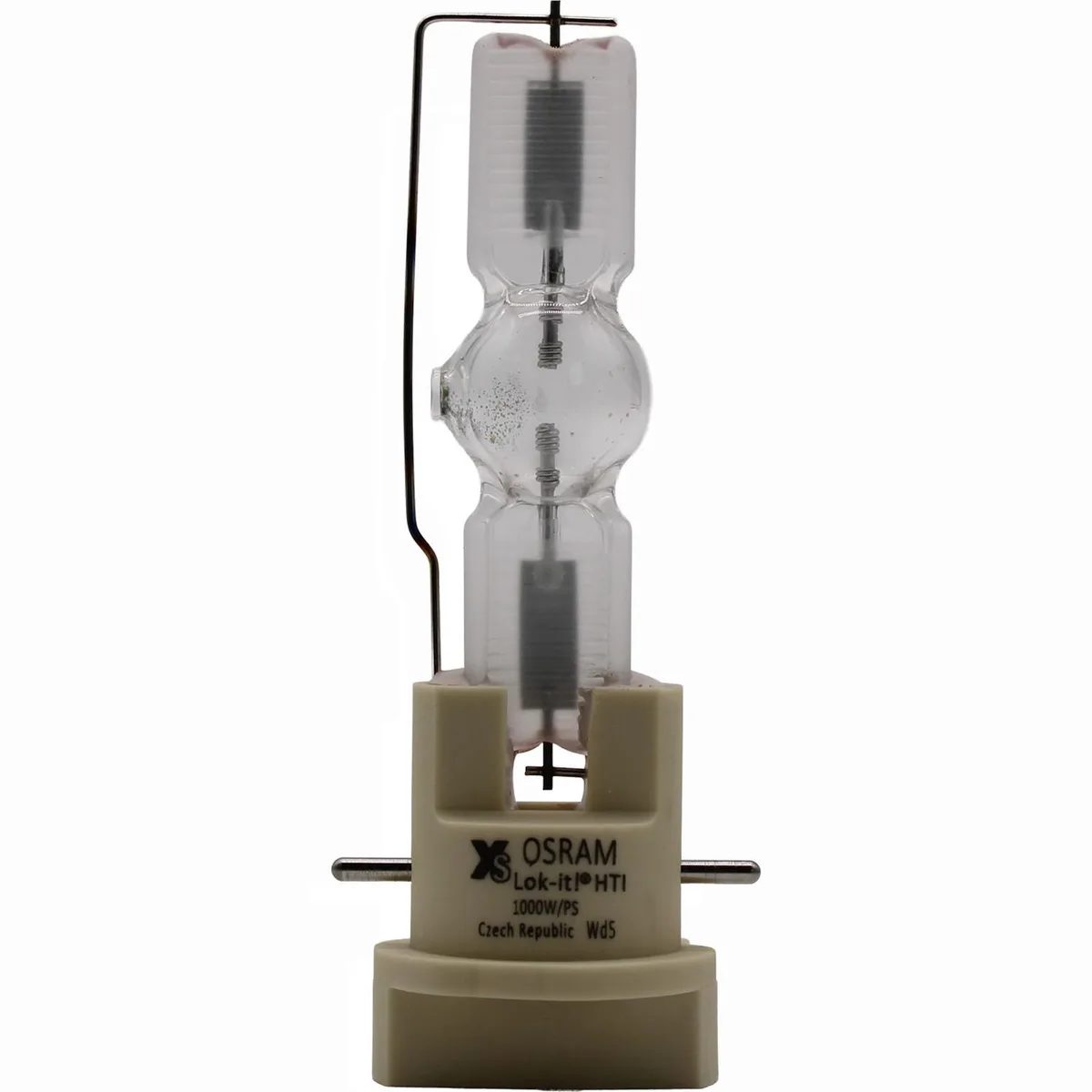

OSRAM LOK-IT 1000/PS DLP replacement lamp with PGJX36 base

OSRAM

OSRAM LOK-IT 1000/PS dlp replacement lamp for Lightsky F1000 BEAM

SKU CH-QQ8Z-ZN3QZ

1000 W DLP replacement lamp with PGJX36 base, 82000 lm output and 900 h rated life for Lightsky F1000 BEAM projectors

  • TypeProject Lamp
  • Weight0.0990
  • Delivers natural skin tones and vivid colours with Lok-it PS Brilliant technology
  • Bright 82000 lm nominal output lights large venues effectively
  • Universal operating position allows flexible fixture mounting
  • Dimmable 1000 W lamp enables precise lighting control
  • Rated 900 h life to 50 % failures supports extended show runs

OSRAM LOK-IT 1000/PS DLP Lamp

The OSRAM LOK-IT 1000/PS is a DLP replacement lamp built for the Lightsky F1000 BEAM projector. It uses a PGJX36 base and operates in any universal position. The lamp draws 1000 W at a nominal current of 11.4 A and requires a minimum ignition supply voltage of 198 V. It is designed for entertainment applications where reliable high-output projection is essential.

Upgrade from lower-output lamps

This lamp replaces earlier MSR Gold MiniFastFit modules that delivered less luminous flux or shorter life. The jump is worth it when a venue needs a nominal output of 82000 lm and a rated life to 50 percent failures of 900 hours. Dimmable operation allows intensity control without changing lamps. The MiniFastFit system supports fast lamp changes during touring or stage schedules.

Capacity and headroom for stage use

The lamp produces a minimum luminous flux of 74000 lm at a correlated color temperature of 6000 K and a color rendering index of 80. Chromaticity coordinates are 0.321 x and 0.330 y for consistent white balance. It runs within a maximum bulb temperature of 950 °C and a maximum pinch temperature of 500 °C. Luminous efficacy is rated at 82 lm/W. It is not suited for installations requiring higher wattage, longer life ratings, or different base configurations.

Highlights

  • Delivers natural skin tones and vivid colours with Lok-it PS Brilliant technology
  • Bright 82000 lm nominal output lights large venues effectively
  • Universal operating position allows flexible fixture mounting
  • Dimmable 1000 W lamp enables precise lighting control
  • Rated 900 h life to 50 % failures supports extended show runs

Specifications

BrandJaspertronics
ModelLightsky F1000 BEAM-LAMP
Part NumberLightsky F1000 BEAM-LAMP
TypeProject Lamp
Weight0.0990

Questions about this item

What cap-base does the OSRAM LOK-IT 1000/PS lamp use for the Lightsky F1000 BEAM?

The lamp uses a PGJX36 cap-base, which is the MiniFastFit interface required by the Lightsky F1000 BEAM luminaire.

What is the correct orientation when installing this MSR Gold 1000 MiniFastFit lamp?

The operating position is universal, so the lamp can be installed in any orientation; the step often missed is ensuring the PGJX36 connector seats fully before locking the lamp module.

How often should I expect to replace this 1000 W projector lamp?

Rated life to 50 % failures is 900 hours; plan replacement around that interval to maintain the nominal 82 000 lm output and 6000 K colour temperature.
