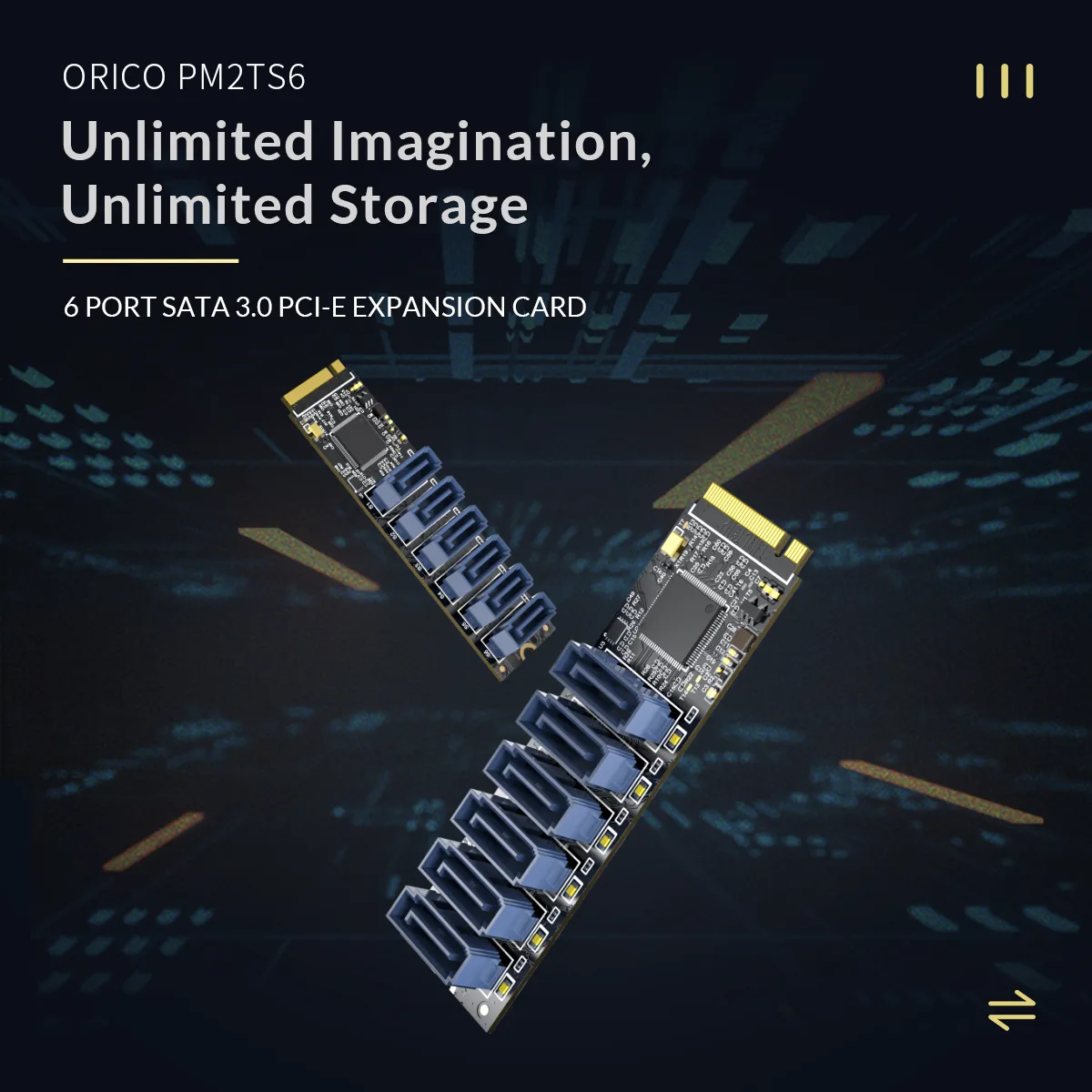

Green circuit board with M.2 edge connector and six SATA ports

Orico

Orico PM2TS6-BP M.2 PCIe to 6 SATA 6Gbps Adapter Card

SKU CH-295N-2GB86

Adds six SATA 3.0 ports via an M.2 M-key slot, each running at 6Gbps with 16Gbps aggregate bandwidth and soft RAID support

  • TypePCI Express to M.2 Card
  • StandardSATA 3.0
  • Data Transfer Rate6Gbps
  • Dual-channel PCIe Gen3 M.2 interface delivers 32Gbps total bandwidth
  • Six SATA 3.0 ports each run at 6Gbps for 36Gbps aggregate throughput
  • ASM1166 chip provides stable high-speed transmission across all connections
  • Built-in LED shows real-time drive activity status at a glance
  • Soft RAID support via system tools enables flexible storage configurations

M.2 PCIe to Six SATA Adapter

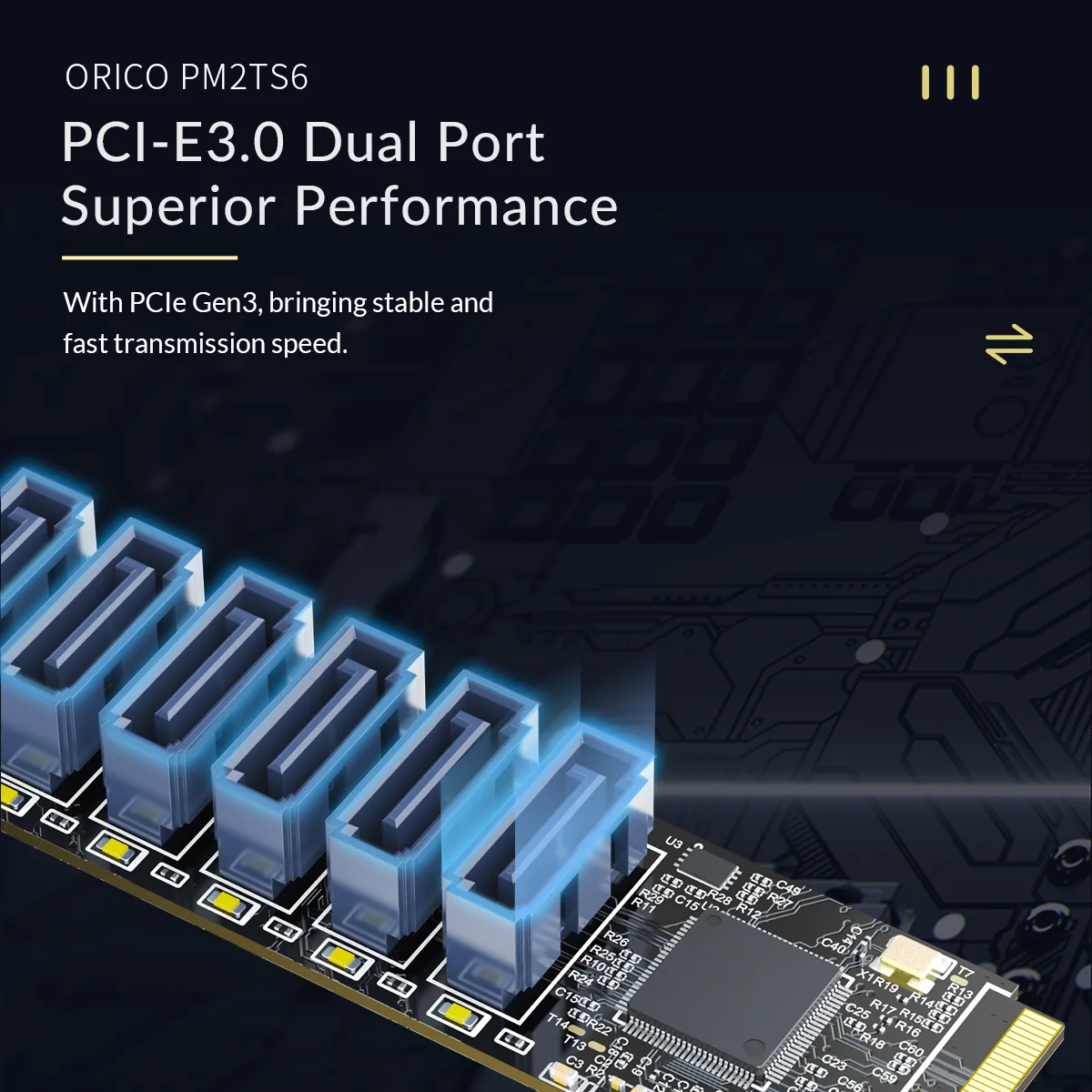

The Orico PM2TS6-BP connects six SATA 3.0 devices through an M.2 M-key PCIe Gen3 x4 slot. Each port runs at 6 Gbps and the card uses an ASM1166 controller for stable operation. An LED indicator shows drive activity and the board fits standard desktop expansion slots.

Builders adding multiple SATA drives

This card suits users who want to attach several mechanical drives or SATA SSDs to a system with a free M.2 M-key slot. It also supports software RAID through the operating system. Buyers who need more than six ports or a different host interface should consider other options.

Dual-channel PCIe Gen3 M-key interface

The adapter requires an M.2 M-key slot wired for PCIe Gen3 x4 to deliver the stated bandwidth. Theoretical totals of 16 Gbps or 36 Gbps depend on that link width and the host chipset. Verify the motherboard slot wiring before purchase.

Highlights

  • Dual-channel PCIe Gen3 M.2 interface delivers 32Gbps total bandwidth
  • Six SATA 3.0 ports each run at 6Gbps for 36Gbps aggregate throughput
  • ASM1166 chip provides stable high-speed transmission across all connections
  • Built-in LED shows real-time drive activity status at a glance
  • Soft RAID support via system tools enables flexible storage configurations

Specifications

BrandORICO
ModelPM2TS6-BP
TypePCI Express to M.2 Card
StandardSATA 3.0
Data Transfer Rate6Gbps

Questions about this item

What total bandwidth does the dual-channel PCIe Gen3 interface actually deliver to the six SATA ports?

The adapter provides a theoretical 16 Gbps of shared bandwidth across all six SATA 3.0 ports, not the full 32 Gbps that a PCIe 3.0 x4 link could carry.

How much heat and noise does the ASM1166 controller produce when all six drives are active for hours?

The card is passively cooled with no fan, so it generates no noise; the ASM1166 controller runs warm under sustained load but stays within normal operating temperatures inside a ventilated case.

Does the M.2 M-Key slot require a specific motherboard keying or bifurcation setting to work?

The card plugs into a standard PCIe x4 or larger slot; no M.2 slot or motherboard bifurcation is needed because the ASM1166 bridge handles the SATA conversion on the card itself.
