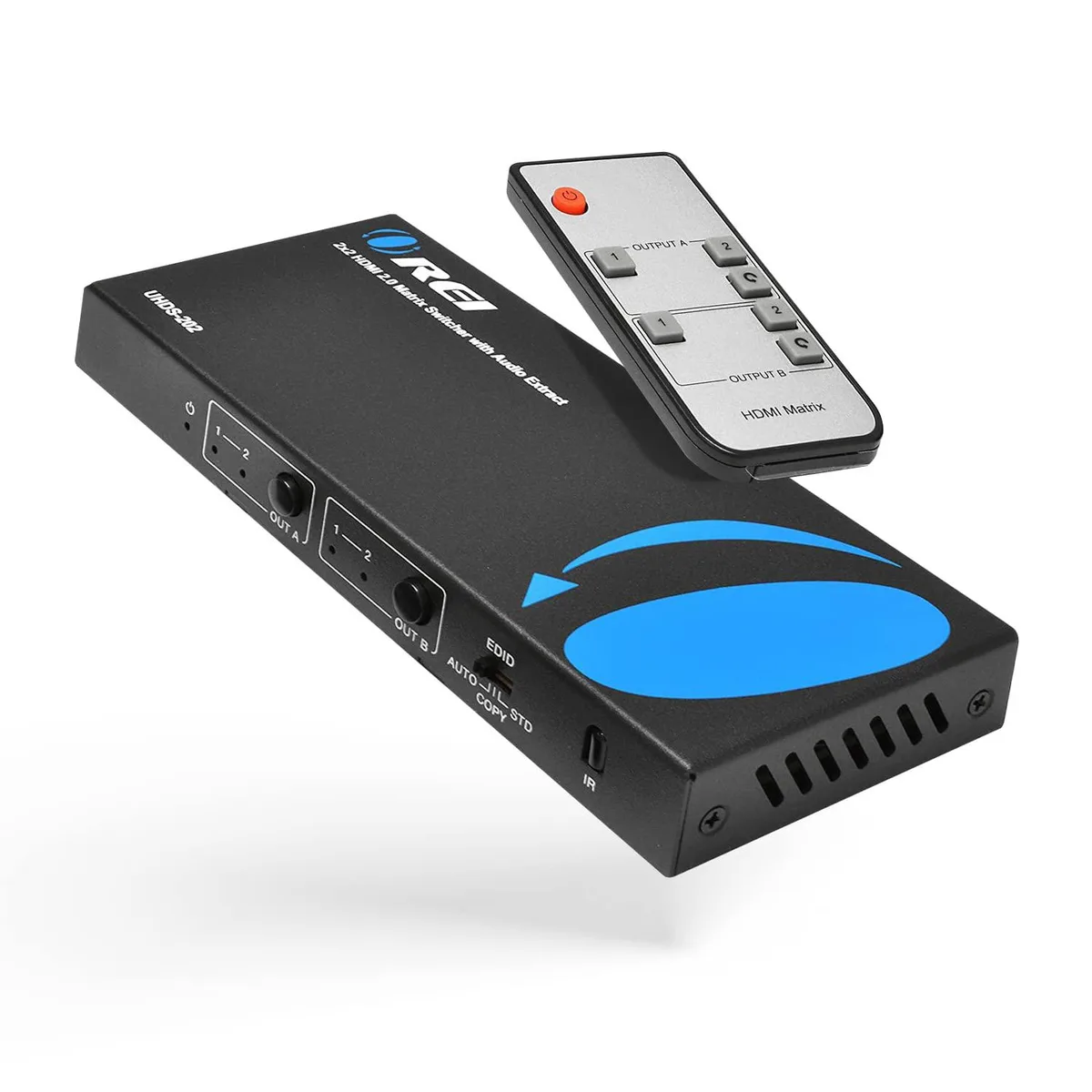

Black rectangular HDMI matrix switch with four ports and IR remote

OREI UHDS-202 2x2 HDMI Matrix Switch

SKU CH-DAZA-EDX74

A 2×2 HDMI matrix routes two sources to two displays at up to 4K 60 Hz with HDR and 7.1-channel audio

  • TypeHDMI
  • Changer TypeHDMI
  • ColorBlack
  • Ports4
  • Input Connector4
  • Output ConnectorFemale-to-Male
  • Routes two sources to two displays independently
  • Supports 4K resolution at 60Hz with 18Gbps bandwidth
  • Handles 7.1 channel Dolby TrueHD and DTS-HD Master Audio
  • Includes IR remote for front-panel source selection
  • Compact 5.94 x 2.4 x 0.72 inch form factor weighs .42 kg

OREI UHDS-202 2x2 HDMI Matrix Switch

The OREI UHDS-202 is a 2x2 HDMI matrix switcher that routes two HDMI sources to two independent displays. It supports video resolutions up to 4K at 60 Hz with 4:4:4 chroma subsampling and 18 Gbps bandwidth. The unit handles HDCP 2.2 copy protection and passes high-definition audio formats including Dolby TrueHD and DTS-HD Master Audio up to 7.1 channels. A supplied IR remote allows instant source selection for each output.

Installers needing independent dual-display routing

This matrix suits installers who need to send two different sources to two separate screens simultaneously, such as a living-room TV and a bedroom display. It also fits users requiring audio de-embedding via digital SPDIF or 3.5 mm analog outputs for external sound systems. Buyers who need to extend a single PC desktop across two monitors should look elsewhere, as the device does not support monitor extension. Users requiring more than two inputs or two outputs will need a larger matrix.

Compact unit for rack or shelf placement

Measuring 5.94 in wide, 2.4 in deep and 0.72 in high, the switcher fits easily on a shelf or in a shallow rack tray. It ships with a dual-voltage power supply fitted with a US plug and an international adapter, so no separate voltage converter is required. Four HDMI cables are needed to connect the two sources and two displays, and an IR eye on the front panel receives commands from the included remote. The metal chassis weighs 0.42 kg and runs without a fan, keeping operation silent in living spaces.

Highlights

  • Routes two sources to two displays independently
  • Supports 4K resolution at 60Hz with 18Gbps bandwidth
  • Handles 7.1 channel Dolby TrueHD and DTS-HD Master Audio
  • Includes IR remote for front-panel source selection
  • Compact 5.94 x 2.4 x 0.72 inch form factor weighs .42 kg

Specifications

BrandOREI
ModelUHDS-202
Part NumberUHDS-202
TypeHDMI
Changer TypeHDMI
ColorBlack
Ports4
Input Connector4
Output ConnectorFemale-to-Male
Maximum Resolutions2x2 Matrix
Dimensions5.94 in x 2.4 in x 0.72 in
Weight0.42 kilograms

Questions about this item

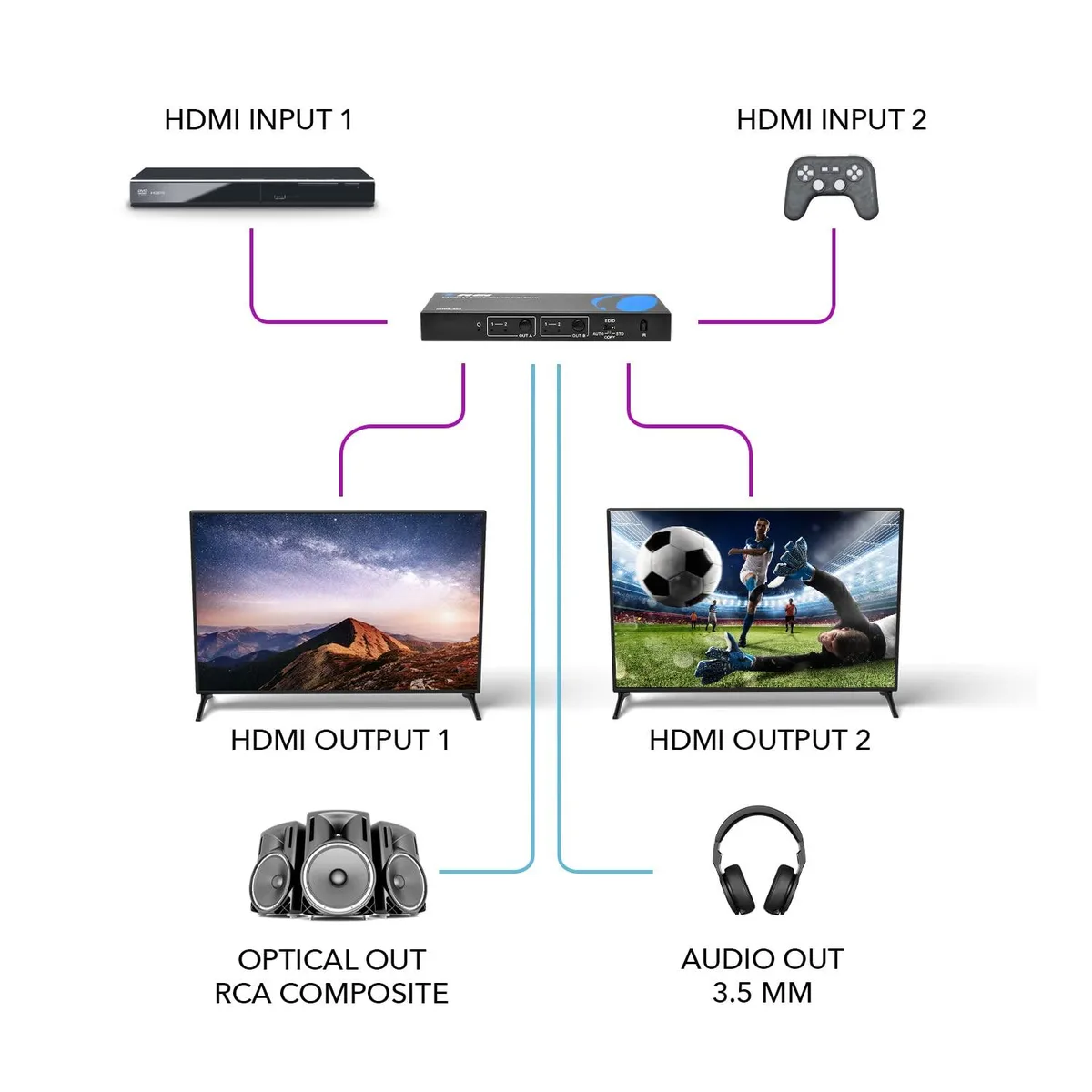

Which HDMI sources and displays do I need to connect to the two input and two output ports?

Connect up to two HDMI source devices to the two input ports and two HDMI displays to the two output ports; the unit handles 4K at 60 Hz and 1080p signals.

Will my older 1080p equipment work with the 4K 60 Hz matrix?

Yes, the switch supports 1080p alongside 4K at 60 Hz and is compatible with HDMI 1.4, 1.3 and 1.2 devices.

How can I confirm the matrix is switching correctly after setup?

Use the IR remote to select each input and verify that both outputs show the chosen source at the expected resolution and with audio.
