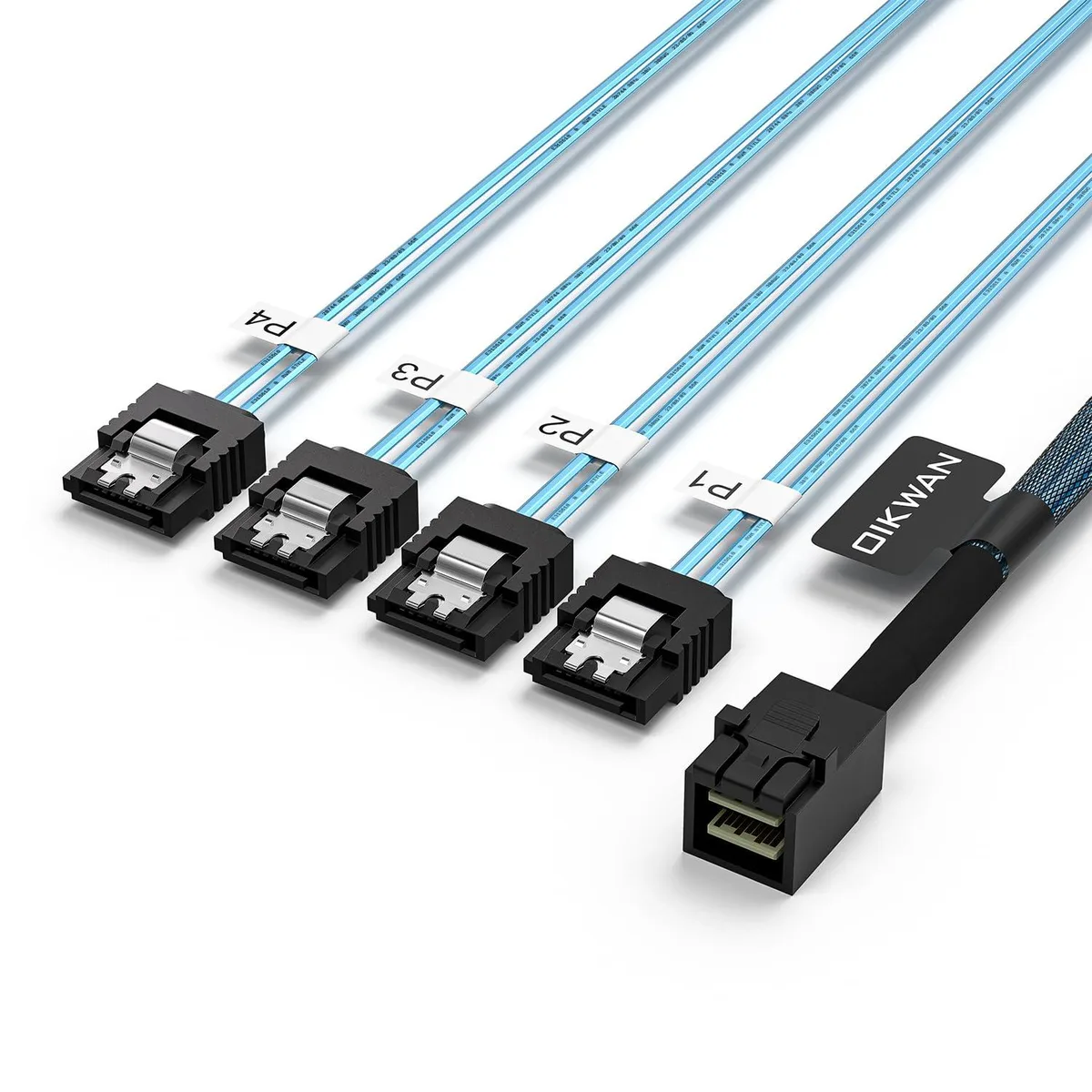

SFF-8643 plug fanning out to four SATA connectors on woven-sheathed ribbon cable

OIKWAN CB-001 SFF-8643 to 4 SATA Cable 3.3ft

SKU CH-Z3BA-HF9XG

Connects a 12 Gbps RAID controller with SFF-8643 to four SATA drives at 6 Gbps over 3.3 ft

  • TypeComponent
  • ColorSFF-8643 to 4X SATA
  • Length3.3 feet
  • Connector DetailSff-8643
  • Terminal GenderMale-to-Male
  • Speed6 gigabits_per_second
  • Connect 4 SATA drives to a 12 Gbps RAID controller via SFF-8643
  • 3 ft length with woven mesh sheath for tidy internal routing
  • P1–P4 markers simplify drive identification after installation
  • Low-profile SATA plugs with steel latches resist vibration and accidental disconnect
  • 36-pin SFF-8643 supports 6 Gbps and 3 Gbps SATA speeds

SFF-8643 to Four SATA Breakout Cable

This 3.3ft cable connects a 12 Gbps host bus adapter or RAID controller with an SFF-8643 port to four SATA drives. It supports both 3 Gbps and 6 Gbps SATA speeds for flexible storage expansion. The male-to-male design uses a 36-pin SFF-8643 connector and four 7-pin SATA connectors. Woven mesh sheathing and acetate cloth tape provide strain relief for internal routing.

Suits RAID cards with SFF-8643 ports.

Builders attaching SATA HDDs or SSDs to a compatible RAID controller or HBA will find this breakout cable matches the required pinout. The low-profile SATA connectors include stainless steel latches to prevent accidental disconnection. Buyers whose Mini SAS SFF-8643 port resides on a backplane rather than a controller card cannot use this cable. P1 to P4 markers simplify drive identification after installation.

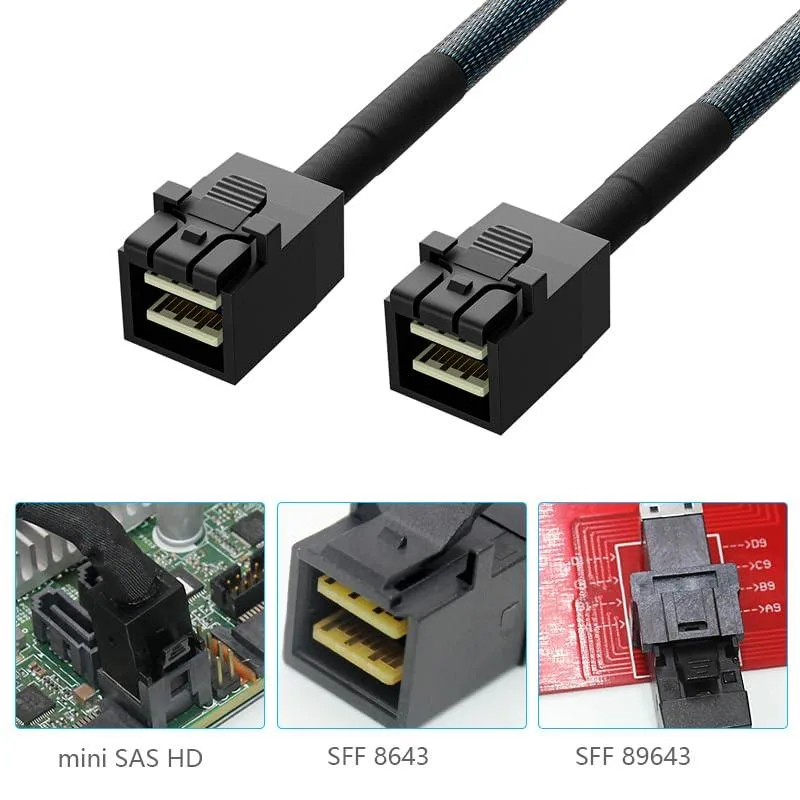

36-pin SFF-8643 to four 7-pin SATA at 6 Gbps

The single specification that decides fit is the 36-pin SFF-8643 male connector paired with four 7-pin SATA male connectors operating at 6 Gbps. This pinout and speed rating determine whether the cable matches your controller and drives. Silver-plated oxygen-free copper cores and a 100 ohm SAS 3.0 design ensure signal integrity. Verify your controller presents an SFF-8643 port before purchasing.

Highlights

  • Connect 4 SATA drives to a 12 Gbps RAID controller via SFF-8643
  • 3 ft length with woven mesh sheath for tidy internal routing
  • P1–P4 markers simplify drive identification after installation
  • Low-profile SATA plugs with steel latches resist vibration and accidental disconnect
  • 36-pin SFF-8643 supports 6 Gbps and 3 Gbps SATA speeds

Specifications

BrandOIKWAN
ModelCB-001
TypeComponent
ColorSFF-8643 to 4X SATA
Length3.3 feet
Connector DetailSff-8643
Terminal GenderMale-to-Male
Speed6 gigabits_per_second

Questions about this item

What SFF-8643 port orientation does this cable require on the RAID controller or motherboard?

The SFF-8643 connector must face the RAID controller or motherboard, not a backplane, for the 36 pin Mini SAS HD interface to function correctly.

How do the P1 to P4 markers help during installation of the four SATA connectors?

The markers identify each 7 pin SATA link so you can match drives to controller ports without tracing the ribbon cables after routing.

When should the acetate cloth tape and woven mesh sheath be inspected for wear?

Check the strain relief tape and mesh sheath whenever drives are swapped or the chassis is reopened, as vibration can degrade the ribbon cable protection over time.
