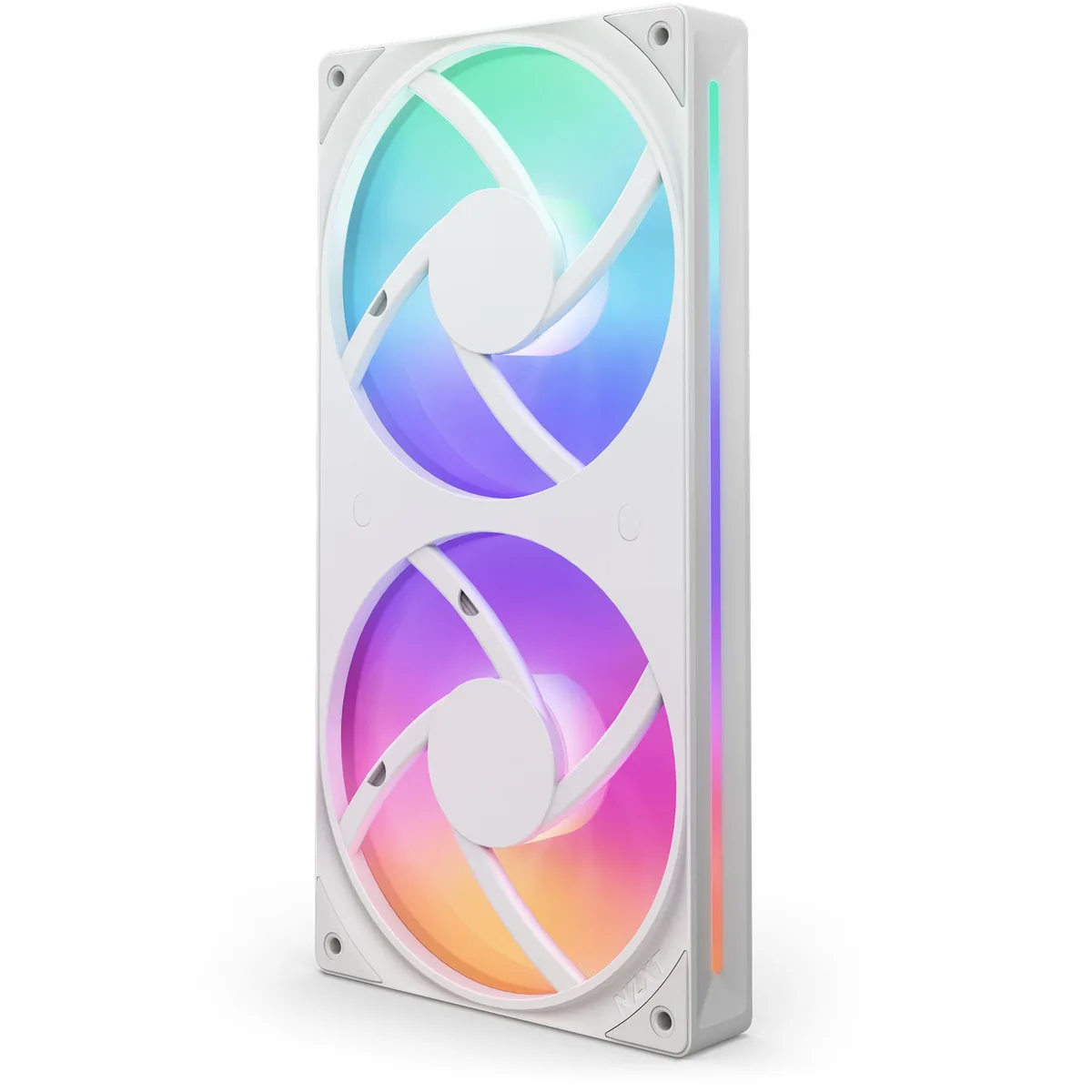

White 240mm dual-fan unit with RGB lighting and semi-translucent blades

NZXT

NZXT RF-U24HF-W1 240mm dual-fan case fan, white

SKU CH-T1V7-1CHVZ MPN RF-U24HF-W1

A 240 mm white dual-fan unit delivers 75.12 CFM per fan at up to 2400 RPM with 30 dBA noise and fluid dynamic bearings

  • Fan Size240mm
  • LEDRGB
  • TypeCase Fan
  • Bearing TypeFluid Dynamic Bearing
  • RPM500 - 2400 +/- 250 RPM per fan
  • Air Flow75.12 CFM per fan

Fan Size 240mm

  • 240 mm single-frame design simplifies installation with one cable
  • Two fans deliver 75.12 CFM each for strong airflow
  • Fluid dynamic bearings and Zero RPM mode keep noise to 30 dBA

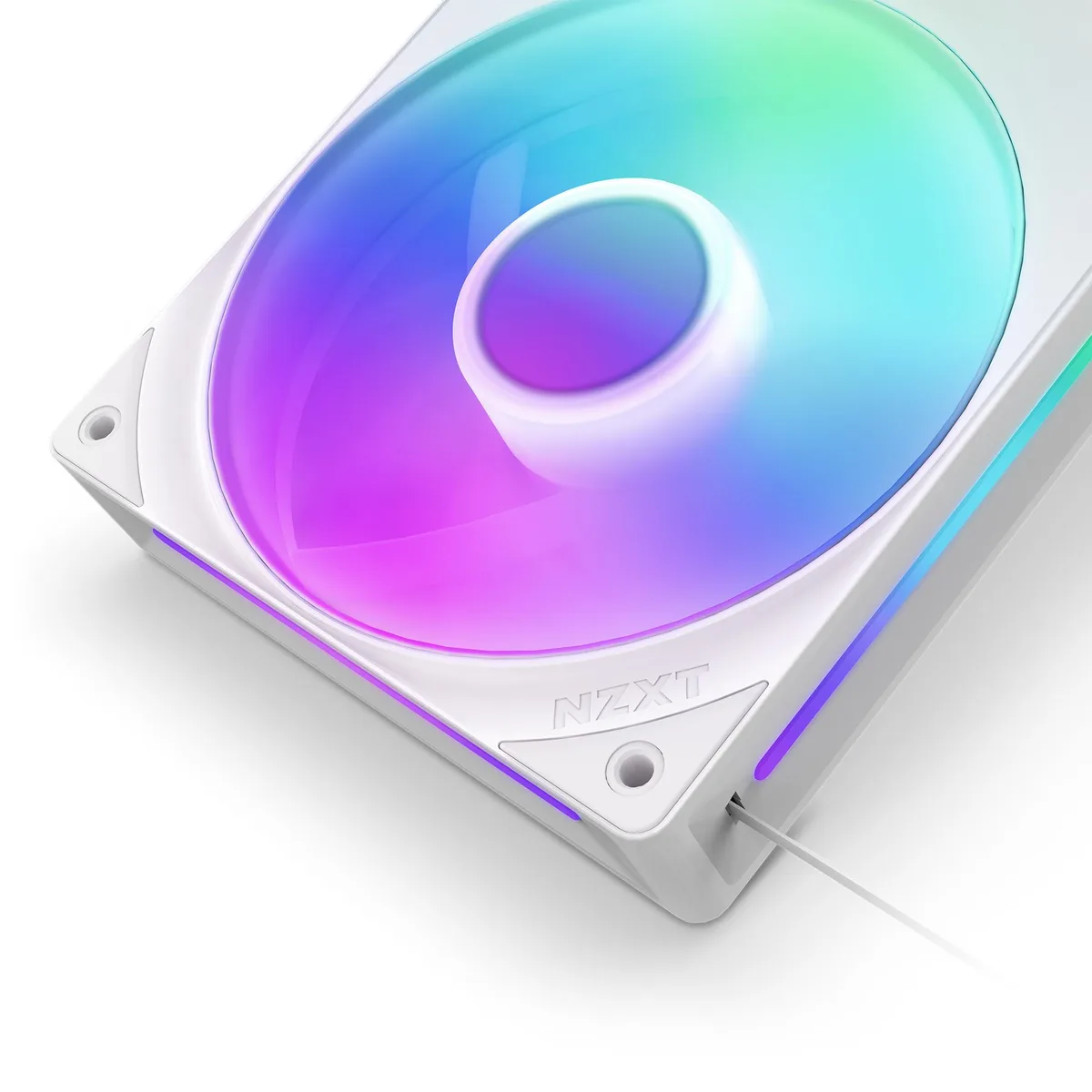

  • RGB LEDs on semi-translucent blades provide vivid lighting
  • 3 mm H₂O static pressure per fan suits radiator cooling

240 mm dual-fan RGB unit

The NZXT RF-U24HF-W1 mounts two 120 mm fans inside a single white frame that spans 240 mm in length. It is built for enthusiasts who want coordinated RGB lighting and simplified cabling in a mid-tower or larger chassis. The unit arrives new and includes both PWM and RGB cables for immediate installation.

Single-frame construction

A unified frame reduces the gap between blade tips and housing, which the manufacturer says improves airflow efficiency. Each fan uses a fluid dynamic bearing rated for quiet, durable operation and supports a Zero RPM mode when paired with a compatible NZXT controller. One 8-pin connector carries both PWM and 5 V RGB signals, while an included splitter allows direct motherboard hook-up.

75.12 CFM airflow at 30 dBA per fan

The pair spins between 500 and 2400 RPM with a tolerance of 250 RPM, delivering 75.12 CFM and 3.3 mm H₂O of static pressure per fan at the top of the range. Acoustic output stays at 30 dBA per fan under normal load. Power draw is handled through the single 8-pin header, so no extra PSU cables are required for the fans themselves.

Highlights

  • 240 mm single-frame design simplifies installation with one cable
  • Two fans deliver 75.12 CFM each for strong airflow
  • Fluid dynamic bearings and Zero RPM mode keep noise to 30 dBA
  • RGB LEDs on semi-translucent blades provide vivid lighting
  • 3 mm H₂O static pressure per fan suits radiator cooling

Specifications

BrandNZXT
SeriesF240 RGB CORE
ModelRF-U24HF-W1
Part NumberRF-U24HF-W1
Fan Size240mm
LEDRGB
TypeCase Fan
Bearing TypeFluid Dynamic Bearing
RPM500 - 2400 +/- 250 RPM per fan
Air Flow75.12 CFM per fan
Noise Level30 dBA per fan
Power Connector8-pin for PWM & RGB
ColorWhite
Fan Counts2 Fans
Fan Thickness26mm
Air Pressure3.3 mm H2O per fan
FeaturesHIGH PERFORMANCE. LOW NOISE.
Optimized for cooling, the integrated fans balance airflow and static pressure. Minimal blade-to-edge gap boosts efficiency. Fluid dynamic bearings with Zero RPM Mode* ensure quiet, durable operation.
*Requires an NZXT RGB & Fan Controller or NZXT motherboard, each sold separately.
SIMPLE INSTALLATION
Single-frame design simplifies installation and digital control. Connect a single cable to an NZXT RGB & Fan Controller (sold separately) to use CAM software or use the included splitter for motherboard connection.
RADIANT RGB
Eight RGB LEDs per fan illumina
Dimensions240 x 120 x 26 mm
Package Contents4-pin PWM Fan Cable - 1 x 300 mm
5V RGB & 4-pin NZXT RGB Cable - 1 x 100 mm
Shipping weight0.45 kg
Package size286 × 127 × 32 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 8-pin power connector carry for the NZXT RF-U24HF-W1?

The single 8-pin cable delivers both PWM speed control and 5 V RGB signals to the dual-fan unit, removing the need for separate headers.

Will the 26 mm thick, 240 x 120 mm frame fit my 240 mm radiator mounts?

Yes — the unit matches standard 240 mm radiator dimensions at 240 x 120 x 26 mm, so it mounts directly to any case or radiator bracket designed for that size.

How do I connect the included cables for motherboard control instead of an NZXT controller?

Plug the 300 mm 4-pin PWM lead into a CPU_FAN or SYS_FAN header and the 100 mm 5 V RGB lead into a 5 V ARGB header; the bundled splitter merges both fans into those two connectors.
