NuoTo Morse Code Decoder Module LED Display DC7-12V
A Morse code decoder module with an LED display for direct readout, operating on 7–12 V DC with up to 90% efficiency
- CPU TypeOther

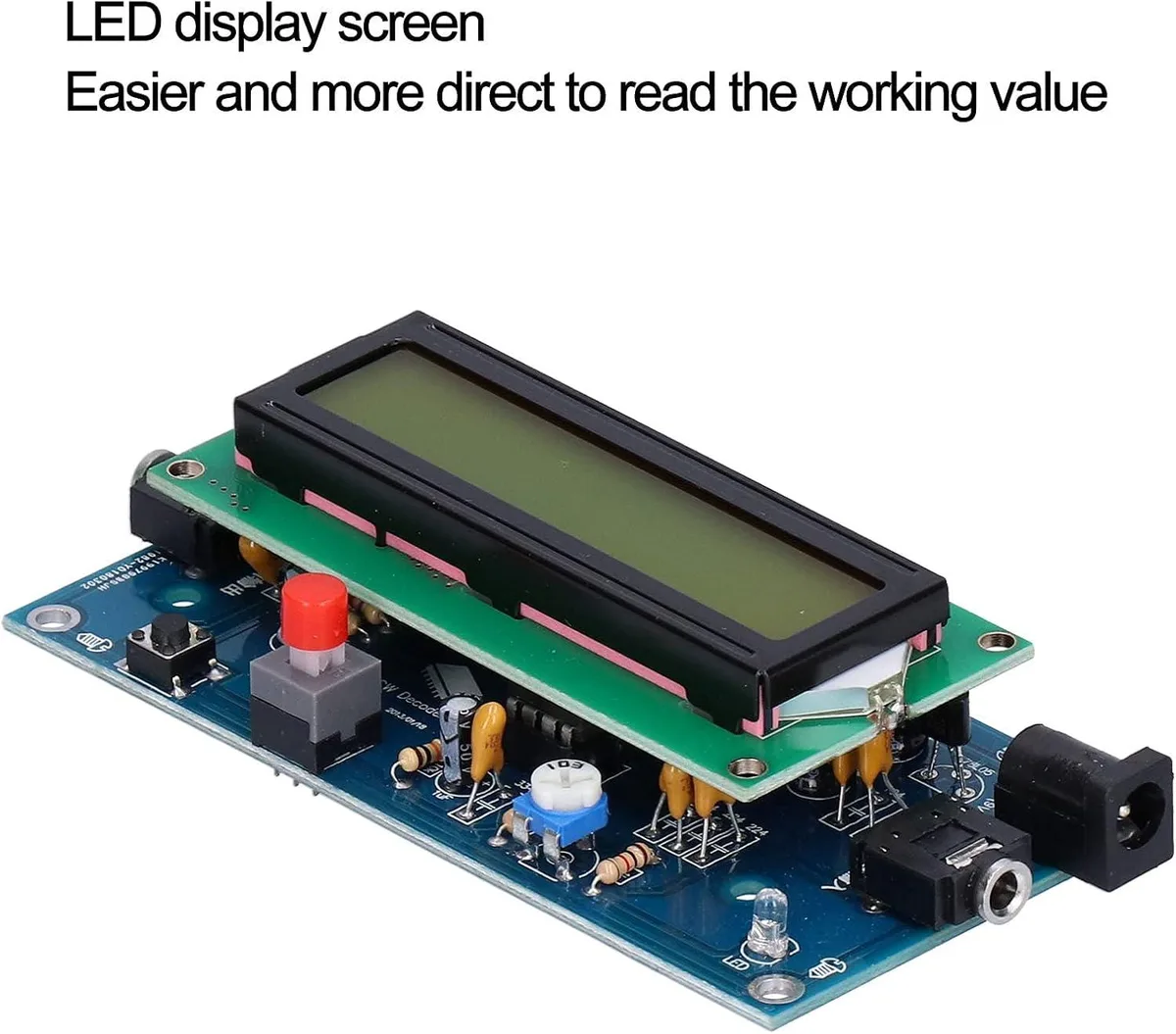

- Clear LED display shows decoded values instantly
- ±1 % precision resistors maintain high signal-to-noise ratio

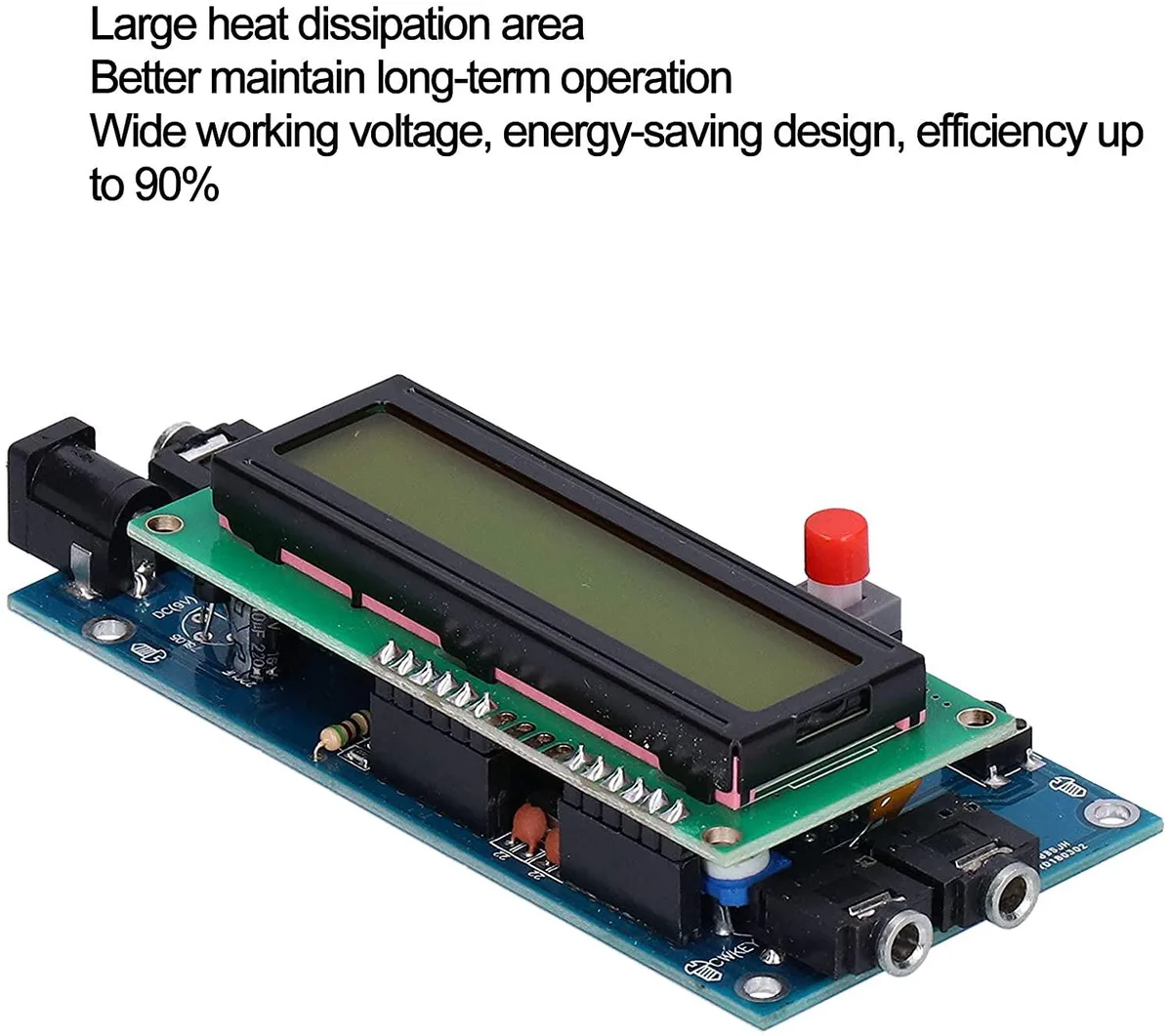

- 90 % energy-saving efficiency across DC 7-12 V input
- 6 mm double-sided PCB ensures stable long-term operation
- Full tinning process handles both large and small currents reliably
Morse Code Decoder Module
The NuoTo decoder module translates Morse audio signals into readable text on an integrated LED display. It operates on a DC 7-12V supply and is built on a 1.6mm double-sided PCB for stable performance. The unit suits hobbyists, educators, or radio operators who need a compact, standalone decoding device.
Upgrade from Basic Audio Decoding
This module replaces simple piezo buzzers or software-only decoders that lack a dedicated readout. The hardware implementation uses ±1% metal-film resistors and high-accuracy chip resistors to maintain a clean signal-to-noise ratio. The jump is worth it when you need immediate visual confirmation without a connected computer or smartphone screen.
For Standalone Signal Monitoring
The decoder suits users who want a self-contained tool for real-time Morse translation during radio listening or training sessions. Builders who require message storage, PC logging, or multi-mode digital protocol support should look at more advanced controller-based platforms instead.
Highlights
- Clear LED display shows decoded values instantly
- ±1 % precision resistors maintain high signal-to-noise ratio
- 90 % energy-saving efficiency across DC 7-12 V input
- 6 mm double-sided PCB ensures stable long-term operation
- Full tinning process handles both large and small currents reliably
Specifications
| CPU Type | Other |
|---|
Questions about this item
What voltage range does the NuoTo Morse Code Decoder Module require for power input?
The module operates on a DC input voltage between 7 V and 12 V.
How is the decoder module typically installed in a project or enclosure?
Mount the 1.6 mm thick double-sided PCB using its corner holes and connect the DC power leads to a 7–12 V supply; the most common mistake is reversing the polarity.
What ongoing care does the decoder module need to maintain reliable operation?
Keep the large heat-dissipation area free of dust and debris, verify the supply stays within the 7–12 V range, and avoid sustained over-current conditions.
