Handheld CCTV tester with five-inch IPS touch screen

NShi

NShi IPC-5200 Plus 5in IPS Touch CCTV Tester surveillance accessory

SKU CH-M6Q7-D3CWT

A 5-inch IPS touch CCTV tester that displays 4K H.264/H.265 video, tests 8MP CVI, TVI, AHD and SDI cameras, and includes cable tracing with TDR and UTP fault detection

  • TypeOther
  • 5-inch 1080P IPS touch screen for clear on-site viewing
  • Tests 8MP TVI CVI AHD SDI and CVBS cameras on one tool

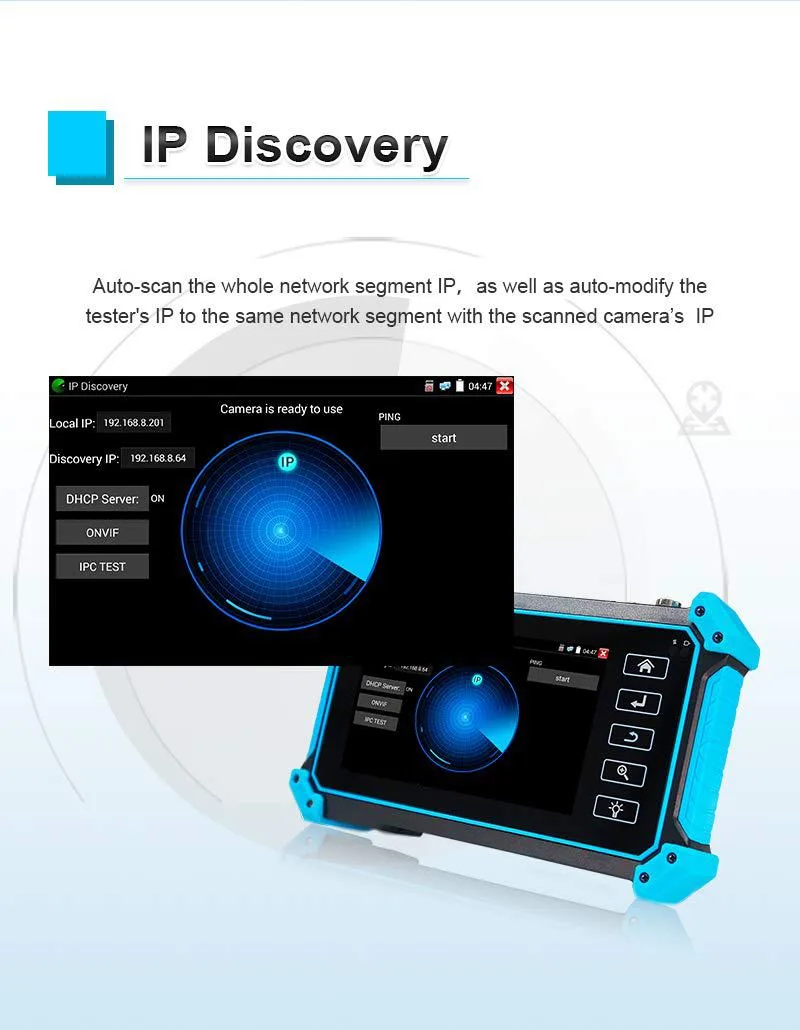

  • Built-in IP discovery auto-matches network segment for fast camera setup
  • VGA up to 2048 x 1152 60FPS and HDMI 4K 30FPS input for versatile monitoring

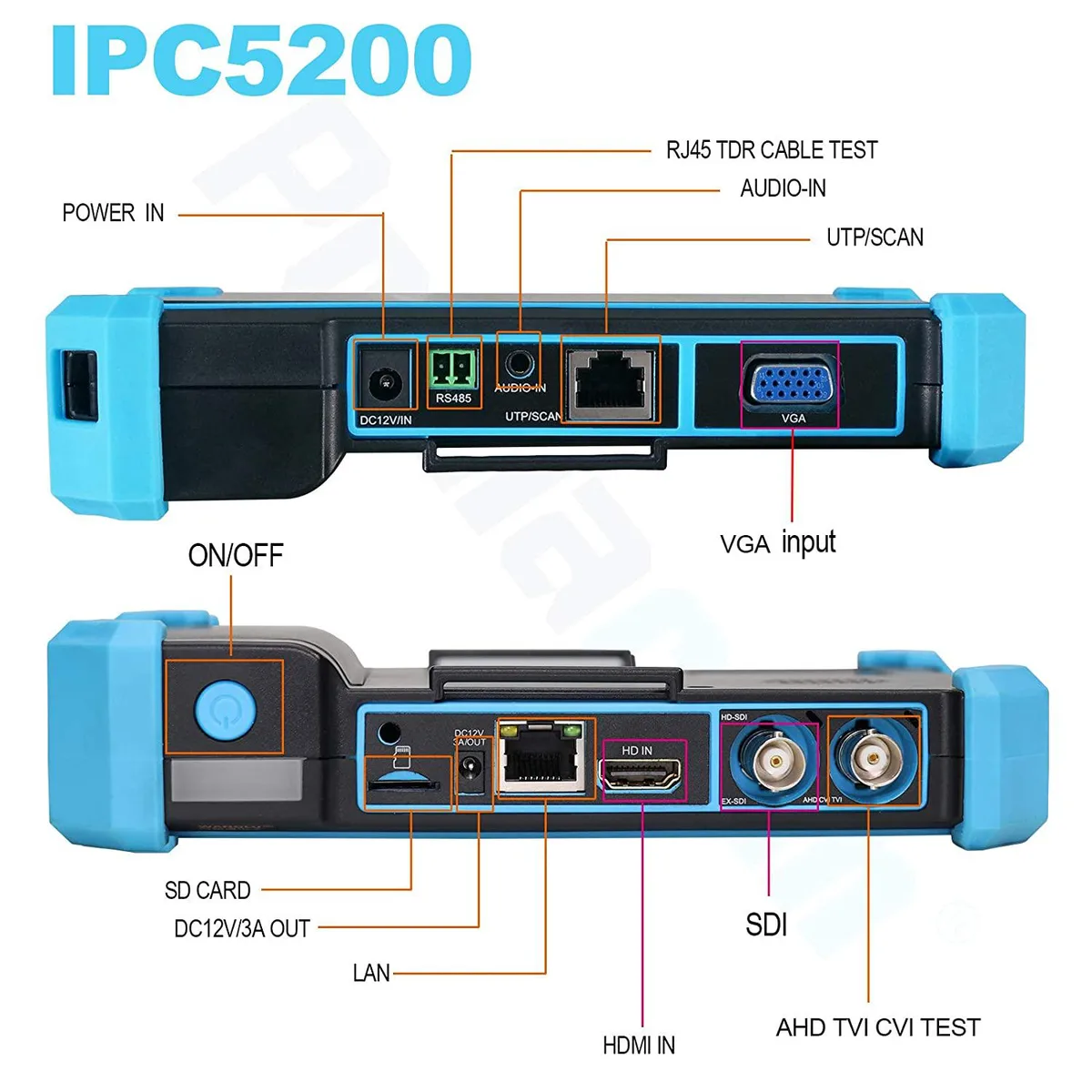

  • RJ45 TDR and UTP cable tests locate faults while tracer finds hidden runs

What It Is

The NShi IPC-5200 Plus is a portable 5-inch IPS touch-screen CCTV tester with a 1920x1080 display. It combines IP camera discovery, 8MP analog-signal testing, 4K H.264/H.265 video playback, VGA and HDMI input, PTZ control, and a cable tracer with TDR fault location in one handheld unit. It also provides DC 12V 3A and 48V PoE power outputs for powering cameras during installation.

Who It Suits

Installers who need a single tool to verify IP cameras, test 8MP TVI, CVI, AHD, and SDI analog signals, check cable integrity, and power devices on site will find this tester covers each step. Technicians whose work is limited to basic CVBS cameras or who require wireless network analysis should look at a different instrument.

The Deciding Specification

The tester decodes 8MP TVI, CVI, and AHD at 3840x2160 12.5 or 15 frames per second, and 8MP EX-SDI at 25 frames per second. If your cameras output higher frame rates at that resolution, this unit will not display them at full speed.

Highlights

  • 5-inch 1080P IPS touch screen for clear on-site viewing
  • Tests 8MP TVI CVI AHD SDI and CVBS cameras on one tool
  • Built-in IP discovery auto-matches network segment for fast camera setup
  • VGA up to 2048 x 1152 60FPS and HDMI 4K 30FPS input for versatile monitoring
  • RJ45 TDR and UTP cable tests locate faults while tracer finds hidden runs

Specifications

TypeOther

Questions about this item

How do I power an IP camera during installation using the tester's 48V PoE output?

Connect the camera to the tester's PoE port; the unit supplies 48V PoE power output so the camera powers up without a separate injector.

Which consumable item will need replacement first on the IPC-5200 Plus?

The internal rechargeable battery that powers the 5-inch IPS touch screen and 12V 3A output will degrade over time and eventually require replacement.

What is the maximum frame rate when viewing 8MP CVI video on the 1920x1080 display?

8MP CVI signals at 3840x2160P are displayed at 12.5 or 15 FPS, so sustained playback tops out at 15 FPS.
