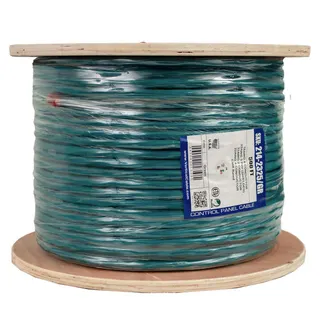

Green riser-rated access control cable on wooden spool, 500ft, 18 and 22 AWG stranded copper conductors

NShi

NShi Access Control Cable 18/22 AWG Green 500ft Spool

SKU CH-84WV-EZ2W3

Four-part access-control cable with 22 AWG shielded pairs and 18 AWG power conductors on a 500 ft green riser-rated spool

  • TypeOther
  • Four cables in one spool simplify access-control wiring
  • Riser-rated jacket meets vertical-shaft fire requirements
  • ETL listed and RoHS compliant for regulated installs
  • Stranded bare copper conductors ensure flexible, reliable connections
  • 500ft length on wooden spool reduces mid-run splices

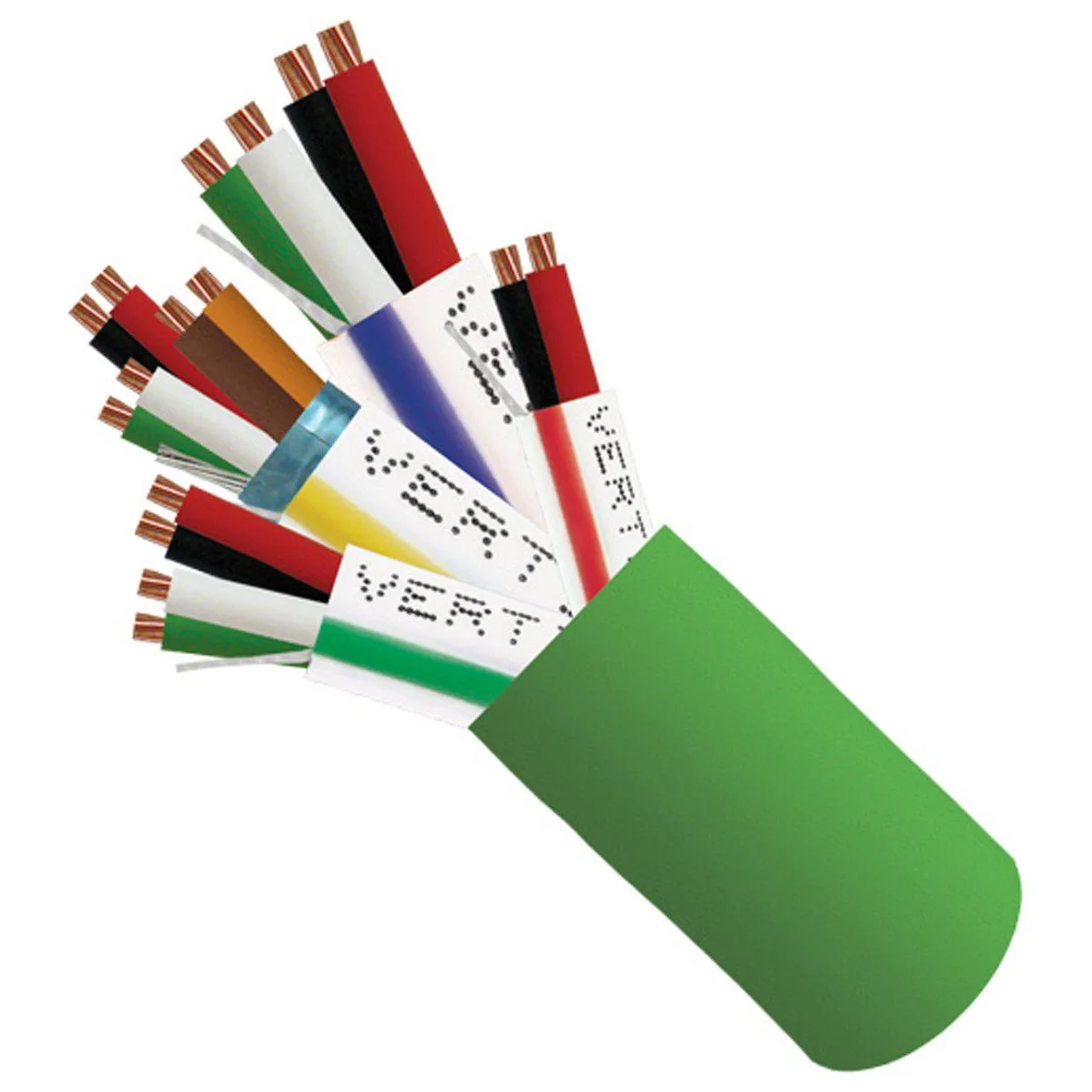

4-Component Access Control Cable

This is a 500ft spool of green riser-rated cable designed for indoor security wiring. It combines four separate component cables under one overall PVC jacket. Conductors are stranded bare copper in 22 AWG and 18 AWG sizes. The cable carries ETL listing and RoHS compliance for regulated installations.

Suited Uses and Limitations

The composite construction serves access control panels, card readers, keypads, sensors, alarm systems, microphones and speakers in a single pull. Installers who need only a single pair or a different conductor count should select a simpler cable. Outdoor or plenum-rated runs are not supported by this riser-rated jacket.

Composite Gauge and Component Mix

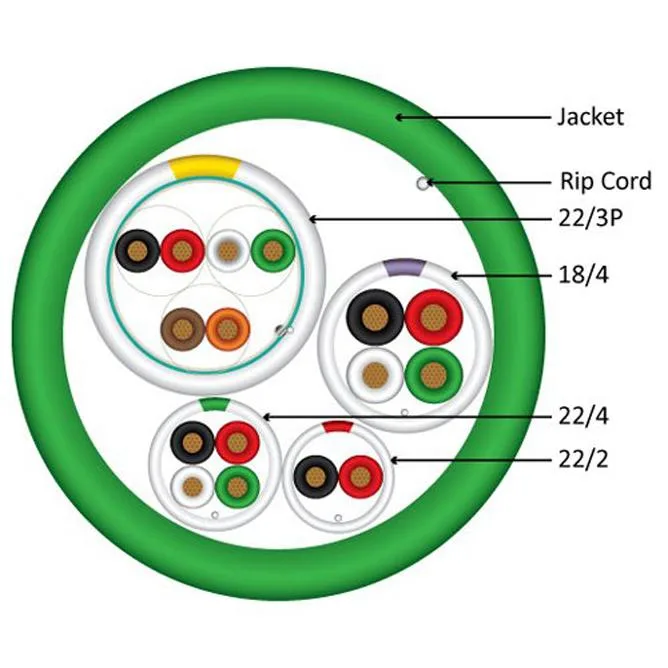

The spool contains a 22 AWG 3-pair shielded cable, an 18 AWG 4-conductor cable, a 22 AWG 4-conductor cable and a 22 AWG 2-conductor cable. This specific gauge combination determines whether the cable matches the device wiring requirements of the target system.

Highlights

  • Four cables in one spool simplify access-control wiring
  • Riser-rated jacket meets vertical-shaft fire requirements
  • ETL listed and RoHS compliant for regulated installs
  • Stranded bare copper conductors ensure flexible, reliable connections
  • 500ft length on wooden spool reduces mid-run splices

Specifications

TypeOther

Questions about this item

Which devices must I already have to use the 18 AWG 4-conductor section for power?

You need access control panels, security panels, card readers, sensors, keypads, microphones, speakers or alarm systems that accept 18 AWG power wiring.

Can I run the 22 AWG 3-pair shielded section alongside older non-shielded alarm wiring in the same conduit?

Yes, the shielded 22 AWG pairs are designed for data and can share conduit with legacy alarm conductors if local code allows.

How do I verify the green riser-rated jacket is intact after pulling 500 ft through walls?

Inspect the full length for cuts or abrasion; the green PVC jacket should show no exposed copper and the ETL mark on the spool confirms the rating.
