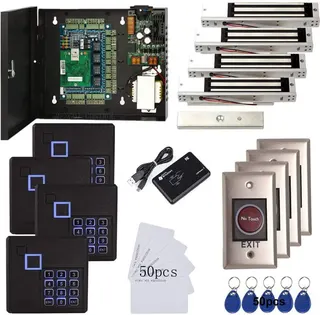

Metal cabinet with four magnetic locks, four keypad readers, infrared exit buttons, cards and fobs

NShi

NShi 4-Door Access Control System 600lbs Locks 50 Cards 50 Fobs

SKU CH-A7GH-JG2T2

A four-door access kit with 600lbs magnetic locks, card, fob, PIN and phone-app entry for up to 20000 users and 100000 event logs

  • TypeKeypad Door Locks
  • Control 4 doors with cards, fobs, PIN or card+PIN
  • Stores 20,000 users and 100,000 entry logs
  • 600 lbs magnetic holding force per door
  • Remote unlock via iOS and Android app
  • Includes 50 cards, 50 fobs and USB enrolment reader

Four-Door Access Control System

The NShi system manages entry for four separate doors using RFID cards, key fobs or PIN codes. It stores up to 20,000 users and 100,000 event logs in its onboard memory. A desktop USB enrolment reader simplifies adding credentials to the management software. The package includes 50 cards and 50 fobs for immediate deployment.

TCP/IP Network and 110–240 V Power

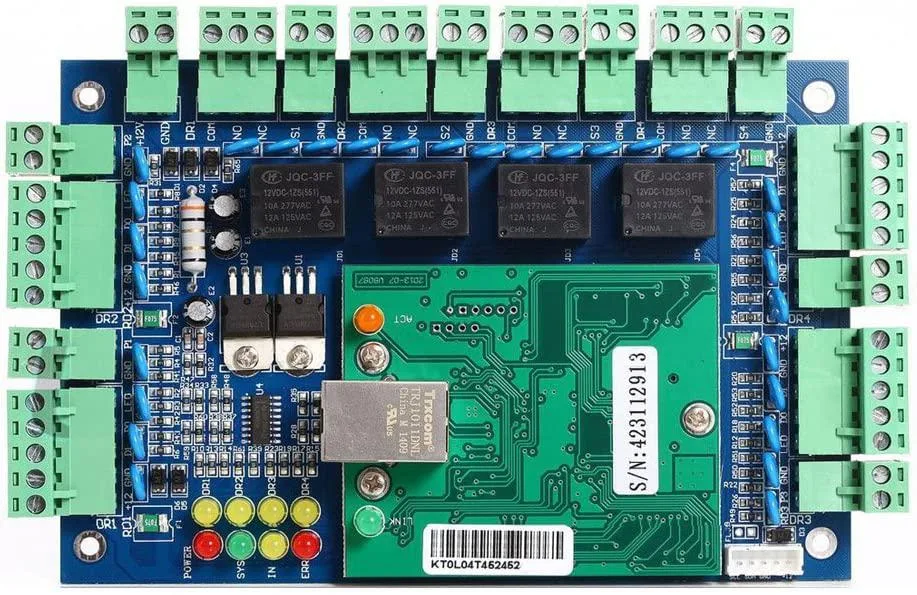

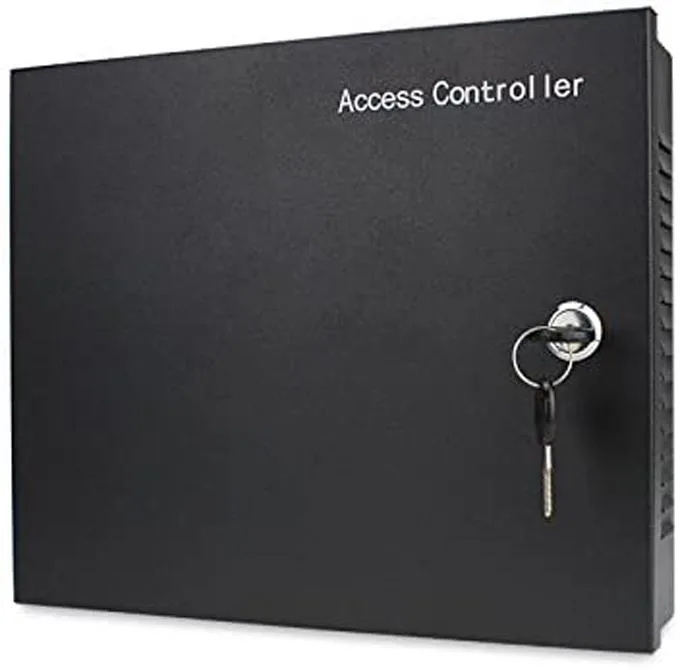

Communication with the control panel runs over a wired TCP/IP connection to a Windows PC running the supplied Access or SQL Server software. The metal power-supply cabinet accepts 110–240 V AC input and delivers 5 A to the whole system. Each magnetic lock provides 600 lbs holding force and releases in less than .2 second when a valid credential is presented. Infrared exit buttons allow touch-free egress from the secure side.

Software and Wiring Prerequisites

The management application requires Windows 7, 8 or 10 in either 32-bit or 64-bit editions. A dedicated PC with a free USB port for the enrolment reader and a network port for the controller is needed. Installation follows the supplied wiring diagrams and video guide, but running cables to four doors, four readers, four locks and four exit buttons demands planning. Buyers who want wireless connectivity, battery backup or integration with third-party building-management platforms should look elsewhere.

Highlights

  • Control 4 doors with cards, fobs, PIN or card+PIN
  • Stores 20,000 users and 100,000 entry logs
  • 600 lbs magnetic holding force per door
  • Remote unlock via iOS and Android app
  • Includes 50 cards, 50 fobs and USB enrolment reader

Specifications

TypeKeypad Door Locks

Questions about this item

How many users and entry logs can the system store?

The controller supports up to 20,000 users and retains up to 100,000 access logs for reporting.

What does the 600lbs holding force mean for each door?

Each magnetic lock resists 600lbs of pull, keeping the door secured until an authorised credential or the infrared exit button releases it.

How does the TCP/IP network link limit remote operation?

The panel connects over a wired TCP/IP LAN; the smartphone app can open doors locally or remotely only while that network path is available.
